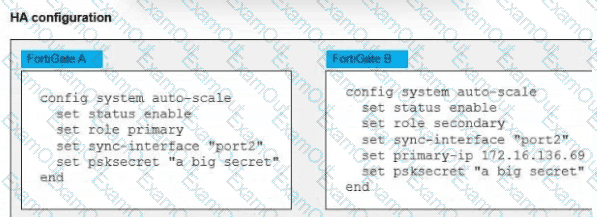

The Azure active-active load balance sandwich consists of two or more independent FortiGate VMs positioned between load balancers. The study guide explicitly states that FGCP configuration synchronization does not apply to this topology. Configuration synchronization can instead be implemented with FortiManager or with config system auto-scale, as shown in the exhibit. In this use case, the auto-scale configuration establishes a primary FortiGate and one or more secondary FortiGates for configuration synchronization; it does not mean Azure automatically adds FortiGate instances according to workload thresholds. The study guide also states that this synchronization copies the FortiGate configuration except for VM-specific parameters, specifically identifying the hostname as an excluded item. Therefore, the two FortiGate VMs remain independent devices, and their hostnames are not synchronized.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiOS 7.6 Azure Administration Guide and the Public Cloud Security documentation regarding Azure Gateway Load Balancer (GWLB) integration:

Encapsulation Overhead: Azure Gateway Load Balancer uses VXLAN (Virtual eXtensible LAN) to encapsulate the traffic before sending it to the FortiGate-VM HA cluster. This encapsulation adds a header that typically consists of 50 bytes for regular IPv4 traffic (Ethernet, IP, UDP, and VXLAN headers).

MTU Mismatch (Option A): The default maximum transmission unit (MTU) in Azure is 1500 bytes . If a protected VM sends a packet at the maximum default size (1500 bytes), and the GWLB then adds the 50-byte VXLAN header, the resulting encapsulated packet becomes 1550 bytes .

Packet Drops: If the FortiGate-VM ' s network interfaces are left at the default MTU of 1500 bytes , they will not be able to process the 1550-byte encapsulated frames without fragmentation. Because many network paths or configurations (including Azure ' s fabric for certain flows) may drop packets that require fragmentation or have the Don ' t Fragment (DF) flag set, this results in the observed intermittent connectivity issues and dropped traffic .

Required Resolution: To resolve this issue, administrators must increase the MTU on the FortiGate-VM interfaces (specifically the one receiving GWLB traffic) to at least 1570 bytes to accommodate both IPv4 and IPv6 VXLAN overhead.

Why other options are incorrect:

Option B: While an incorrect health probe port would cause the GWLB to mark the FortiGate as down, it would typically lead to a complete loss of traffic flow through that instance rather than intermittent packet drops within an active flow.

Option C: The GWLB itself is the component adding the overhead; it is the FortiGate ' s inability to receive the larger resulting frame (due to its own default MTU setting) that causes the failure.

Option D: Packet fragmentation by the application is a secondary effect. The primary " intermittent " issue described in GWLB deployments is almost always related to the tunneling overhead exceeding the receiving interface ' s MTU.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

As per the FortiOS 7.6 AWS Administration Guide and FortiWeb 7.4 cloud deployment documentation, understanding the AWS infrastructure layer is critical for integrating Fortinet virtual appliances. The two features that define AWS Network Access Control Lists (NACLs) are:

Stateless Nature (Option A): Unlike Security Groups, which are stateful (automatically allowing return traffic), NACLs are stateless . This means that if you allow inbound traffic on a specific port, you must also explicitly configure an outbound rule to allow the response traffic to leave the subnet. NACLs evaluate inbound and outbound traffic independently.

Default Configuration (Option C): Every VPC comes with a default NACL . By default, this NACL is configured to allow all inbound and outbound traffic . This is designed to ensure connectivity is not blocked until a custom security posture is defined. However, any custom NACL created manually starts by denying all traffic until rules are added.

Why other options are incorrect:

Option B: NACLs are associated at the subnet level , not the instance level. Security Groups are the components tied directly to an instance’s Elastic Network Interface (ENI).

Option D: NACLs and Security Groups provide defense-in-depth and are designed to be used simultaneously. Traffic must pass through the NACL (subnet level) and then the Security Group (instance level) to reach its destination.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiCNP 24.x Administration Guide and the FortiOS 7.6 Security Fabric Integration documentation, integrating a FortiGate-VM with FortiCNP requires specific local configurations on the FortiGate to ensure the cloud security platform can ingest and analyze traffic data.

Configuring Logging (Option C): Before adding the FortiGate VM to FortiCNP, the administrator must Enable Send Logs on the FortiGate. This allows the FortiGate to forward the necessary security telemetry and traffic logs to the FortiCNP cloud endpoint for threat correlation and risk analysis.

Policy and Inspection Setup (Option D): The integration relies on the FortiGate ' s ability to identify and block threats at the network layer. Specifically, the administrator must Create a FortiGate IPS Sensor and Create a FortiGate Firewall Policy . The IPS sensor detects malicious patterns, while the firewall policy dictates which traffic is subjected to this inspection.

Deep Packet Inspection (Option E): To provide visibility into encrypted traffic—which is critical for identifying threats hidden in HTTPS flows—the administrator must Create an SSL/SSH Inspection Profile on the FortiGate. Without this profile, FortiCNP would lose significant visibility into potential attack vectors utilizing encrypted channels.

Why other options are incorrect:

Option A: While pre-shared keys are used in VPN and some Fabric setups, they are not listed as one of the specific mandatory steps for the initial FortiGate-to-FortiCNP fabric integration workflow.

Option B: While certificate exchange is part of the overall trust relationship, the primary " mandatory configuration steps on FortiGate " defined in the official setup guide focus on the logging and security profile components required to generate the data FortiCNP needs.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiOS 7.6 Azure Administration Guide and standard Azure Resource Manager (ARM) deployment practices, the what-if operation allows administrators to preview how a deployment will affect the current state of resources.

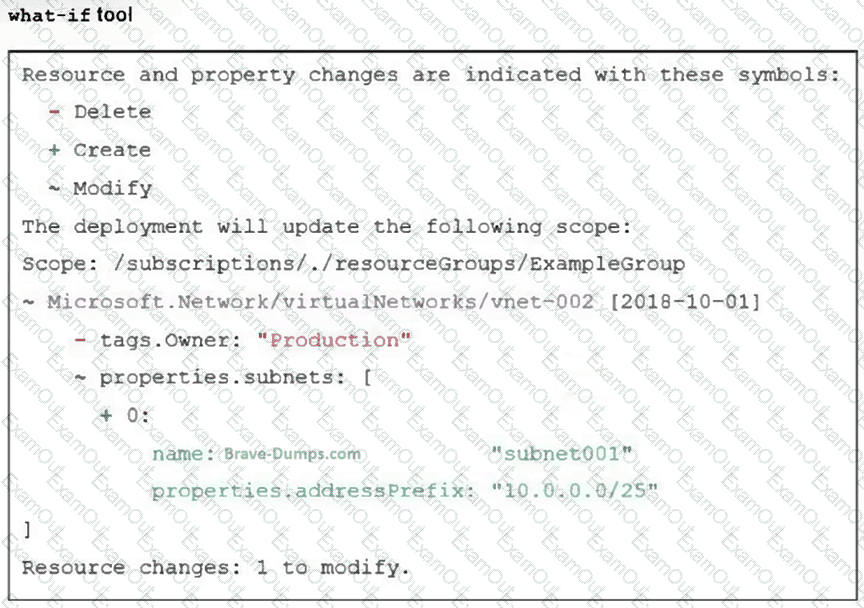

Interpreting the What-If Output (Option A): The exhibit shows the results of a change preview for a Virtual Network (vnet-002).

The symbol ~ (Modify) next to the VNet indicates that an existing resource is being updated rather than created or deleted.

The symbol - (Delete) next to tags.Owner: " Production " indicates that this specific tag will be removed from the VNet.

Crucially, the symbol + (Create) appearing inside the properties.subnets array next to index 0: indicates the addition of a new element. This confirms that a new subnet named subnet001 with the address prefix 10.0.0.0/25 will be added to the existing Virtual Network vnet-002.

Why other options are incorrect:

Option B: The text shows that the tag " Production " is being deleted (-), not that the VNet is being renamed to " Production. "

Option C: The what-if tool only displays the changes . While one subnet is being added (+), the tool does not show the deletion of other existing subnets. Therefore, we cannot conclude the resulting VNet will have only a single subnet; it will have its existing subnets plus the new one.

Option D: There is no mention of addressSpace or addressPrefixes for the VNet itself being modified (~) or added (+) in the exhibit; only a subnet-level address prefix is shown.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiOS 7.6 Docker Administration Guide and the Public Cloud Security study materials, container security is addressed through granular visibility into container-specific protocols.

Application Control for Containers (Option A): FortiOS includes a dedicated set of application control signatures specifically for Docker traffic . These signatures allow the FortiGate-VM to identify and control specific actions within a container environment, such as:

Docker_Pull.Blob / Docker_Pull.Manifest: Identifying when a container image is being pulled from a registry.

Docker_Push.Blob / Docker_Push.Manifest: Monitoring when images are uploaded to a registry.

Enforcing Security Policies: By using these Docker-related signatures, an administrator can create firewall policies that only allow container pulls from known clean, private registries while blocking traffic from unauthorized or public registries that may contain vulnerable or malicious images. 5

Defense-in-Depth: While traditional network-related signatures (Option C) or AWS-specific infrastructure signatures (Option B) protect the underlying network and cloud services, they do not provide the necessary visibility into the Docker API calls and manifest transfers required to secure the container lifecycle itself. FortiGate further enhances this by scanning the actual payload of these transfers using the Intrusion Prevention Service (IPS) and Advanced Malware Protection (AMP) .

Based on the Fortinet NSE 7 - Public Cloud Security 7.4/7.6 curriculum and Azure Resource Manager (ARM) deployment logic, the what-if tool provides a predictive analysis of infrastructure changes.

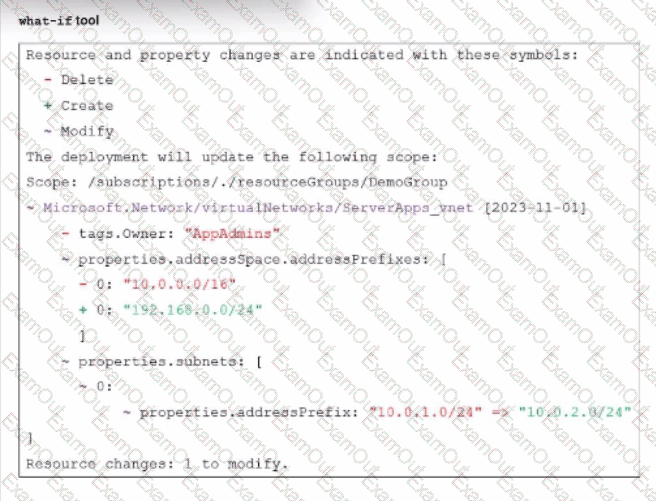

Analyzing the Modification Symbols (Option B): The exhibit shows several critical changes being attempted simultaneously on the ServerApps_vnet.

VNet Address Space Change: The symbol - (Delete) is next to the address space 10.0.0.0/16, and + (Create) is next to 192.168.0.0/24.

Subnet Modification: Further down, the symbol ~ (Modify) indicates an attempt to change the prefix of an existing subnet from 10.0.1.0/24 to 10.0.2.0/24.

Azure Deployment Constraints: According to the FortiOS 7.6 Azure Administration Guide , Azure networking has strict dependencies. You cannot delete or modify an address space that contains active subnets or resources.

Why the deployment fails: The what-if output shows the administrator is trying to remove the 10.0.0.0/16 address range. However, the existing subnet 10.0.1.0/24 is still " resident " within that range during the transaction. Because the subnet is currently attached to the address space being deleted, Azure Resource Manager will reject the deployment as an invalid operation. The attempt to add a new 192.168.0.0/24 range does not resolve the conflict of removing the active range.

Why other options are incorrect:

Option A: The tool shows that 10.0.1.0/24 is being changed to 10.0.2.0/24, not that one is replacing the other as a new entity.

Option C: The symbols show a modification (~) of an existing subnet (index 0:), not the creation (+) of an entirely new subnet.

Option D: The VNet name ServerApps_vnet is not being changed; only its internal properties (tags, address space, and subnets) are being modified.
