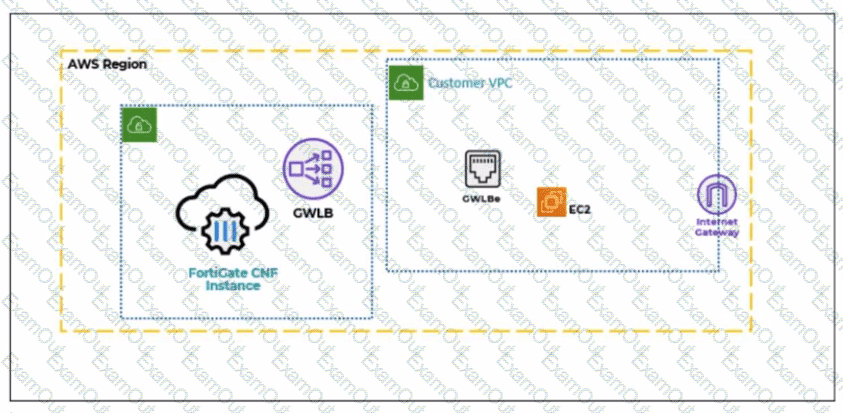

In the FortiGate Cloud-Native Firewall (CNF) for AWS architecture, traffic from workloads (such as an EC2 instance) in the customer VPC is redirected to the security service (FortiGate CNF) using AWS Gateway Load Balancer (GWLB) technology.

The key AWS component that must exist inside the customer VPC to steer workload traffic to the GWLB is the:

Gateway Load Balancer Endpoint (GWLBe)

This endpoint is what the customer VPC routes point to (for example, default route or subnet route entries), enabling transparent insertion of the FortiGate CNF inspection path for EC2 traffic.

Why the other options are not correct:

A: CNF does not “create the customer VPC” (that is customer-owned), and “GWLBe” is the only relevant created item here, not the whole VPC.

C: Customer VPC is not created by CNF, and GWLB is typically part of the CNF service side; the question specifically asks what must be created to handle traffic from the EC2 instance (that requires GWLBe in the customer VPC).

D: CNF does not create the Internet Gateway (IGW) in the customer VPC, and IGW is not the required CNF-created component for steering traffic to FortiGate CNF.

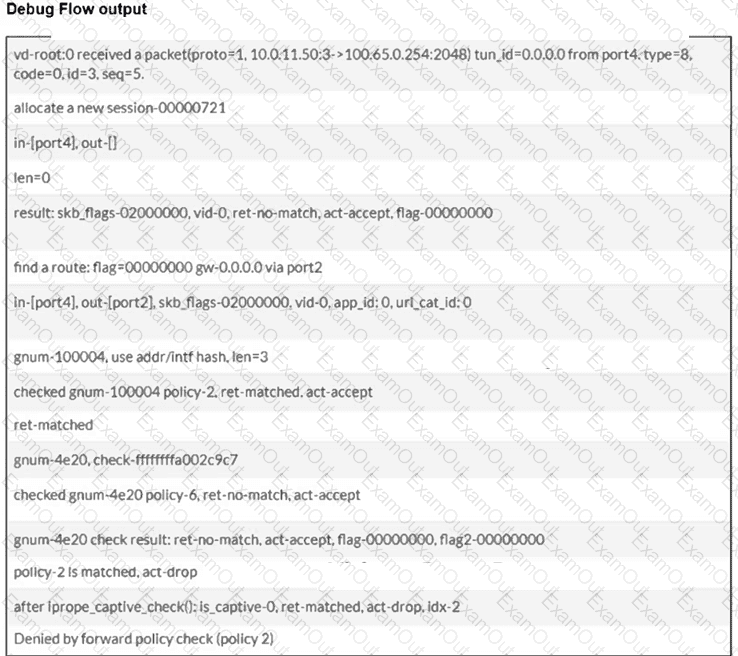

According to the FortiOS 7.6 Troubleshooting and Administration guides, the diagnose debug flow command provides a step-by-step trace of how the FortiGate unit processes a packet.

First, the line " find a route: flag=00000000 gw-0.0.0.0 via port2 " indicates that during the routing table lookup, the FortiGate matched the destination against its default route (represented by 0.0.0.0) and determined that the egress interface is port2 . This confirms that the default gateway for this traffic is reachable via port2 (Statement A).

Second, the debug trace concludes with the messages " policy-2 Is matched, act-drop " and " Denied by forward policy check (policy 2) " . This explicitly indicates that the packet successfully matched the criteria for firewall policy ID 2, and the action configured for that policy is set to Deny (Statement D).

Statement B is incorrect because a Reverse Path Forwarding (RPF) failure would be indicated by a specific " reverse path check fail, drop " message, which is absent here. Statement C is incorrect because the output shows " proto=1 " , which corresponds to ICMP (Ping) traffic. UDP traffic would be identified as protocol 17.

In FortiOS 7.6, when multiple dialup IPsec VPNs are configured on the same FortiGate—especially in Aggressive Mode—FortiGate must identify which Phase 1 configuration a connecting client should match.

How FortiGate selects a dialup IPsec tunnel

For dialup VPNs:

The remote peer (user or device) does not have a fixed IP address

Multiple Phase 1 interfaces may exist on the HQ FortiGate

FortiGate uses identifying information sent during IKE Phase 1 to select the correct tunnel

Aggressive Mode behavior

Aggressive mode sends ID information in clear text during Phase 1

This allows FortiGate to match incoming peers to the correct Phase 1 configuration

Why Peer ID is the correct answer

C. Peer ID

Peer ID (also called IKE ID) is used to:

Identify the remote peer

Differentiate between multiple dialup tunnels

Common Peer ID formats:

FQDN

User FQDN

Key ID

FortiGate matches the received Peer ID against the Phase 1 configuration to select the correct tunnel

This is the documented and recommended method for:

Mapping users to different department tunnels

Supporting multiple dialup IPsec VPNs in aggressive mode

Why the other options are incorrect

A. Local GatewayIdentifies the local FortiGate interface/IP, not the remote user.

B. Dead Peer DetectionUsed only for tunnel health monitoring, not tunnel selection.

D. IKE Mode ConfigUsed for assigning IP addresses and pushing settings, not for selecting the Phase 1 tunnel.

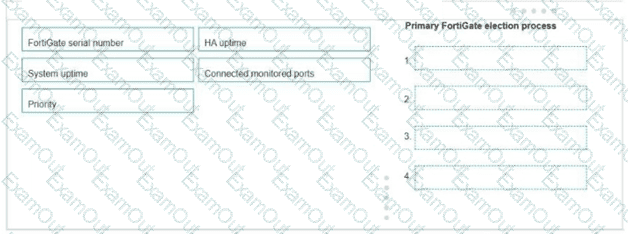

“This slide shows the different criteria that a cluster considers during the primary FortiGate election process. The criteria order evaluation depends on the HA override setting.”

For the default case shown in the guide:

“1. The cluster compares the number of monitored interfaces that have a status of up. The member with the most available monitored interfaces becomes the primary.

2. The cluster compares the HA uptime of each member...

3. The member with the highest priority becomes the primary.

4. The member with the highest serial number becomes the primary.”

For this question’s case:

“If the HA override setting is enabled, the priority is considered before the HA uptime .”

Technical Deep Dive:

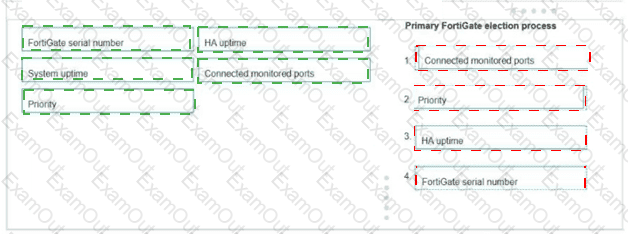

Because override is enabled , the election order changes from the default sequence. The first criterion is still Connected monitored ports , because interface health is evaluated first. After that, Priority moves ahead of HA uptime . If those still do not decide the winner, FortiGate uses the serial number as the final tie-breaker. Therefore the correct order is:

1. Connected monitored ports

2. Priority

3. HA uptime

4. FortiGate serial number

This distinction matters in production. With set override enable, you are effectively making HA priority authoritative over uptime, so the preferred unit will reclaim the primary role when it comes back online. That is useful for deterministic primary selection, but it can also cause an additional failover event when the preferred chassis returns to service. The guide explicitly notes this tradeoff.

In practice, the relevant HA checks and verification commands are:

show system ha

get system ha status

diagnose sys ha status

These let you confirm override status, device priority, monitored interfaces, and recent election results. From a control-plane perspective, FGCP election logic is handled by FortiOS over heartbeat links, while data-plane forwarding after election continues using the cluster’s virtual MAC behavior and synchronized HA state.

According to the FortiOS 7.6 Administration Guide, the firewall policy ID is a unique numerical identifier assigned to each policy for internal database tracking and management purposes. It is important to distinguish the policy ID from the policy sequence . While the FortiGate processes traffic based on a top-down approach (the sequence), the policy ID itself does not determine the order of execution (Statement A is incorrect).

In FortiOS, once a policy is committed to the configuration, the policy ID cannot be modified (Statement B). If an administrator needs to change a policy ID, they must either delete and recreate the policy or use the clone command in the CLI to copy the settings to a new ID.

Furthermore, the CLI provides a specific shortcut for policy creation: you can create a policy with ID 0 (Statement C). When the command edit 0 is used within the config firewall policy context, the FortiOS kernel automatically assigns the next available integer as the policy ID. This is a standard practice for efficient configuration via the command line. Statement D is incorrect because, while every policy must have an ID, the GUI automatically generates this value without requiring the user to manually provide or even see it during the initial creation process.

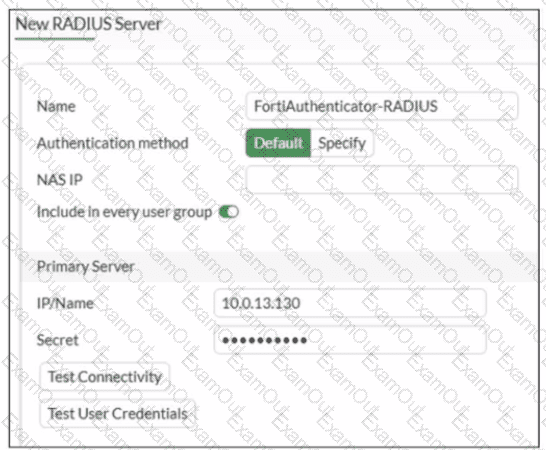

Based on the FortiOS 7.6 Authentication and User Group documentation, the correct answer is A.

Meaning of “Include in every user group” (FortiOS 7.6)

When configuring a RADIUS server on FortiGate, enabling Include in every user group has a very specific and documented effect:

The configured RADIUS server object is automatically added to all FortiGate user groups.

As a result, any user who successfully authenticates against that RADIUS server becomes a valid member of every FortiGate user group, unless additional group filtering (such as RADIUS attributes) is applied.

This simplifies configuration when the same external authentication source must be accepted across multiple firewall policies that reference different user groups.

This behavior is explicitly described in the FortiOS 7.6 Administrator Guide under RADIUS authentication servers and user groups.

Why Option A is Correct

FortiGate user groups can include:

Local users

LDAP servers

RADIUS servers

Enabling Include in every user group causes FortiGate to:

Insert the RADIUS server into all existing and future FortiGate user groups

Therefore, all users authenticating via this RADIUS server are implicitly allowed in every FortiGate user group.

This is exactly what option A describes.

Why the Other Options Are Incorrect

B: FortiGate does not push users or groups into the RADIUS server. Authentication is always initiated by FortiGate toward RADIUS.

C: FortiGate does not manage or modify RADIUS-side group definitions.

D: LDAP and RADIUS user groups are separate authentication mechanisms; this setting does not merge or affect LDAP groups.

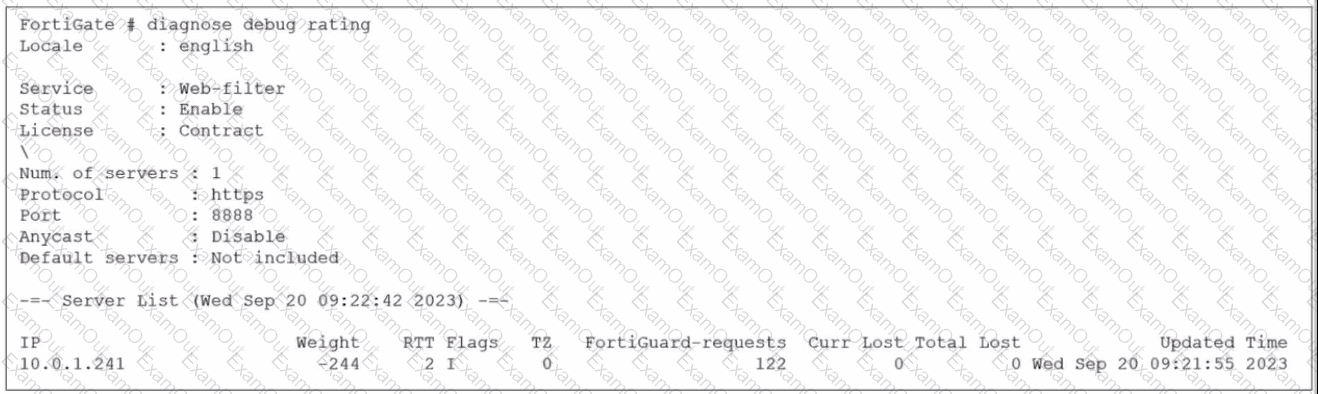

Based on the diagnose debug rating output provided in the exhibit and the standard behavior of the FortiGuard connection mechanism in FortiOS 7.6:

Weight Calculation (Statement A is True):

In FortiOS, the rating server selection process uses a weight-based system.

According to official documentation, the weight increases with failed packets (lost responses) and decreases with successful packets.

This mechanism ensures that servers with poor reliability are penalized by having higher weights, effectively pushing them to the bottom of the preference list.

Default Port Communication (Statement D is True):

The exhibit explicitly shows the communication is using HTTPS on port 8888.

In FortiOS 7.6 (and legacy versions like 6.2/6.4), FortiGuard filtering supports specific protocols and ports: HTTPS on ports 443, 53, and 8888, where 8888 is considered a default port for FortiGuard queries.

Ports 53 and 8888 are standard for both UDP and TCP/HTTPS FortiGuard communications to avoid common firewall blocks on standard web ports.

Why other options are incorrect:

Statement B (Unreliable protocols): While you can configure UDP (which is unreliable), the exhibit specifically shows HTTPS is being used, which is a reliable (TCP-based) protocol.

Statement C (DNS lookup): In the " Flags " column of the server list, a server found via DNS lookup would be marked with the " D " flag. The exhibit shows the flag as " I " (indicating the last INIT request was sent to this server) and a numeric " 2, " but the " D " flag is absent. Additionally, the IP 10.0.1.241 is a private address, suggesting it is a manually configured FortiManager or local override server rather than a public server found via global DNS lookup.

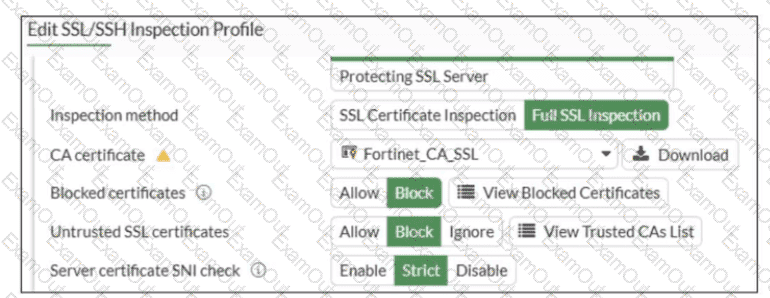

Based on the exhibit and the FortiOS 7.6 SSL/SSH Inspection documentation, the correct answer is C.

Understanding the Exhibit Configuration

In the SSL/SSH Inspection Profile, the following settings are shown:

Inspection method: Full SSL Inspection

Server certificate SNI check: Strict

This setting directly controls how FortiGate validates the Server Name Indication (SNI) provided by the client during the TLS handshake.

FortiOS 7.6 Behavior of “Server certificate SNI check”

FortiOS supports three modes for Server certificate SNI check:

Disable

No validation between SNI and server certificate.

Enable

FortiGate checks SNI against the certificate.

If mismatch occurs, FortiGate may still allow the session with reduced validation.

Strict

FortiGate enforces a strict match.

The SNI must match either the CN (Common Name) or one of the SAN (Subject Alternative Name) entries in the server certificate.

If the SNI does not match either CN or SAN, the TLS session is immediately terminated.

The exhibit clearly shows Strict selected.

Why Option C is Correct

With Strict enabled, FortiGate rejects the TLS connection when:

The SNI does not match the CN, and

The SNI does not match any SAN entry

This results in the connection being closed, not allowed with warnings or fallback behavior.

Therefore:

C. FortiGate will close the connection if the SNI does not match the CN or SAN fields is exactly the documented behavior.

Why the Other Options Are Incorrect

A: FortiGate does not fall back to using the CN for URL filtering when Strict is enabled.

B: There is no “accept with warning” behavior in Strict mode.

D: Incorrect logical condition. FortiGate does not require mismatch with both CN and SAN simultaneously; a mismatch with either valid field set is sufficient to close the connection.

“In FortiOS, there are three main components of web filtering:

• Web content filtering...

• URL filtering: uses URLs and URL patterns to block or exempt web pages from specific sources ...

• FortiGuard Web Filtering service...”

“In the web filter profile, Fortiguard category filtering enhances the web filter features. Rather than block or allow websites individually, it looks at the category that a website has been rated with. Then, FortiGate takes action based on that category, not based on the URL.”

“If you consider that a particular URL does not have the correct category, you can ask to re-evaluate the rating in the Fortinet URL Rating Submission website. You can also override a web rating for an exceptional URL in the FortiGate configuration. ”

“Static URL filtering is another web filter feature, which provides more granularity. Configured URLs in the URL filter are checked from top to bottom against the visited websites. If FortiGate finds a match, it applies the configured action.”

“To find the exact match, URL filtering has three pattern types: Simple, Regular Expressions, and Wildcard .”

“So, with these different features, what is the inspection order? If you have enabled many of them, the inspection order flows as follows:

The local static URL filter

FortiGuard category filtering...”

Technical Deep Dive:

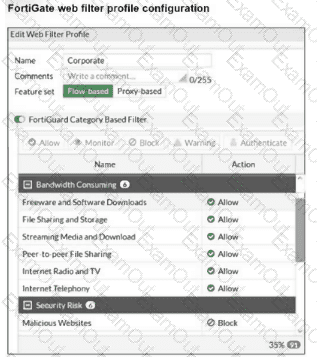

The correct answers are A and B .

A is correct because a static URL filter gives per-URL granularity. Since the category Freeware and Software Downloads is currently allowed in the profile, adding a local static URL filter entry for download.com with Block lets FortiGate deny only that site while continuing to allow the rest of the category. This also aligns with the documented inspection order, where the local static URL filter is checked before FortiGuard category filtering .

B is also correct because a web rating override can reclassify a specific exceptional URL. If download.com is re-rated into a blocked category such as Malicious Websites , it will be blocked by the profile while other sites in Freeware and Software Downloads remain allowed.

Why the others are wrong:

C is not the intended web-filter solution. A firewall policy with an FQDN object operates at policy/routing resolution level, not as a category-aware web filtering exception.

D is wrong because changing the whole category to Warning affects all sites in that category, not just download.com.

In production, the cleaner design is usually: keep the category allowed, then add a local URL-filter exception or a web-rating override for the specific site . For HTTPS traffic, remember FortiGate still needs enough SSL inspection visibility to identify the hostname correctly. A representative CLI approach for URL filtering is:

config webfilter urlfilter

edit 1

config entries

edit 1

set url " download.com "

set type wildcard

set action block

next

end

next

end

This is the most deterministic way to block one site without penalizing the rest of the category.
