“FortiGate looks for the matching firewall policy from top-to-bottom and, if a match is found, the traffic is processed based on the firewall policy. If no match is found, the traffic is dropped by the default implicit deny firewall policy. ”

Technical Deep Dive:

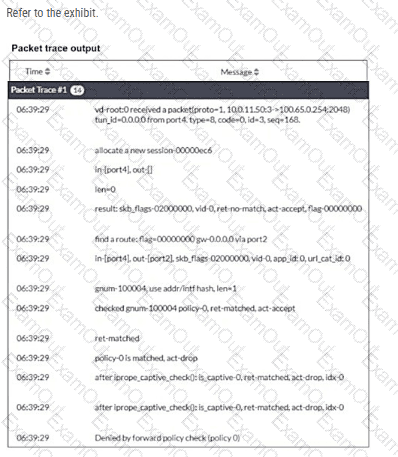

The debug flow output clearly points to the implicit deny :

ret-no-match

policy-0 is matched, act-drop

Denied by forward policy check (policy 0)

On FortiGate, policy 0 is the internal representation of the default implicit deny firewall policy . That means the packet did not match any user-defined forward firewall policy, so FortiGate dropped it automatically.

Why the other options are wrong:

B is wrong because an RPF failure would show a reverse-path-related drop reason, not Denied by forward policy check (policy 0).

C is wrong because the trace does not show a matched explicit policy ID with deny action; it shows policy 0 , which is the implicit rule.

D is wrong because the trace actually shows a route lookup result: find a route: ... gw-0.0.0.0 via port2. So this is not a next-hop reachability failure.

In packet-flow troubleshooting, this pattern is one of the most important to recognize. If you see policy 0 in FortiGate debug flow, the first things to verify are:

diagnose debug flow filter addr < src_or_dst_ip >

diagnose debug flow show function-name enable

diagnose debug enable

Then review whether a firewall policy exists with the correct incoming interface, outgoing interface, source, destination, schedule, and service . If any one of those does not match, FortiGate falls through to policy 0 and drops the session.

According to the FortiOS 7.6 Study Guide and technical documentation, conserve mode is a protective state triggered when memory utilization reaches the Extreme Threshold (typically 95% by default). When this occurs, the FortiGate implements several measures to prioritize system stability over new functionality. One of the primary restrictions is that the FortiGate refuses to accept configuration changes (Statement B). This prevents the system from initiating new processes or allocating additional memory that could lead to a total system crash.

Regarding traffic handling, the behavior is determined by specific " fail-open " settings. For the IPS engine, if the fail-open global setting is enabled, the FortiGate continues to transmit packets without IPS inspection (Statement D). This ensures that network connectivity is maintained even when the system lacks the memory resources to perform deep packet inspection. In contrast, Statement A is incorrect because the system may skip non-essential actions to save memory. Statement C is incorrect because conserve mode is designed to avoid a system halt; the device remains operational and will automatically exit conserve mode once memory usage drops below the Release Threshold (typically 82%).

" Also, advanced mode supports nested or inherited groups; that is, users can be members of subgroups that belong to monitored parent groups. " " In advanced mode, you can configure FortiGate as an LDAP client and configure the group filters on FortiGate. You can also configure group filters on the collector agent. "

Collector Agent Advanced Mode provides deeper integration between FortiGate, LDAP, and Active Directory, compared to standard mode.

Key features of Collector Agent Advanced Mode

B. FortiGate can be configured as an LDAP client and group filters can be configured on FortiGate.

Correct

In advanced mode:

FortiGate directly queries LDAP/AD

User group filters are configured on FortiGate, not only on the Collector Agent

This allows more flexible and scalable user/group-based policies

D. Advanced mode supports nested or inherited groups.

Correct

Advanced mode supports:

Nested AD groups

Inherited group memberships

This is one of the primary reasons advanced mode is used in complex AD environments

Why the other options are incorrect

A. Security profiles only to user groups

Incorrect.

Security profiles can be applied to users or groups, depending on policy configuration.

C. Uses NetBIOS Domain\Username format

Incorrect.

NetBIOS naming is associated with standard mode

Advanced mode typically uses LDAP DN-based identification

Phase 1 being up confirms the two FortiGate devices can authenticate and build the IKE SA. Phase 2 failing indicates the IPsec (Quick Mode) SA negotiation is failing due to mismatched Phase 2 parameters.

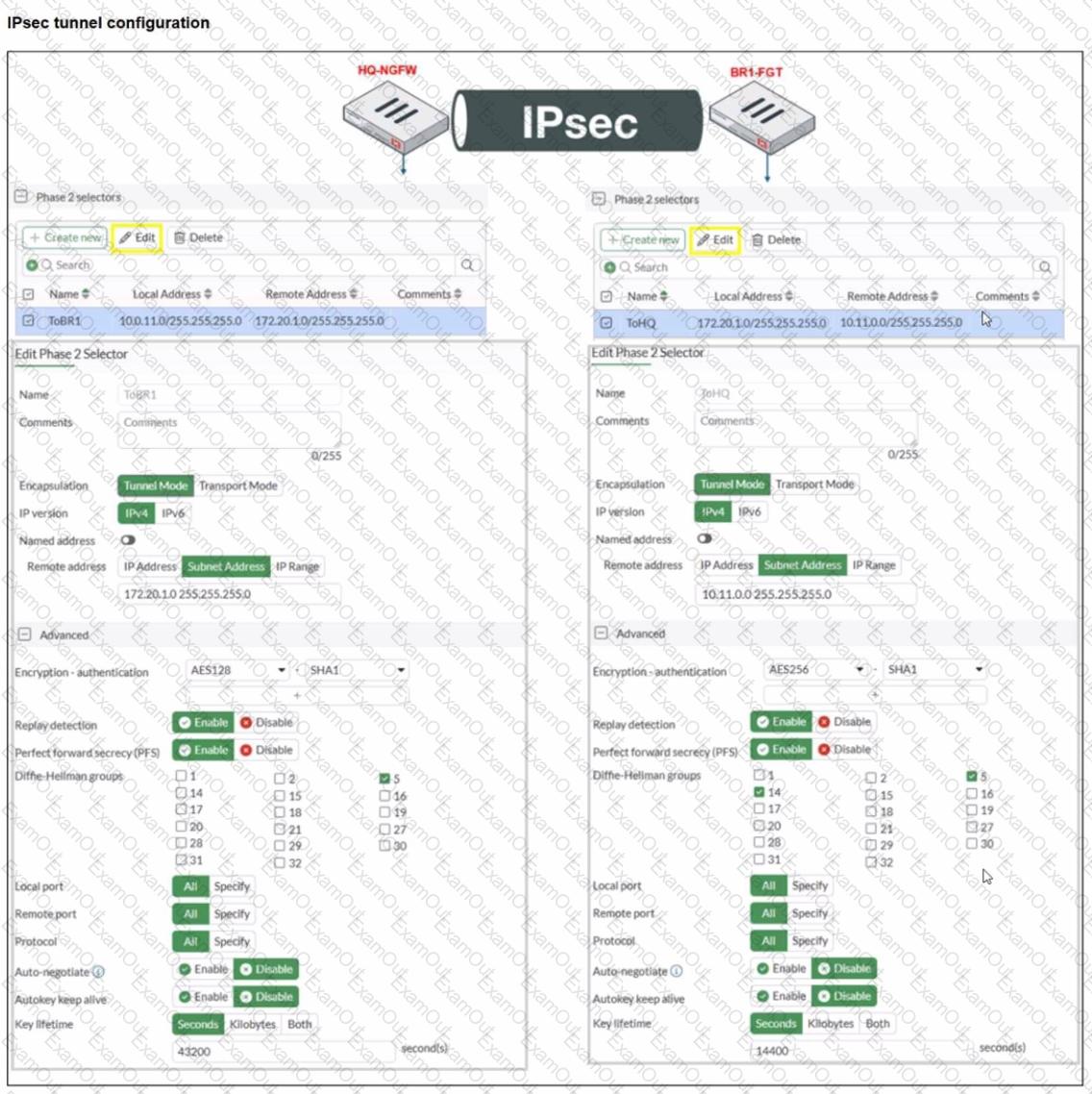

From the exhibit, the Phase 2 mismatches that would prevent SA establishment are:

1) Phase 2 selectors must mirror each other (Proxy IDs)

HQ-NGFW Phase 2 selector shows:

Local: 10.0.11.0/24

Remote: 172.20.1.0/24

BR1-FGT Phase 2 selector shows:

Local: 172.20.1.0/24

Remote: 10.11.0.0/24 ⟵ does not match HQ’s local subnet (10.0.11.0/24)

In FortiOS, Phase 2 comes up only when the peers’ selectors (proxy IDs) match as opposite pairs (local on one side = remote on the other).

✅ Fix: A. On BR1-FGT, set Remote Address to 10.0.11.0/255.255.255.0.

2) Phase 2 proposal must match (encryption/authentication)

HQ-NGFW shows encryption AES128 (with SHA1)

BR1-FGT shows encryption AES256 (with SHA1)

For Phase 2 to establish, both peers must have at least one common proposal (same encryption and authentication settings). With one side set to AES128 and the other to AES256, there is no match.

✅ Fix: D. On HQ-NGFW, set Encryption to AES256.

Why the other options are not correct

B. Enable Diffie-Hellman Group 2: The exhibit’s mismatch is not resolved by adding DH group 2, and DH group must match when PFS is enabled. This option does not align the peers based on what’s shown.

C. Set Seconds to 43200: Phase 2 lifetime mismatches typically do not prevent Phase 2 from coming up (the negotiated lifetime can be adjusted by the peers). The hard blockers here are the selectors and proposal mismatch.

“As previously stated, collector agent-based polling mode has three methods (or options) for collecting login information. The order on the slide from left to right shows most recommend to least recommended:

• WMI ...

• WinSecLog ...

• NetAPI ...”

Technical Deep Dive:

The correct three AD polling methods are WMI, WinSecLog, and NetAPI . These are the collector-agent polling options FortiGate FSSO uses against Windows domain controllers. WMI is generally the most efficient because the DC returns requested login events directly. WinSecLog polls Windows Security Event Logs and is typically more reliable than NetAPI for not missing recorded logons. NetAPI can be faster, but it is more prone to missing events under load because it depends on temporary session information rather than persistent security logs.

Why the other options are wrong:

DNS reverse lookup is not one of the three AD polling methods. DNS is used by FSSO to resolve workstation names to IP addresses and to track IP changes, but it is not itself a polling method for collecting AD logon events. FSSO REST API is also not one of the documented collector-agent AD polling methods in the study guide.

From an operational standpoint, FSSO login collection and workstation verification are separate functions. The collector agent may still rely on DNS and workstation checks after a login is learned, but the actual AD polling methods remain only WMI, WinSecLog, and NetAPI . On a FortiGate, when troubleshooting FSSO behavior, you would typically validate the collector feed and user cache with commands such as:

diagnose debug authd fsso list

diagnose debug authd fsso server-status

Those commands help confirm whether the users gathered by the collector through one of those three polling methods are reaching FortiGate correctly.

In FortiOS 7.6 Application Control, security logs are generated primarily for actions such as Block or Monitor, not for Allow actions.

What is happening in the exhibit

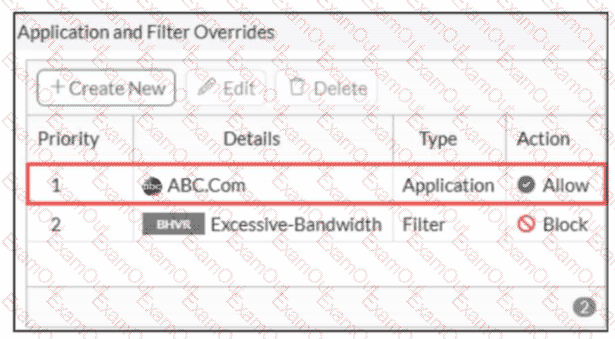

An Application Override is configured for ABC.Com

Type: Application

Action: Allow

The application control profile is applied to a firewall policy

Logging is enabled on the firewall policy

Traffic to ABC.Com is successfully allowed

However, no security logs appear for ABC.Com.

Why no logs are generated

In FortiOS 7.6:

Application Control logs are written to Security Logs when:

An application is Blocked

An application is Monitored

When an application action is set to Allow:

The traffic is permitted silently

No application control security log is generated

Even if policy logging is enabled

This is expected and documented behavior.

To generate logs for allowed applications, the action must be set to Monitor, not Allow.

Why the other options are incorrect

A. ABC.Com is hitting the category Excessive-BandwidthIncorrect. ABC.Com has a higher-priority explicit override (priority 1), so it is not evaluated against the Excessive-Bandwidth filter.

B. The ABC.Com Type is set as Application instead of FilterIncorrect. Application-type overrides are valid and commonly used; this does not suppress logging.

C. The ABC.Com must be configured as a web filter profileIncorrect. This traffic is being evaluated by Application Control, not Web Filter.

“IKE uses UDP port 500. If NAT-T is enabled in a NAT scenario, IKE uses UDP port 4500.”

“IKEv2 provides a simpler operation, which is the result of using a single exchange mode and requiring less messages to bring up the tunnel.”

For the specific workaround asked in this question, Fortinet’s official documentation states that for an IP-level VPN, SSL VPN tunnel mode is useful to avoid issues caused by intermediate devices such as “ESP packets being blocked,” “UDP ports 500 or 4500 being blocked,” and “fragments being dropped, causing IKE negotiation that uses large certificates to fail if the peer does not support IKE fragmentation.” ( Fortinet Document Library )

Fortinet’s official documentation also states: “The ip-fragmentation command controls packet fragmentation before IPsec encapsulation, which can benefit packet loss in some environments.” ( Fortinet Document Library )

Technical Deep Dive:

The correct answers are A and B .

A is correct because SSL VPN tunnel mode can bypass the classic IPsec transport problems caused by intermediate devices filtering ESP or blocking UDP 500/4500 . Fortinet explicitly documents this as a practical workaround. ( Fortinet Document Library )

B is correct because enabling fragmentation helps when IKE negotiation uses large certificates and fragments are being dropped in transit. Fortinet documents this exact failure scenario and the related fragmentation control. ( Fortinet Document Library )

Why the others are not correct:

C is not the key fix. Hub-and-spoke is a topology choice, not the actual mechanism that solves blocked ESP or UDP 500/4500.

D is not sufficient for this problem. IKEv2 uses fewer messages, but it still relies on IPsec/IKE transport and does not itself solve intermediate devices blocking ESP or UDP 500/4500. The source PDF mentions simpler operation, not blocked-port avoidance.

So, the two effective fixes are:

Use SSL VPN tunnel mode

Enable fragmentation
