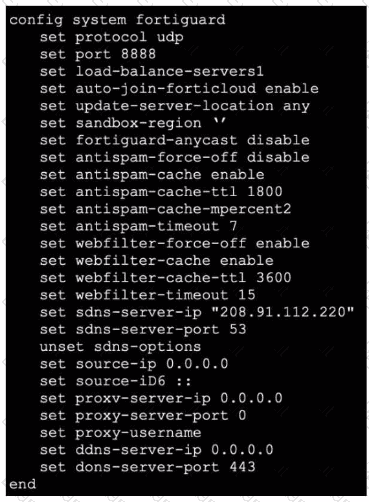

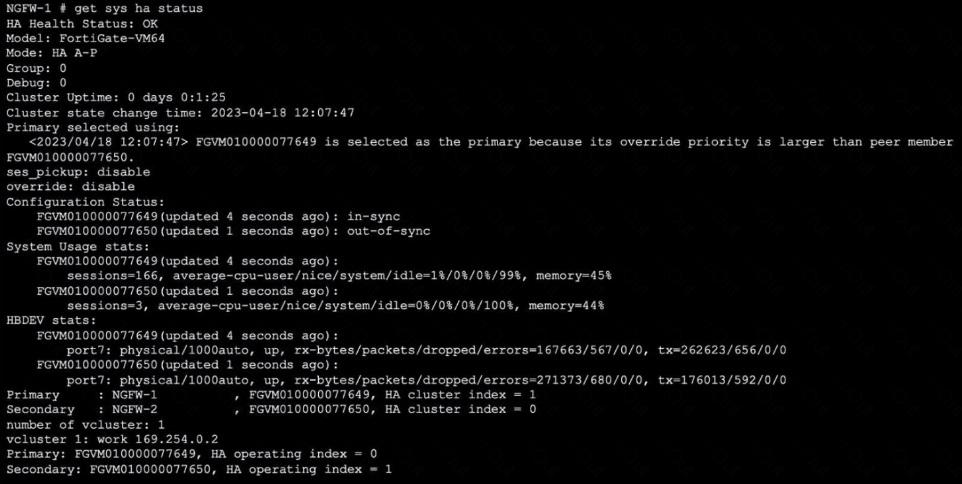

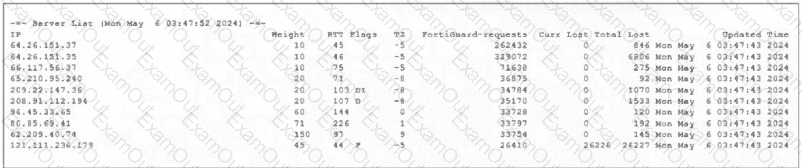

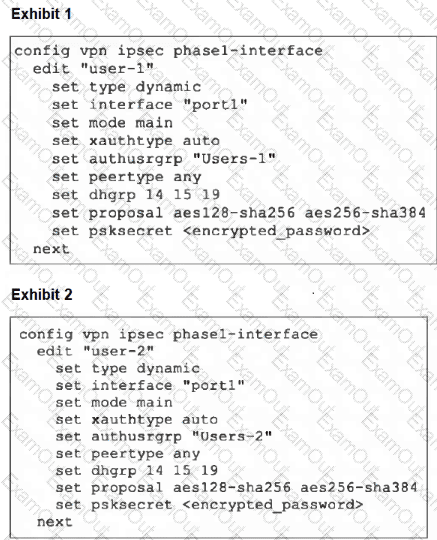

IKEv1 (Internet Key Exchange version 1) and IKEv2 are protocols used for establishing IPsec VPN tunnels, and both protocols share the conceptual division into two phases, as clearly described in Fortinet VPN documentation:

Phase 1 handles negotiation and establishment of a secure IKE Security Association (SA) between peers.

Phase 2 negotiates parameters for the IPsec Security Association, which secures actual data traffic between peers.

While IKEv2 streamlines and improves upon IKEv1 by merging some message exchanges and simplifying configuration, it maintains the same core two-phase concept: Phase 1 (IKE SA) and Phase 2 (IPsec SA). This is a foundational VPN concept referenced widely in both IKEv1 and IKEv2 literature.

Other statements are incorrect:

Asymmetric authentication is possible, but not mandatory for both.

Both protocols commonly use UDP port 500, sometimes 4500 for NAT traversal, but they are not designed to run on TCP.

The protocol feature compatibility over TCP/UDP is not correctly described in the other options.

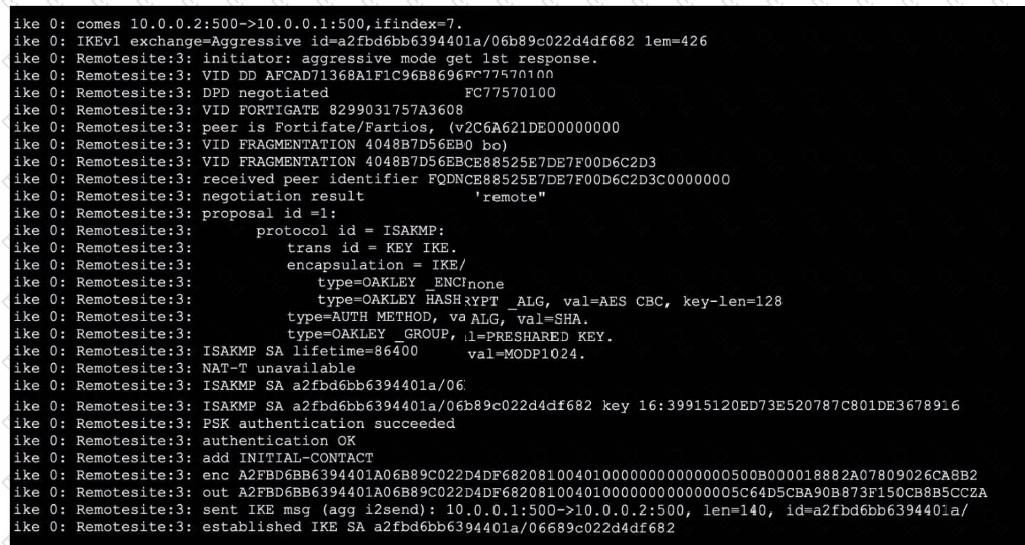

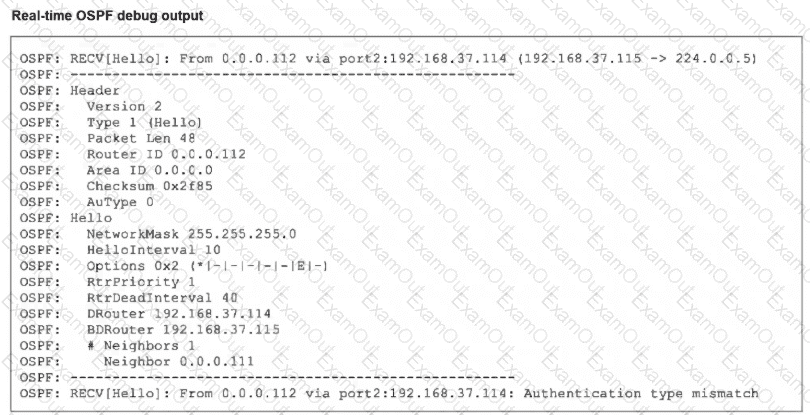

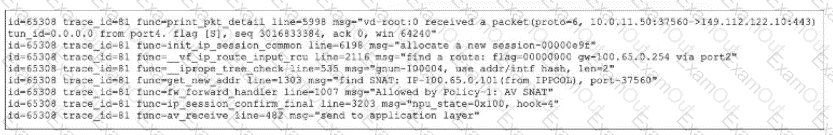

From the exhibit, you can observe that the debug output captures an IKEv1 negotiation in aggressive mode. Let's break down the supporting details in line with official Fortinet IPsec VPN troubleshooting resources and debug guides:

For Option B:

The very first line of the debug output shows:

comes 10.0.0.2:500->10.0.0.1:500, ifindex=7.

This indicates the traffic direction—from the remote IP (10.0.0.2) with port 500 to the local IP (10.0.0.1) with port 500. According to Fortinet's documentation, the right side of the arrow always represents the local FortiGate gateway. Thus, 10.0.0.1 is the local gateway IP address.

For Option D:

You see the statement:

negotiation result "remote"

and

received peer identifier FQDNCE88525E7DE7F00D6C2D3C00000000

Official debug documentation describes that the "peer identifier" or peer ID sent by the initiator is displayed here. In the context of IKE/IPsec negotiation, this value is used as the IPsec peer ID for authentication and identification purposes. The initiator is providing "remote" as the peer ID for its connection.

Why Not A or C:

Perfect Forward Secrecy (PFS): The debug does not show any DH group negotiation in phase 2 (no reference to group2, group5, etc., for phase 2), so you cannot deduce the presence of PFS solely from this output.

Phase 2 negotiation: The log focuses on IKE (phase 1) negotiation and establishment; there’s no reference to ESP protocol, Quick Mode, or other identifiers that would show phase 2 SA negotiation and establishment.

This interpretation aligns with the explanation in the FortiOS 7.6.4 Administration Guide's VPN section and the official debug command output samples published in Fortinet’s documentation. It demonstrates how to distinguish between local and remote addresses and how to identify the use of peer IDs.

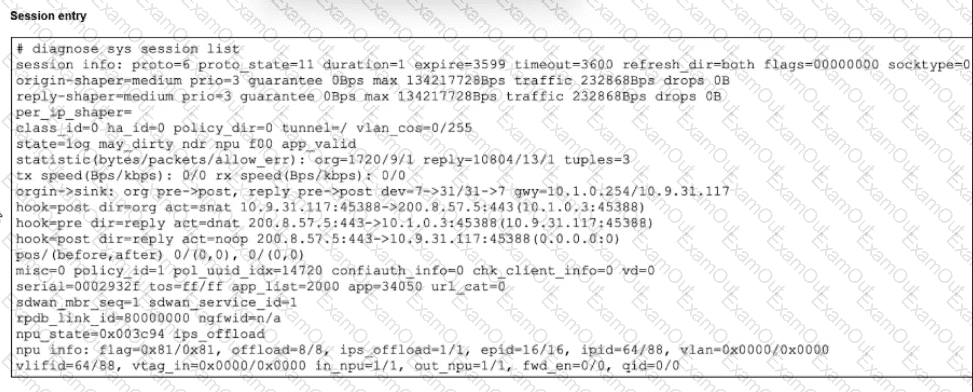

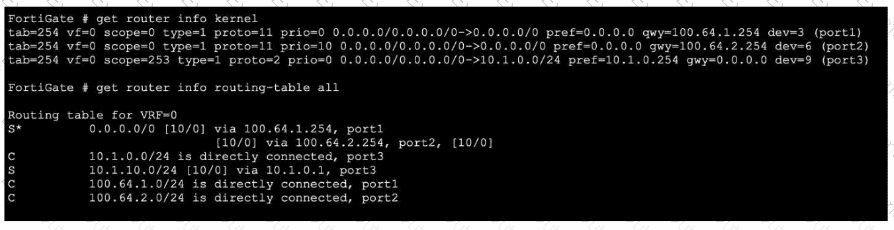

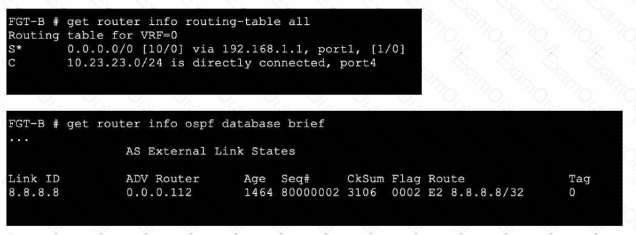

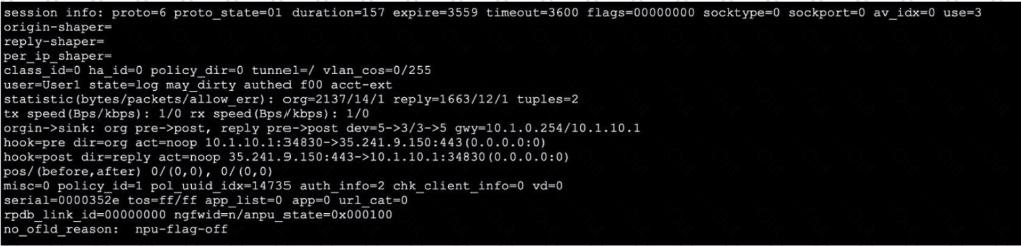

Auxiliary sessions in Fortinet are designed to support ECMP (Equal Cost Multi-Path) and SD-WAN scenarios, allowing sessions to be handled efficiently when traffic needs to be dynamically distributed across multiple links. With the auxiliary session setting enabled, FortiGate creates additional session table entries for each possible path in ECMP or SD-WAN—meaning that if the routing path changes (such as a link failover), a new session can be immediately activated and offloaded to the NP6 network processor for acceleration, ensuring minimal disruption. This greatly benefits high-throughput deployments.

Official documentation specifies that when auxiliary sessions are enabled, FortiGate doesn’t just rely on dynamically creating new sessions after a routing event, it proactively creates sessions for all potential paths. This means that in the event of a route change, two sessions exist and the traffic is quickly re-routed and offloaded, maximizing performance and reliability. Without this feature, multiple paths cannot be efficiently offloaded, and routing changes trigger a single session update, reducing failover performance.

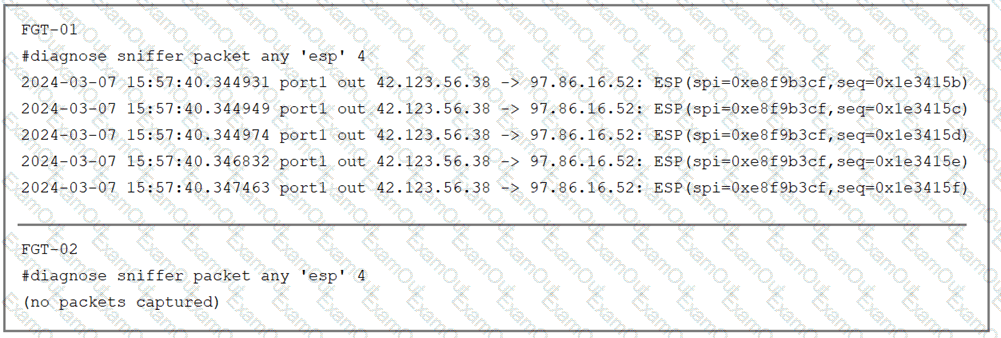

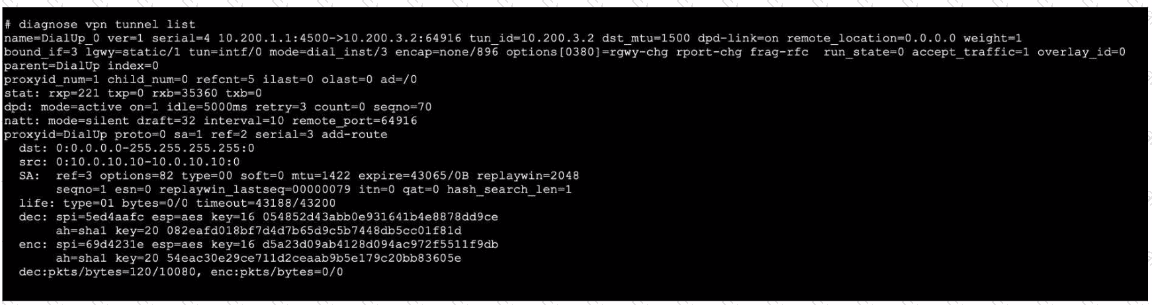

The output on FGT-01 confirms that the device is actively encapsulating traffic and sending it as ESP packets (Protocol 50) out of port1 towards the IP address 97.86.16.52. The logs show outgoing packets, which confirms FGT-01 is attempting to initiate or maintain the tunnel and that NAT-Traversal is not being used (as it uses raw ESP).

The output on FGT-02, however, displays (no packets captured). This is significant because the sniffer command diagnose sniffer packet any 'esp' captures traffic at the network interface level (ingress), regardless of whether a matching VPN configuration exists on the receiving unit. The absence of packets proves that the ESP traffic generated by FGT-01 is physically not arriving at FGT-02's interface.

This behavior is explained by two primary factors:

Option A (Blocking): An intermediate device, such as an ISP router or firewall, is dropping Protocol 50 traffic. Unlike UDP 500/4500, raw ESP is often blocked by default on many networks or legacy devices.

Option C (Routing/Misconfiguration): If the administrator configured the wrong remote peer IP on FGT-01, the packets are being routed to a different destination entirely. Consequently, they never arrive at FGT-02 to be captured.

Option B is incorrect because even without a configured VPN tunnel, the sniffer would still display the incoming ESP packets if they were reaching the interface. Option D is incorrect because FGT-01 is sending ESP, making 'esp' the correct filter.
