The Open Compute Project (OCP), initiated by Facebook in 2011, focuses on open designs for servers, storage, racks, and power systems. The goals are:

Reduce energy consumption by using efficient hardware.

Save materials by eliminating unnecessary components.

Lower costs by standardizing and sharing open designs.

Option B is wrong—OCP hardware can be adopted by enterprises as well. Option C is unrelated (OCP is hardware, not OS). Option D is broader cloud adoption, not OCP’s direct mission.

Thus, the primary focus is energy, material, and cost savings through open-source hardware.

Blast protection should be considered if the data center or its location is a potential target or is near high-risk areas. Blast protection measures can protect both personnel and infrastructure from potential explosion impacts, which could be essential in areas with heightened security risks.

Detailed Explanation:

In areas where there may be risks of terrorist attacks or explosions due to nearby high-risk facilities, implementing blast protection measures helps safeguard the data center's infrastructure. These measures can include reinforced walls, blast-resistant windows, and secure entryways designed to withstand explosive forces.

EPI Data Center Specialist References:

While not specifically mandated by ANSI/TIA-942, EPI training advises considering local risk factors, including proximity to potential targets, when evaluating the need for blast protection. This approach is aligned with risk assessment and mitigation practices to ensure facility security.

An imbalance in load sharing between UPS systems connected in parallel can often result from unequal cable lengths to the common busbar. If the cabling from each UPS to the busbar varies significantly in length, it can lead to differences in impedance, resulting in uneven load distribution. Ensuring that cable lengths are consistent helps to balance the load sharing across the UPS systems.

Detailed Explanation:

Parallel UPS systems rely on uniform impedance to share loads evenly. Differences in cable lengths cause variations in resistance, leading to one or more UPS units carrying a disproportionate share of the load. Standardizing cable lengths ensures equal impedance, which promotes balanced load sharing and prevents one UPS from being overburdened, thus maintaining overall system reliability.

EPI Data Center Specialist References:

EPI guidelines recommend checking cable lengths when load imbalances occur in parallel UPS configurations. Ensuring equal lengths is a common method to resolve impedance issues that affect load distribution, which is critical for the stable operation of redundant power systems.

To ensure uniform air distribution, there must be a buffer zone between CRAC/CRAH discharge and the first row of racks. Industry best practice (ASHRAE & TIA-942) specifies at least 1.2 m (4 ft).

Less than 1.2 m risks air velocity hotspots and turbulence, disrupting cold aisle containment.

More than 1.8 m wastes valuable floor space without added benefit.

Thus, 120 cm is the recommended minimum.

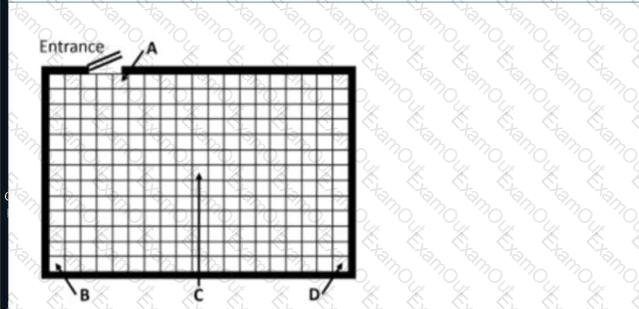

When installing a raised floor, the best starting point is typically from the farthest corner away from the entrance, in this case, Point B. This method allows for the floor installation to progress towards the entrance, ensuring that workers can avoid walking over the newly installed tiles, thus minimizing the risk of damage and maintaining cleanliness during installation.

Detailed Explanation:

Starting at the farthest corner (Point B) and working towards the entrance (Point A) is a standard practice in raised floor installation. This approach ensures that installers do not walk over freshly laid tiles, which could lead to shifting or misalignment. Additionally, it allows for more controlled placement and alignment, as well as convenient egress when installation is complete.

EPI Data Center Specialist References:

EPI guidelines for raised floor installation emphasize beginning at the farthest point from the entrance and working back towards it, which aligns with industry best practices for efficiency and quality assurance. This method reduces potential damage and supports precise alignment across the floor area.

Relative Humidity (RH) is defined as the ratio of the actual water vapor content in the air to the maximum possible water vapor content at a given temperature. To calculate RH:

Dry bulb temperature (DBT): the ambient air temperature.

Wet bulb temperature (WBT): the temperature measured by a thermometer covered with a wet wick, influenced by evaporative cooling.

Using DBT and WBT, the humidity ratio and dew point can be determined with a psychrometric chart or Mollier diagram. From there, RH is calculated as:

A black text on a white background AI-generated content may be incorrect.

Options A and B are incomplete, while option C is an experimental method, not standard practice. The recognized method is option D.

Modern UPS systems can synchronize their output to an external reference, either from the rectifier input (Feed A) or from the bypass input (Feed B). Synchronization ensures seamless transfer between normal and bypass operation.

The configuration depends on user or vendor settings:

If synchronized to the bypass (Feed B), the UPS can quickly transfer to bypass during overload or failure.

If synchronized to the rectifier (Feed A), the UPS maintains stable output independent of bypass conditions.

ANSI/TIA-942 does not mandate which feed the UPS must synchronize to, only that redundancy be maintained across feeds in a Rating-4 design. Manufacturers typically allow the choice depending on operational preference.

A Top of Rack (ToR) design typically requires more switches because each rack has its own switch to manage network connections, as opposed to End of Row (EoR) or centralized designs, which consolidate switches. While ToR designs improve cabling efficiency and reduce latency, they also increase the number of switches, thus raising management complexity and potentially increasing capital and operational costs.

Detailed Explanation:

In a ToR setup, each rack’s individual switch allows for quick access and streamlined cabling within the rack. However, this setup means more devices to configure, monitor, and maintain, which can increase administrative overhead and network management complexity.

EPI Data Center Specialist References:

EPI documentation notes that ToR designs can improve performance but also lead to increased management needs due to the higher switch count, making them less ideal in environments where simplified network management is prioritized.

The Top-of-Rack (ToR) cabling layout places an access switch directly inside each rack. Each server in that rack only requires a short patch cable to connect to the switch, and only one or two uplinks per rack connect to aggregation switches. This greatly reduces the number of long horizontal cables across the data hall.

In contrast, an End-of-Row (EoR) design centralizes switches at the row end, requiring long horizontal cables from each server to the row cabinet. This can lead to thousands of extra copper or fiber runs in large deployments.

ANSI/TIA-942 and Cisco Design Guides emphasize that ToR is the best solution for minimizing cable bulk, improving airflow, and reducing cost in hyperscale or dense rack environments.

Thus, if the explicit design goal is to minimize cable quantity, ToR design is superior.
