Free Practice Questions for EMC D-PSC-MN-01 Exam

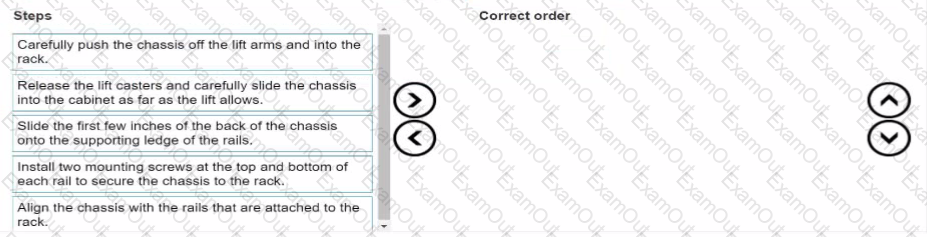

The correct order of steps to install a PowerScale Gen6 in a rack is as follows:

Align the chassis with the rails that are attached to the rack.

Slide the first few inches of the back of the chassis onto the supporting ledge of the rails.

Release the lift casters and carefully slide the chassis into the cabinet as far as the lift allows.

Carefully push the chassis off the lift arms and into the rack.

Install two mounting screws at the top and bottom of each rail to secure the chassis to the rack.

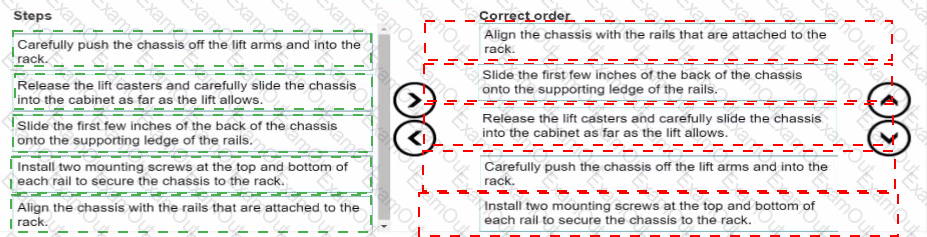

Comprehensive Detailed Step by Step Explanation with ReferencesTo install a PowerScale Gen6 in a rack, you need to follow a systematic process that ensures both safety and correct placement:

Align the chassis with the rails that are attached to the rack.The chassis must be properly aligned with the rails in the rack, which will support the chassis during the installation process.

Slide the first few inches of the back of the chassis onto the supporting ledge of the rails.Once aligned, slide the back of the chassis onto the supporting ledge of the rails, ensuring the chassis is seated securely.

Release the lift casters and carefully slide the chassis into the cabinet as far as the lift allows.After the chassis is aligned and placed onto the rails, release the lift casters and push the chassis into the rack with controlled force, using the lift mechanism.

Carefully push the chassis off the lift arms and into the rack.Once the chassis is positioned on the rails, remove the support from the lift arms, and push the chassis fully into the rack.

Install two mounting screws at the top and bottom of each rail to secure the chassis to the rack.Finally, use screws to secure the chassis at the top and bottom points on both sides, ensuring it is tightly fastened to the rack.

This order ensures a smooth, safe installation and proper alignment in the rack. Following these steps is crucial for the stability of the PowerScale Gen6 system during operation​.

Dell EMC PowerScale SmartLock is a feature that enables WORM (Write Once Read Many) capabilities on directories, providing data immutability to meet compliance and regulatory requirements. There are three types of SmartLock directories:

Enterprise SmartLock: Offers flexible WORM protection suitable for general business needs.

Compliance SmartLock: Provides stricter WORM enforcement for regulatory compliance.

Secure SmartLock: Enhances Compliance mode with additional security features like role-based access controls.

Once data is written to a WORM directory, it cannot be modified or deleted until the retention period expires. To overwrite or modify data in these directories before the retention period ends, the directories must be reformatted to remove the WORM attributes.

Key Points:

All Types Require Reformatting: To overwrite WORM directories, all types—Enterprise, Compliance, and Secure SmartLock—need to be reformatted.

Reformatting Process: Reformatting removes the WORM protection, allowing changes to be made.

Compliance Implications: Caution must be exercised as reformatting Compliance and Secure directories may have legal and compliance implications.

Dell PowerScale References:

Dell EMC PowerScale OneFS Administration Guide:

Chapter on SmartLockexplains the WORM functionality and the immutability of data.

Reformatting SmartLock Directoriessection details the steps and implications of reformatting.

Best Practices:

Always ensure that reformatting complies with organizational policies and legal requirements.

Document the reformatting process for audit purposes.

The Dell EMC PowerScale F600 node uses 25 Gigabit Ethernet for external networking.

Details:

25 GbE NICs:

Provide high bandwidth suitable for performance-intensive workloads.

Support modern data center networking standards.

Dell PowerScale References:

Dell EMC PowerScale F600 Technical Specifications:

Networking Section:

Specifies the use of 25 GbE NICs for external connections.

Best Practices:

Ensure network infrastructure (switches, cables) supports 25 GbE.

Configure network settings to optimize performance.

In a Dell EMC PowerScale cluster, each node is assigned a Logical Node Number (LNN) that identifies it within the cluster. When nodes are added or removed (e.g., via SmartFail), LNNs may become non-sequential. To modify the LNNs and restore sequential order, specific commands must be used.

Steps to Modify the LNN for a Node:

Enter Configuration Mode:

Use the isi config command to enter the configuration shell.

# isi config

This mode allows for administrative tasks that can alter the cluster configuration.

Use the lnset Command:

The lnset command is used to set the LNN of a node.

# lnset --sn

--sn specifies the serial number of the node.

is the desired Logical Node Number.

Example:

If you want to set the LNN of a node with serial number ABC12345 to 6:

# isi config

# lnset --sn ABC12345 6

Why Option C is Correct:

Accurate Command Sequence:

Option C correctly specifies entering isi config, followed by using lnset with the serial number () and the new LNN.

Proper Syntax:

The command includes all necessary parameters to change the LNN.

Why Other Options Are Incorrect:

Option A and B:

Commands isi device node and isi node with --lnn options are incorrect or incomplete for changing LNNs.

Option D:

Simply stating lnset without specifying the serial number and new LNN is insufficient.

Dell PowerScale References:

Dell EMC PowerScale OneFS CLI Administration Guide:

Section on Node Management Commands:

Details the usage of isi config and lnset commands.

Provides syntax and examples for changing LNNs.

Notes on LNN Changes:

Warns that changing LNNs can impact cluster operations and should be performed during maintenance windows.

Best Practices:

Before Changing LNNs:

Ensure that the cluster is in a healthy state.

Notify users of potential service impacts.

Backup critical configuration data.

During LNN Change:

Carefully input the serial number and desired LNN to avoid mistakes.

Verify that the new LNN is not already in use.

After Changing LNNs:

Exit the configuration mode with exit.

Check cluster status using isi status to confirm that the node has been assigned the new LNN.

Update any documentation to reflect the new node numbering.

Caution:

Modifying LNNs is an advanced operation that can affect cluster communication.

It is recommended to consult Dell EMC Support or refer to official documentation before proceeding.

A ShockWatch meter is a device attached to shipping containers or equipment that indicates if the item has been exposed to excessive shock or mishandling during transit. If the ShockWatch meter has been activated (typically indicated by a color change), it suggests that the equipment may have been subjected to impact beyond acceptable limits.

Recommended Action:

Contact Dell EMC PowerScale Technical Support:

Before proceeding with unpacking or installation, you should report the activated ShockWatch meter to Dell EMC.

Technical Support may advise on additional inspections, testing, or replacement of the affected components.

Why Option C is Correct:

Potential Equipment Damage:

An activated ShockWatch meter indicates possible damage that may not be immediately visible.

Manufacturer Guidance:

Dell EMC can provide instructions to ensure that any damaged equipment is identified and addressed.

Safety Considerations:

Prevents potential issues that could arise from installing compromised hardware.

Why Other Options Are Incorrect:

Option A (Deactivate the ShockWatch meter):

The ShockWatch meter cannot be deactivated once triggered.

Option B (Reset the ShockWatch meter):

The meter is not resettable; it's a single-use indicator.

Option D (Proceed with unpacking):

Ignoring the activated meter could lead to installing damaged equipment.

Dell PowerScale References:

Dell EMC Shipping and Handling Guidelines:

ShockWatch Indicators:

Explain the purpose of ShockWatch meters.

Provide instructions on what to do if the meter is activated.

Technical Support Procedures:

Reporting Shipping Damage:

Emphasize the importance of reporting any signs of damage upon receipt.

Outline the steps for contacting support and initiating any necessary actions.

Best Practices:

Inspect All Shipments:

Upon receipt, carefully examine all packaging and indicators like ShockWatch meters.

Documentation:

Take photographs of the activated ShockWatch meter and any visible damage.

Keep records of communications with Dell EMC.

Await Instructions:

Do not proceed with installation until authorized by Dell EMC Technical Support.

Follow any testing or inspection procedures provided.

Benefits of Contacting Support:

Risk Mitigation:

Ensures that any potential issues are addressed before they impact system performance.

Warranty Protection:

Properly reporting and documenting the issue helps in warranty claims.

Customer Satisfaction:

Facilitates prompt resolution and minimizes deployment delays.

When a Dell PowerScale Gen6 single node is replaced, the standard procedure is to return the entire faulty node, including all its components, back to Dell. This ensures proper handling, compliance with warranty agreements, and allows Dell to perform failure analysis if necessary.

Node Replacement Process:

Faulty Node Identification:A node exhibiting issues is identified for replacement.

Data Protection:Before replacement, data is protected via OneFS, which ensures data is redistributed across the cluster to prevent data loss.

Replacement Node Shipment:Dell ships a replacement node to the customer.

Handling of Components:

No Component Swapping:Components such as drives, memory modules, and CPUs are not transferred from the old node to the new one.

Return Procedure:The entire faulty node, with all its components intact, is returned to Dell.

Purpose of Return:Returning the node allows Dell to:

Perform Diagnostics:Analyze the faulty components for failures.

Manage Inventory:Ensure proper accounting of hardware.

Environmental Compliance:Dispose of or recycle components according to regulations.

Dell's Return Material Authorization (RMA) Policy:

RMA Process:Dell issues an RMA for the faulty node, and the customer is responsible for returning it.

Shipping Instructions:Detailed instructions are provided to safely package and ship the node back to Dell.

Dell PowerScale References:

Dell EMC PowerScale Field Replacement Unit (FRU) Installation and Replacement Guide:

Outlines the procedures for replacing nodes and the requirement to return faulty units to Dell.

Dell EMC PowerScale OneFS Administration Guide:

Provides information on cluster maintenance and node management.

Warranty and Support Agreements:

Specify the obligations for returning faulty hardware under service contracts.

When installing Dell EMC PowerScale Gen 6 nodes in a customer-provided rack, it is crucial for the platform engineer to ensure that the rack meets all safety and installation requirements. One of the most critical pre-checks is verifying that the rack has a full earth ground and is properly bolted to the floor.

Key Points:

Full Earth Ground:

Ensures electrical safety by providing a path for fault currents.

Protects equipment and personnel from electrical hazards.

Reduces the risk of electrical interference affecting the equipment.

Properly Bolted to the Floor:

Provides physical stability to prevent the rack from tipping over.

Essential for seismic compliance in areas prone to earthquakes.

Prevents movement due to vibrations from equipment operation or external factors.

Why This is Important:

Safety Compliance:

Adhering to safety standards is mandatory to prevent accidents.

Electrical grounding is a fundamental requirement for data center equipment installations.

Equipment Protection:

Proper grounding and securing the rack protect sensitive equipment from damage.

Minimizes downtime caused by electrical faults or physical disturbances.

Why Other Options Are Less Critical:

Option A (PDUs on Opposite Sides):

While distributing PDUs can aid in power redundancy and cable management, it is not as critical as grounding and securing the rack.

Option B (Rack Leveling):

Leveling the rack is important for equipment alignment but is a standard step during installation rather than a pre-check.

Option D (Minimum of Two PDUs):

Having multiple PDUs provides redundancy but depends on the power requirements and design of the system.

Dell PowerScale References:

Dell EMC PowerScale Site Preparation and Planning Guide:

Section on Rack Requirements:

Emphasizes that customer-provided racks must be properly grounded and secured.

States that racks should be bolted to the floor to prevent tipping.

Safety Precautions:

Details the importance of electrical grounding for safety and equipment protection.

Best Practices:

Before Installation:

Verify that the rack complies with all local electrical codes and regulations.

Ensure that a qualified electrician has installed the grounding system.

During Installation:

Check that all grounding connections are secure.

Confirm that the rack is level and stable after bolting it to the floor.

After Installation:

Perform an electrical continuity test to verify proper grounding.

Document the installation for future reference and compliance audits.

During the installation of Dell PowerScale H400 nodes, it is standard practice to leave a 1U gap underneath the chassis to accommodate the Cable Management Tray (CMT). The Cable Management Tray is essential for organizing and supporting the network and power cables connected to the node. Proper cable management ensures that cables are neatly routed, reduces stress on the connectors, and prevents obstruction of airflow within the rack.

According to the Dell PowerScale Hardware Installation and Planning Guide, the inclusion of a Cable Management Tray improves serviceability and maintains optimal airflow by preventing cables from hanging in front of the equipment or blocking ventilation paths. By intentionally leaving a 1U gap, the platform engineer ensures that the Cable Management Tray can be installed without interfering with the node's operation or the rack's structural integrity.

References:

Dell PowerScale Hardware Installation and Planning Guide

Best Practices for Cable Management in Dell PowerScale Systems

When replacing a 3.5" hard drive in a Dell EMC PowerScale Gen 6 drive sled, it's crucial to follow the proper procedures to ensure the drive is installed correctly and securely.

Drive Sled Handle Position:

Handle Should Be Open Before Insertion:

Before pushing the drive sled forward into the node chassis, the handle of the drive sled must be in theopenposition.

This allows the drive sled to slide into the chassis without obstruction.

Securing the Drive Sled:

Once the drive sled is fully inserted, you thenclosethe handle to lock the sled into place.

Closing the handle engages the locking mechanism and ensures proper connectivity between the drive and the backplane.

Why the Handle Should Be Open:

Prevent Damage:

Inserting the sled with the handle closed can cause damage to the drive connectors or the chassis backplane.

Ease of Installation:

An open handle provides leverage and guidance during insertion.

Dell PowerScale References:

Dell EMC PowerScale Hardware Replacement Guide:

Section on Drive Replacement Procedures:

Specifies that the drive sled handle should beopenwhen inserting the drive sled.

Provides illustrations showing the correct position of the handle during installation.

Best Practices:

Always handle drives and sleds carefully to prevent electrostatic discharge (ESD) damage.

Ensure the drive sled is fully seated before closing the handle.
