If a user can send email but cannot receive email, the most likely issue is with the incoming mail configuration rather than the outgoing mail configuration. SMTP is primarily used for sending mail from a client to a mail server (and between mail servers), so working outbound email strongly suggests SMTP settings are correct. To receive email, the client must connect to an incoming mail service such as IMAP (or POP3). Therefore, the first setting to verify on the laptop is the IMAP configuration, including the incoming server address, port number, encryption method (SSL/TLS), and authentication credentials. If any of these are wrong, the client may fail to synchronize the mailbox, making it appear that mail is not arriving even though messages exist on the server.

DNS can affect both sending and receiving because clients must resolve mail server hostnames, but when the symptom is specifically “send works, receive fails,” checking the dedicated incoming protocol settings is the most direct and likely fix. DMARC is an email authentication policy used at the domain level and is not a laptop-side setting the technician would check first for a single user’s inbound mail problem.

ANetwork Interface Card (NIC)is the hardware responsible for network connectivity. If the NIC is failing or underperforming (e.g., due to a bad driver, hardware fault, or misconfiguration), it can causeslow or unstable network speeds.

Option A (CPU):A failing CPU affects overall system performance but not specifically network speed.

Option C (HDD):A slow hard drive causes application lag, but not poor network performance.

Option D (RAM):Affects multitasking and speed, not network throughput.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to wired and wireless networks.

===========

When an application fails to install on a smartphone despite being supported by the OS and device type, CompTIA A+ stresses that the most common cause is insufficient storage. Mobile devices require not only space for the app itself but also additional temporary space for the installation process, cached data, and updates. If internal storage is nearly full, the app store will display installation errors—even if the OS and hardware meet requirements.

Battery health has no impact on app installation. A SIM card is unrelated to installing local applications—it only affects cellular connectivity. Processor architecture issues would have been caught during compatibility checking, but the technician already verified the device supports the application.

Therefore, after confirming compatibility, the next logical step is to check available storage space. If storage is low, deleting unused apps, clearing cached data, or transferring media to cloud storage or an SD card typically resolves the installation issue.

Thus, Option A: Storage is the correct answer.

A physical bulge under the trackpad is a classic CompTIA-identified symptom of a swollen lithium-ion battery. As batteries degrade, internal gas buildup expands the casing, pushing upward on the laptop chassis—often distorting the trackpad, keyboard, or bottom shell. This can cause cursor issues, clicking problems, and safety hazards.

Replacing the battery first is essential because swollen batteries can rupture, leak, or ignite. Only after the battery is removed and replaced should the technician evaluate whether the trackpad suffered permanent damage.

Replacing the trackpad (D) without addressing the battery fails to correct the root cause. The motherboard (A) and heat sink (B) are unrelated to the physical bulge.

Thus, the correct first step is replacing the battery.

Comprehensive and Detailed Explanation From Exact Extract:

PIN printing (also known as secure printing) ensures that documents are held in a queue until the authorized user enters a PIN directly at the printer. This prevents unauthorized viewing of confidential documents.

To share a phone’s cellular data connection with a laptop, the user should use a hotspot, also known as mobile hotspot or Wi-Fi tethering. In CompTIA A+ Core 1 terms, this feature allows a smartphone to act like a small wireless router: it takes the phone’s mobile data (4G/5G) connection and rebroadcasts it over Wi-Fi so another device (the laptop) can join the wireless network using an SSID and password. This is the most common and straightforward method because laptops universally support Wi-Fi and the connection typically provides better throughput than other tethering methods. Hotspot/tethering settings also commonly allow configuration of security (WPA2/WPA3) and can limit connected devices to reduce unauthorized access and manage data usage.

Bluetooth (option B) can support tethering on some devices, but it is slower, more limited, and not the primary expected answer when the goal is simply sharing cellular internet with a laptop. NFC (option C) is mainly used for close-range pairing or payments and does not provide an internet sharing link by itself. Ethernet (option D) would require wired adapters and is not the standard method for cellular sharing. Therefore, Hotspot is the best answer.

A router is a network device that forwards data between different networks by examining packet headers, specifically the IP address information contained in Layer 3 (Network Layer) of the OSI model. According to the CompTIA A+ Core 1 (220-1201) networking objectives, routers use routing tables and packet header analysis to determine the best path for data to travel from a source network to a destination network. When a packet arrives at a router interface, the router reads the destination IP address in the packet header, compares it against its routing table, and then forwards the packet to the appropriate next hop or network interface. This function allows routers to connect multiple networks such as LANs, WANs, and the internet.

The other options do not perform this function. A hub operates at Layer 1 (Physical Layer) and simply broadcasts incoming signals to all connected ports without inspecting any packet information. A repeater also operates at the physical layer and is used only to regenerate or amplify signals to extend network distance. An unmanaged switch operates mainly at Layer 2 (Data Link Layer) and forwards frames based on MAC addresses, not IP packet headers. Because only routers analyze packet headers and forward traffic between different networks, Router is the correct answer.

To change adomain passwordfrom a remote location, the system must communicate with thedomain controller. Since the user is working from home, they need toconnect to the corporate VPNto establish that secure connection. Without it, the password change cannot be authenticated.

Option A:Restarting will not resolve the lack of connection to the domain controller.

Option C:Resetting the password in AD could help, but doesn’t let the user reset it themselves.

Option D:The user may already be on Wi-Fi; the issue is with connecting to thecorporate network, not local.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.6: Given a scenario, configure basic mobile device network connectivity and application support.

===========

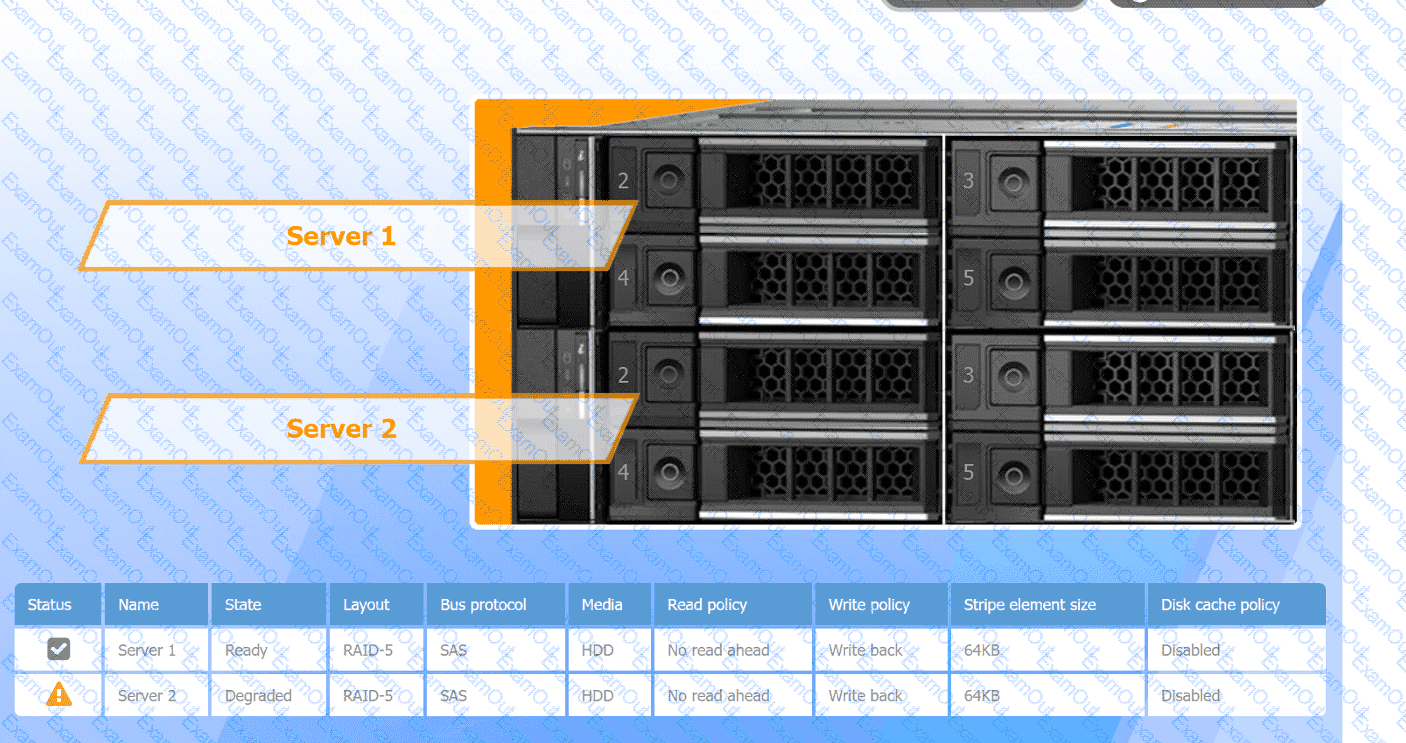

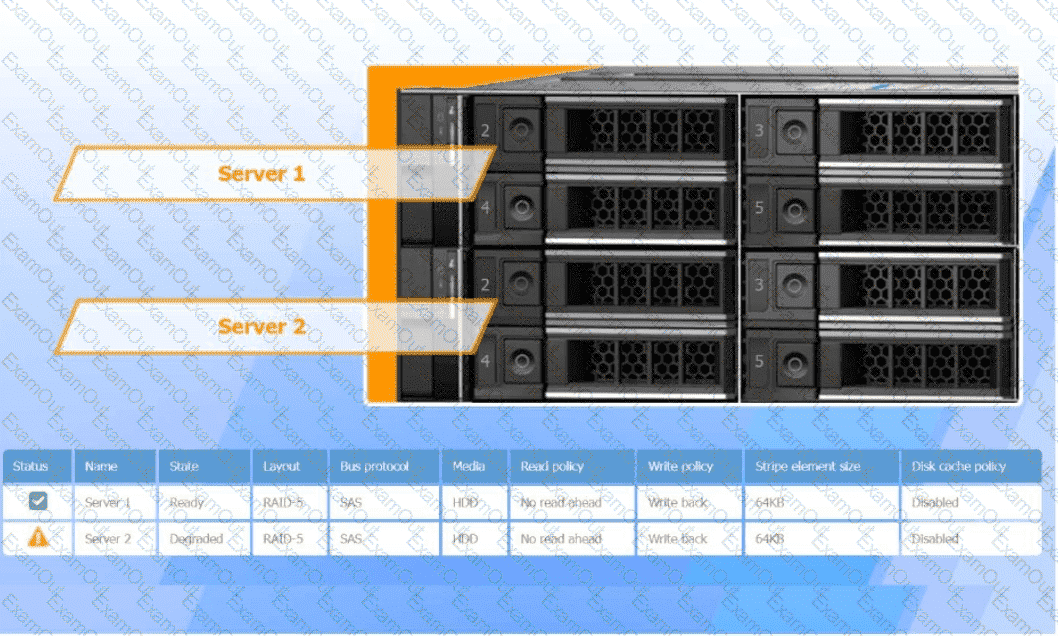

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

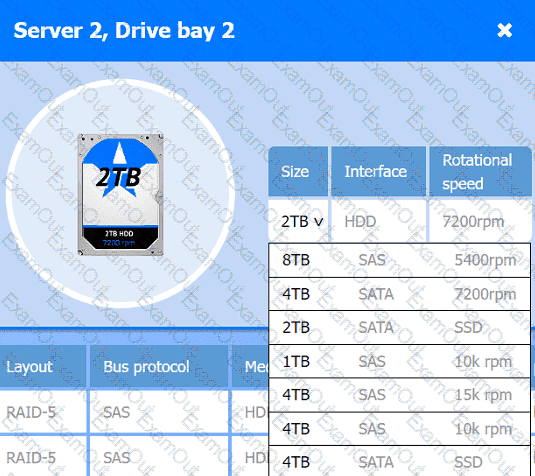

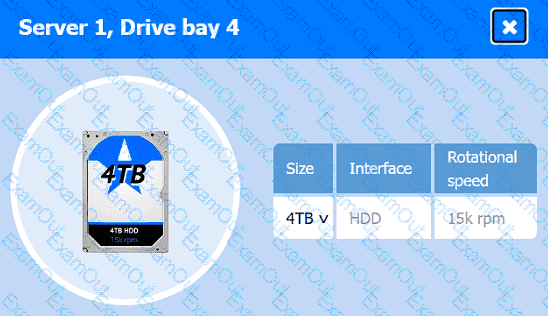

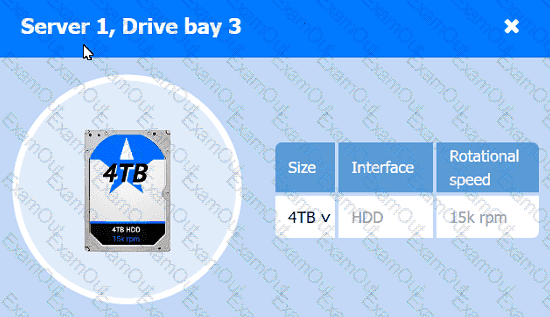

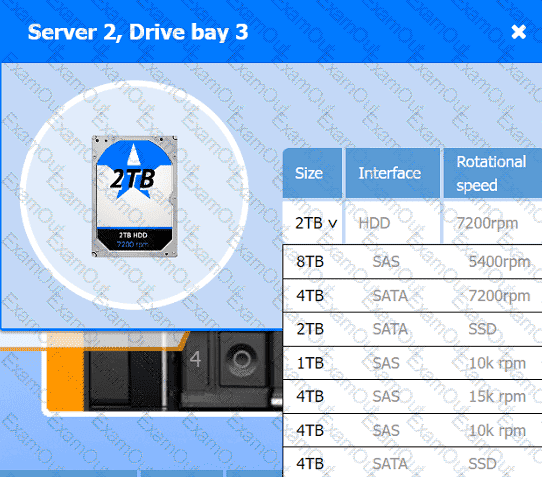

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

For a main database server with high read/write activity, the best RAID choice must deliver strong performance while still providing fault tolerance. Per CompTIA A+ Core 1 (220-1201) storage/RAID objectives, RAID 10 (1+0) combines disk mirroring (RAID 1) and disk striping (RAID 0). Striping improves performance by distributing read/write operations across multiple disks, which is ideal for databases that perform frequent transactions. Mirroring provides redundancy by keeping an identical copy of data on a paired drive, allowing the system to tolerate drive failures (typically one drive per mirrored pair) without data loss.

RAID 0 is fast but offers no redundancy, making it inappropriate for critical servers. RAID 5 and RAID 6 use parity, which provides redundancy but introduces a write penalty because parity must be calculated and written during updates—often a poor fit for workloads with heavy random writes like databases. RAID 6 is even more write-intensive
