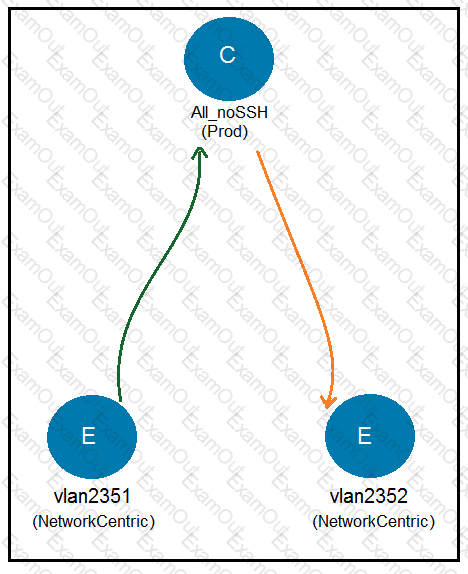

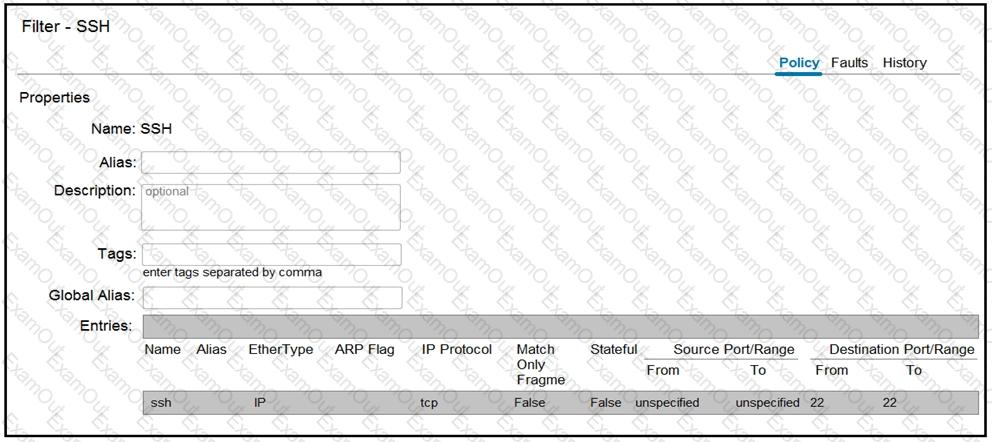

Refer to the exhibits.

Which subject must be configured for the All_noSSH contract to allow all IP traffic except SSH between the two EPGs?

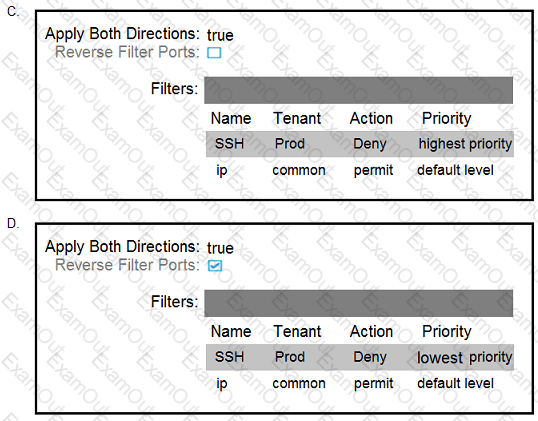

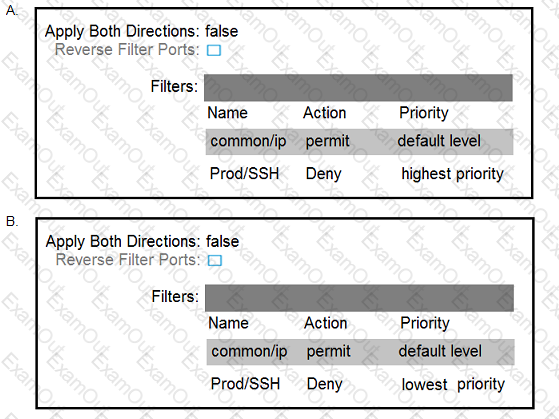

A.

Exhibit A

B.

Exhibit B

C.

Exhibit C

D.

Exhibit D

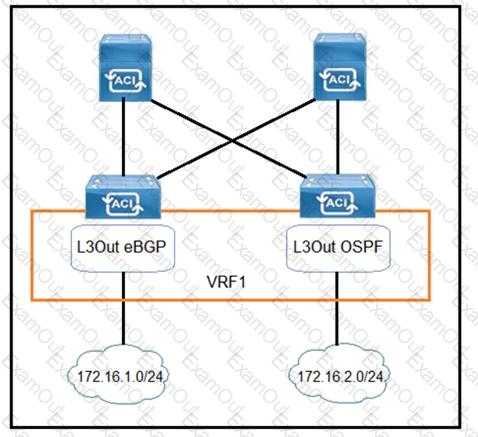

Refer to the exhibit.

Which configuration must be implemented on L3Out EBGP to advertise out of the fabric 172.16.2.0/24 network that is learned from L3Out OSPF?

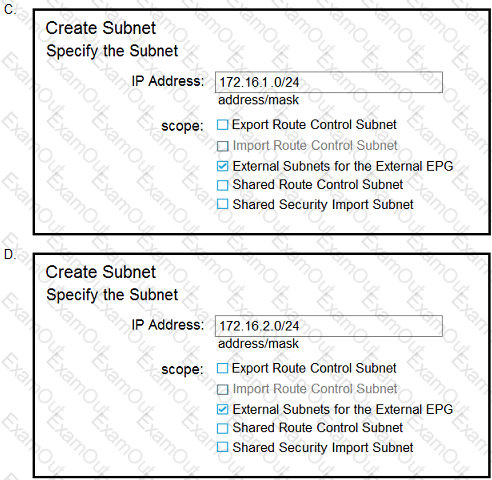

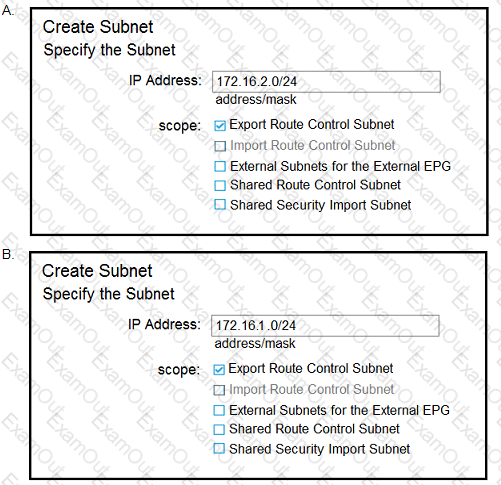

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Cisco ACI fabric is migrated from network-centric mode to application-centric mode. What is possible in an application-centric design?

A.

remapping of VLAN pools

B.

migration of bare metal servers to virtual machines

C.

creation of additional EPGs under one bridge domain

D.

Cisco ACI VMM integration with hypervisors

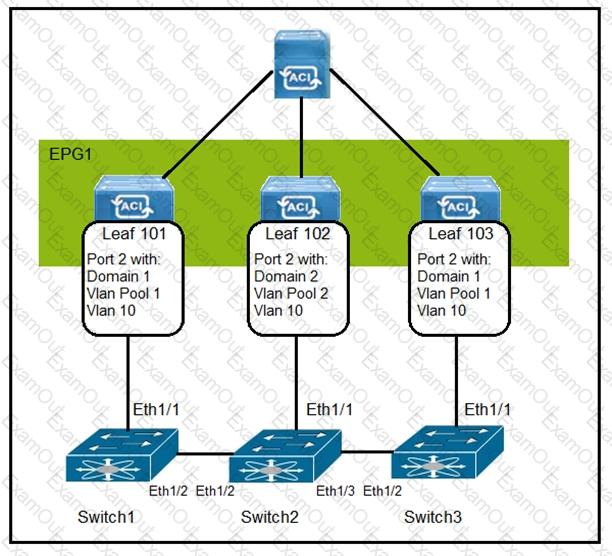

Refer to the exhibit.

How are the STP BPDUs forwarded over Cisco ACI fabric?

A.

STP BPDUs that are generated by Switch2 are received by Switch1 and Switch3.

B.

Cisco ACI fabric drops all STP BPDUs that are generated by the external switches.

C.

Cisco ACI acts as the STP root for all three external switches.

D.

STP BPDUs that are generated by Switch1 are received only by Switch3.

What are two characteristics of Cisco ACI and Spanning Tree Protocol interaction? (Choose two.)

A.

When a TCN BPDU is received in a VLAN, Cisco ACI flushes the endpoints for the associated encapsulation.

B.

STP BPDUs are dropped due to MCP.

C.

MST BPDUs are flooded correctly in Cisco ACI fabric without additional configuration.

D.

BPDU filter and BPDU guard can be configured on Cisco ACI leaf edge ports.

E.

Cisco ACI must be configured as the STP root for all VLANs.

What is a design implication for Cisco ACI using an application-centric approach?

A.

Multiple VLANs and/or multiple EPGs are under one bridge domain

B.

VLAN numbers are in the names of the bridge domain and EPG objects

C.

One EPG is mapped to multiple bridge domains

D.

One VLAN equals one EPG equals one bridge domain

What is the advantage of implementing an active-active firewall cluster that is stretched across separate pods when anycast services are configured?

A.

A different MAC/IP combination can be configured for the firewall in each pod.

B.

The local pod anycast node is preferred by the local spines.

C.

A cluster can be deployed in transparent mode across pods.

D.

Local traffic in a pod is load-balanced between the clustered firewalls.

An organization deploys active-active data centers and active-standby firewalls in each data center. Which action should be taken in a Cisco ACI Multi-Pod to maintain traffic symmetry through the firewalls?

A.

Enable Endpoint Dataplane Learning

B.

Disable service node Health Tracking

C.

Enable Pod ID Aware Redirection

D.

Disable Resilient Hashing
