Location-based call admission control is used in Cisco UCM to control the amount of bandwidth allowed between predefined locations. What must be considered when calculating the number of calls that can be made?

A.

A limit of 900 kb is the total amount of bandwidth used for the sum of calls. The use of compression does not impact the amount of calls because only the codec definition is considered when calculating the CAC in Cisco UCM

B.

A limit of 900 kb is the total amount of actual used RTP traffic so the oversubscription can be done for multiple calls adding its maximum RTP stream requirements.

C.

A limit of 900 kb is the total amount of bandwidth used for the sum of the media and signaling in the calls The system allows for an actual of 20% overhead of IP packet headers This is to compare the use of ISDN lines with no IP overhead.

D.

A limit of 900 kb is the total amount of bandwidth used for the sum of calls of the defined codec including headers and media traffic

To provide high-quality voice and take advantage of the full voice feature set, which two access layer switches provide support?

A.

Use multiple egress queues to provide priority queuing of RTP voice packet streams and the ability to classify or reclassify traffic and establish a network trust boundary.

B.

Use 802, 1Q trunking and 802.1p for proper treatment of Layer 2 CoS packet marking on ports with phones connected.

C.

Implement IP RTP header compression on the serial Interface to reduce the bandwidth required per voice call on point-to-point links.

D.

Deploy RSVP to improve VoIP QoS only where it can have a positive impact on quality and functionality where there is limited bandwidth and frequent network congestion.

E.

Map audio and video streams of video calls (AF41 and AF42) to a class-based queue with weighted random early detection.

When a new SIP phone is registered to Cisco Unified communications Manager, it keeps failing and showing an “unprovisioned” error message in the phone display. Which problem is a possible cause of this issue?

A.

Auto-registration is disabled on the Cisco Unified Communications Manager nodes and the phone device does not have a DN configured.

B.

The DHCP settings are incorrectly and the phone does not have an alternate TFTP defined.

C.

The phone cannot download and install the latest firmware.

D.

The DN assigned to the phone is already in use by another SIP phone.

E.

The DN configuration for this phone is shared with SCCP phone, which is not supported.

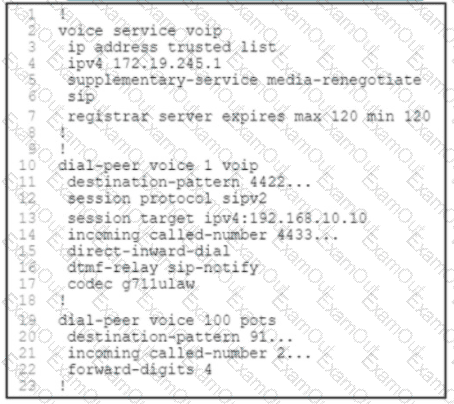

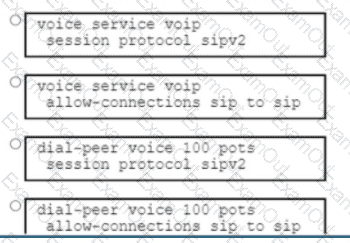

Refer to the exhibit. An engineer must implement toll fraud prevention on a Cisco UCM cluster. Only the SIP protocol must be allowed for connections passing through Cisco Unified Border Element. What must be configured?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Which set of four functions are performed by Cisco Unified Border Element?

A.

session control, security, interworking, and demarcation

B.

PRI connections, security, faxing, and border enforcement

C.

session control, meet-me conferencing, interworking. and demarcation

D.

session control, security. SIP. and H.323

An administrator must make a pattern to route calls to two different destinations john doe@company com and jane doe@company com Which type of patterns are needed in the Cisco UCM. and what must the pattern look like?

A.

A SIP route pattern that looks like the *@company.com

B.

A SIP route pattern that looks like this company.com

C.

A regular route pattern with URI feature enable in the configuration page. The pattern

must look like this:(*@company.com)

D.

A regular route pattern with URI feature enable in the configuration page. The pattern

must look like this:MATCH(*@company.com)

What is the purpose of a hybrid Local Gateway?

A.

to handle calls between Webex Calling and Cisco Calling Plans

B.

to handle calls between Webex Calling and Cloud Connected PSTN

C.

to handle calls between Cisco IJCM and Webex Calling

D.

to handle calls between the Public Switched Telephone Network and Webex Calling

In the cisco expressway solution, which two features does mobile and Remote access provide? (Choose two)

A.

VPN-based enterprise access for a subset of Cisco Unified IP Phone models

B.

secure reverse proxy firewall traversal connectivity

C.

the ability 10 register third-party SIP or H 323 devices on Cisco UCM without requiring VPN

D.

the ability of Cisco IP Phones to access the enterprise through VPN connection

E.

the ability for remote users and their devices to access and consume enterprise collaboration applications and services

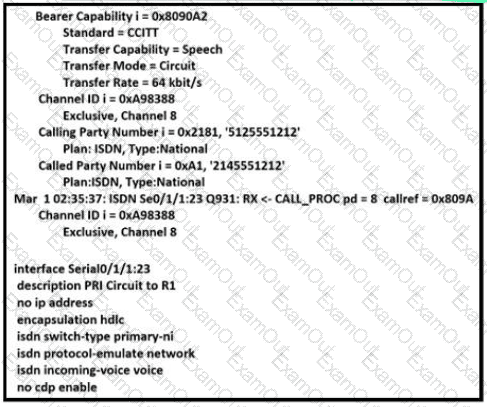

Refer to the exhibit. An engineer is troubleshooting why PSTN phones are not receiving the caller's name when called from a remote Cisco UCM site. An ISDN PRI connection is being used to reach the PSTN What must the administrator select to resolve the issue?

A.

isdn supp-service name calling

B.

isdn outgoing display-ie

C.

isdn enable did

D.

isdn send display le

Refer to the exhibit. Which route pattern can the Cisco UCM administrator apply to the configuration to allow calls to "1306.1316.1326,13*6.13#6” only?

A.

13XX

B.

13[25-8]6

C.

13!#

D.

13[A3-9)6
