Free Practice Questions for Cisco 350-501 Exam

In Cisco’s path selection process, the weight attribute is the first criterion for selecting a path. It is a Cisco-specific parameter, local to the router, and it is not propagated in routing updates. The path with the highest weight is preferred. Therefore, configuring a high weight on the peer to ASN 4567 will make Router R1 prefer this path for all outbound traffic directed towards ASN 4567. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Training & Certification

The command PE-A(config-pmap-c)#set dscp ef is used to apply DSCP marking to the traffic matched by the class-map. DSCP marking is a part of QoS policy to prioritize traffic. The ‘ef’ (Expedited Forwarding) value is commonly used for voice traffic to ensure it receives high priority and low delay through the network.

References: For more information, refer to the QoS section in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials.

 Router R1 is configured as a stub area with the “no-summary” option, which means it will not receive summary LSAs (Type 3) from the Area Border Router (ABR). It will only have Type 1 (Router LSAs) and Type 2 (Network LSAs) in its OSPF database for the area it belongs to. Router R2 is configured as an NSSA (Not So Stubby Area), which allows it to import AS external routes as Type-7 LSAs. These Type-7 LSAs can then be converted to Type-5 LSAs by the ABR when propagated into other areas. Therefore, R2 has Types 1, 2, and 7 LSAs in its OSPF database.

References: For more detailed information, please refer to the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials, specifically the sections covering OSPF area types and LSA types.

The SPT threshold set to infinity causes multicast traffic to permanently stay on the shared tree and not switch to the source tree. In multicast routing, the Shortest Path Tree (SPT) threshold determines when a router should switch from receiving multicast traffic on the shared tree to receiving it on a source tree. Setting the SPT threshold to infinity means that the router will always receive multicast traffic on the shared tree

Segment routing prefix segments are linked to a prefix SID that is globally unique within the segment routing domain. This means that each prefix SID identifies a specific prefix in the network and is unique across the entire segment routing-enabled domain, ensuring that the path to the prefix can be identified and used by any node within the domain1. References: Introduction to Segment Routing - Cisco Learning Network2, ASR9000/XR Introduction to Segment Routing - Cisco Community3, About Segment Routing - Cisco Content Hub

To reduce network usage and minimize leave latency for users connected to VLAN 76, the configurations should focus on efficient multicast traffic management. Option A likely involves enabling IPv6 MLD snooping, which restricts multicast traffic to only the ports that have members interested in receiving the traffic, thus reducing unnecessary network usage. Option C might include configuring fast-leave processing, which allows the switch to immediately stop forwarding multicast traffic to a port when the last member of a multicast group leaves, reducing leave latency.

References := Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

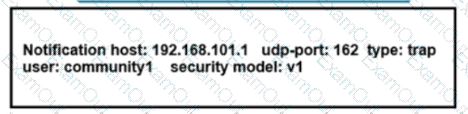

The difference between SNMP (Simple Network Management Protocol) and model-driven telemetry lies in their data delivery mechanisms. Telemetry allows for modeled network data to be pushed to network administrators on an as-needed basis, providing real-time insights into network performance and health. On the other hand, SNMP typically relies on polling mechanisms where network administrators request data at specific intervals. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

Cisco MPLS Traffic Engineering (TE) tunnels necessitate a link-state routing protocol like OSPF or IS-IS because these protocols use Shortest Path First (SPF) calculations. The tunnel endpoints leverage these SPF calculations to implement the tunnel, ensuring an efficient and optimized path through the network. This is essential for MPLS TE, which aims to optimize network resource utilization and improve traffic distribution across the network.

References: Cisco Community, Cisco Documentation
