In Cisco UCM, which tool is used to check SIP traces?

A.

MTP

B.

CCSIP

C.

RTMT

D.

OS Administration Page

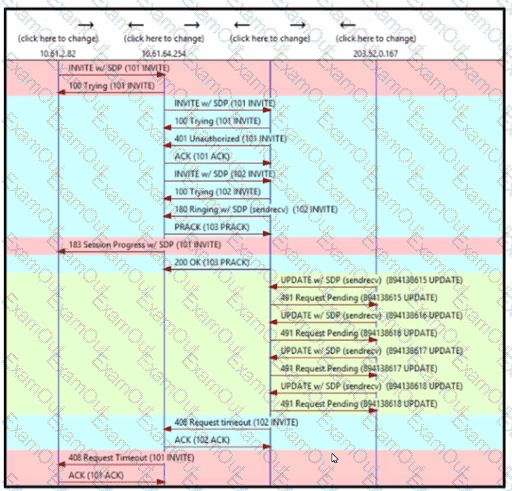

Refer to the exhibit. Calls from users to the PSTN in an organization get disconnected with a 408 Request Timeout when the called party is unavailable to pick up the call. Which solution must be used to resolve this challenge?

A.

Configure midcall-signaling preserve-codec.

B.

Choose "Send PRACK" if 1xx contains SDP in the SIP profile.

C.

Configure midcall-signaling passthru media-change

D.

Choose "Send PRACK for all 1xx Messages" in the SIP profile.

An engineer needs to configure a translation pattern in Cisco UCM to match dialed numbers that start with 9011 so that the calls can be routed with a single route pattern of VH If the engineer uses translation pattern 9011.! which two called party transformation settings must be configured in Cisco UCM? (Choose two.)

A.

set Prefix Digits (Outgoing Calls) to +

B.

set Called Party Transform Mask to +!

C.

set Discard Digits to Predot

D.

set Called Party Numbering Plan to International

E.

set Called Party Number Type to International

An engineer is configuring a Cisco UCM solution. The requirements state that some users in one location will receive calls from a number during work hours 09AM to 5PM, and another group will get the calls from the same number outside this defined timeslot. Users will also change the outgoing number when reaching out to customers based on the same time-of-day routing rules. Which feature is needed to allow for this type of configuration?

A.

partitions

B.

route groups

C.

route lists

D.

CSS

An engineer must configure call queuing under a Hunt Pilot. After the engineer receives the audio file that will be played to callers during queuing, which two steps should be taken to complete the configuration? (Choose two.)

A.

Assign the uploaded audio file to the hunting Line Group member's "User Hold MOH Audio Source

B.

Assign the uploaded audio file to the hunting Line Group member's "Network Hold MOH Audio Source".

C.

Upload the audio file in "TFTP File Management” via OS Administration GUI

D.

Assign the uploaded audio file to "Network Hold MOH Source & Announcements" under Hunt Pilot's Queuing section.

E.

Upload the audio file in "MOH Audio File Management" via CM Administration GUI

A customer reports that outbound calls from Cisco UCM to Cisco Unified Border Element are not getting early media. During troubleshooting, the customer finds that Cisco UCM is sending a delayed offer SIP INVITE. Cisco Unified Border Element responds with a 183 Session Progress with SDP message. However, the customer finds that Cisco UCM does not respond to the 183 messages. Which action must the customer perform to resolve the problem?

A.

On Cisco Unified Border Element, configure midcall-signaling passthru.

B.

On Cisco UCM, change the "Early Offer support for voice and video calls" field on the SIP profile that is applied to the SIP trunk to Disabled.

C.

On Cisco Unified Border Element, configure early-offer forced.

D.

On Cisco UCM. change the "SIP ReHXX Options" field on the SIP profile that is applied to the SIP trunk to Send PRACK if 1xx Contains SDP.

An administrator discovers that employees are making unauthorized long-distance and international calls from logged-off Extension Mobility phones when the authorized users are away from their desks Which two configurations should the administrator configure in the Cisco UCM to avoid this issue? (Choose two.)

A.

Remove the long-distance & international pattern's partitions from the calling search space of the physical phone.

B.

Add the long-distance & international pattern's partitions to the calling search space of the physical phone's directory number.

C.

Remove the long-distance & international pattern's partitions from the calling search space of the device profile.

D.

Add the long-distance & international pattern's partitions to the calling search space of the physical phone.

E.

Add the long-distance & international pattern's partitions to the calling search space of the device profile

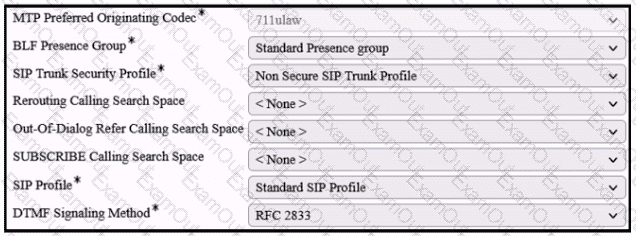

Refer to the exhibit.

An administrator just upgraded to Cisco UCM to version 14 and started SIP implementation with some new SIP trunks. During the testing, an error was reported when making a call. Which action resolves the issue?

A.

Change to a valid range.

B.

Change DTMF Signaling Method to "RFC 4833*.

C.

Make sure the destination number is configured correctly and the device is registered.

D.

Disable SIP Rel1XX Options.

A network engineer designs a new dial plan and wants to block a certain range of numbers (8135100 through 8135105). What is the most specific route pattern that can be configured to block only the numbers in this range?

A.

813510[012345]

B.

813510[12345]

C.

813510[^0-5]

D.

81XXXXX

A company was looking at the IT charges and saw many long-distance and international calls primarily to sites in North America and around the world. The administrator wants to optimize the PSTN expense. Which dial plan configuration reduces PSTN connectivity charges by using the IP network to bring the egress point to the PSTN as close as possible to the called number?

A.

translation patterns

B.

tail end hop off

C.

client matter codes

D.

dial rules
