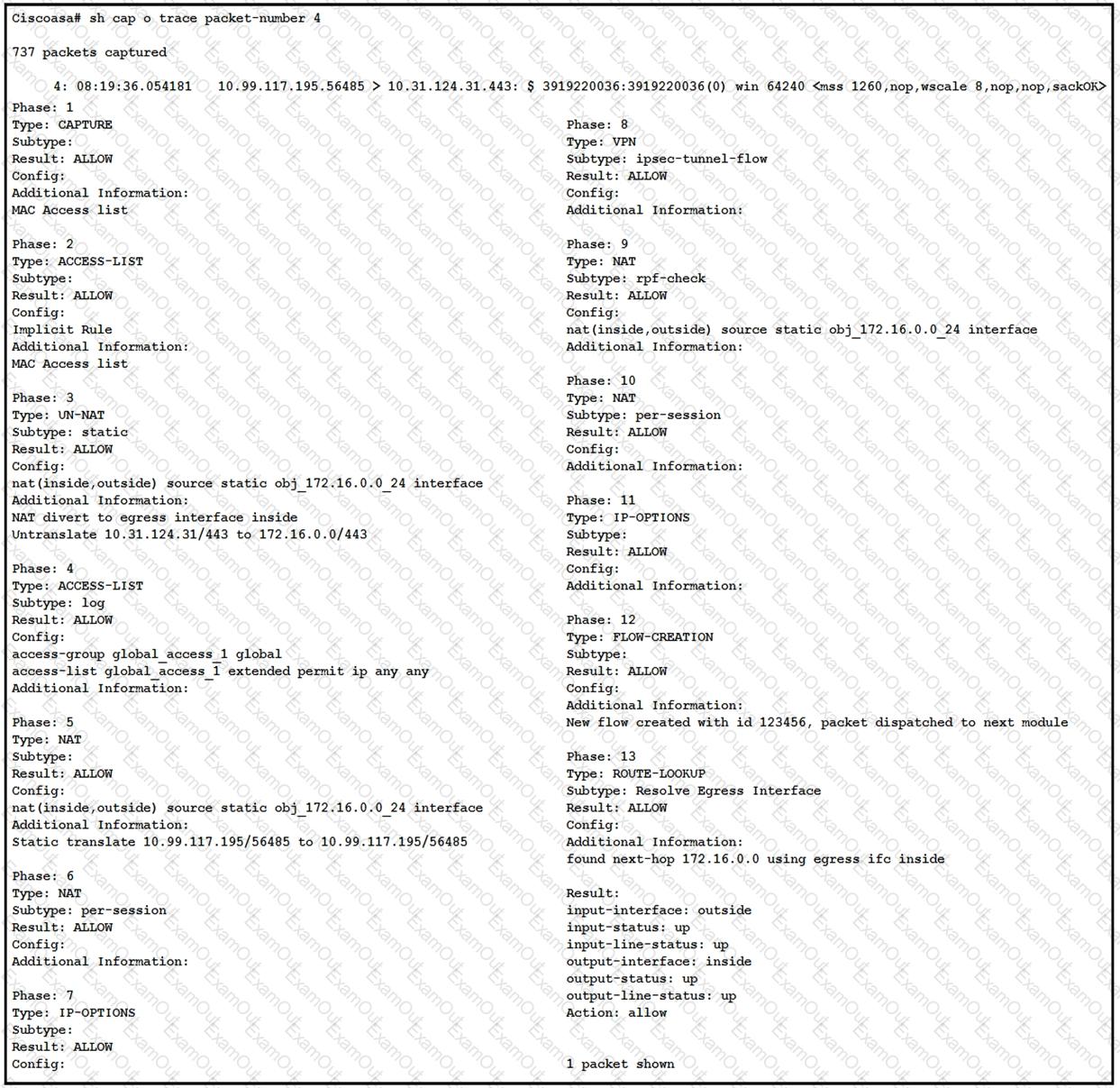

Refer to the exhibit.

An SSL client is connecting to an ASA headend. The session fails with the message “Connection attempt has timed out. Please verify Internet connectivity.” Based on how the packet is processed, which phase is causing the failure?

A.

phase 9: rpf-check

B.

phase 5: NAT

C.

phase 4: ACCESS-LIST

D.

phase 3: UN-NAT

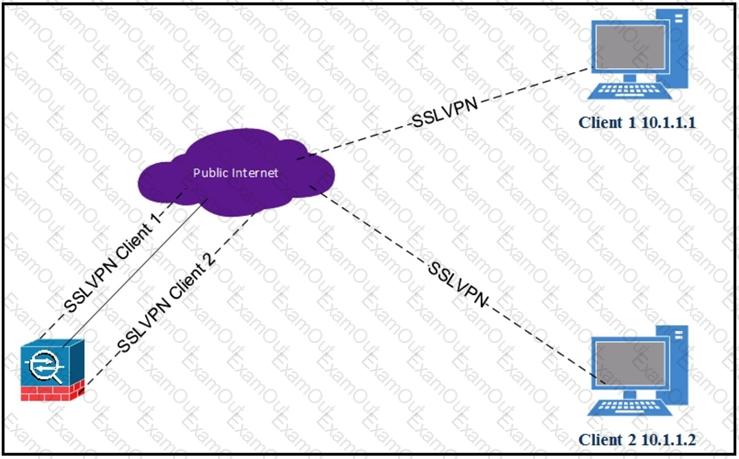

Refer to the exhibit.

Client 1 cannot communicate with client 2. Both clients are using Cisco AnyConnect and have established a successful SSL VPN connection to the hub ASA. Which command on the ASA is missing?

A.

dns-server value 10.1.1.2

B.

same-security-traffic permit intra-interface

C.

same-security-traffic permit inter-interface

D.

dns-server value 10.1.1.3

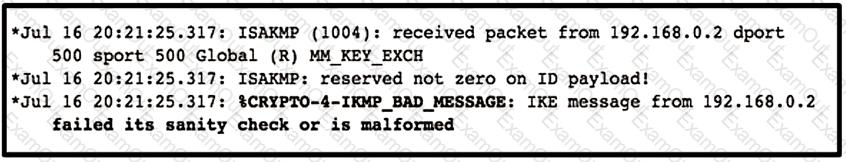

Refer to the exhibit.

A site-to-site tunnel between two sites is not coming up. Based on the debugs, what is the cause of this issue?

A.

An authentication failure occurs on the remote peer.

B.

A certificate fragmentation issue occurs between both sides.

C.

UDP 4500 traffic from the peer does not reach the router.

D.

An authentication failure occurs on the router.

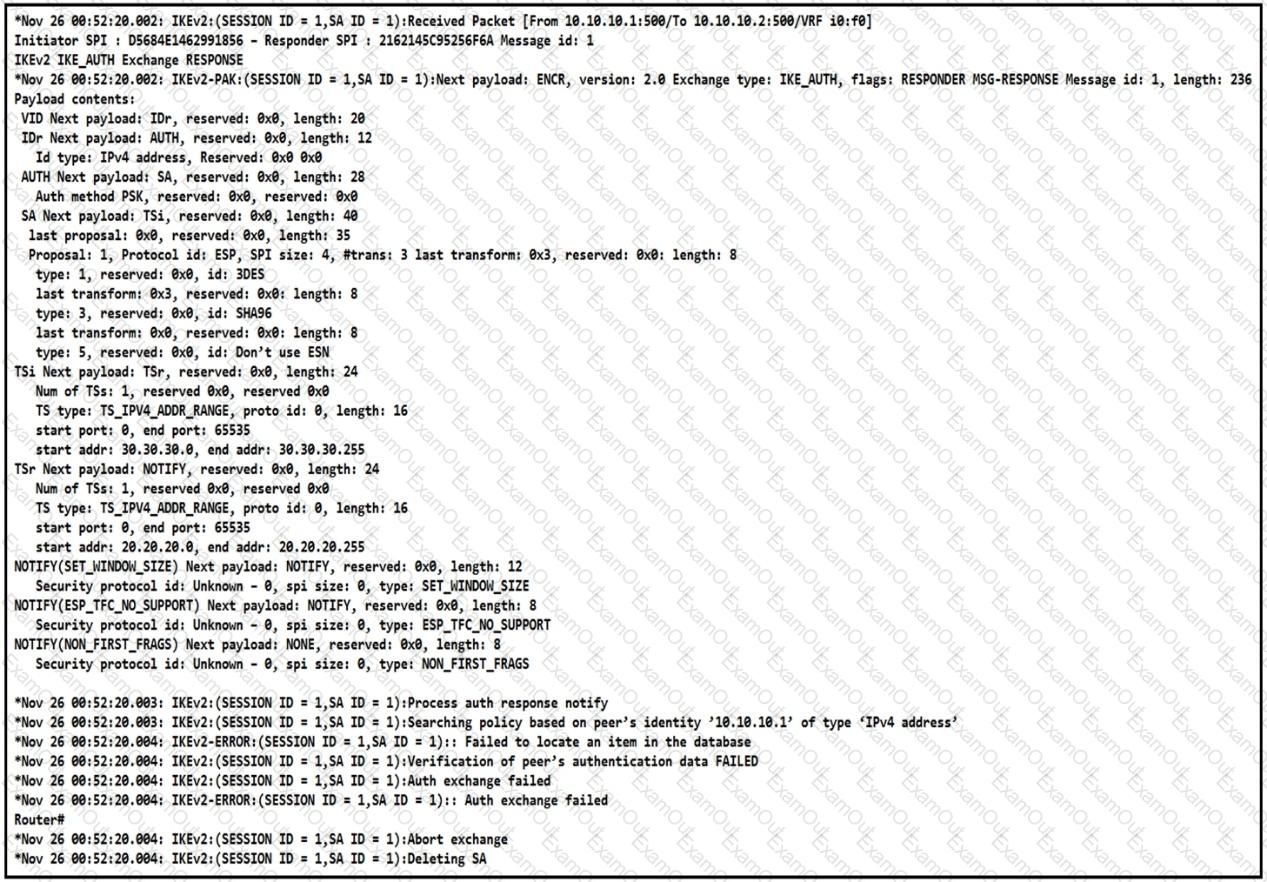

Refer to the exhibit.

The IKEv2 site-to-site VPN tunnel between two routers is down. Based on the debug output, which type of mismatch is the problem?

A.

preshared key

B.

peer identity

C.

transform set

D.

ikev2 proposal

Which command is used to troubleshoot an IPv6 FlexVPN spoke-to-hub connectivity failure?

A.

show crypto ikev2 sa

B.

show crypto isakmp sa

C.

show crypto gkm

D.

show crypto identity

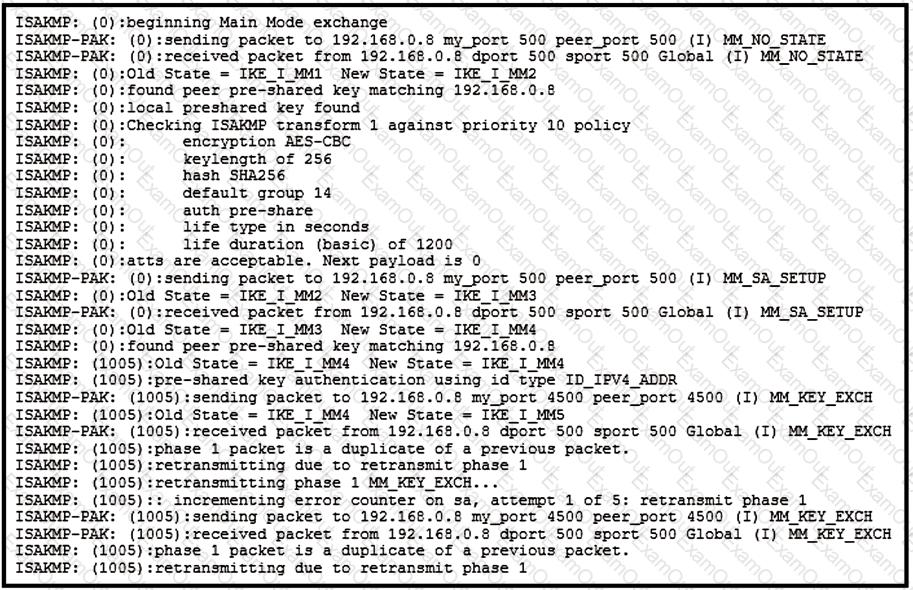

Refer to the exhibit.

Based on the debug output, which type of mismatch is preventing the VPN from coming up?

A.

interesting traffic

B.

lifetime

C.

preshared key

D.

PFS

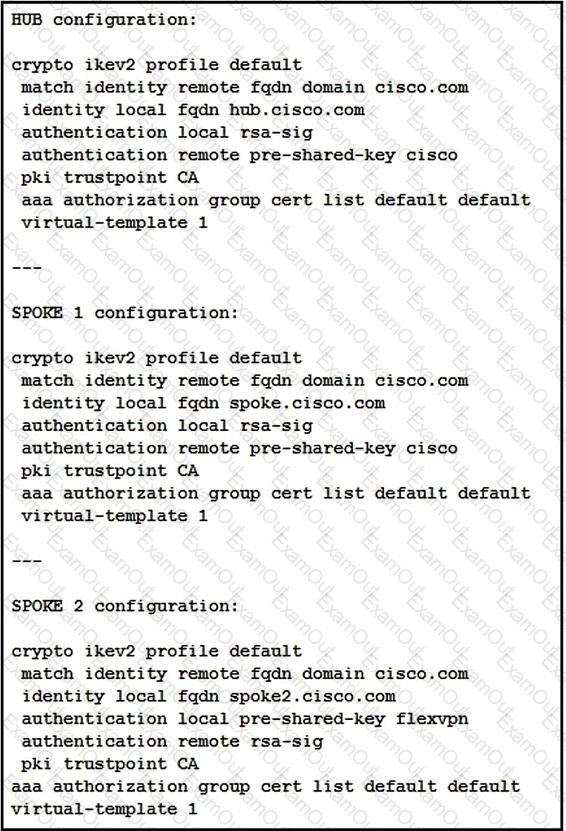

Refer to the exhibit.

What is a result of this configuration?

A.

Spoke 1 fails the authentication because the authentication methods are incorrect.

B.

Spoke 2 passes the authentication to the hub and successfully proceeds to phase 2.

C.

Spoke 2 fails the authentication because the remote authentication method is incorrect.

D.

Spoke 1 passes the authentication to the hub and successfully proceeds to phase 2.

Refer to the exhibit.

Which type of mismatch is causing the problem with the IPsec VPN tunnel?

A.

crypto access list

B.

Phase 1 policy

C.

transform set

D.

preshared key

An engineer is troubleshooting a new DMVPN setup on a Cisco IOS router. After the show crypto isakmp sa command is issued, a response is returned of "MM_NO_STATE." Why does this failure occur?

A.

The ISAKMP policy priority values are invalid.

B.

ESP traffic is being dropped.

C.

The Phase 1 policy does not match on both devices.

D.

Tunnel protection is not applied to the DMVPN tunnel.

In a FlexVPN deployment, the spokes successfully connect to the hub, but spoke-to-spoke tunnels do not form. Which troubleshooting step solves the issue?

A.

Verify the spoke configuration to check if the NHRP redirect is enabled.

B.

Verify that the spoke receives redirect messages and sends resolution requests.

C.

Verify the hub configuration to check if the NHRP shortcut is enabled.

D.

Verify that the tunnel interface is contained within a VRF.
