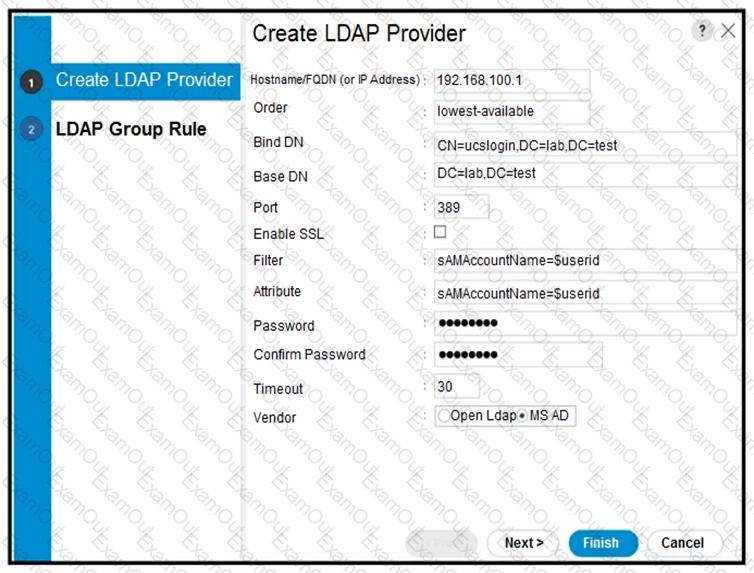

Refer to the exhibit. A network engineer configures an authentication domain through an LDAP provider on the Cisco UCS Manager for users from different companies to log into their respective organizations created in the UCS Manager. The engineer tests the configuration and notices that any user has login access to any organization in the UCS Manager. Which action should be taken to resolve the issue?

A.

Configure the Filter field with sAMAccountName=$company

B.

Configure the Attribute field with the company

C.

Configure the Attribute field with sAMAccountName=$company

D.

Configure the Filter field with the company

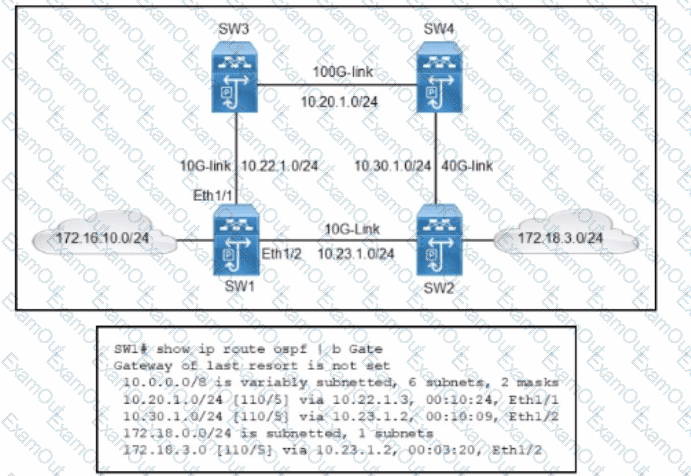

Refer to the exhibit. A network engineer configured Cisco Nexus 9000 Series Switches to allow the traffic between 172.16.10.10/24 to 172.18.3.100/24 to pass through the 100G-link, but it fails. SW3 and SW4 are configured with the default OSPF configurations. Which configuration on SW1 resolves the issue?

A.

interface eth1/1

ip ospf cost 1

B.

interface eth1/1

auto-cost reference-bandwidth 10000

C.

interface eth1/2

auto-cost reference-bandwidth 1000

D.

interface eth1/2

ip ospf cost 5

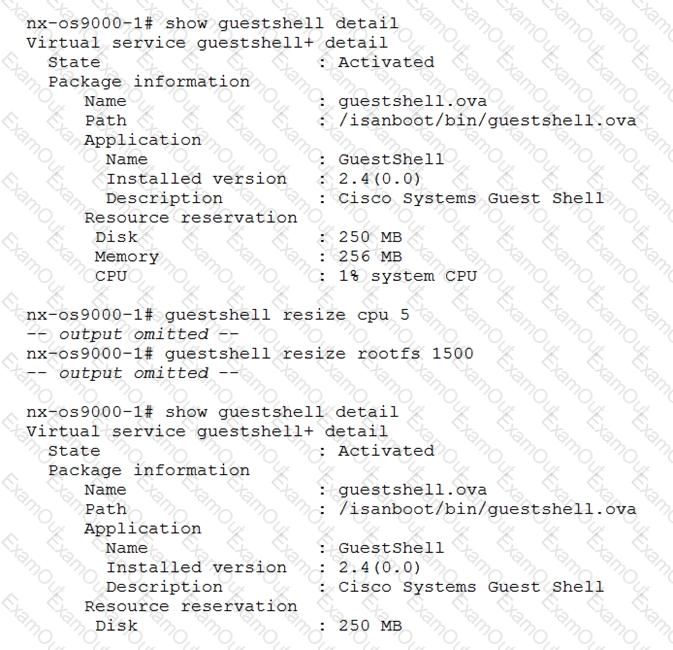

Refer to the exhibit. A network engineer deploys scripts to the guest shell of a Cisco Nexus switch. The scripts fail to operate properly due to the limited CPU and file system resources that are assigned by default to the guest shell. The engineer allocated more memory and disk space to the guest shell, but the application continues to fail. Which action resolves the issue?

A.

Disable and enable bash shell

B.

Reboot the guest shell

C.

Redeploy the bash shell

D.

Upgrade the guest shell

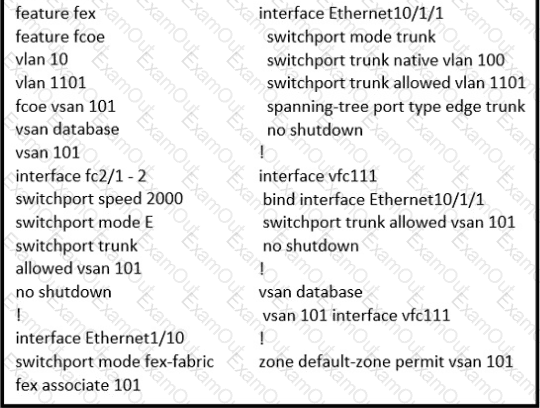

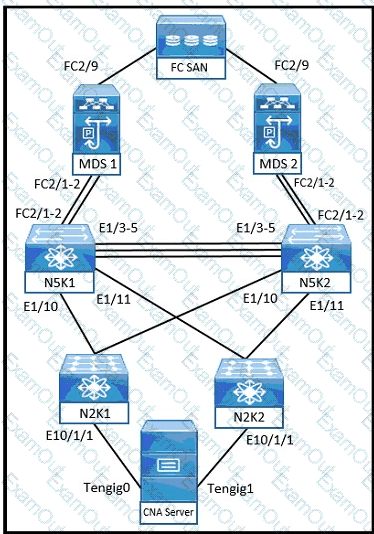

Refer to the exhibits.

An engineer troubleshoots switch N5K1, which fails to receive traffic from the file server Which set of actions resolves this problem?

A.

Bind native VLAN 10 with Ethemet1/10 and allow VSAN 101 in trunk configuration.

B.

Assign native VLAN 10 with vfc111 and allow VLAN 1101 in trunk configuration.

C.

Bind native VLAN 10 with Ethemet10/1/1 and allow VLAN 10 in trunk configuration

D.

Assign native VLAN 10 with fc2. ' l - 2 and allow VLAN 10 in trunk configuration.

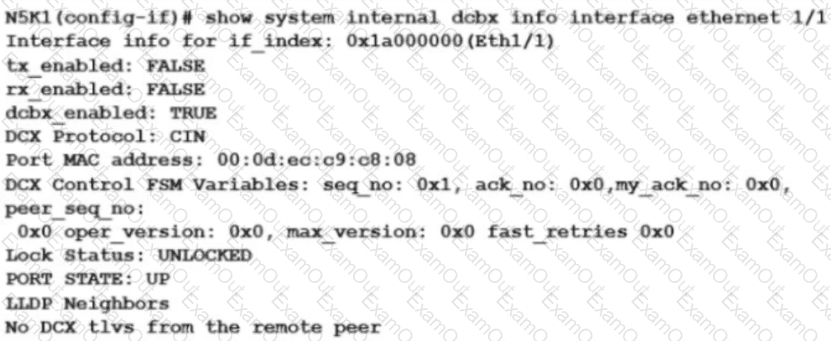

Refer to the exhibit.

A network engineer notices packet drops on FCoE traffic from the servers. Which action resolves the issue?

A.

Apply flowcontrol receive on the interface.

B.

Apply flowcontrol transmit on the interface.

C.

Enable priority flow control on the interface.

D.

Disable priority flow control on the interface.

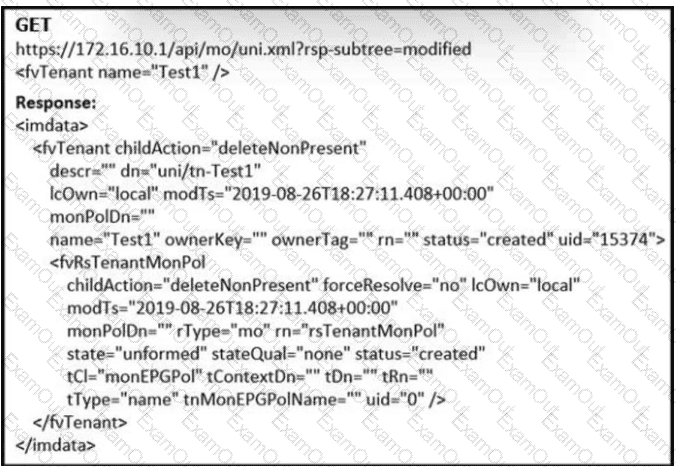

Refer to the exhibit.

An engineer performs a POST operation using REST API on the Cisco Nexus switch to retrieve a managed object, but the operation fails. Which configuration resolves the issue?

A.

https://172.16.10.1/api/node/mo/uni/tn-Test1.xml? rsp-subtree=full & rsp-prop-include=config-only

B.

icurl -k-v https:// 172.16.10.1/api/node/mo/uni/tn-Test1.xml? rsp-subtree=modified=config-only

C.

https:/ 172.16.10.1/api/node/mo/uni/tn-Test1.xml? rsp-subtree=modified=config-only

D.

icurl -k -v https://172.16.10.1/api/mo/uni.xml?rsp-subtree=no < fv Tenant name= " Test1 " / >
