ION NO: 86
Refer to the exhibit.
A regional service provider provides connectivity for several midsize businesses that run mission-critical applications between multiple offices connected via PE 1 and PE2 Links throughout the service provider network are connected using shared resources and an SR-TE tunnel is in use to route traffic over different paths depending on congestion policies The networking team must implement SR updates to reduce downtime in the event of a link failure. Which action must the team take to meet the requirements?
Refer to the exhibit.
Routers within the cluster are not receiving the desired prefixes. What must be done to fix the issue?
Refer to the exhibit.
A network operator is troubleshooting TE tunnels and discovers that the soft preemption is not working as desired. Where should the soft preemption be applied to solve the issue?

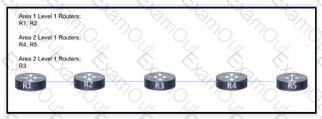

Refer to the exhibit. This network is deployed with all connected links configured to run IS-IS. The routing protocol is enacted globally on each router, and the network engineer expects full routing Information to be shared among all routers. R5 is receiving routes from R4 but is missing routes from R1. Which action corrects the issue so that all routes are shared among the routers?
What Is a characteristic of a segment routing mapping server?

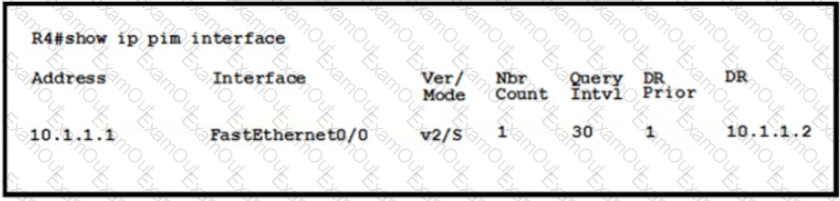

Refer to the exhibit.
Which two commands must the engineer configure for the company's PIM-PIM network to enable Auto-RP mappings to be sent over the FastEthernet0/0 interface without affecting normal operation? (Choose two)

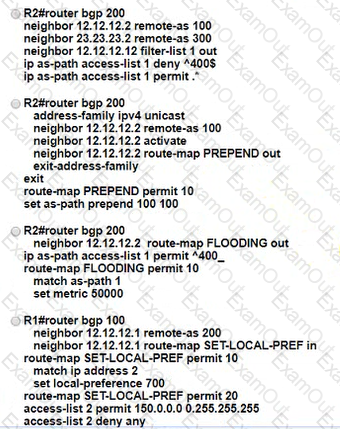

Refer to the exhibit. Excessive routes are flooding from network 150.0.0.0 into AS100. Internet traffic between AS400 and AS300 is working normally. No route controlling mechanism is applied on incoming and outgoing traffic Which configuration resolves the issue?

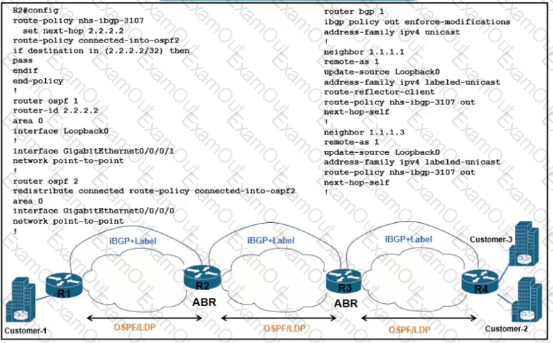

Refer to the exhibit.
There is a connectivity issue between Customer-1 and Customer-2 File servers between the customers cannot send critical data R3 routes are missing from the routing table on the Customer-1 router All interlaces on Customer-1 are up Which configuration must be applied to router R2 to correct the problem?
Refer to the exhibit. An engineering team implemented IS-IS on the network, with several different areas. Recently, router R6 in area 3 has been experiencing excessive CPU usage. To reduce the load, a network engineer implemented route summarization on R2 However. R6 is still receiving the full routes from all routers. Which action must the engineer take to resolve the excessive CPU usage?

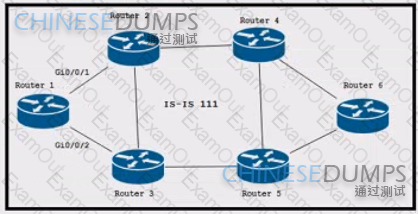

Refer to the exhibit Router 1 resides in a different data center than Rouler 2 and Router 3. Router 1 is running the IS-IS routing protocol, and it is preconfigured with LDP and segment routing Which configuration must the engineer apply under router isis 111 on Router 1 to implement Tl-LFA on the link to Router 2 without disrupting traffic to Router 3?

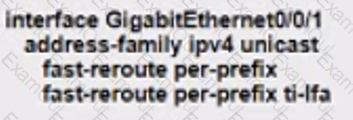

A)
B)
C)
D)
