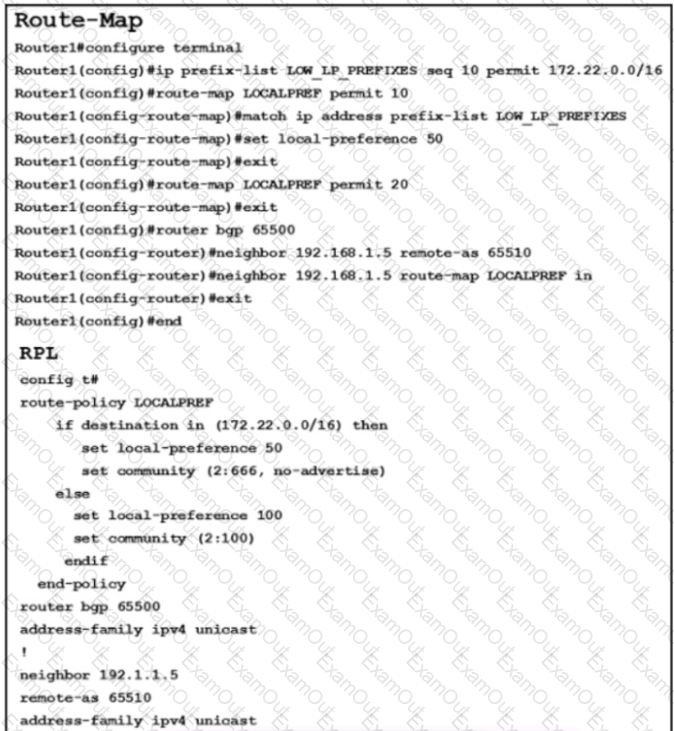

Refer to the exhibit.

An engineer is comparing these RPL and route map configurations. Which two conclusions will the engineer reach? (Choose two.)

A.

RPL is applying policy only on BGP IPv6 address families, but the route map is applying policy on BGP IPv4 and IPv6 address families.

B.

RPL and the route map are applying only local preference 50 for prefix 172.22.0.0/16.

C.

RPL is applying local preference 100 and community (2:100) for multiple prefixes, but the route map is applying default local preference for multiple prefixes

D.

RPL is applying local preference 50 and community (2:666) for prefix 172.22.0.0716. but the route map is applying only local preference 50 for the same prefix

E.

RPL is applying local preference 50 and community (2:666) for all prefixes, but the route map is applying only local preference 50 for all prefixes.

What does conditional matching operate with RPL?

A.

The matching identifies a group of routes that are removed from the routing table when the administrator defined tags match

B.

The matching identifies tags that are placed on routes from neighboring autonomous systems and drops the routes if they are the same.

C.

The matching identifies a set of criteria, and an action is taken based on whether the criteria are the same or different

D.

The matching identifies interfaces that run the same routing protocol and manipulates data based on the routing rules

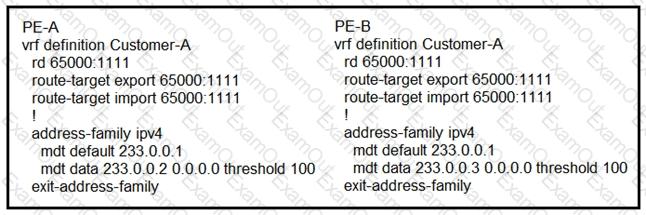

Refer to the exhibit.

Which tree does multicast traffic follow?

A.

shared tree

B.

MDT default

C.

source tree

D.

MDT voice

network engineer must implement a segment routing policy rule that specifies that SIDs are bounded manually. The policy will be used for traffic steering based on incoming label ..with the binding SIDs, adjacency SIDs, and BGP peering SIDs. All labels will be in the local segment with the range from 40000 to 50000. How must the engineer implement … label allocation?

A.

Implement the standard default SRGB range in the SR global segment.

B.

Implement a non-default SRGB range in the SR local segment.

C.

Implement a non-default SRLB range in the SR global segment.

D.

Implement the default SRLB range in the SR local segment

Refer to the exhibit. After creating dynamic neighbors for the range specified, the network administrator with an employee ID: 4690:88:374 cannot see all the BGP neighbors established. What is the issue?

A.

The single activated neighbor cannot be within the listen range.

B.

A list of neighbors belongs only to a defined ASN.

C.

The peer groups must also be activated inside the address family.

D.

The listen limit is smaller than the prefix defined in the listen range.

A network operator working for a telecommunication company with an employee id: 4074:92:707 is planning to implement the Nonstop Forwarding (NSR) feature on the customer’s core network. After getting the configuration ready for NSR. on which router should the operator implement NSR changes?

A.

on the CE router

B.

on the ASBR router

C.

on the ABR router

D.

on the PE router

What is a requirement of PIM-SM?

A.

It requires Cisco Express Forwarding to be enabled.

B.

It must be enabled on loopback interfaces only

C.

It requires OSPF to be configured on the network.

D.

It must use an RP

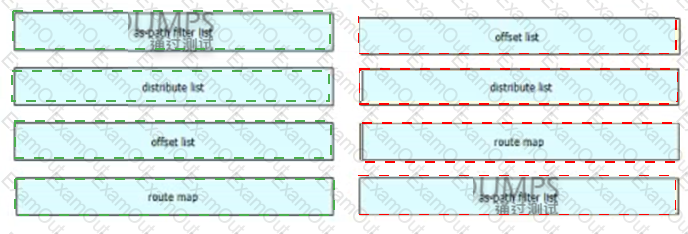

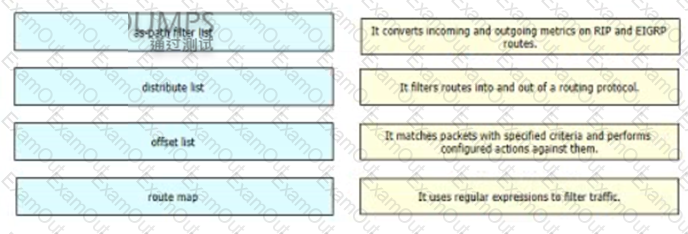

Drag and drop the route-manipulation methods from the left onto their features on the right

How does SRv6 function on the control plane?

A.

It enables SRH-capable nodes to terminate IPv6 packets at the network egress to carry the SRv6 locator.

B.

The Ingress node of the SR domain adds a uSlD format IPv6 header to carry the SRv6 locator.

C.

The ingress node of the SR domain swaps the SRv6 header for the IPv6 header

D.

The egress node of SR domain imposes a new outer header

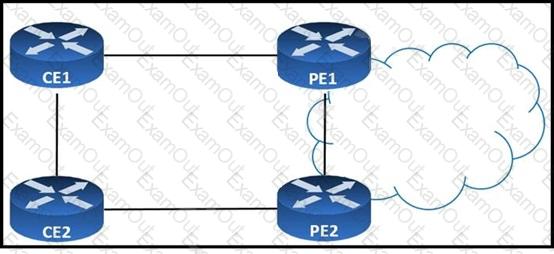

Refer to the exhibit.

CE1 and CE2 are iBGP neighbors in AS 65516. All traffic that exits AS 65516 must use the link from CE1 to PE1. CE1 is advertising a higher local preference to CE2, but traffic from CE2 still prefers the PE2 link. Which action corrects the problem?

A.

Add the lower local-preference value on PE2 towards CE2.

B.

Configure CE1 to send routes to CE2 with a higher MED.

C.

Configure CE1 to send routes to CE2 with a higher weight.

D.

Add the next-hop self command to the CE1 neighbor statement for CE2.
