Free Practice Questions for Cisco 300-445 Exam

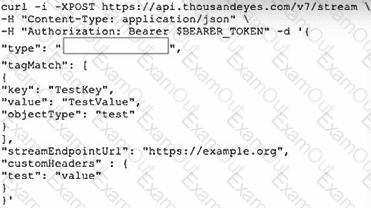

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, the evolution of network monitoring includes moving from periodic polling to real-time data streaming. The exhibit displays a curl command targeting the ThousandEyes API v7 /stream endpoint. When integrating ThousandEyes with high-performance observability platforms like Grafana , the standardized and recommended method for machine-to-machine data exchange is through OpenTelemetry (OTel) .

According to the ENNA architecture guidelines, the ThousandEyes Streaming API allows users to push granular test metrics (such as network latency, packet loss, and jitter) to external collectors in an OTel-compatible format. In the provided JSON payload, the " type " field is a mandatory parameter that defines the integration protocol. For Grafana, which natively supports OpenTelemetry Protocol (OTLP) via its OpenTelemetry Collector, the value must be set to " opentelemetry " (Option A). This tells the ThousandEyes streaming engine to encapsulate the data according to the OTel semantic conventions, ensuring that Grafana can correctly interpret and visualize the metrics without additional custom parsing logic.

While other options exist in the ThousandEyes ecosystem, they do not fit the specific API call shown for this use case:

Custom Webhooks (Option B) are typically used for event-driven alerts and notifications (e.g., sending a POST request when a threshold is breached) rather than continuous high-fidelity metric streaming.

Push-api and poll-api (Options C and D) are not valid " type " values within the context of the v7 /stream endpoint, as the streaming service specifically utilizes the OpenTelemetry framework for real-time delivery.

By selecting opentelemetry , the network engineer enables a robust " push-based " integration that provides real-time visibility into application performance and network health, leveraging Grafana ' s advanced dashboarding capabilities to analyze ThousandEyes telemetry data alongside other enterprise infrastructure metrics.

Introduction to ThousandEyes for OpenTelemetry

This video provides a foundational understanding of how ThousandEyes uses modern streaming frameworks to export critical performance data to external observability platforms.

In the framework of Designing and Implementing En 8 terprise Network Assurance (300-445 ENNA) , selecting the correct agent type depends heavily on the vantage point required for the specific observation. For this scenario, the architect must collect metrics from the internal network access layer —the point closest to where the users or devices reside within the corporate perimeter—towards a cloud-hosted destination.

The Enterprise Agent (Option B) is the most appropriate choice because it is specifically designed to be deployed on infrastructure owned and managed by the organization. These agents are " inside-out " vantage points that can be installed directly on Cisco Catalyst 9300 or 9400 Series switches at the access layer using Docker containers. By deploying an Enterprise Agent at the access layer, the architect gains visibility into the entire network path, starting from the internal LAN, traversing the edge/WAN, and reaching into the cloud-hosted web server. This allows for the identification of issues such as local congestion, ISP peering problems, or cloud provider latency.

Other options do not meet the criteria:

Synthetic Agent (Option A): This is a distractor term. All ThousandEyes agents (Cloud, Enterprise, and Endpoint) are synthetic agents because they all perform active synthetic testing.

Cloud Agent (Option C): These are pre-deployed by Cisco in global ISP data centers and provide an " outside-in " view. 14 While useful for monitoring public-facing availability, they cannot provide visibility into the internal network or the access layer of the organization.

Endpoint Agent (Option D): While these are installed on end-user machines and provide a " user-centric " view, they are generally not used for infrastructure-level path analysis from the access layer switches themselves.

Thus, the Enterprise Agent is the definitive choice for monitoring from the access layer to the cloud.

In Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , dashboard widgets must be mapped to the correct telemetry data source and statistical measure. When an agent is installed as a Linux package on an organization ' s infrastructure, it is classified as an Enterprise Agent .

The correct configuration for this widget is Cloud & Enterprise Agents and Mean (Option B).

Data Source: Since the Linux-based agent is an Enterprise Agent, it shares the same data source category as Cloud Agents in the ThousandEyes dashboard configuration menu.

Measure: To display the " average " packet loss as requested, the Mean (the arithmetic average) is the appropriate statistical measure.

Other options are unsuitable:

Option A: Endpoint Agents are those installed on Windows/macOS user devices, not typically a standard Linux server package used for infrastructure monitoring. Median would show the middle value, not the average.

Option C: Routing refers to BGP data, which does not report packet loss in the same way as synthetic network tests.

Option D: Devices refers to hardware monitored via SNMP, and an nth Percentile is a specific statistical cutoff (like 95th percentile) rather than a simple average.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, monitoring modern APIs often requires handling complex authentication flows, such as OAuth 2.0 with specific client credential parameters. The provided exhibit illustrates the HTTP Authentication options available within a standard HTTP Server test: None, Basic, NTLM, Kerberos, and OAuth.

According to the ENNA implementation standards, while the HTTP Server test type supports OAuth (Option C), its native implementation is limited. Specifically, it is designed to use a pre-existing token or a simple token refresh flow; it does not support the injection of custom parameters in the initial POST request required to obtain a token in many enterprise client-credential scenarios. Basic and NTLM (Options A and B) are legacy protocols that rely on simple username/password headers and cannot facilitate the multi-step token exchange process described.

To fulfill the requirement of a two-step flow (POST for token, followed by GET for resource), engineers must use more flexible test types:

Transaction scripts (Option D): These allow the engineer to write custom JavaScript using the ThousandEyes transaction library to programmatically handle the POST request, parse the resulting JSON token, and then pass that token into the subsequent GET request ' s header.

API tests (Option E): These are purpose-built for API monitoring and natively support the definition of variables and multi-step requests where the output of one call (the token) serves as the input for the next.

By utilizing these advanced test types, the engineer can successfully navigate complex authentication requirements that the standard HTTP Server test cannot accommodate.

As shown in Exhibit 4.1-1 (image_6e19fb.png), the alert rule is configured for the BGP layer with the name " AS origin AS 1234 " . The critical logic is defined in the Alert Conditions section, which specifies: BGP Origin meets all of: ASN not in 1234.

This specific configuration is the standard method used in ThousandEyes to detect BGP hijacking (Option C). BGP hijacking occurs when an unauthorized Autonomous System (AS) announces a network prefix that it does not own, effectively stealing the traffic meant for the legitimate owner. By setting an alert that triggers when a monitored prefix is seen originating from an Autonomous System Number (ASN) that is not the expected authorized ASN (in this case, AS 1234), ThousandEyes provides immediate notification of a routing takeover.

Identifying this via BGP Origin alerts is superior to simple connectivity checks because it catches the issue at the routing control plane.

DNS Issues (Options B and D): These involve the translation of names to IPs and would be detected via DNS-specific tests rather than BGP Origin checks.

Route Poisoning (Option A): This is a generic term often referring to the manipulation of distance-vector protocol metrics to make a route unreachable; while related to routing, BGP Origin checks are the specific tool for detecting external prefix hijacks.

By monitoring the ASN origin, network engineers can quickly distinguish between a local ISP outage and a global security event where their traffic is being misdirected to an illegitimate network.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) best practices for collaboration monitoring, Microsoft Teams (as well as Webex and Zoom) is monitored using a combination of Scheduled and Dynamic tests (Option D).

Scheduled Tests: These are used to proactively monitor the reachability and performance of the Microsoft Teams infrastructure. The Teams template typically includes scheduled HTTP Server tests to teams.microsoft.com and login.microsoftonline.com, along with network-layer tests to the Teams Transport Relay (e.g., worldaz.tr.teams.microsoft.com). These provide a continuous baseline of connectivity regardless of whether a user is currently in a call.

Dynamic Tests: These are a unique feature for collaboration monitoring. When an Endpoint Agent detects that the Teams application has initiated a real-time media session (audio or video call), it automatically triggers a Dynamic Test to the specific IP and port being used for that call. This allows IT teams to see the exact network path—including hop-by-hop latency and loss—of the actual call traffic while the session is active.

Real User Tests (Option C) are generally not used for Teams monitoring in the same way they are for web-based SaaS apps. Because most users utilize the Teams desktop client rather than the browser, the RUM browser extension cannot capture the rich telemetry of the desktop application ' s internal signaling and media streams. Therefore, the specialized " Automated Session Testing " provided by Dynamic Tests , combined with the proactive health checks of Scheduled Tests , constitutes the complete assurance strategy for Microsoft Teams.

Detailed Explanation:

The IT Operations Dashboard includes a section at the beginning that explicitly displays active alert rules and their status. According to the dashboard configuration, the reason for the current alert trigger is Network packet loss. This indicates that the underlying network path for the application is experiencing packet drops exceeding the defined threshold, even if the application layer remains partially functional.
