Free Practice Questions for Cisco 300-430 Exam

When using FlexConnect Smart AP Image Upgrade without a configured FlexConnect Master AP, the WLC will transfer the image to one indoor AP and one outdoor AP separately. Each AP model needs a different firmware image due to hardware differences. Therefore, there will be two image transfers from the WLC: one for the 2702i APs and another for the 1532i APs.

References :=

CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Cisco documentation on FlexConnect Smart AP Image Upgrade

To track guest traffic flow using the WLAN infrastructure, the ‘detect and locate’ feature of Cisco CMX must be configured and used. This feature allows the engineer to monitor the location and movement of guests within the WLAN coverage area.

When an IT department needs to locate a stolen laptop using its MAC address, enabling Location History for Clients on the Mobility Services Engine (MSE) is crucial as it allows for historical tracking of client devices’ locations. Furthermore, Client location tracking must also be enabled on the MSE; this feature actively tracks and updates the current position of all client devices in real-time. Both settings are necessary to provide a comprehensive view of where the laptop has been over time and its current location within the wireless network’s coverage area. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

To ensure that only PEAP authentication is used for network access through a wireless network using WPA2 Enterprise with 802.1X, enabling AAA override on an SSID allows individual client authentication requests to be modified by RADIUS server responses dynamically. By configuring an access policy in Cisco Identity Services Engine (ISE) that permits access solely when PEAP is used as the EAP authentication method, any user attempting to authenticate using EAP-FAST will be denied network access until their devices are configured correctly for PEAP usage. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

For a network using EIGRP and BGP within a single domain from a single source, Protocol Independent Multicast Sparse Mode (PIM-SM) is the most suitable multicast routing to be implemented. PIM-SM is efficient for networks with a large number of networks and few receivers, which seems to be the case for an all-company video meeting.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

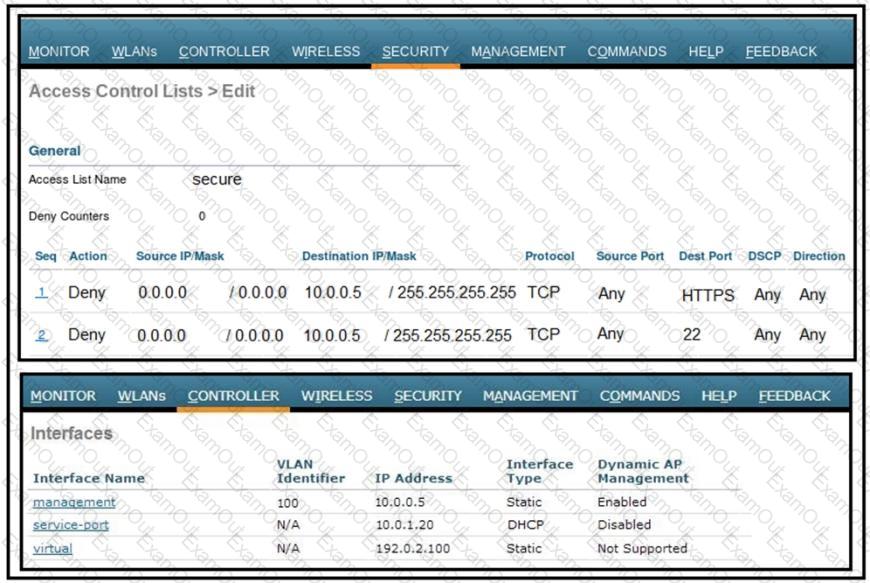

If the Cisco 5520 Series Wireless LAN Controller is no longer manageable via the network after implementing a CPU ACL, permit statements must be added to the top of the ACL in both directions (A). These statements should specify the network from which management is allowed and the virtual interface of the controller to ensure proper management access. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Disabling DHCP proxy on the Cisco WLC and running the ip helper-address command under the VLAN interface to point to DHCP and the two ISE servers is the recommended action. This allows direct communication between clients and DHCP/ISE servers, which is necessary for accurate device profiling.

 Cisco Context Aware Services provide real-time tracking of mobile assets and users by gathering contextual information from networked devices. This service is not limited to wireless devices; it can track both wired and wireless devices within the network. The technology utilizes elements like Received Signal Strength Indicator (RSSI) and Time Difference of Arrival (TDoA) for location tracking and telemetry. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, and Cisco Context Aware Software FAQ.

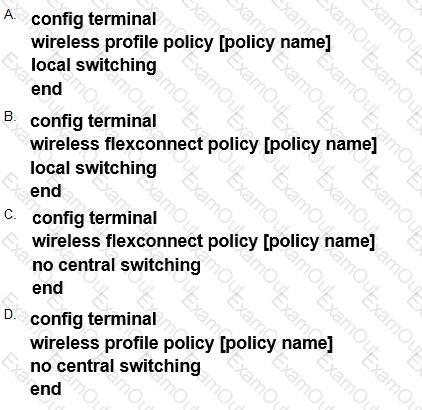

 FlexConnect is a wireless solution for branch office and remote office deployments. It allows APs to switch data traffic locally and perform client authentication locally when their connection to the controller is interrupted. For the scenario described, where a corporation is spread across different countries and wants to minimize delays while ensuring strong connectivity, FlexConnect with central switching enabled is appropriate. This configuration allows traffic to be switched locally at the AP, reducing the amount of traffic traversing the MPLS network to the central WLC, thus minimizing delays. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide
