What are two characteristics of a VRF instance? (Choose two)

A.

It is defined by the VPN membership of a customer site attached to a P device.

B.

Each VRF has a different set of routing and CEF tables.

C.

AII VRFS share customers routing and CEF tables.

D.

An interface must be associated to one VRF

E.

A customer site can be associated to different VRFs.

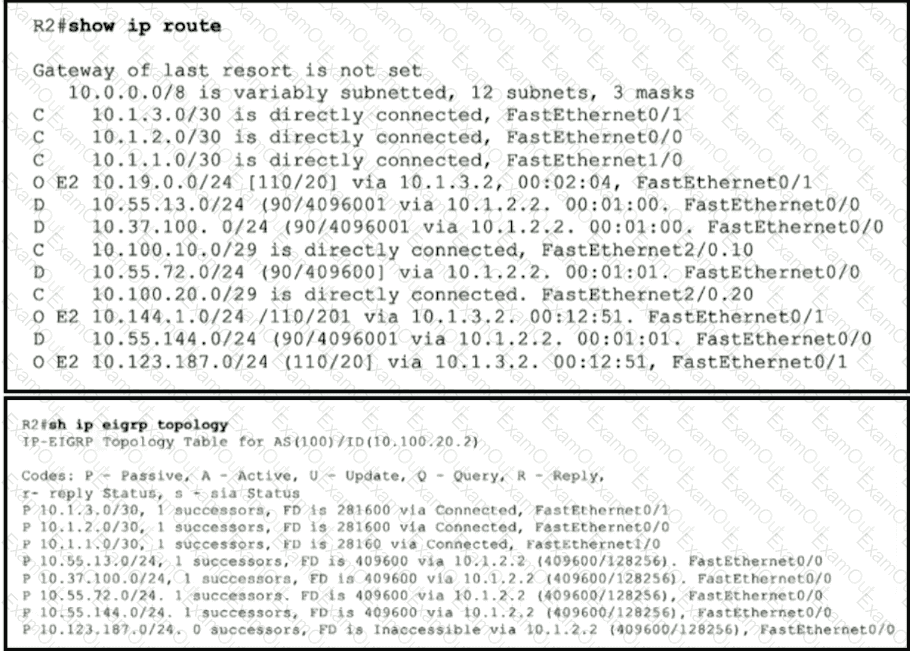

Refer to the exhibit.

Router R2 should be learning the route for 10.123.187.0/24 via EIGRP. Which action resolves the issue without introducing more issues?

A.

Use distribute-list to modify the route as an internal EIGRP route

B.

Redistribute the route in EIGRP with metric, delay, and reliability

C.

Use distribute-list to filter the external router in OSPF

D.

Remove route redistribution in R2 for this route in OSPF

How many labels are present in an MPLS Layer 3 packet traversing through the network without traffic engineering?

A.

1

B.

2

C.

3

D.

4

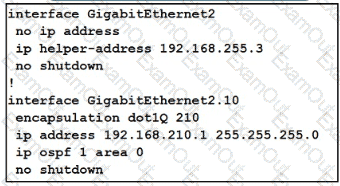

Refer to the exhibit.

With the partial configuration of a router-on-a-stick. Clients in VLAN 10 on Gi2 cannot obtain IP configuration from the central DHP server is reachable by a successful ping from the route. Which action resolves the issue?

A.

Configure the ip/ip/dhcp pool f and network 192.168..210.0.255.255/0 commands.

B.

Configure the ip header-address 192-168.265.3 command on the Gi2 10 subinterface.

C.

Configure a valid IP address on the Gi2 interface so that DHCP requests can be forwarded.

D.

Configure the Ip dhcp excluded-address 192.168.255.3 command on the Gi1.10 subinterface.

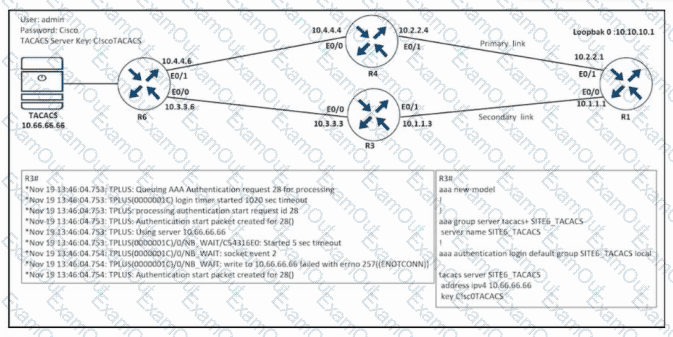

Refer to the exhibit. R3 cannot authenticate via TACACS. Which configuration resolves the issue?

A.

tacacs server SITE6_TACACS

key C!scOTACACS

address ipv4 10.60.66.66

B.

tacacs server SITE6_TACACS

key C!scoTACACS

address ipv4 10.60.66.66

C.

tacacs server SITE6_TACACS

key CiscoTACACS

address ipv4 10.66.66.66

D.

tacacs server SITE6_TACACS

key CIscoTACACS

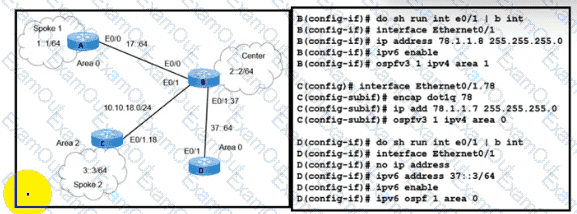

Refer to the exhibit. A network engineer receives a report that Spoke 1 users can perform bank transactions with the server located at the Center site, but Spoke 2 users cannot. Which action resolves the issue?

A.

Configure the Spoke 2 users IP on the router B OSPF domain

B.

Configure encapsulation dot1q 78 on the router C interface.

C.

Configure IPv6 on the routers B and C interfaces

D.

Configure OSPFv2 on the routers B and C interfaces

Which 0S1 model is used to insert an MPLS label?

A.

between Layer 5 and Layer 6

B.

between Layer 1 and Layer 2

C.

between Layer 3 and Layer 4

D.

between Layer 2 and Layer 3

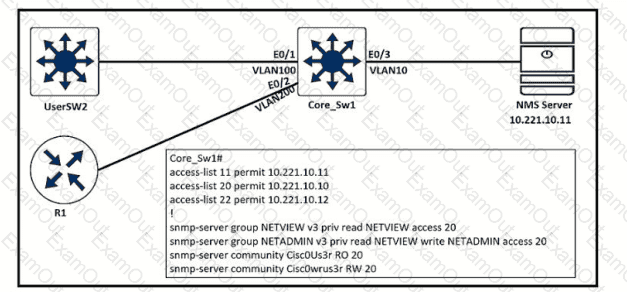

Refer to the exhibit.

An engineer configured SNMP communities on the Core_SW1, but the SNMP server cannot obtain information from Core_SW1. Which configuration resolves this issue?

A.

snmp-server group NETVIEW v2c priv read NETVIEW access 20

B.

access-list 20 permit 10.221.10.11

C.

access-list 20 permit 10.221.10.12

D.

snmp-server group NETADMIN v3 priv read NETVIEW write NETADMIN access 22

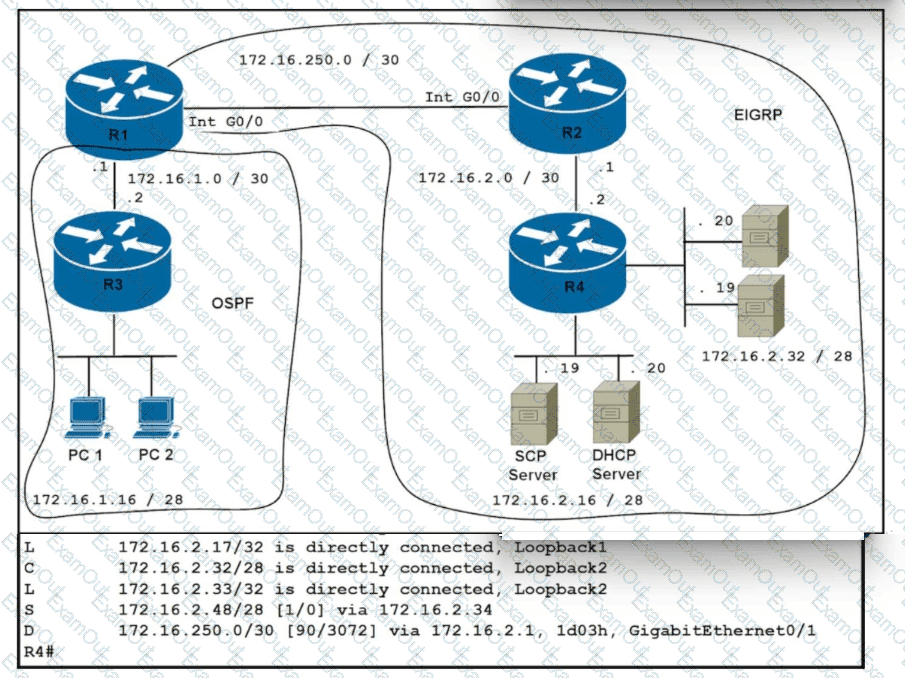

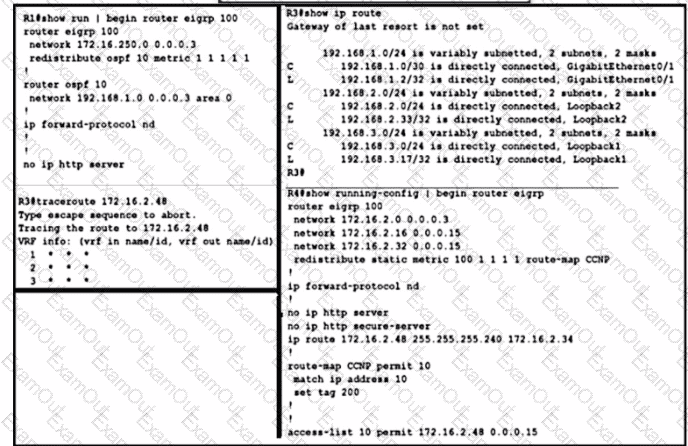

Refer to the exhibit. The users from subnet 172.16.1.16/28 are experiencing connectivity issues to subnet 172.16.2.32/48. Which configuration resolves the issue?

A.

R1(config)#route-map REDIST permit 10

R1(config-route-map) #match Ip address 15

R1 (config-route-map) #exit

R1(config)# access-list 15 permit 172.16.0.0 0.0.255.255

R1(config-router) #router eigrp 100

R1(config-router) #redistrlbute ospf 1 route-map REDIST

B.

R1(oonfig-router) #router ospf 1

R2(config-router) #redistribute eigrp 100 subnets metric 100C.

C.

R1(config-router>#routereigrp 100

R1(config-router>#redistribute ospf 1 metric 1000000 1111

D.

R1(config)#route-map REDIST permit 10

R1(config-roule-map) #match ip address 15

R1 (config-route-map) #exlt

R1(config)# access-list 15 permit 172.16.0.0 0.0.255.255

R1(config-router) #router ospf 1

R1(config-router) #redistrlbute elgrp 100 subnets route-map REDIST

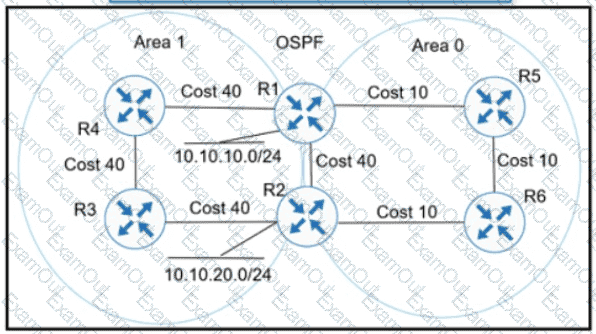

Refer to the exhibit Which action ensures that 10 10 10 0/24 reaches 10 10 20 0/24 through the direct link between R1 and R2?

A.

Configure R1 and R2 LAN links as nonpassive.

B.

Configure R1 and R2 links under area 1

C.

Configure OSPF link cost to 1 between R1 and R2

D.

Configure OSPF path cost to 3 between R1 and R2

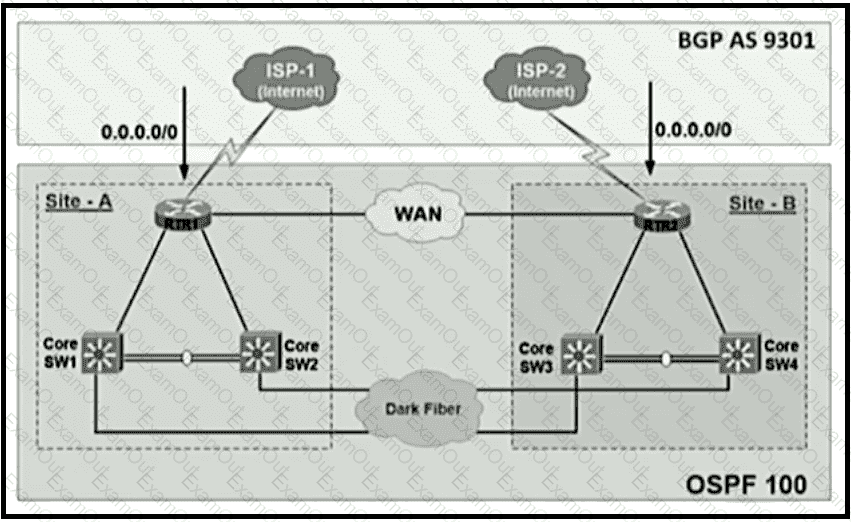

Refer to the exhibit.

The Internet traffic should always prefer Site-A ISP-1 if the link and BGP connection are up; otherwise, all Internet traffic should go to ISP-2 Redistribution is configured between BGP and OSPF routing protocols and it is not working as expected. What action resolves the issue?

A.

Set metric-type 2 at Site-A RTR1, and set metric-type 1 at Site-B RTR2

B.

Set OSPF cost 100 at Site-A RTR1, and set OSPF Cost 200 at Site-B RTR2

C.

Set OSPF cost 200 at Site: A RTR1 and set OSPF Cost 100 at Site-B RTR2

D.

Set metric-type 1 at Site-A RTR1, and set metric-type 2 at Site-B RTR2

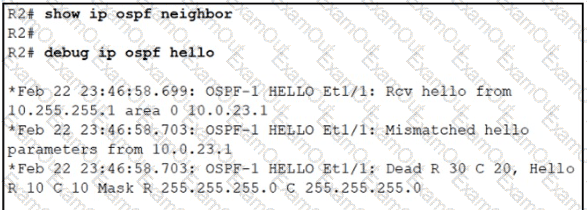

Refer to the exhibit.

The connected routers do not show up as OSPF neighbors. Which action resolves the issue?

A.

Change the R1 dead timer to 20.

B.

Change the R2 dead timer to 20.

C.

Change the R2 hello timer to 20.

D.

Change the R1 hello timer to 20.

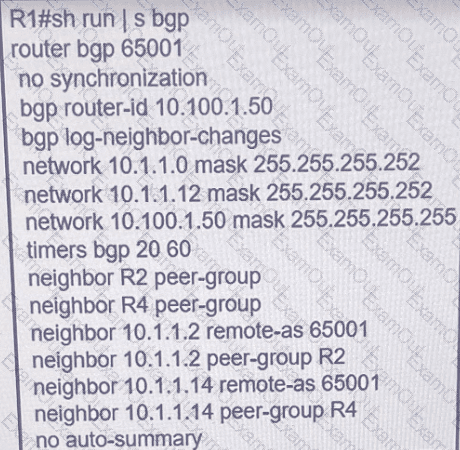

Refer to the exhibit.

While troubleshooting a BGP route reflector configuration, an engineer notices that reflected routes are missing from neighboring routers. Which two BGP configurations are needed to resolve the issue? (Choose two)

A.

neighbor 10.1.1.14 route-reflector-client

B.

neighbor R2 route-reflector-client

C.

neighbor 10.1.1.2 allowas-in

D.

neighbor R4 route-reflector-client

E.

neighbor 10.1.1.2 route-reflector-client

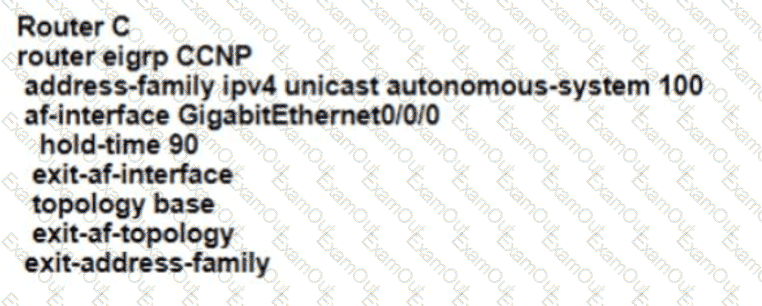

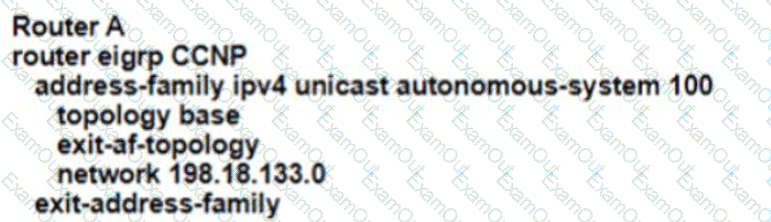

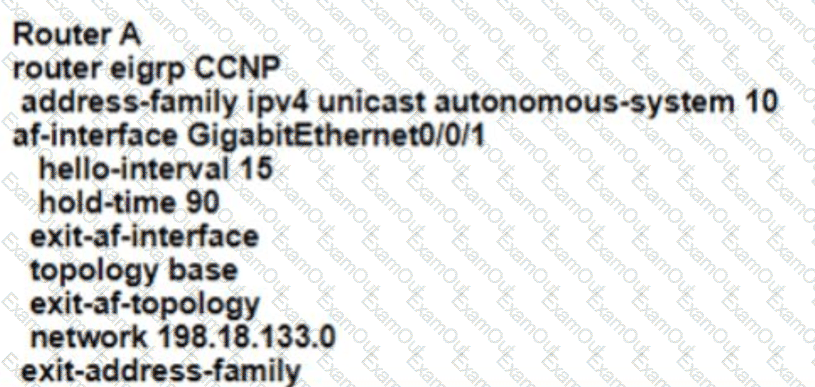

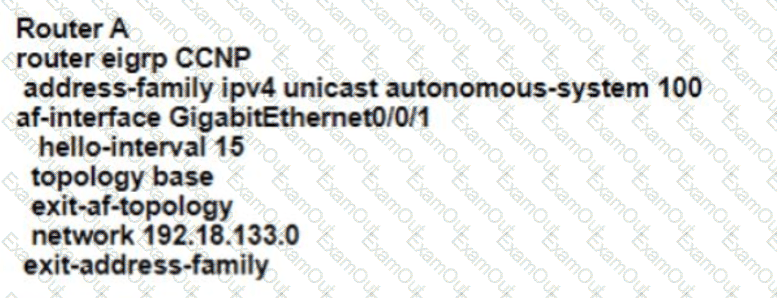

Refer to the exhibit EIGRP adjacency between router A and router C is not working as expected Which two configurations resolve the issue? (Choose two )

A)

B)

C)

D)

E)

A.

Option A

B.

Option B

C.

Option C

D.

Option D

E.

Option E

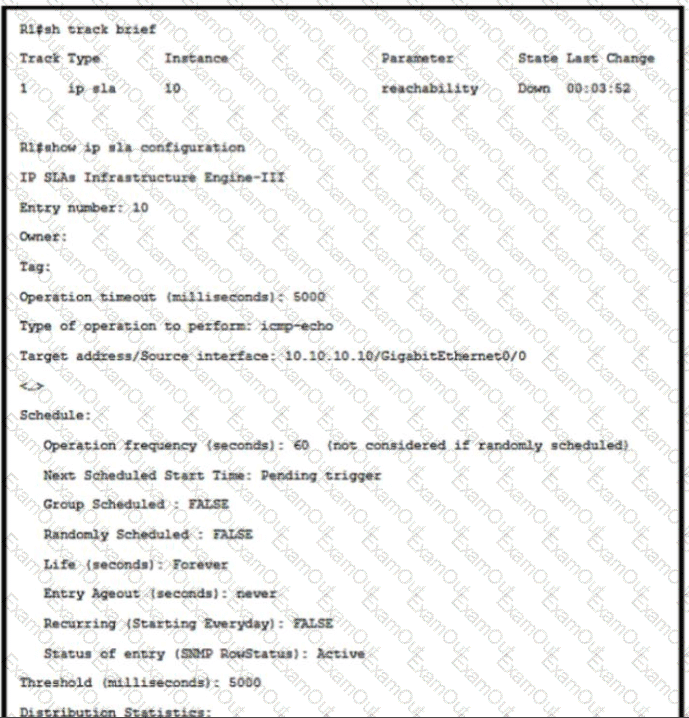

Refer to the exhibit A network engineer notices that the configured track option is down Which configuration resolves the issue*?

A.

ip sla schedule 10 start-time now

B.

ip sla schedule 10 start-time pending life forever

C.

ip sla schedule 10 no timeout

D.

ip sla schedule 10 no threshold
