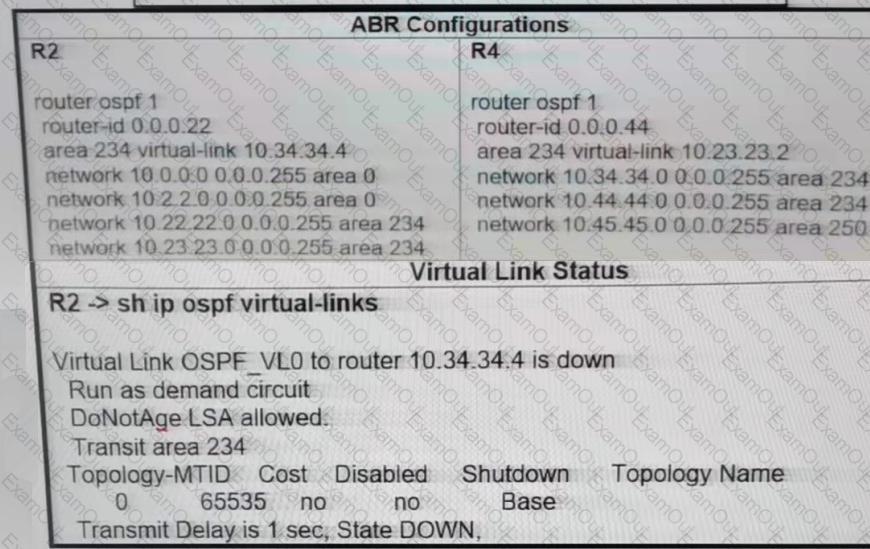

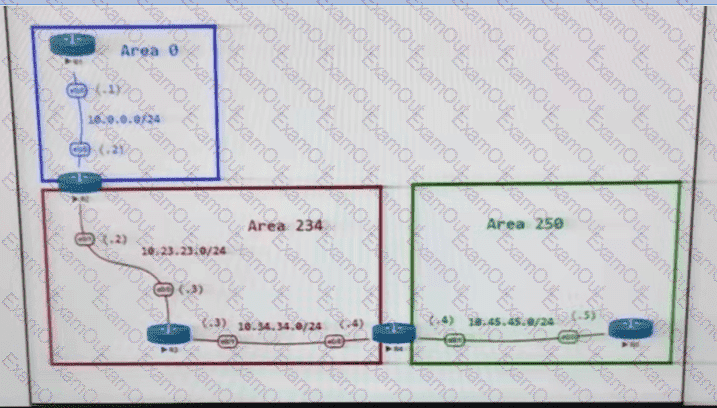

Refer to the exhibit.

The network administrator configured the network to connect two disjointed networks and ail the connectivity is up except the virtual link which causes area 250 to be unreachable. Which two configurations resolve this issue? (Choose two.)

A.

R2router ospf 1router-id 10.23.23.2

B.

R2router ospf 1no area area 234 virtual-link 10.34.34.4area 0 virtual-link 0.0.0.44

C.

R4router ospf 1no area 234 virtual-link 10.23.23.2area 234 virtual-link 0.0.0.22

D.

R2router ospf 1no area 234 virtual-link 10.34.34.4area 234 virtual-link 0.0.0.44

E.

R4router ospf 1no area area 234 virtual-link 10.23.23.2area 0 virtual-link 0.0.0.22

Refer to lhe exhibit. APC is configured to obtain an IP address automatically, but it receives an IP address only from the 169.254.0.0 subnet The DHCP server logs contained no DHCPDISCOVER message from the MAC address of the PC. Which action resolves the issue?

A.

Configure an ip helper-address on the router to forward DHCP messages to the server.

B.

Configure DHCP Snooping on the switch to forward DHCP messages to the server.

C.

Configure a DHCP reservation on the server for the PC.

D.

Configure a static IP address on the PC and exclude it from the DHCP pool.

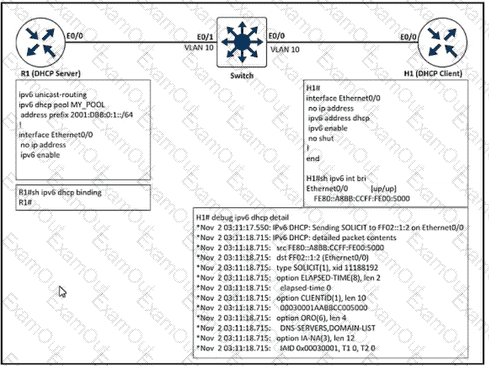

Refer to the exhibit.

After the network administrator rebuilds the IPv6 DHCP server, clients are not getting the IPv6 address lease. Which action resolves the issue?

A.

Remove FE80 A8BB CCFF FEOO 5000 assigned by the IPV6 DHCP server.

B.

Add Ipv6 dhcp sarver MY_POOL under the interface ethernet 0/0 on H1.

C.

Add Ipv6 dhcp server MY_POOL under the interface ethernet 0/0 on R1.

D.

Configure FF02::1:2 to discover al IPv6 OHCP cfcents

A company Is redesigning WAN infrastructure so that all branch sites must communicate via the head office and the head office can directly communicate with each site independently. The network engineer must configure the head office router by considering zero-touch technology when adding new sites in the same WAN infrastructure. Which configuration must be applied to the head office router to meet this requirement?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

In a DMVPN network, the Spoke1 user observed that the voice traffic is coming to Spoke2 users via the hub router. Which command is required on both spoke routers to communicate directly to one another?

A.

ip nhrp map dynamic

B.

ip nhrp shortcut

C.

ip nhrp nhs multicast

D.

ip nhrp redirect

How does MPLS Layer 3 VPN function?

A.

When a VPN route is learned from a CE device and injected into IGP, a VPN route distinguisher attribute is associated with it.

B.

When a destination PE device receives a labeled packet, it pops the label and uses it to forward the packet to the correct CE device.

C.

When an EIGRP internal route is redistributed into BGP by one PE and then back into EIGRP by another PE, the originating router ID for the route is changed to the router ID of the first PE

D.

When a PE device forwards a packet received from a CE device across the provider network, it labels the packet with the label learned from the source PE device.

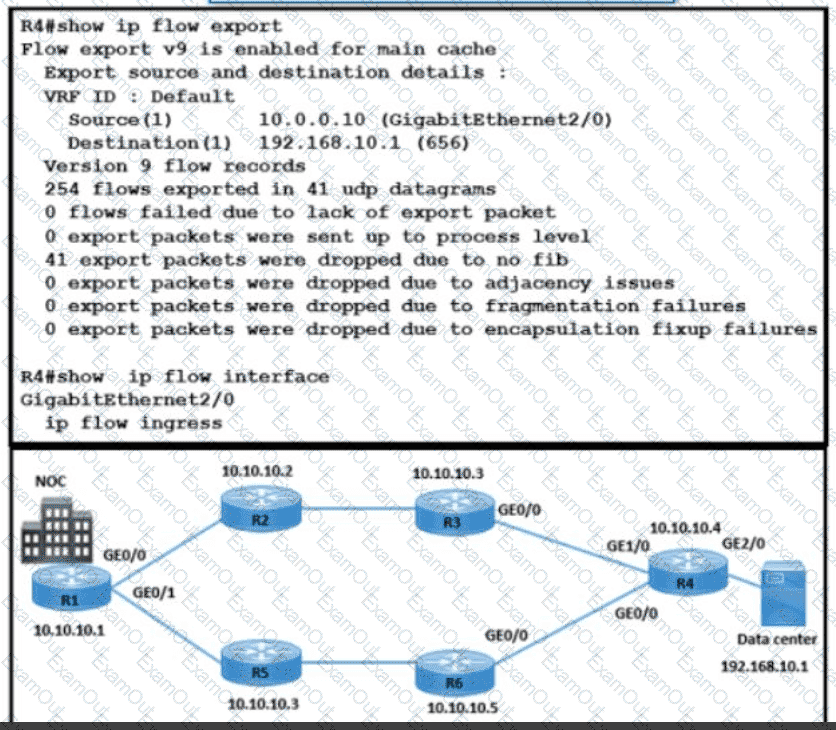

Refer to the exhibit An enterprise operations team must monitor all application server traffic in the data center The team finds that traffic coming from the hub site from R3 and R6 rs monitored successfully but traffic destined to the application server is not monitored Which action resolves the issue?

A)

B)

C)

D)

A.

Option A

B.

Option B

C.

Option C

D.

Option D

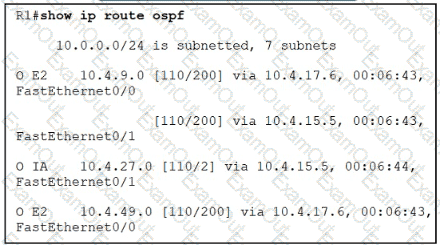

Refer to the exhibit.

An engineer configures two ASBRs 10 4 17.6 and 10 4 15 5 in an OSPF network to redistribute routes from EIGRP However, both ASBRs show the EIGRP routes as equal costs even though the next-hop router 10 4 17 6 is closer to R1 How should the network traffic to the EIGRP prefixes be sent via 10 4.17.6?

A.

The administrative distance should be raised to 120 from the ASBR 10.4.15 5.

B.

The redistributed prefixes should be advertised as Type 1

C.

The ASBR 10 4 17 6 should assign a tag to match and assign a lower metnc on R1

D.

The administrative distance should be raised to 120 from the ASBR 104.17.6

E.

The admitstrative distance should be raised to 120 from the ASBR 104 15.5.

F.

The redistributed prefixes should be advertised as Type 1.

G.

The ASBR 10 4 17 6 should assign a tag to match and assign a tower metnc on R1

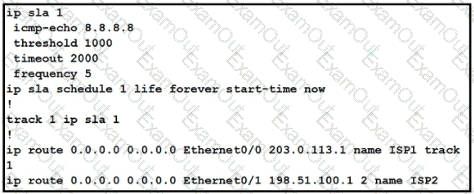

Refer to the exhibit. After recovering from a power failure. Ethernet0/1 stayed down while Ethernet0/0 returned to the up/up state The default route through ISP1 was not reinstated m the routing table until Ethernet0/1 also came up Which action resolves the issue?

A.

Reference the track object 1 in both static default routes

B.

Remove the references to the interface names from both static default routes

C.

Configure the default route through ISP1 with a higher administrative distance than 2.

D.

Add a static route to the 8 8.8 8/32 destination through the next hop 203.0.113.1

What is considered the primary advantage of running BFD?

A.

reduction in time needed to detect Layer 2 switched neighbor failures

B.

reduction in time needed to detect Layer 3 routing neighbor failures

C.

reduction in CPU needed to detect Layer 2 switch neighbor failures

D.

reduction in CPU needed to detect Layer 3 routing neighbor failures

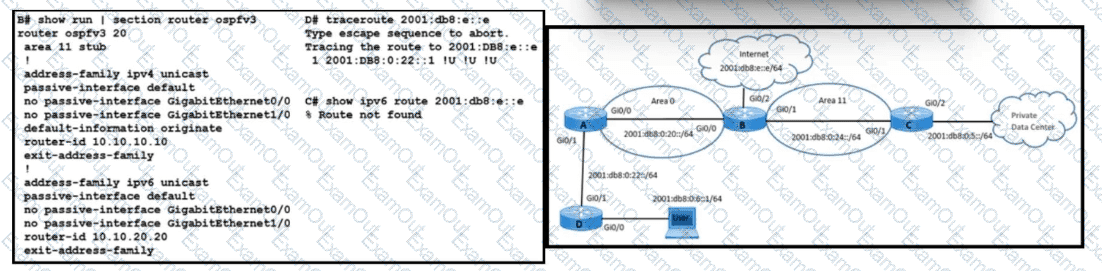

Refer to the exhibit. An enterprise user reports an access issue with IPv6 content on the Internet. The user can access IPv4 content that is at the data center. Which action resolves the issue with IPv6 content?

A.

Change Area 11 to Area 0 between routers B and C.

B.

Add a static route for 2001: db8:0:6::1/64 on router B RIB.

C.

Advertise the 2001:db8: e::e/64 route on the router D OSPF process.

D.

Enable default information to originate in IPv6 AF on router B.

Which method provides failure detection in BFD?

A.

short duration, high overhead

B.

short duration, low overhead

C.

long duration, high overhead

D.

long duration, low overhead

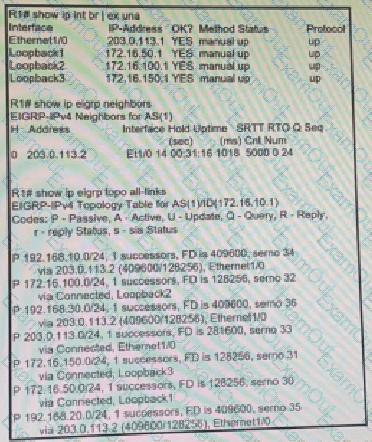

Refer to the exhibit.

Routers R1 and R2 have established a network adjacency using EIGRP, and both routers are advertising subnets to its neighbor. After issuing the show ip EIGRP topology all-links command in R1, some prefixes are no showing R2 as a successor. Which action resolves the issue?

A.

Rectify the incorrect router ID in R2.

B.

Enable split-horizon.

C.

Configure the network statement on the neighbor.

D.

Resolve the incorrect metric on the link.

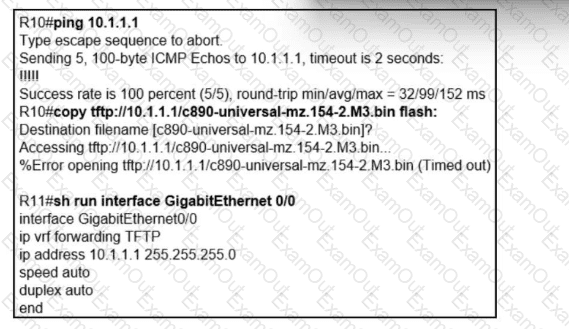

Refer to the exhibit. R10 attempts to copy an image file from R11 using TFTP, and the operation is timing out. Which action resolves the issue?

A.

Change R10 duplex to auto to resolve the duplex mismatch between routers R10 and R11.

B.

R10 must be configured to belong to the same VRF TFTP.

C.

R11 requires the TFTP server source-interface to be set to GigabitEthernetO/0.

D.

R11 requires the TFTP server command for the image to be set to the VRF TFTP.

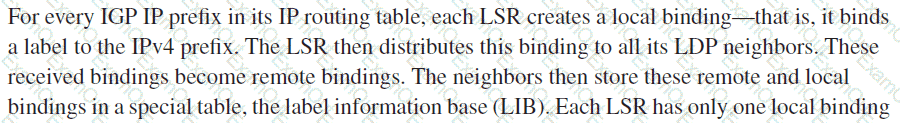

What is LDP label binding?

A.

neighboring router with label

B.

source prefix with label

C.

destination prefix with label

D.

two routers with label distribution session
