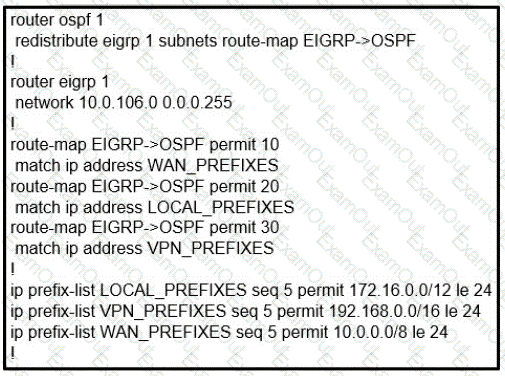

In order to use a prefix-list in a route-map, we must use the keyword “prefix-list” in the “match”

statement. . For example:

match ip address prefix-list WAN_PREFIXES

Without this keyword, the router will try to find an access-list with the same name instead.

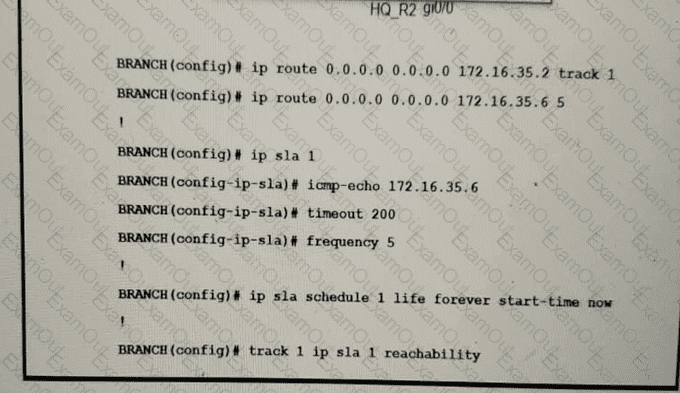

In the configuration above, the engineer has made a mistake as he was tracking 172.16.35.6 (the backup path) instead of tracking the main path (172.16.35.2). Therefore,when he shut down the main path, the track 1 was still up so traffic still went through the main path -> it failed.

To fix this issue, we just need to correct the tracking interface of the main path.

Desired Min TX Interval: This is the minimum interval, in microseconds, that the local system would like to use when transmitting BFD Control packets, less any jitterapplied. The value zero is reserved.

Required Min Echo RX Interval: This is the minimum interval, in microseconds, between received BFD Echo packets that this system is capable of supporting, less anyjitter applied by the sender. If this value is zero, the transmitting system does not support the receipt of BFD Echo packets.

MPLS Network Protocols

+ IGP: OSPF, EIGRP, IS-IS on core facing and core links+ RSVP and/or LDP on core and/or core facing links ->

+ MP-iBGP on PE devices (for MPLS services), MP-BGP: Multiprotocol Border Gateway Protocol, used for MPLS L3 VPN -> .

By default, the priority is 1 on all routers so we can set the OSPF priority of the hub to a value which is greater than 1 to make sure it would become the DR.

MPLS Layer-3 VPNs provide IP connectivity among CE sites* MPLS VPNs enable full-mesh, hub-andspoke, and hybrid IP connectivity* CE sites connect to the MPLS network via IP peering across PE-CE links* MPLS Layer-3 VPNs are implemented via VRFs on PE edge nodes* VRFs providing customer routing and forwarding segmentation* BGP used for signaling customer VPN (VPNv4) routes between PE nodes* To ensure traffic separation, customer traffic is encapsulated in an additional VPN label when forwarded in MPLS network* Key applications are layer-3 business VPN services, enterprise network segmentation, and segmented layer-3 Data Center access

https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3750/software/release/122_55_se/configuration/guide/scg3750/swv6acl.html

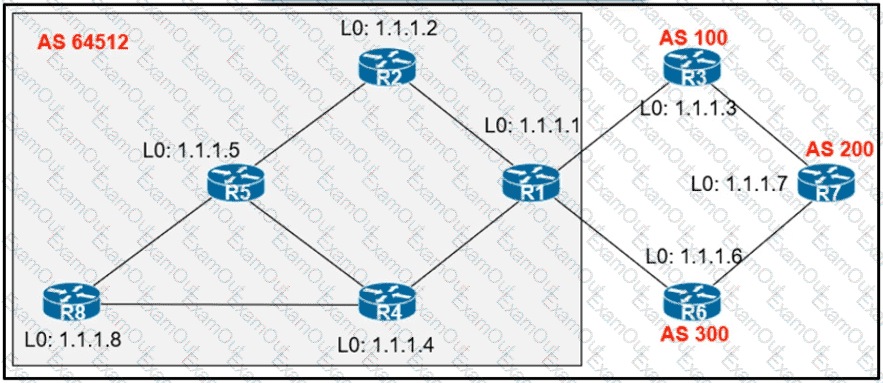

When R2 & R5 are route reflectors (RRs), routes from R4 & R8 are advertised to R5 and R5

advertises to R2. But R2 would drop them as R2 is also a RR. Therefore some routes are

missing on R1 to advertise to eBGP peers.

Good reference:

https://www.ciscolive.com/c/dam/r/ciscolive/emea/docs/2015/pdf/TECRST-2310.pdf

Route reflectors (RR) must be fully iBGP meshed so we cannot configure RR on both R1 and

R5.

We should choose routers at the center of the topology RRs, in this case R4 & R5.

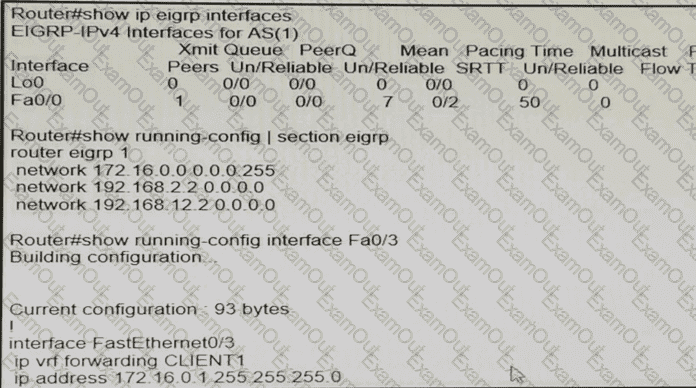

router eigrp 1

!

address-family ipv4 vrf CLIENT1

network 172.16.0.0 0.0.0.255

no auto-summary

autonomous-system 1

exit-address-family

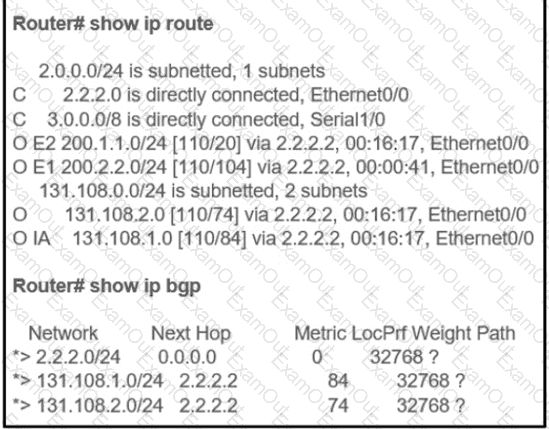

If you configure the redistribution of OSPF into BGP without keywords, only OSPF intra-area

and inter-area routes are redistributed into BGP, by default. You can use the internal keyword

along with the redistribute command under router bgp to redistribute OSPF intra- and inter-area

routes.

Use the external keyword along with the redistribute command under router bgp to redistribute

OSPF external routes into BGP.

-> In order to redistribute all OSPF routes into BGP, we must use both internal and external

keywords. The full command would be (suppose we are using OSPF 1):

redistribute ospf 1 match internal external

Note: The configuration shows match internal external 1 external 2. This is normal because

OSPF automatically appends “external 1 external 2” in the configuration. In other words,

keyword external = external 1 external 2. External 1 = O E1 and External 2 = O E2.
