Which configuration enabled the VRF that is labeled “Inet” on FastEthernet0/0?

A.

R1(config)# ip vrf InetR1(config-vrf)#interface FastEthernet0/0R1(config-if)#ip vrf forwarding Inet

B.

R1(config)#router ospf 1 vrf InetR1(config-router)#ip vrf forwarding FastEthernet0/0

C.

R1(config)#ip vrf Inet FastEthernet0/0

D.

R1(config)# ip vrf InetR1(config-vrf)#ip vrf FastEthernet0/0

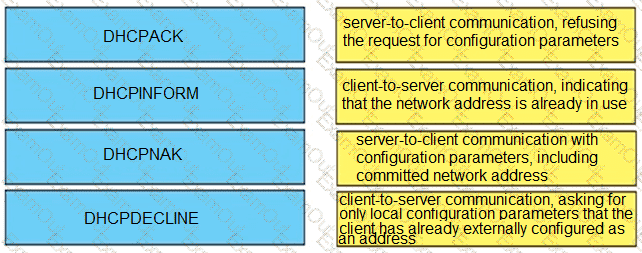

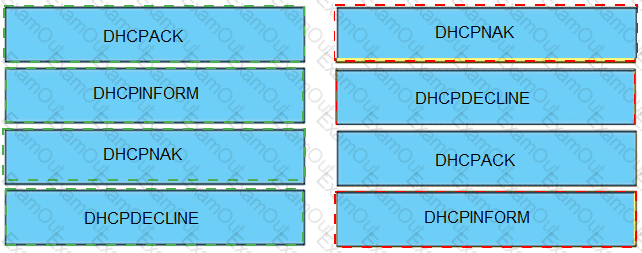

Drag and drop the DHCP messages from the left onto the correct uses on the right.

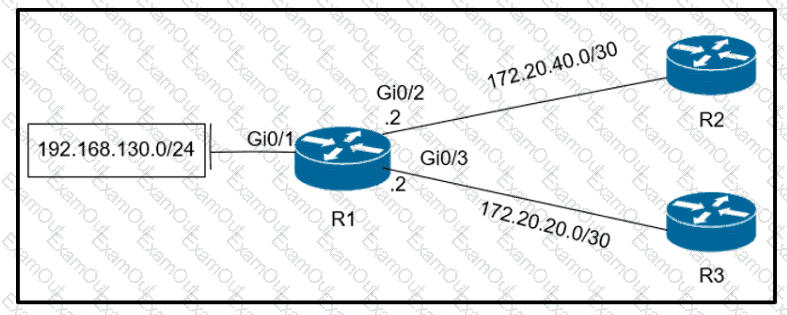

Refer to the exhibit.

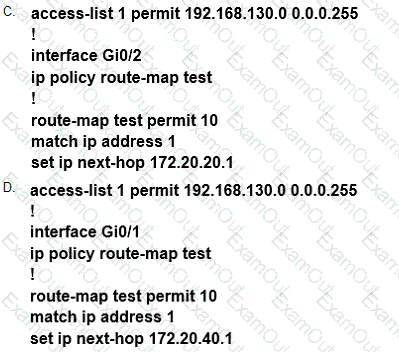

Which configuration configures a policy on R1 to forward any traffic that is sourced from

the 192.168.130.0/24 network to R2?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

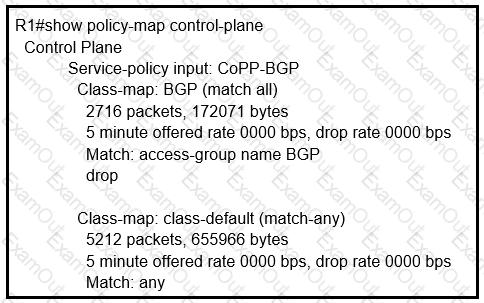

Refer to the exhibit.

What is the result of applying this configuration?

A.

The router can form BGP neighborships with any other device.

B.

The router cannot form BGP neighborships with any other device.

C.

The router cannot form BGP neighborships with any device that is matched by the access list named “BGP”.

D.

The router can form BGP neighborships with any device that is matched by the access list named “BGP”.

Which protocol does VRF-Lite support?

A.

IS-IS

B.

ODR

C.

EIGRP

D.

IGRP

Which method changes the forwarding decision that a router makes without first changing the routing table or influencing the IP data plane?

A.

nonbroadcast multiaccess

B.

packet switching

C.

policy-based routing

D.

forwarding information base

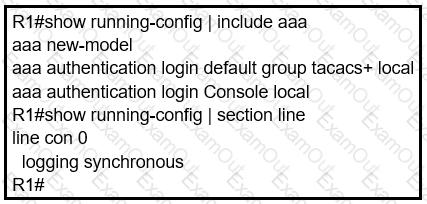

Refer to the exhibit.

An engineer is trying to configure local authentication on the console line, but the device is trying to authenticate using TACACS+. Which action produces the desired configuration?

A.

Add the aaa authentication login default none command to the global configuration.

B.

Replace the capital “C” with a lowercase “c” in the aaa authentication login Console local command.

C.

Add the aaa authentication login default group tacacs+ local-case command to the globalconfiguration.

D.

Add the login authentication Console command to the line configuration

When provisioning a device in Cisco DNA Center, the engineer sees the error message “Cannot select the device. Not compatible with template”.

What is the reason for the error?

A.

The template has an incorrect configuration.

B.

The software version of the template is different from the software version of the device.

C.

The changes to the template were not committed.

D.

The tag that was used to filter the templates does not match the device tag.

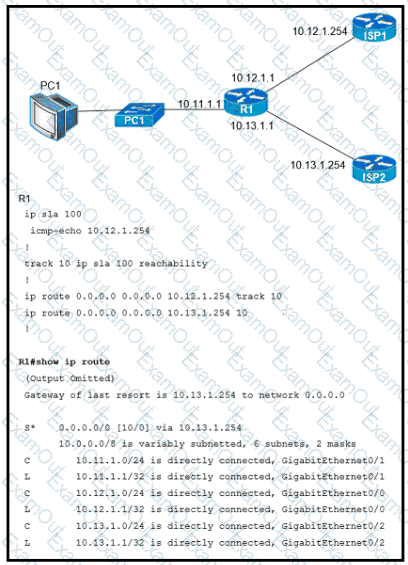

Refer to the exhibit.

An engineer is monitoring reachability of the configured default routes to ISP1 and ISP2. The default route from ISP1 is preferred if available. How is this issue resolved?

A.

Use the icmp-echo command to track both default routes

B.

Use the same AD for both default routes

C.

Start IP SLA by matching numbers for track and ip sla commands

D.

Start IP SLA by defining frequency and scheduling it

An engineer is configuring a network and needs packets to be forwarded to an interface for any destination address that is not in the routing table. What should be configured to accomplish this task?

A.

set ip next-hop

B.

set ip default next-hop

C.

set ip next-hop recursive

D.

set ip next-hop verify-availability

Which two protocols can cause TCP starvation? (Choose two)

A.

TFTP

B.

SNMP

C.

SMTP

D.

HTTPS

E.

FTP

Refer to the exhibit. an engineer is trying to get 192.168.32.100 forwarded through 10.1.1.1, but it was forwarded through 10.1.1.2. What action forwards the packets through 10.1.1.1?

A.

Configure EIGRP to receive 192.168.32.0 route with lower admin distance.

B.

A. Configure EIGRP to receive 192.168.32.0 route with longer prefix than /19.

C.

A. Configure EIGRP to receive 192.168.32.0 route with lower metric.

D.

A. Configure EIGRP to receive 192.168.32.0 route with equal or longer prefix than /24.

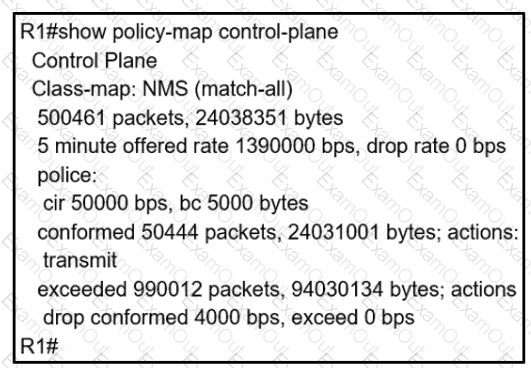

Refer to the exhibit.

A company is evaluating multiple network management system tools. Trending graphs generated by SNMP data are returned by the NMS and appear to have multiple gaps. While troubleshooting the issue, an engineer noticed the relevant output. What solves the gaps in the graphs?

A.

Remove the exceed-rate command in the class map.

B.

Remove the class map NMS from being part of control plane policing.

C.

Configure the CIR rate to a lower value that accommodates all the NMS tools

D.

Separate the NMS class map in multiple class maps based on the specific protocols with appropriate CoPP actions

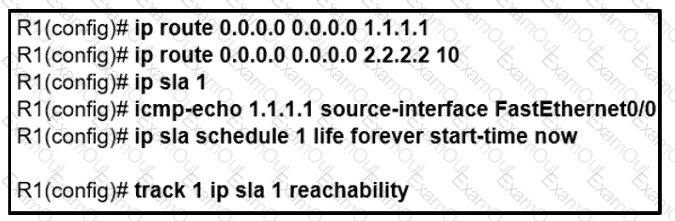

Refer to the exhibit.

An IP SLA is configured to use the backup default route when the primary is down, but it is not working as desired. Which command fixes the issue?

A.

R1(config)# ip route 0.0.0.0.0.0.0.0.2.2.2.2 10 track 1

B.

R1(config)# ip route 0.0.0.0.0.0.0.0.2.2.2.2

C.

R1(config)#ip sla track 1

D.

R1(config)# ip route 0.0.0.0.0.0.0.0.1.1.1.1 track 1

Which two statements about redistributing EIGRP into OSPF are true? (Choose two)

A.

The redistributed EIGRP routes appear as type 3 LSAs in the OSPF database

B.

The redistributed EIGRP routes appear as type 5 LSAs in the OSPF database

C.

The administrative distance of the redistributed routes is 170

D.

The redistributed EIGRP routes appear as OSPF external type 1

E.

The redistributed EIGRP routes as placed into an OSPF area whose area ID matches the EIGRPautonomous system number

F.

The redistributed EIGRP routes appear as OSPF external type 2 routes in the routing table
