What does IPv6 Source Guard utilize to determine if IPv6 source addresses should be forwarded?

A.

ACE

B.

ACLS

C.

DHCP

D.

Binding Table

Refer to the exhibit. The engineer configured and connected Router2 to Router1. The link came up but could not establish a Telnet connection to Router1 IPv6 address of 2001:DB8::1. Which configuration allows Router2 to establish a Telnet connection to Router1?

A.

jpv6 unicast-routing

B.

permit ICMPv6 on access list INGRESS for Router2 to obtain IPv6 address

C.

permit ip any any on access list EGRESS2 on Router1

D.

IPv6 address on GigabitEthernet0/0

Refer to the exhibit.

All the serial between R1, R2, and R3 have the Same bandwidth. User on the 192.168.1.0/24 network report slow response times while they access resource on network 192.168.3.0/24. When a traceroute is run on the path. It shows that the packet is getting forwarded via R2 to R3 although the link between R1 and R3 is still up. What must the network administrator to fix the slowness?

A.

Change the Administrative Distance of EIGRP to 5.

B.

Add a static route on R1 using the next hop of R3.

C.

Remove the static route on R1.

D.

Redistribute theR1 route to EIGRP

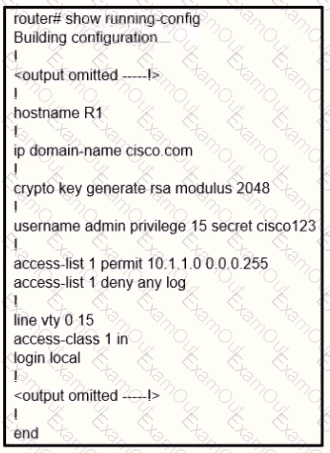

Refer to the exhibit.

A user cannot SSH to the router. What action must be taken to resolve this issue?

A.

Configure transport input ssh

B.

Configure transport output ssh

C.

Configure ip ssh version 2

D.

Configure ip ssh source-interface loopback0

Refer to the exhibit.

While troubleshooting an EIGRP neighbor adjacency problem, the network engineer notices that the interface connected to the neighboring router is not participating in the EIGRP process. Which action resolves the issues?

A.

Configure the network command to network 172.16.0.1 0.0.0.0

B.

Configure the network command under EIGRP address family vrf CLIENT1

C.

Configure EIGRP metrics on interface FastEthernet0/3

D.

Configure the network command under EIGRP address family ipv4

Refer to the exhibit. The network administrator configured the branch router for IPv6 on the E 0/0 interface The neighboring router is fully configured to meet requirements, but the neighbor relationship is not coming up. Which action fixes the problem on the branch router to bring the IPv6 neighbors up?

A.

Enable the IPv4 address family under the E 0/0 interface by using the address-family Ipv4 unicast command

B.

Disable IPv6 on the E 0/0 interface using the no ipv6 enable command

C.

Enable the IPv4 address family under the router ospfv3 4 process by using the address-family ipv4 unicast command

D.

Disable OSPF for IPv4 using the no ospfv3 4 area 0 ipv4 command under the E 0/0 interface.

What are two functions of LDP? (Choose two.)

A.

It is defined in RFC 3038 and 3039.

B.

It requires MPLS Traffic Engineering.

C.

It advertises labels per Forwarding Equivalence Class.

D.

It must use Resource Reservation Protocol.

E.

It uses Forwarding Equivalence Class

What are two purposes of using IPv4 and VPNv4 address-family configurations in a Layer 3 MPLS VPN? (Choose two.)

A.

The VPNv4 address is used to advertise the MPLS VPN label.

B.

RD is prepended to the IPv4 route to make it unique.

C.

MP-BGP is used to allow overlapping IPv4 addresses between customers to advertisethrough the network.

D.

The IPv4 address is needed to tag the MPLS label.

E.

The VPNv4 address consists of a 64-bit route distinguisher that is prepended to the IPv4prefix.

Refer to the exhibit. A network administrator configured NTP on a Cisco router to get synchronized time for system and logs from a unified time source The configuration did not work as desired Which service must be enabled to resolve the issue?

A.

Enter the service timestamps log datetime localtime global command.

B.

Enter the service timestamps log datetime synchronize global command.

C.

Enter the service timestamps log datetime console global command.

D.

Enter the service timestamps log datetime clock-period global command

Refer to the exhibit.

A network administrator is discovering a Cisco Catalyst 9300 and a Cisco WLC 3504 in Cisco DNA Center. The Catalyst 9300 is added successfully However the WLC is showing [ error " uncontactable " when the administrator tries to add it in Cisco DNA Center. Which action discovers WLC in Cisco DNA Center successfully?

A.

Copy the .cert file from the Cisco DNA Center on the USB and upload it to the WLC 3504.

B.

Delete the WLC 3504 from Cisco DNA Center and add it to Cisco DNA Center again.

C.

Add the WLC 3504 under the hierarchy of the Catalyst 9300 connected devices.

D.

Copy the .pern file from the Cisco DNA Center on the USB and upload it to the WLC 3504.

Refer to the exhibit.

R1 is connected with R2 via GigabitEthernet0/0, and R2 cannot ping R1. What action will fix the issue?

A.

Fix route dampening configured on the router.

B.

Replace the SFP module because it is not supported.

C.

Fix IP Event Dampening configured on the interface.

D.

Correct the IP SLA probe that failed.

Refer to the exhibit.

Which two actions should be taken to access the server? (Choose two.)

A.

Modify the access list to add a second line of permit ip any

B.

Modify the access list to deny the route to 192.168.2.2.

C.

Modify distribute list seq 10 to permit the route to 192.168.2.2.

D.

Add a sequence 20 in the route map to permit access list 1.

E.

Add a floating static route to reach to 192.168.2.2 with administrative distance higher than OSPF
