VLAN Select is a feature that allows for the dynamic assignment of clients to different VLANs from a pool based on various criteria, such as load balancing or location. In a centralized wireless deployment with N+1 high availability, if clients are receiving IP addresses from a different subnet after failover despite the WLANs being configured with the same dynamic interfaces, the issue is that the second controller ' s WLAN interface mapping resolves to a different VLAN or DHCP scope. VLAN Select ensures that client VLAN assignment is consistent regardless of which controller the client connects to, preventing the subnet change behavior observed during failover. Without VLAN Select, even identically named dynamic interfaces on two WLCs may map to different VLANs if the underlying switch configuration differs. RF Protocol (Option A) controls radio parameters. AP Groups (Option B) control SSID and VLAN assignments per AP cluster. AAA Override (Option D) allows RADIUS servers to assign per-user VLANs, which requires authentication — but these SSIDs use open authentication. Reference: WLSD Study Guide — N+1 High Availability Design, VLAN Select Feature, Consistent Client VLAN Assignment Across Controllers.

Cisco Catalyst Center ' s AI-driven network management capabilities — including AI Analytics, AI-Enhanced RRM (Radio Resource Management), location analytics (DNA Spaces integration), and automated RF profile management — are exclusively available under the Catalyst Advantage license tier. The Advantage tier builds upon the Essentials tier and adds access to the full suite of AI/ML-powered assurance and optimization features. Specifically, AI-Enhanced RRM leverages machine learning models trained on historical RF telemetry to predict and prevent RF issues, dynamically adjust channel and power assignments, and automate RF profile selection — capabilities that cannot be activated without the Advantage license. Location analytics through Catalyst Center integrates with Cisco Spaces to provide real-time client location tracking, asset tracking, and spatial analytics. Catalyst Essentials (Option C) provides basic device management, software image management, and network plug-and-play provisioning — it does not include AI Analytics or advanced RRM automation. Right-To-Use (Option B) is a legacy licensing model not applicable to Catalyst Center. SNTC SmartNet (Option D) is a support and maintenance contract, not a software feature license. Reference: WLSD Study Guide — Cisco Catalyst Center Licensing, AI-Enhanced RRM, Catalyst Advantage Feature Set.

Cisco Spectrum Expert is a dedicated spectrum analysis tool designed to identify and analyze non-Wi-Fi interference sources at Layer 1. During a post-deployment site survey, it can detect interference from various devices such as cordless phones, Bluetooth devices, microwave ovens, video cameras, and other unlicensed RF emitters. The tool provides a visual representation of the RF environment across the frequency spectrum, allowing engineers to pinpoint the exact source of interference and characterize it by duty cycle, frequency, and interference pattern. A network analysis module (Option A) operates at Layer 2 and above, unable to detect non-802.11 RF emissions. Wireless intrusion prevention (Option B) detects rogue APs and 802.11 attacks but not Layer 1 RF noise. Wireshark (Option C) is a packet capture tool for Layer 2-7 analysis and cannot detect non-Wi-Fi RF energy. Reference: WLSD Study Guide — Layer 1 Spectrum Analysis, Post-Deployment Survey, Non-Wi-Fi Interference Identification.

For optimized roaming across multiple Wireless LAN Controllers (WLCs) with Cisco 8821 IP phones, two critical settings must be configured. First, configuring mobility groups between WLCs (Option A) allows for seamless inter-controller roaming by establishing mobility tunnels between controllers, enabling them to share client security context, preventing re-authentication when a phone roams from an AP on one WLC to an AP on another. Second, using Cisco Centralized Key Management (CCKM) for authentication (Option B) reduces the time required for re-authentication during roaming from a full 802.1X exchange to a single-message re-key process. CCKM stores the wireless security keys at the WLC level, enabling rapid key re-derivation during roaming without contacting the RADIUS server. AP groups (Option C) control SSID and VLAN assignments per AP cluster but have no impact on inter-controller roaming. AVC profiles (Options D and E) control application visibility and QoS marking — marking voice as best effort (Option E) would actually degrade rather than improve voice quality. Reference: WLSD Study Guide — VoWLAN Mobility Optimization, CCKM Configuration, Mobility Group Design for Multi-Controller Deployments.

Raising the minimum data rate to 24 Mbps reduces the effective coverage range of each AP because clients at the cell edge operating at low data rates are effectively excluded from the cell. This shrinks cell size, reducing channel overlap between neighboring APs on the same channel. Using directional antennas limits the coverage area of some APs by focusing RF energy in specific directions rather than radiating omnidirectionally, which directly reduces the lateral overlap between adjacent APs. Increasing AP transmit power (Option B) would worsen overlap, not reduce it. Allowing UNII-2e channels (Option C) provides more channel options but does not reduce the physical cell overlap — it only provides more channels to avoid co-channel interference. Power saving mode (Option E) is a client-side power management feature unrelated to AP cell sizing during a survey. Reference: WLSD Study Guide — Channel Overlap Mitigation, Data Rate Configuration, Directional Antenna Use Cases.

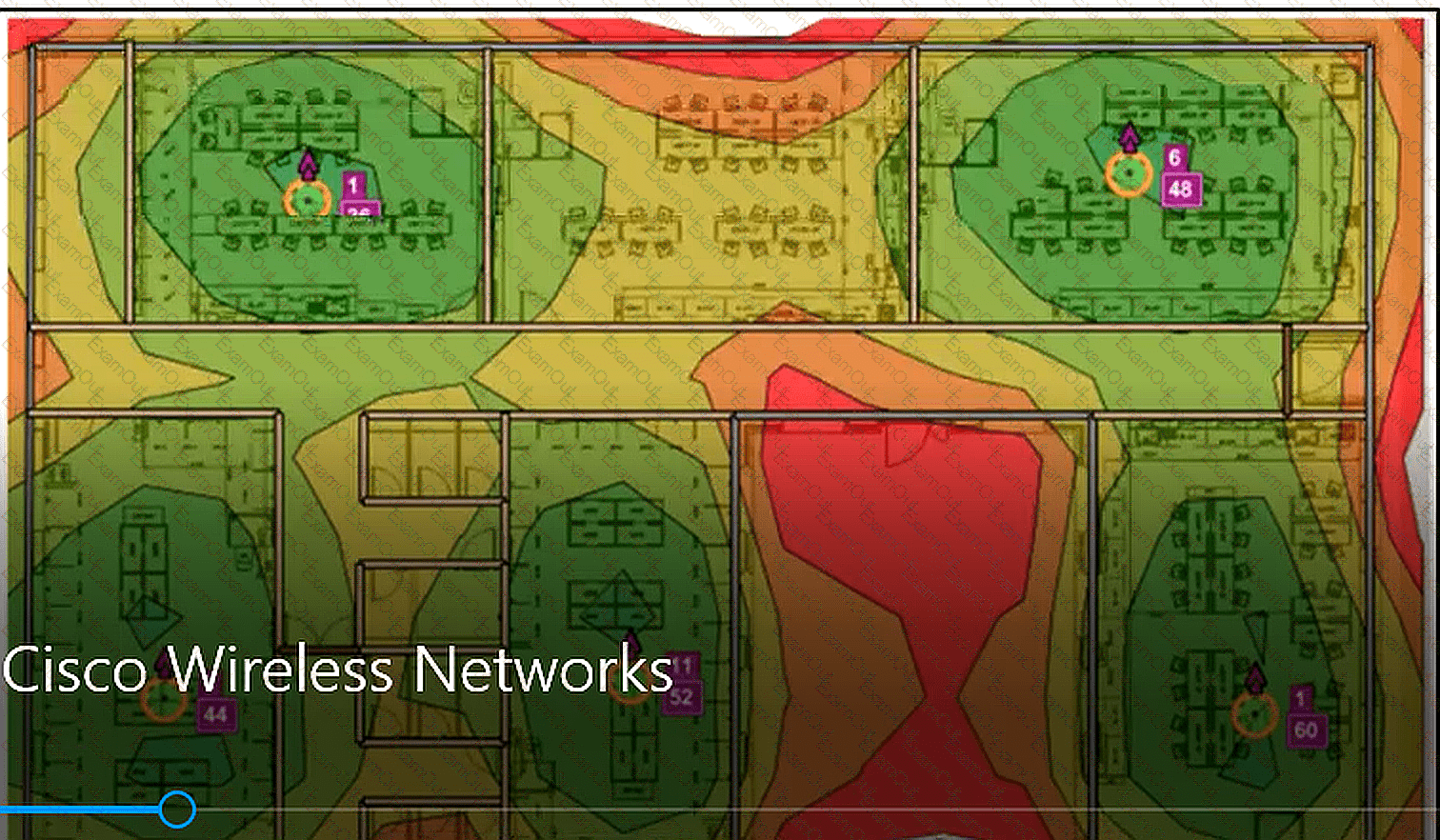

To focus the coverage heat map on the desired coverage threshold, the engineer should use the RSSI slider to set the heat map to the desired cutoff filter. This action adjusts the display to show only the signal levels that meet or exceed the specified RSSI value, effectively filtering out weaker signals and highlighting areas with sufficient coverage. In Ekahau and similar survey tools, the RSSI slider provides a dynamic way to set minimum signal thresholds, allowing the engineer to quickly validate whether coverage meets design targets such as -67 dBm for voice or -70 dBm for data. Changing the color scheme (Option A) only modifies the visual representation without filtering data. The RSSI calibration tool (Option B) adjusts how the tool perceives signal levels, not the display filter. Filtering by AP (Option D) would remove APs from the view, potentially hiding coverage gaps. Reference: WLSD Study Guide — Post-Deployment Survey, Ekahau Heat Map Tools, RSSI Coverage Filtering.

In an N+1 redundancy deployment, an AP ' s ability to return to its designated primary WLC after that controller recovers depends on two distinct configuration requirements working in concert. First, the AP Fallback feature (Option C) must be enabled on the WLC. AP Fallback instructs APs to monitor the availability of their configured primary controller and automatically reconnect to it when it becomes available again, rather than remaining permanently joined to the N+1 backup controller. Without AP Fallback enabled, APs stay connected to whichever controller they most recently joined. Second, the APs must have their primary WLC information correctly configured (Option D). If an AP does not have the primary controller ' s name, IP address, or FQDN correctly set, it cannot identify when its designated primary has recovered and therefore cannot initiate a return fallback. DHCP Option 43 (Option A) is used for initial AP discovery only. Secondary WLC configuration (Option B) addresses failover direction but not the return path. AP failover priority (Option E) controls which APs are moved first during a failover event, not whether fallback occurs. Reference: WLSD Study Guide — N+1 Redundancy Design, AP Fallback Configuration, Controller Primary, Secondary and Tertiary Assignment.

To optimize roaming in a wireless network with multiple controllers, it is essential to use the same WLAN name (SSID) across all controllers. When SSIDs differ between controllers, clients perceive them as different networks and must perform a full re-association and re-authentication when roaming between APs managed by different controllers. This causes a roaming disruption equivalent to connecting to an entirely new network. By using identical SSID names on both controllers, clients can seamlessly roam between APs on different controllers within the same mobility group — the controllers exchange client state information via the mobility tunnel, enabling seamless handoff. In the scenario described, ' Copr-NET390595865WLC-1 ' and ' Copr-NET6837l638WLC-2 ' are different SSIDs, meaning clients cannot roam transparently between them. Making both controllers broadcast the same SSID name (and using a mobility group to connect the controllers) resolves this. Reference: WLSD Study Guide — SSID Consistency Across Controllers, Inter-Controller Roaming, Mobility Group Configuration.

In a wireless network design where anchor redundancy is required for guest access, setting different priorities for the anchor controllers ensures deterministic primary and backup behavior. Cisco anchor priority uses a lower numerical value to indicate higher preference — Priority 1 is the highest priority (most preferred) anchor, and Priority 3 is lower priority. Setting Anchor A to priority 1 (Option D) makes it the primary anchor controller — all new guest client sessions will preferentially anchor to Anchor A. Setting Anchor B to priority 3 makes it the standby anchor — guest clients will only be anchored to Anchor B when Anchor A is unavailable. This creates a clear primary/backup relationship with deterministic failover. Setting both anchors to the same priority (Options A and C) would result in load balancing between the two anchors rather than active/standby behavior. Option B incorrectly reverses the priorities, making Anchor B the primary and Anchor A the backup. Reference: WLSD Study Guide — Guest Anchor Redundancy Design, Anchor Priority Configuration, DMZ Anchor WLC Architecture.
