Free Practice Questions for Cisco 200-901 Exam

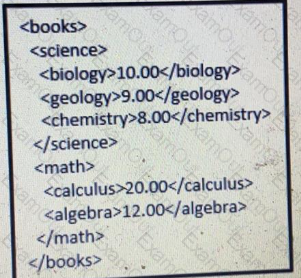

When converting XML to JSON, the structure should maintain the hierarchical organization and data representation. The provided XML structure:

10.00

9.00

8.00

20.00

12.00

translates to the following JSON structure:

{

"books": {

"science": {

"biology": "10.00",

"geology": "9.00",

"chemistry": "8.00"

},

"math": {

"calculus": "20.00",

"algebra": "12.00"

}

}

}

Root Element: The root element translates to a key "books".

Nested Elements: The and $elements\; become\; nested\; objects\; under\; "books".$

Leaf Elements: The individual subjects and their prices (e.g., 10.00) become key-value pairs within their respective parent objects.

Option A:

json

Copy code

{

"books": {

"science": {

"biology": "10.00",

"geology": "9.00",

"chemistry": "8.00"

},

"math": {

"calculus": "20.00",

"algebra": "12.00"

}

}

}

This option accurately represents the hierarchical structure of the XML data, making it the correct equivalent.

Option B, C, and D:

These options incorrectly use array notation for the nested objects, which is not consistent with the original XML structure. The XML structure indicates that "science" and "math" are single objects with multiple key-value pairs, not arrays.

References:

Converting Between XML and JSON

JSON and XML Comparison

Generating log bundles is a resource-intensive task that can cause high CPU utilization on the Cisco DNA Center. When the CPU spikes, it can affect the performance of other critical tasks, such as forwarding voice IP packets, leading to delays and poor voice quality. This is especially noticeable during business hours when network utilization is high, and voice traffic is sensitive to latency and jitter. More details can be found in Cisco DNA Center documentation on Managing Logs and System Performance.

To prepare the file README.md in the working tree for the next commit operation in Git, the command git add README.md should be used. This command stages the file, meaning it adds the file's current content to the staging area, which is a preparatory step before committing it to the repository.

git add README.md: Adds the README.md file to the staging area.

git commit README.md: Commits all staged changes (not just README.md unless it is the only file staged).

References: Pro Git book by Scott Chacon and Ben Straub, Git documentation.

A – E, B – D, C – B, D – C, E – A, F – F

Edge computing is a distributed computing paradigm that brings computation and data storage closer to the sources of data. This helps to:

Reduce Latency: By processing data closer to where it is generated, edge computing reduces the time taken for data to travel to a central server and back. This is especially important for applications requiring real-time or near-real-time responses.

Optimize Bandwidth: Reducing the amount of data sent to a central data center can conserve bandwidth and lower costs.

Enhance Security and Privacy: Processing data locally can enhance security and privacy by minimizing the exposure of data during transmission.

The HTTP POST method is used by both Meraki and Webex Teams APIs to send webhook notifications. Webhooks are a way for applications to provide other applications with real-time information. The POST method is used to send data to a server to create/update a resource. In the case of webhooks, the POST request carries the event data to the endpoint URL specified by the receiving service. More details on webhooks can be found in the Meraki Webhook Documentation and Webex Teams Webhooks.

The HTTP POST method is used by both Meraki and Webex Teams APIs to send webhook notifications. Webhooks are a way for applications to provide other applications with real-time information. The POST method is used to send data to a server to create/update a resource. In the case of webhooks, the POST request carries the event data to the endpoint URL specified by the receiving service. More details on webhooks can be found in the Meraki Webhook Documentation and Webex Teams Webhooks.

DevOps emphasizes collaboration between development and operations teams, breaking down organizational silos to improve workflow and communication (C). Additionally, DevOps focuses on automating processes to increase efficiency, reduce manual effort, and minimize errors, often prioritizing automation over extensive documentation (E).

References:

Cisco DevNet Associate Exam Topics: DevOps Practices and Principles (understanding the core principles of DevOps)

"The Phoenix Project" by Gene Kim, Kevin Behr, and George Spafford (explains the importance of cross-functional teams and automation in DevOps)

Artifact repositories play a crucial role in Continuous Integration/Continuous Deployment (CI/CD) pipelines by:

Storing Build Artifacts: They store files needed during the build process, such as dependencies, and files generated during the build process, such as binaries.

Providing Traceability: They offer traceability and versioning of binary files, which is essential for managing builds and releases.

Search and Management: They allow developers to search and manage binary files efficiently, ensuring that the correct versions of dependencies are used.

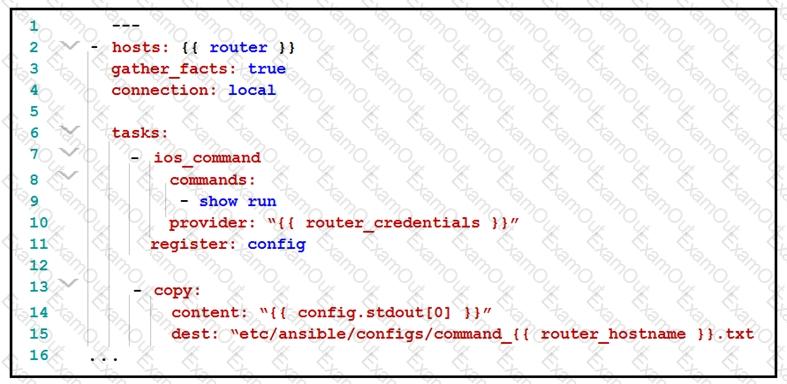

The provided Ansible playbook is designed to connect to an IOS router and execute the "show run" command to retrieve the current running configuration. The configuration is then registered in a variable called config. The next task copies the output stored in the config variable to a file in a specified directory on the local machine. The file is named based on the router's hostname.

Here are the steps:

Define the hosts: The playbook targets the {{ router }} group or host.

Gather facts: Enabled with gather_facts: true to collect useful information about the target devices.

Connection type: Local, meaning the playbook runs on the local machine where Ansible is invoked.

Task 1 - ios_command:

Executes the "show run" command.

Uses the provided router credentials.

Registers the command output to the config variable.

Task 2 - copy:

Takes the first element from config.stdout (the output of the "show run" command).

Copies this content to a file in /etc/ansible/configs/, naming the file command_{{ router_hostname }}.txt.
