When is an OSPF virtual link used?

A.

When an area has no direct connection to the backbone area.

B.

When an area needs access to an ASBR.

C.

When an area is configured as a stub area.

D.

When an area needs to connect to a non-backbone area.

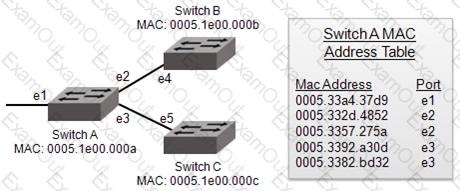

Referring to the exhibit, an Ethernet frame enters Switch A, port e1 with destination address:

0005.3392.a30d.

What describes how Switch A will process the frame?

A.

The frame will be sent out port e2.

B.

The frame will be sent out port e3.

C.

The frame will be sent out ports e2 and e3.

D.

The frame will be trapped to the CPU and the destination address changed to 0005.1e00.000c.

Which three statements are true when configuring virtual routing interfaces? (Choose three.)

A.

A single virtual interface can be used to route traffic between all VLANs within the same switch.

B.

Each VLAN on a switch requires its own virtual interface.

C.

A virtual interface can be a member of multiple VLANs.

D.

A virtual interface can have multiple IP addresses.

E.

Hosts in a VLAN can use the IP address of the virtual interface as their default gateway.

Your company uses OSPF and has recently purchased another company that uses RIP.

Management requires that routes between the two companies be shared without interrupting services on either network. How is this implemented?

A.

Enable route redistribution in both RIP and OSPF on the DR.

B.

Enable route redistribution in both RIP and OSPF on the BDR.

C.

Enable route redistribution in both RIP and OSPF on the ASBR.

D.

Enable route redistribution in both RIP and OSPF in the ABR.

Which OSPF area is created when the area 51 stub no-summary command is issued?

A.

normal area

B.

not so stubby area

C.

stub area

D.

totally stubby area

Which three statements are true about RIPv2 and OSPF? (Choose three.)

A.

RIPv2 is a distance vector and OSPF is a link state protocol.

B.

OSPF supports VLSM and RIPv2 does not.

C.

RIPv2 and OSPF support MD5 authentication.

D.

RIPv2 advertises its entire routing table and OSPF sends only updates.

E.

RIPv2 and OSPF use neighbor statements to configure peers.

Which three transceiver form factors are supported by Brocade switches and routers? (Choose three.)

A.

XPAK

B.

SFP

C.

SFP+

D.

X2

E.

XFP

You have a mission-critical application on your network that you know by IP address. You want this traffic to be serviced before all other traffic on the network. Which two features should you implement to ensure that this mission-critical application traffic is identified and serviced correctly? (Choose two.)

A.

Configure an access control list to classify the traffic.

B.

Configure RADIUS to authenticate the traffic going over the network.

C.

Configure rate shaping for the ports across which the traffic is traveling.

D.

Configure strict priority for the queue in which the traffic resides.

Optical monitoring is not returning data. What are three reasons for this happening? (Choose three.)

A.

The optic module does not support optical monitoring.

B.

It is only supported on LR optics.

C.

The port is configured as a stacking port.

D.

The port is in use.

E.

The port is down.

What are the two ways that IGMP is used? (Choose two.)

A.

It can be sent by a host to indicate its interest of joining a specific multicast group.

B.

It can be sent among routers to exchange multicast routing information.

C.

It can be used to specify packet forwarding methods for a specific multicast group.

D.

It can be sent by a router to query multicast listeners on a given subnet for all multicast groups.
