Which version of Simple Network Management Protocol (SNMP) supports the Advanced Encryption Standard (AES)?

A.

SNMPv1

B.

SNMPv2

C.

SNMPv2c

D.

SNMPv3

What are two valid BPDU types in Spanning Tree 802.1D? (Choose two.)

A.

Configuration BPDU

B.

Root Override BPDU

C.

Failure Notification BPDU

D.

Topology Change Notification BPDU

Which two destination addresses are used in an ARP request if the source station's IP address is:

192.168.5.12/16? (Choose two.)

A.

192.168.5.255

B.

FF:FF:FF:FF:FF:FF

C.

00:19:B9:FF:FF:FF

D.

192.168.255.255

What are two valid ways to represent the IPv6 address 2001:0000:0000:0200:002D:D0FF:FE48:4672? (Choose two.)

A.

2001::02:002D:D0FF:FE48:4672

B.

2001:0:0:0200:002D:D0FF:FE48:4672

C.

2001::0200:002D:D0FF:FE48:4672

D.

21::0200:002D:D0FF:FE48:4672

The multicast IP address 239.10.20.30 is mapped to which MAC address?

A.

00-00-ef-0b-15-1f

B.

00-00-5e-0a-14-1e

C.

01-00-ef-0b-15-1lf

D.

01-00-5e-0a-14-1e

Which two statements about ingress extended ACLs are correct? (Choose two.)

A.

They use extended ACL IDs 200 - 299.

B.

They save network resources by reducing traffic.

C.

They eliminate denial of service (DoS) attacks.

D.

They block unwanted traffic or users.

What are two characteristics of an IEEE 802.ID root bridge? (Choose two.)

A.

The lowest bridge ID has the highest priority for root bridge selection.

B.

The root bridge must be enabled on Brocade Layer 2 code.

C.

The bridge ID for root bridge selection is a combination of the bridge priority and MAC address.

D.

The root bridge calculates the path cost to all other switches to determine which ports will be used and which will be blocked.

Which statement is correct concerning Layer 2 frame forwarding?

A.

Unknown unicast frames are flooded out all ports except the ingress port,

B.

Multicast frames are forwarded to a specific destination.

C.

Unicast frames are forwarded to multiple ports.

D.

Broadcast frames are flooded to a select number of ports.

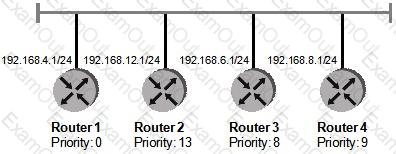

In a DR/BDR election, what will be the result for Router 1 based on the information shown in the exhibit?

A.

Router 1 will not participate in the election.

B.

Router 1 will participate in the election but will not become either the DR or BDR.

C.

Router 1 will become the DR based on having the lowest priority value.

D.

Router 1 will become the DR based on having the lowest interface IP address.

Which two statements about LAGs are true? (Choose two.)

A.

A LAG provides load-sharing.

B.

A LAG provides sub-microsecond failover,

C.

A LAG can contain links of different speeds.

D.

A LAG is treated as a single logical link by the switch.
