You have inherited the routing redundancy configuration shown in the exhibit.
Router_A
interface ethernet 1
ip address 192.53.5.1 255.255.255.0
ip vrrp-extended vrid 1
backup priority 110 track-priority 20
ip-address 192.53.5.3
track-port e 14
enable
!
Router_B
interface ethernet 1
ip address 192.53.5.2 255.255.255.0
ip vrrp-extended vrid 1
ip-address 192.53.5.3
track-port e 11
enable
!
Router A is the current VRRP-E master. Your network is not failing over to router B. What needs to be added to configure router B as a backup and maintain the current master?
An identical route has been discovered by OSPF and RIP. By default, the OSPF route is chosen and added to the routing table. What should be done to allow the RIP route to be preferred?
You have been informed a group of remote employees are unable to authenticate with the RADIUS server. From the Brocade FCX router, you enable the debug dot1x events command.
Which three events will be viewed? (Choose three.)
A customer work group notifies you that they are trying to reach a custom application on a server. The server is in a different IP domain. You have verified that the application is up. You can successfully run ping and traceroute to the server from the workgroup workstations. What would you look for next?

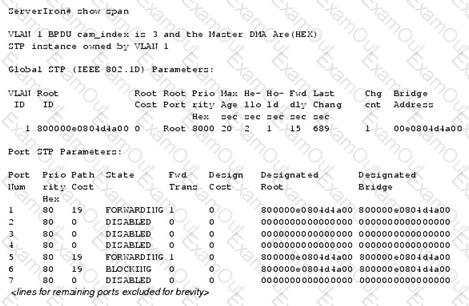

In the exhibit,
Which port is responding to a change in the network topology?
Referring to the exhibit,
#show lag
Total number of LAGs: 1
Total number of deployed LAGs: 0
Total number of trunks created:0 (128 available)
LACP System Priority / ID: 1 / 0024.3891.4f00
LACP Long timeout: 90, default: 90
LACP Short timeout: 3, default: 3
=== LAG "30Gig_Trunk" ID 1 (dynamic Not Deployed) ===
LAG Configuration:
Ports: e 1/3 e 1/5 e 1/7
Port Count: 3
Primary Port: 1/3
Trunk Type: hash-based
LACP Key: 100
Which command must be entered to make the LAG function on a
Brocade NetIron MLXe?
You are configuring multiple VLANs using only untagged ports on two switches. Which statement is true?
What are the three available QoS scheduling algorithms available on Brocade NetIron and FastIron products? (Choose three.)
An engineer wants to implement Policy Based Routing (PBR). The IP address block to be matched is 100.100.100.128/25. Which ACL would match the traffic affected by PBR?
Which two enhanced spanning tree features help prevent rogue hijacking of a spanning tree root bridge? (Choose two.)
