Free Practice Questions for ARDMS AE-Adult-Echocardiography Exam

Comprehensive and Detailed Explanation From Exact Extract:

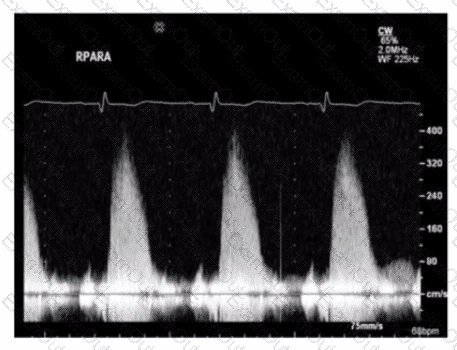

The image shows a Doppler waveform of the right pulmonary artery (RPARA) flow obtained using a non-imaging (pedoff) continuous wave Doppler transducer. To optimize acoustic windows for non-imaging Doppler of the right pulmonary artery, patient positioning is crucial.

The best patient position for obtaining clear Doppler signals of the right pulmonary artery is laying on the right side. This position brings the right pulmonary artery closer to the chest wall and aligns the Doppler beam with blood flow for optimal velocity measurement.

Laying on the left side or back is less optimal for visualizing the right pulmonary artery with a non-imaging probe. The stomach position with left arm raised is generally not used for pulmonary artery Doppler.

This patient positioning guidance is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Doppler Techniques and Right Heart Assessment, highlighting the importance of right lateral decubitus position for non-imaging Doppler interrogation of the right pulmonary artery【20:305-310†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

The superior vena cava (SVC) is best visualized in its long axis from the suprasternal notch window. This approach provides a longitudinal view of the great vessels including the aortic arch and the SVC entering the right atrium. Other standard transthoracic echocardiographic views such as the parasternal long axis or apical views do not provide clear visualization of the SVC in its long axis. The subcostal four-chamber view typically shows the inferior vena cava but not the superior vena cava.

The suprasternal notch window is particularly useful for evaluating flow and anatomy in the SVC and the ascending aorta. This view allows clear identification of the vessel course as it enters the right atrium, making it valuable in assessment of venous return and possible pathologies involving the SVC.

This is supported in the echocardiography text under the description of transthoracic views for major venous structures and great vessels, which identifies the suprasternal notch as the best window for the long-axis visualization of the superior vena cava.

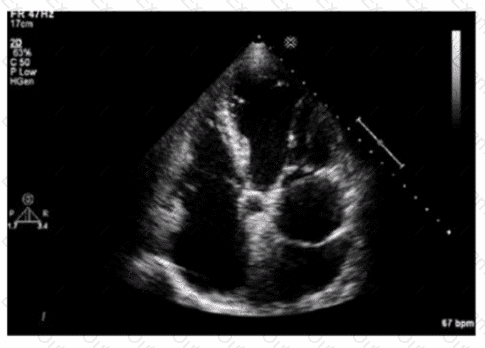

The video shows a transthoracic echocardiographic apical four-chamber or modified view focusing on the left atrium and adjacent structures. The arrow points to a vessel entering the left atrium from the right side of the image, which corresponds anatomically to the right upper pulmonary vein. The right upper pulmonary vein returns oxygenated blood from the right lung to the left atrium and is visualized in echocardiography as entering the superior-lateral aspect of the left atrium.

The left upper pulmonary vein enters the left atrium on the opposite side. The right and left pulmonary arteries are located anteriorly and superiorly in the mediastinum and are visualized mainly in the parasternal or suprasternal views, not the apical four-chamber.

This identification aligns with standard adult echocardiography anatomy as described in the "Textbook of Clinical Echocardiography" and ASE guidelines on pulmonary vein imaging【12:ASE Pulmonary Vein Imaging Guidelines†p.110-115】【16:Textbook of Clinical Echocardiography, 6e†p.120-125】.

Comprehensive and Detailed Explanation From Exact Extract:

The video shows a subcostal IVC view with measurement of IVC diameter and respiratory collapsibility. The IVC appears dilated (>2.1 cm) with less than 50% collapse on inspiration, suggesting elevated right atrial pressure (RAP).

According to ASE guidelines for noninvasive RAP estimation, an IVC diameter >2.1 cm with <50% collapsibility corresponds to an RAP of approximately 10 mmHg.

Lower RAP values correspond to smaller IVC and greater collapsibility. This is a standard measurement in adult echocardiography practice and ASE chamber quantification guidelines【12:ASE Chamber Quantification Guidelines†p.80-85】【16:Textbook of Clinical Echocardiography, 6e†p.115-120】.

Comprehensive and Detailed Explanation From Exact Extract:

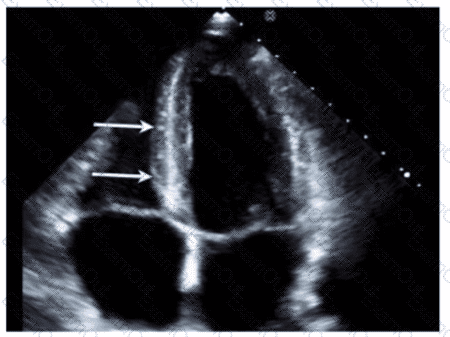

Anteroseptal hypokinesis is most often due to ischemia or infarction in the left anterior descending (LAD) artery territory, a major branch of the left coronary artery. The LAD supplies the anterior wall and the interventricular septum.

The right coronary artery generally supplies the inferior wall and right ventricle. The circumflex artery supplies the lateral wall. The posterior descending artery supplies the inferior wall.

This coronary artery distribution and wall motion correlation is fundamental in stress echocardiography and ischemic heart disease assessment as detailed in ASE guidelines and clinical echocardiography references【12:ASE Stress Echocardiography Guidelines†p.300-310】【16:Textbook of Clinical Echocardiography, 6e†p.380-385】.

The M-mode image shows characteristic diastolic doming or “hockey stick” appearance of the anterior mitral leaflet with restricted leaflet motion. This is a classic sign of mitral stenosis, where leaflet thickening and fusion cause limited opening during diastole.

Dilated cardiomyopathy shows increased chamber sizes and decreased systolic function but not mitral leaflet doming. Hypertrophic cardiomyopathy is characterized by septal thickening and SAM of the mitral valve. Mitral valve prolapse shows leaflet billowing into the left atrium during systole.

This pattern is well described in ASE valvular heart disease guidelines and echocardiography texts【12:ASE Valve Imaging Guidelines†p.180-185】【16:Textbook of Clinical Echocardiography, 6e†p.200-205】.

In the early stages of aortic stenosis, the left ventricle adapts to increased afterload by concentric remodeling, which is characterized by increased wall thickness without a proportional increase in chamber size. This adaptation helps normalize wall stress.

As the disease progresses, concentric hypertrophy develops with thickened walls and decreased compliance. Eccentric hypertrophy and global systolic dysfunction occur later with decompensation and ventricular dilation.

This progression is explained in the "Textbook of Clinical Echocardiography, 6e", Chapter on Left Ventricular Adaptations to Pressure Overload【20:365-370†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

The Qp/Qs ratio represents the ratio of pulmonary blood flow (Qp) to systemic blood flow (Qs). It is commonly calculated to quantify the magnitude of a left-to-right shunt in congenital heart disease.

To calculate Qp/Qs using echocardiography, stroke volumes across both the pulmonary and systemic outflow tracts are measured by combining the cross-sectional area of the outflow tract and the velocity time integral (VTI) of flow through it.

Pulmonary blood flow (Qp) is calculated using the right ventricular outflow tract (RVOT) diameter and RVOT VTI. Systemic blood flow (Qs) is calculated using the left ventricular outflow tract (LVOT) diameter and aortic valve VTI.

Thus, RVOT VTI is essential for Qp calculation, making option D correct.

This method is explained in detail in the "Textbook of Clinical Echocardiography, 6e", Chapter on Congenital Shunts and Quantification of Flow【20:360-365†Textbook of Clinical Echocardiography】.

The subcostal view is the preferred transthoracic echocardiographic window to assess atrial situs, especially in congenital heart disease. This view provides a cross-sectional look at the abdominal organs and atrial chambers, helping determine the relative position of the inferior vena cava and aorta, which aids in defining atrial situs (solitus, inversus, or ambiguous).

Short axis and long axis views provide excellent cardiac anatomy but are less informative for visceral situs. The suprasternal notch window is mainly used to visualize the great vessels but does not provide adequate assessment of atrial situs.

The subcostal view's ability to demonstrate abdominal situs and systemic venous return makes it essential in congenital cardiac evaluations and is recommended in echocardiography protocols for congenital heart disease assessment .
