The correct answer is C . Versa documentation states that for Releases 22.1.3 and later , the speed test factors in network latency to derive results. In these releases, the speed test is performed in three stages : a ping test, an upload test, and a download test. The ping test calculates link latency, and the speed test uses that latency data while performing the upload and download portions.

The same documentation notes that the speed test can measure bandwidth speeds up to 1 Gbps, with actual measurement depending on factors such as in-path shapers and latency. It also states that the test may use up to 45 MB of data per upload or download in the best case and 90 MB for a complete test.

Older releases behave differently. For Releases 21.2 and earlier, the speed test is performed in two stages: upload and download. Therefore, because the question specifically states Release 22.1.3 on both client and server, the correct sequence is ping, upload, and download.

The correct answer is A . Versa link-bandwidth troubleshooting documentation explains that a VOS device can be configured as a Versa speed-test client, a Versa speed-test server, or both simultaneously. After the server is configured, the client starts the test by initiating a TCP-based connection toward the speed-test server. The server listens on port 5201 . The documentation includes an explicit note that if the VOS device is behind a firewall, port 5201 must be open .

This is different from the SD-WAN overlay data path, which commonly uses UDP-based transport encapsulation, and different from internet speed-test traffic, which uses other ports depending on the specific test type. In this scenario, the question states that a Versa speed-test server was configured, so the relevant requirement is TCP 5201 reachability from the client to the server.

TCP 443 may be used for management or web access, UDP 4790 is associated with SD-WAN transport encapsulation, and UDP 53 is DNS. None of those replace TCP 5201 for Versa speed-test server operation.

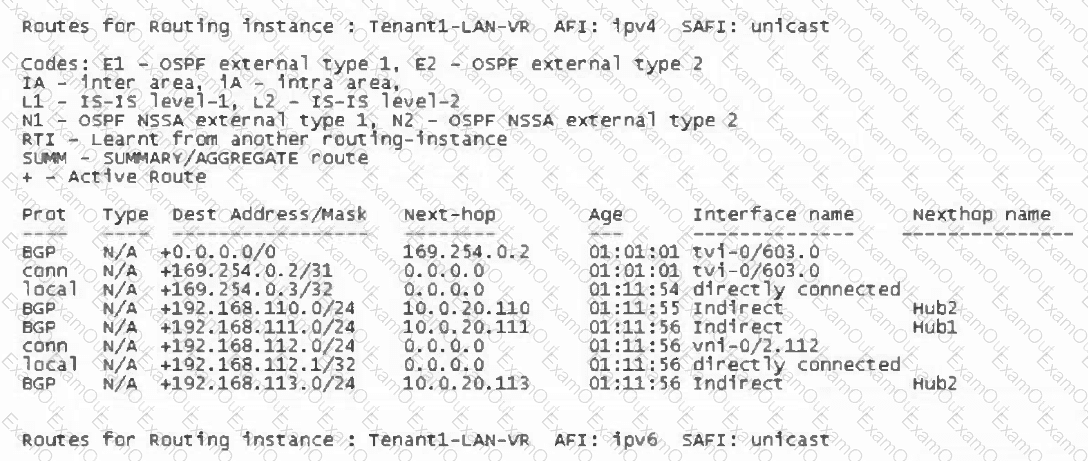

The correct answers are A and C . The route table shown in the Versa SD-WAN design documentation includes a default route, 0.0.0.0/0 , with next hop 169.254.0.2 and exit interface tvi-0/603.0 . A default route is used when no more specific route exists in the routing table, so any unknown IPv4 unicast destination will follow that active default route through the tvi-0/603 interface. This directly supports option C.

The same design context describes local or central internet breakout, where Director workflows create TVI-based connectivity for breakout or gateway-style forwarding. In Versa SD-WAN, TVI interfaces are commonly used as internal virtual tunnel interfaces between routing instances, such as between a tenant LAN VR and a transport or breakout VR. The documentation also describes virtual TVI interface pairs being created by Director workflows between VRs for gateway routing use cases. Therefore, option A is also correct: tvi-0/603 is paired with another interface in another VR to support the default-route forwarding path.

The IP address is not shown as misconfigured; 169.254.x.x addressing is commonly used for point-to-point internal TVI links. The route is also not a blackhole route, because it has an active next hop and an exit interface.

The correct answer is B . Versa’s SD-WAN data-path troubleshooting documentation shows that show vsf tunnel access-circuits ... detail can display the access-circuit state and encapsulation chain used for tunnel forwarding. In the example, the output lists multiple encapsulations, including VMLH , MPLS-over-GRE , IPsec-ESP , and VXLAN . It also shows transport details such as source IP, destination IP, UDP transport, tunnel MTU, SPI values, and SLA state.

This confirms that the VOS data plane has built the SD-WAN tunnel encapsulation stack required to forward overlay traffic across the underlay. IPsec-ESP in the chain indicates encrypted tunnel handling, while VXLAN and other encapsulation components are part of the SD-WAN overlay forwarding structure.

The output does not indicate simple bridging, plain-text-only GRE, or bypass of the VOS data plane. Instead, it proves that the packet path is being processed through the VOS tunnel forwarding framework and that the administrator is looking at the SD-WAN access-circuit tunnel state.

The correct answer is C . Versa’s bandwidth and throughput troubleshooting documentation specifically instructs administrators to check link speed and half-duplex conditions with the command show interfaces detail interface-name. The example output shows an interface operating at half-duplex / 100 Mbps , and the documentation states that the interface should not be in half-duplex mode and that 100 Mbps was incorrect in that scenario.

A duplex mismatch or incorrect negotiated speed can severely reduce effective throughput, cause collisions or retransmissions, and make SD-WAN overlay performance appear poor even when the overlay itself is functioning. Versa recommends fixing half-duplex and link-speed issues by correcting the configuration on the device to which the VOS device is connected and checking the ISP-side transmission mode, such as auto/auto.

SLA probing, Controller route advertisement, and VXLAN encapsulation may affect SD-WAN path selection or tunnel formation, but the evidence in the question directly points to a physical or underlay Ethernet negotiation problem.

The correct answer is B . In Versa SD-WAN onboarding, the branch progresses through three staging phases. In Stage 1 , the branch uses its factory-default configuration to start an IKE session with the staging server. After the IKE session comes up, the staging server assigns an IP address to the branch and notifies the branch of the Versa Director IP address. Versa Director is also notified that the branch has come up.

In Stage 2 , Versa Director pushes the stage-two configuration to the branch through the staging server. This stage changes the IPsec profile so that the Controller IP address becomes the remote IP. The branch reboots and then attempts to establish the IKE session with the Controller. If the device successfully completed Stage 1 but never forms the Controller IKE session, the failure point is Stage 2.

Stage 3 is later, when the device receives stage-three configuration, becomes operational, and creates Controller IPsec plus branch-to-branch VXLAN/ESP sessions. Therefore, the described issue is a Stage 2 staging failure.

The correct answer is A . Versa troubleshooting documentation states that after a branch device successfully establishes an IPsec connection to the Controller node, the Controller sends a notification to the Director node. To display the details of this notification, the documentation instructs administrators to issue the show alarms CLI command. It also provides examples using show alarms | match branchd | match br101 to view branch-connect and branch-disconnect events.

These alarm entries are valuable during onboarding because they show whether the branch reached the Controller, whether staging progressed, and whether the branch later disconnected. For example, branch lifecycle notifications include factory-default connection, staged connection, Stage 3 connection with WAN IP addresses, and branch disconnect events.

show system storage is useful for disk usage, show interfaces detail helps with link state, speed, duplex, and interface counters, and show cgnat acl info is used for CGNAT matching. None of those commands directly confirms branch lifecycle notifications between Controller and Director.

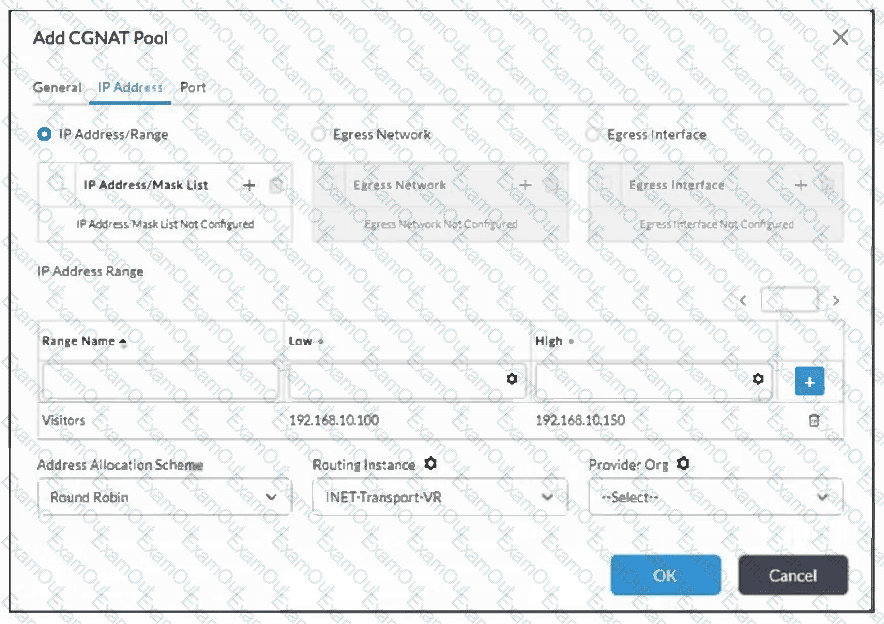

The exhibit shows the Add CGNAT Pool configuration with the IP Address/Range option selected. The configured address range is named Visitors , with a low address of 192.168.10.100 and a high address of 192.168.10.150 . In CGNAT, this pool defines the translated source address resource used by matching NAT rules; it does not define the original inside source hosts. Therefore, matching sessions will have their source address translated to an address from this configured pool range, which makes option C correct. Versa’s CGNAT configuration examples show that a rule matches original source and destination prefixes, and then attaches a translated source pool to perform NAT.

The correct answer is A . Versa data-path troubleshooting documentation gives a specific VSM control-plane workflow for checking SD-WAN tunnel objects. After connecting to the VSM daemon, administrators can use show vsm p2mp local-tunnel-sites 0 to inspect local site objects. To check whether remote site objects were learned from BGP or from configuration , Versa instructs administrators to issue show vsm p2mp tunnel-remote-endpoint tenant < tenant-id > on the VSM control plane.

This command is highly relevant when local WAN interfaces are operational, but overlay tunnel formation is incomplete. It shows remote endpoints such as Controllers, hubs, or branches, along with site type, site name, branch ID, tenant ID, remote WAN link information, and tunnel state-related fields.

show interfaces brief confirms interface state and IP addresses, but it does not show learned remote SD-WAN endpoint objects. CGNAT summary is unrelated to tunnel endpoint learning. System storage is useful for disk checks, but not for SD-WAN overlay endpoint troubleshooting.
