Free Practice Questions for VMware 2V0-51.23 Exam

When configuring a virtual machine to use an NVIDIA graphics card, issues such as the VM not starting can occur if there is no suitable host available that meets the requirements for 3D graphics, or if not all memory required by the 3D graphics card has been reserved for the VM. Ensuring that the host has the necessary 3D graphics capabilities and that the VM is configured with reserved memory can resolve these issues.

A black screen when connecting to a Horizon virtual desktop can be caused by various reasons, such as network issues, hardware issues, Horizon tunnel issues, or underlying guest operating system issues. Based on the options given, the following could be the cause of the issue:

A vRAM shortage on the Horizon virtual machine. This can affect the display performance and cause a black screen or a disconnect. To resolve this issue, you should configure the pool to provide enough video memory for the resolutions you plan to present to the clients1.

The incorrect video driver version installed on the Horizon virtual machine. This can cause compatibility issues and prevent the display protocol from working properly. To resolve this issue, you should verify that the View desktop is using the correct video driver and that it is compatible with the VMware Tools and Horizon Agent versions installed23.

An incorrect firewall configuration. This can block or misroute the display protocol traffic and cause a connection failure. To resolve this issue, you should verify that the required ports are open between the client, UAG/Security server/Connection server, and VDI machine4 .

The other options are not likely to cause a black screen when connecting to a Horizon virtual desktop:

The client machine video memory is too high. This should not affect the display protocol performance or cause a black screen. The client machine video memory is only used to render the display on the local device, not on the remote desktop.

The Horizon virtual machine video memory is too high. This should not cause a black screen or a disconnect either. The Horizon virtual machine video memory is used to allocate resources for the display protocol on the server side, not on the client side.

References:

Dual monitors configured using PCoIP does not span both the monitors for VMware View and Connecting to a VDI desktop with PCoIP displays a black screen and disconnects after 10 seconds

Error attaching to SVGADevTap, error 4000: EscapeFailed reported by PCoIP server

Interoperability Matrices

Configuring PCoIP Secure Gateway in VMware View

[Network Ports in VMware Horizon]

Load balancing is a feature that allows administrators to distribute the load of published desktop and application sessions across multiple RDS hosts in a farm. Load balancing can improve the performance and availability of the sessions and the hosts. Horizon offers two ways of configuring load balancing for RDS hosts: using load balancing settings in Horizon Console or using custom load balancing scripts.

The load balancing settings in Horizon Console allow administrators to define how Horizon calculates the server load index, which indicates the load on each RDS host. The server load index can range from 0 to 100, where 0 represents no load and 100 represents full load. A server load index of -1 indicates that load balancing is disabled. Horizon uses the server load index to determine which RDS host is the best candidate for placing a new session request.

The load balancing settings in Horizon Console include the following check boxes that can be selected to influence the load balancing behavior:

The use custom script setting for customized RDSH load balancing: This setting allows administrators to override the default behavior of the load balancing settings and control the placement of new sessions by writing and configuring custom load balancing scripts. The custom scripts must write the server load index to a specific registry key on each RDS host. Horizon will use the value from the registry key instead of calculating it from the other settings.

The Include Session Count setting to include the session count on the RDSH for load balancing: This setting allows administrators to include the number of sessions (connected, pending, and disconnected) on each RDS host as a factor in calculating the server load index. By default, Horizon uses the following formula to calculate the server load index based on the session count: (connected sessions + pending sessions + disconnected sessions)/ (maximum session count). If the maximum session count is configured as unlimited, Horizon falls back to using the absolute number of total sessions.

The other options are not check boxes that can be selected in the load balancing settings in Horizon Console:

The floating dynamic host profile setting, created in the vSphere profile section: This option is not related to load balancing for RDS hosts, but rather to dynamic environment manager for instant-clone desktops. A dynamic host profile is a vSphere profile that contains configuration settings for instant-clone desktops, such as network settings, domain join settings, and customization scripts. A floating dynamic host profile is a type of dynamic host profile that applies to floating desktop pools, where users are assigned a random desktop from a pool at each login.

The Horizon DRS setting for fully automated vSphere load balancing: This option is not related to load balancing for RDS hosts, but rather to distributed resource scheduler (DRS) for vSphere clusters. DRS is a feature that monitors and balances the CPU and memory resources across multiple ESXi hosts in a cluster. DRS can also migrate virtual machines between hosts using vMotion to optimize resource utilization and performance. Horizon DRS is an extension of DRS that integrates with Horizon and provides additional capabilities, such as affinity rules, maintenance mode, and power management. Horizon DRS can be configured with different automation levels, such as fully automated, partially automated, or manual.

References: Configuring Load Balancing for RDS Hosts in Horizon Console, Load Balancing Settings, Load Balancing Scripts, [Dynamic Host Profiles], and [VMware Horizon 8.x Professional Course]

A Trusted Platform Module (vTPM) is a virtualized version of a physical TPM device that provides enhanced security for virtual machines. A vTPM device can be added to a virtual machine to enable features such as encryption, attestation, and key management. A vTPM device requires a Key Management Server (KMS) to store and manage the encryption keys.

To create instant clones VMs with a vTPM device, the vCenter Server user must have certain privileges in addition to those required for instant clones without a vTPM device. One of these privileges is Manage KMS, which allows the user to perform cryptographic operations on the vTPM device, such as cloning, decrypting, encrypting, migrating, and registering. The Manage KMS privilege is part of the Cryptographic operations privilege group on vCenter Server.

The other options are not required only for instant clones VMs with a vTPM device:

Upgrade virtual machine compatibility: This privilege allows the user to upgrade the virtual hardware version of a virtual machine to support new features and capabilities. This privilege is required for instant clones VMs regardless of whether they have a vTPM device or not.

Configure Host USB device: This privilege allows the user to configure USB devices on an ESXi host and attach them to a virtual machine. This privilege is not related to vTPM devices or instant clones VMs.

Manage custom attributes: This privilege allows the user to create, edit, and delete custom attributes for vCenter Server objects. Custom attributes are user-defined fields that can store additional information about objects. This privilege is not related to vTPM devices or instant clones VMs.

References: Privileges Required for the vCenter Server User With Instant Clones, vSphere Virtual Machine Administration, and [VMware Horizon 8.x Professional Course]

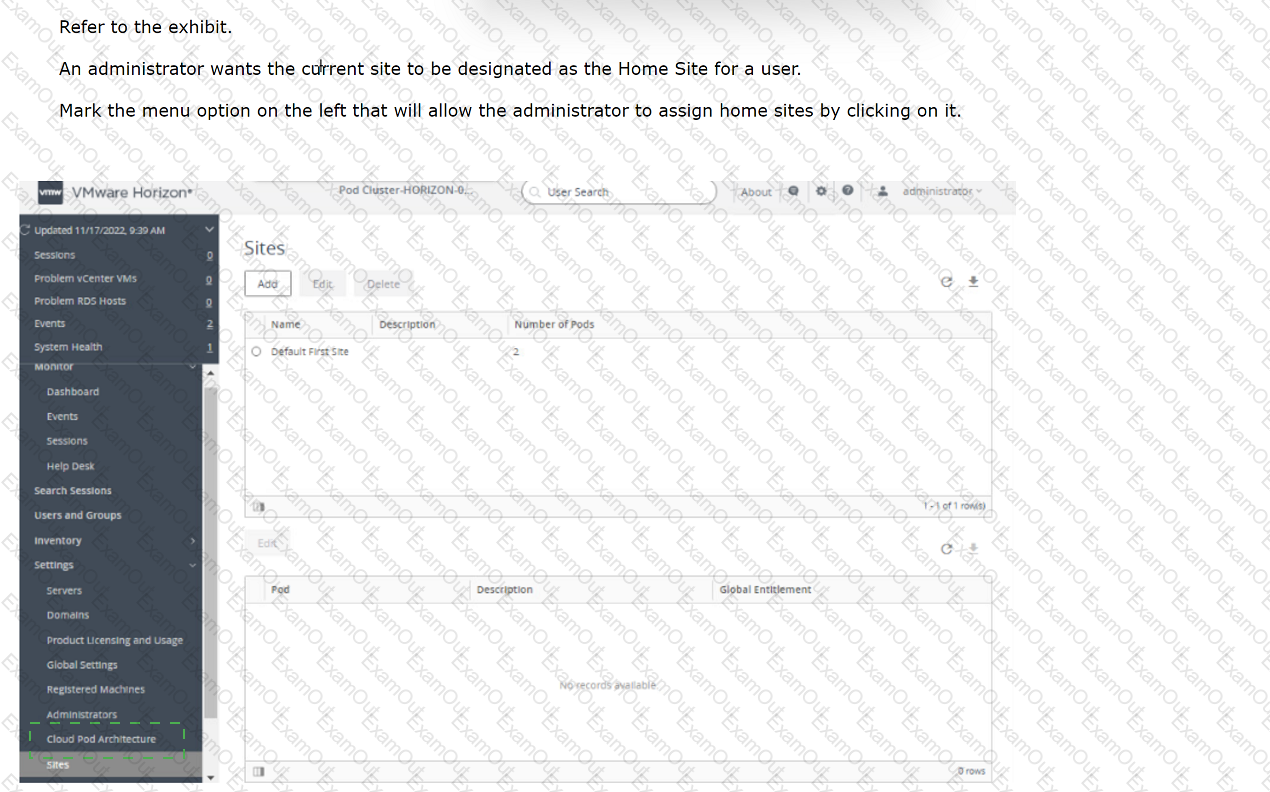

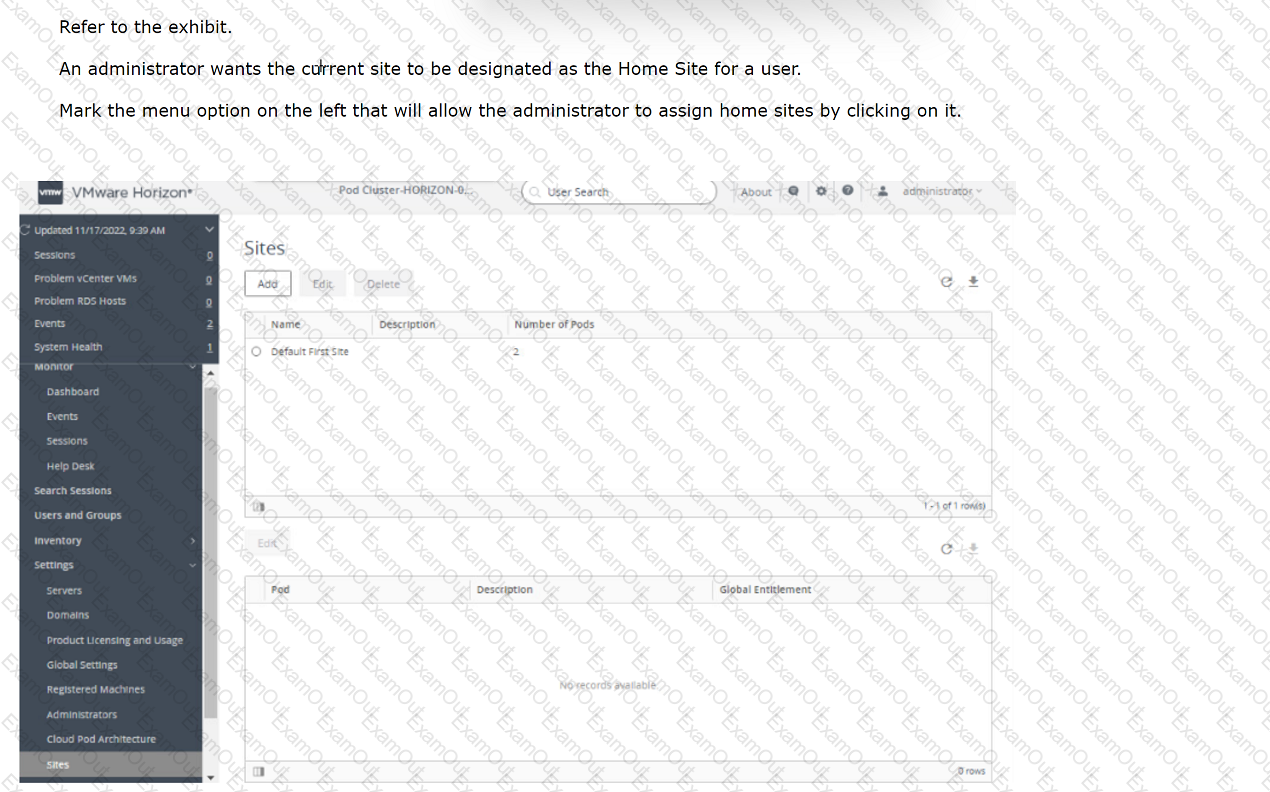

In VMware Horizon, to designate a Home Site for a user, you would use the "Cloud Pod Architecture" feature, which allows you to set home sites and manage global entitlements across multiple pods and sites in a Horizon environment.

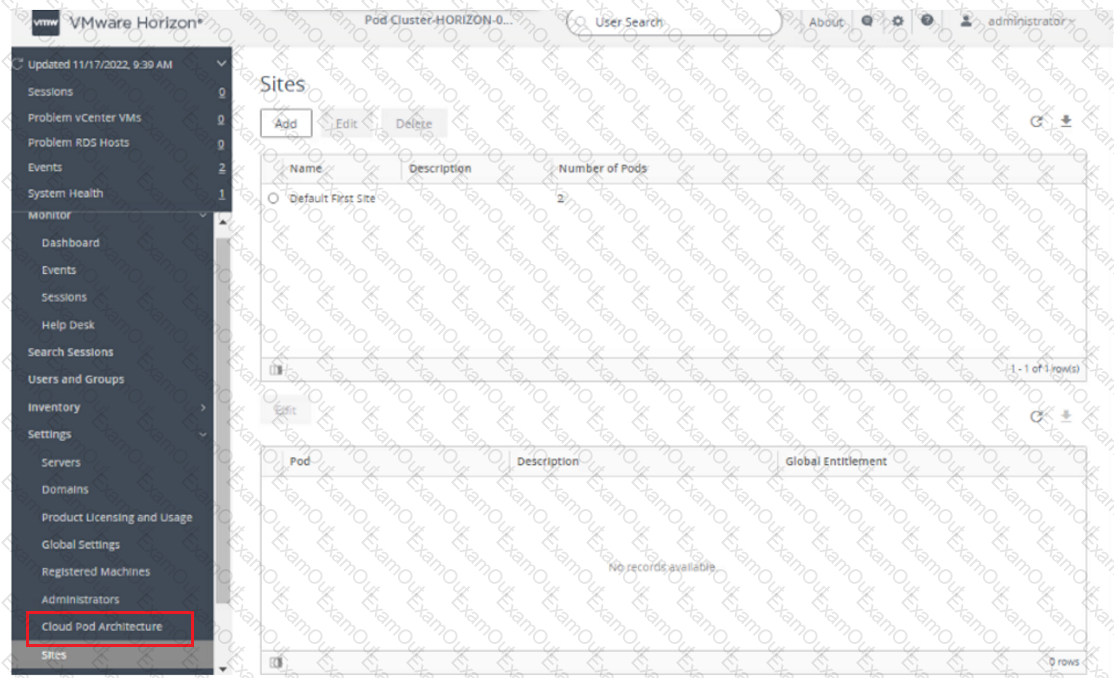

In the exhibit's menu on the left, you should click on "Cloud Pod Architecture" to proceed with designating a Home Site for a user.

To enable a virtual machine to power on with a PCI graphics accelerator, such as a GPU, attached to it, the administrator needs to reserve all guest memory for that virtual machine. This is because PCI devices require direct memory access (DMA) to function properly, and memory overcommitment can interfere with DMA operations. Reserving all guest memory ensures that no memory swapping or ballooning occurs on the virtual machine, and that the memory address space is contiguous and available for DMA56.

The other options are not required or valid because:

Enabling Video Card 3D Graphics is not necessary for using a PCI graphics accelerator. This option is for using software-accelerated graphics or virtual shared graphics acceleration (vSGA) on a virtual machine7.

Setting Memory Shares to High does not guarantee that all guest memory will be reserved. Memory shares only affect how memory resources are distributed among competing virtual machines when there is memory contention on the host. Memory shares do not prevent memory overcommitment or swapping.

Disabling CPU Hot Plug does not affect the use of a PCI graphics accelerator. CPU Hot Plug allows adding or removing virtual CPUs from a powered-on virtual machine. It has no relation to PCI devices or DMA operations.

References := 5: VMware vSphere 7 Documentation: Add a PCI Device to a Virtual Machine 6: VMware Knowledge Base: Enabling DirectPath I/O causes virtual machines to fail to power on (1010789) 7: VMware Workstation Pro Documentation: Prepare a Virtual Machine to Use Accelerated 3D Graphics : VMware vSphere Resource Management Documentation: Memory Resource Management : VMware vSphere Virtual Machine Administration Documentation: Hot Add Memory and CPU Resources
