Free Practice Questions for The Open Group OGA-031 Exam

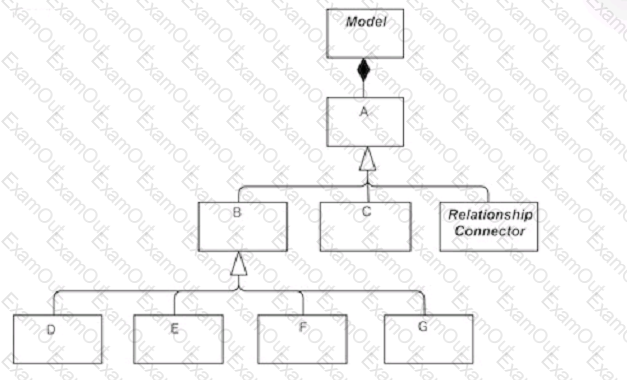

According to the ArchiMate language structure, a concept is either an element or a relationship. An element is either a behavior element, a structure element, a motivation element, or a composite element. A and B in the diagram correspond to these concepts respectively.

References: ArchiMate® 3.2 Specification, Chapter 3: Language Structure, Section 3.2 Top-Level Language Structure; ArchiMate® 3.0 Specification, Chapter 3: Language Structure, Section 3.2 Top-Level Language Structure.

According to the ArchiMate® 3.2 Specification1, external active structure elements are also called interfaces. An interface represents a point of access where one or more services are offered by an active structure element to its environment1. Therefore, the correct answer is B. Interfaces.

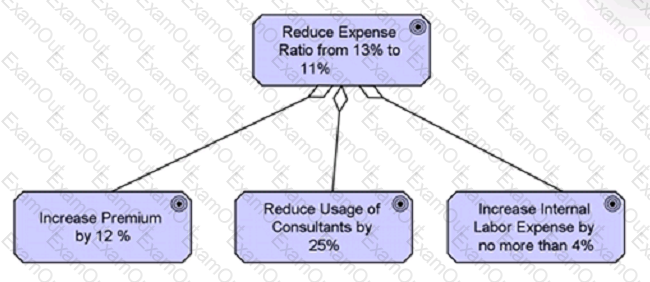

The diagram uses the ArchiMate notation for a goal element and an aggregation relationship. A goal element represents an end state that a stakeholder intends to achieve. An aggregation relationship indicates that a whole is composed of parts. In this case, the goal ‘Reduce Expense Ratio from 13% to 11%’ is composed of three sub-goals that contribute to its achievement.

References: ArchiMate® 3.2 Specification, Chapter 10: Motivation Elements, Section 10.1 Goal; Chapter 5: Relationships, Section 5.2 Aggregation.

Based on the ArchiMate 3 documents or objectives, the top-level language structure of the ArchiMate concepts defines four types of elements: Behavior, Composite, Motivation, and Structure. Behavior elements represent units of activity performed by one or more active structure elements. Composite elements represent collections of other concepts that belong together based on some criteria. Motivation elements represent the reasons for designing and implementing an architecture. Structure elements represent structural concepts that model the static construction or composition of concepts of the same or different types.

References: ArchiMate® 3.2 Specification, Chapter 3 Language Structure, Section 3.2 Top-Level Language Structure 1; ArchiMate - Wikipedia 2.

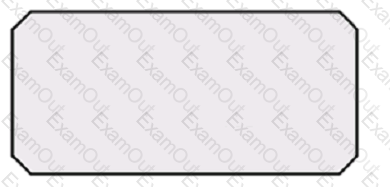

According to the standard notation conventions, a structure element is denoted by a rectangle with rounded corners. A structure element represents an entity that has a state and exhibits some behavior. Examples of structure elements are actors, roles, components, nodes, and objects.

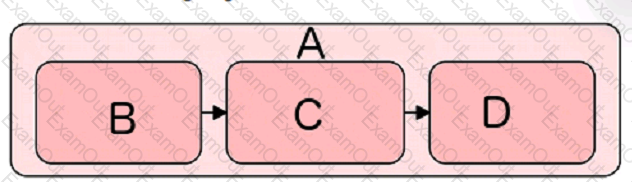

The diagram shows a work package, which is a grouping of behavior and/or structure elements that can be assigned to one or more performers. A work package can be used to model a project or a program, and it can contain deliverables, which are outcomes of the work package. The four elements (A, B, C, and D) are all deliverables that are part of the work package.

References: ArchiMate® 3.2 Specification, Chapter 10: Motivation Elements, Section 10.4 Work Package1; Chapter 11: Strategy Elements, Section 11.5 Deliverable2.

According to the ArchiMate® 3.2 Specification1, an application function describes the internal behavior of an application component, and an application component may be assigned to an application function, which means that the application component performs the application function. Therefore, the correct answer is A. Assignment. This relationship indicates that an instance of a technology function performs (part of) the behavior of an instance of an application function1.

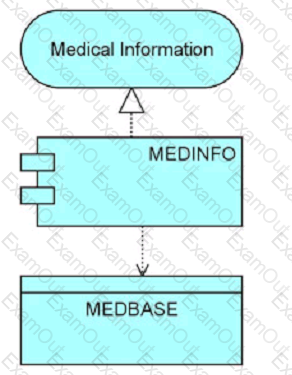

Based on the ArchiMate 3 documents or objectives, an application component represents a modular, deployable, and replaceable part of a software system that encapsulates its behavior and data. An application service represents an explicitly defined exposed application behavior. A data object represents data structured for automated processing. A realization relationship indicates that an entity plays a critical role in the creation, achievement, sustenance, or operation of a more abstract entity. An access relationship models the ability of behavior and active structure elements to observe or act upon passive structure elements. The diagram uses a realization relationship from the MEDINFO application component to the Medical Information service to indicate that the application component realizes the service. The diagram also uses an access relationship from the MEDINFO application component to the MEDBASE data object to indicate that the application component accesses the data object.

References: ArchiMate® 3.2 Specification, Chapter 10 Application Layer, Section 10.1 Active Structure Elements 1; ArchiMate® 3.2 Specification, Chapter 10 Application Layer, Section 10.3 Behavior Elements 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.1 Structural Relationships 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.3 Access Relationships 1; ArchiMate Example: Application Components - Visual Paradigm 2.

Comprehensive and Detailed in Depth Explanation:TheAssignmentrelationship is used tolink elements that perform or fulfill a function. ATechnologyFunctionrepresents alogical grouping of technology behavior(e.g., storage, networking), while anApplication Functionrepresentssoftware behavior(e.g., processing business transactions).

Since technology functions enable applications to operate, theAssignmentrelationship correctly models this dependency. TheArchiMate 3.2 Specificationexplicitly states thatTechnology Functionscan beassigned to Application Functions.

References:

Archi User Guide​

ArchiMate 3.2 Specification
