Free Practice Questions for Tableau TDS-C01 Exam

According to the [Tableau Desktop Specialist Exam Guide], a join is a way to combine table columns in relational databases by using shared values. A join can be inner, left, right, or full, depending on how the matching rows are included or excluded.

You can adjust the size for all charts except the Tree Map. You use dimensions to define the structure of the treemap, and measures to define the size or color of the individual rectangles. Treemaps are a relatively simple data visualization that can provide insight in a visually attractive format.

In a Tree Map, the measure itself defines the size and colour! The greater the sum of Measure for each category, the darker and larger its box.

It contains all the measures in your data, collected into a single field with continuous values - This is the definition for 'Measure Values'.

All others are True w.r.t. Measure Names!

The Measure Names field contains the names of all measures in your data, collected into a single field with discrete values.

Documentation : https://help.tableau.com/current/pro/desktop/en-us/datafields_understanddatawindow_meavalues.htm

Explanation

According to the official Tableau documentation:

Tableau data source files have the .tds file extension. Data source files are shortcuts for quickly connecting to the original data that you use often. Data source files do not contain the actual data but rather the information necessary to connect to the actual data as well as any modifications you've made on top of the actual data such as changing default properties, creating calculated fields, adding groups, and so on. For more information, see Save Data Sources.

Lot of students have been seeing this question in the exam lately, and wanted me to include this question so here it is. Follow along -

1) Click on Worksheet in the Menu bar, followed by Tooltip and select the bold option

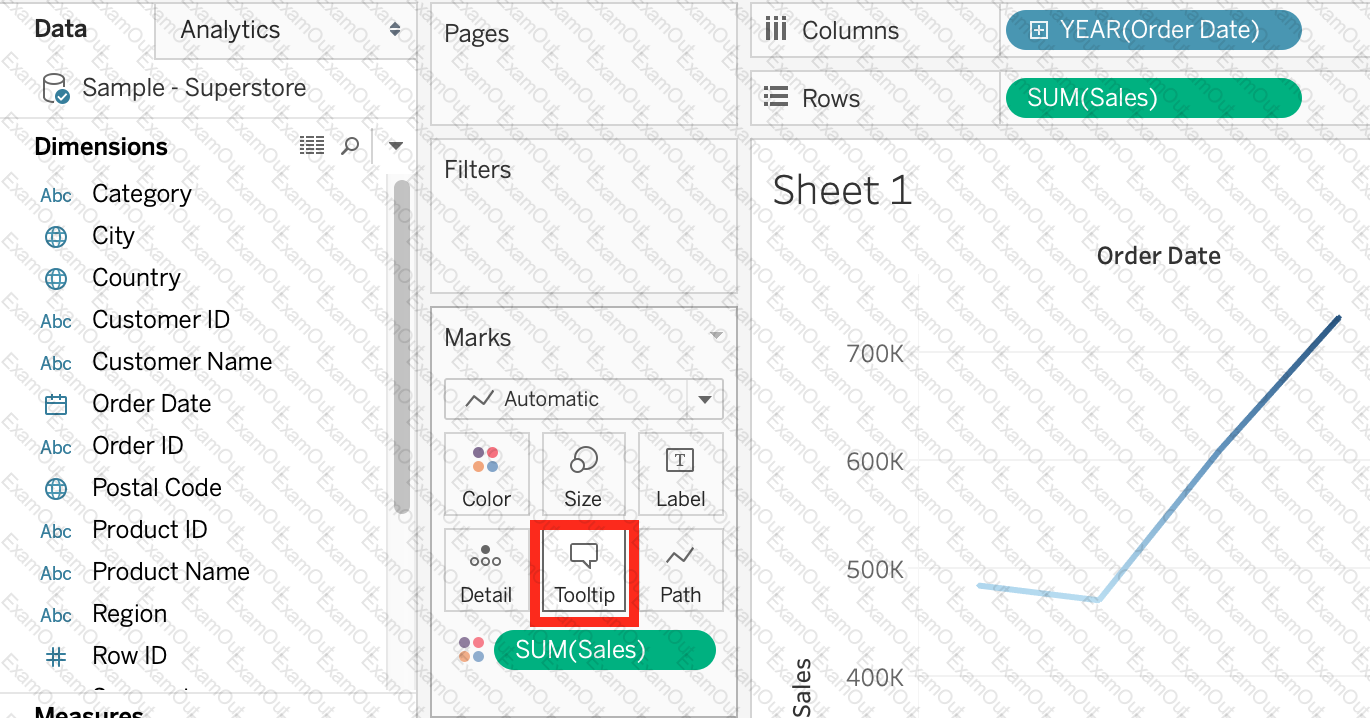

2) Click on Tooltip in the Marks card, and select bold.

Graphical user interface, application Description automatically generated

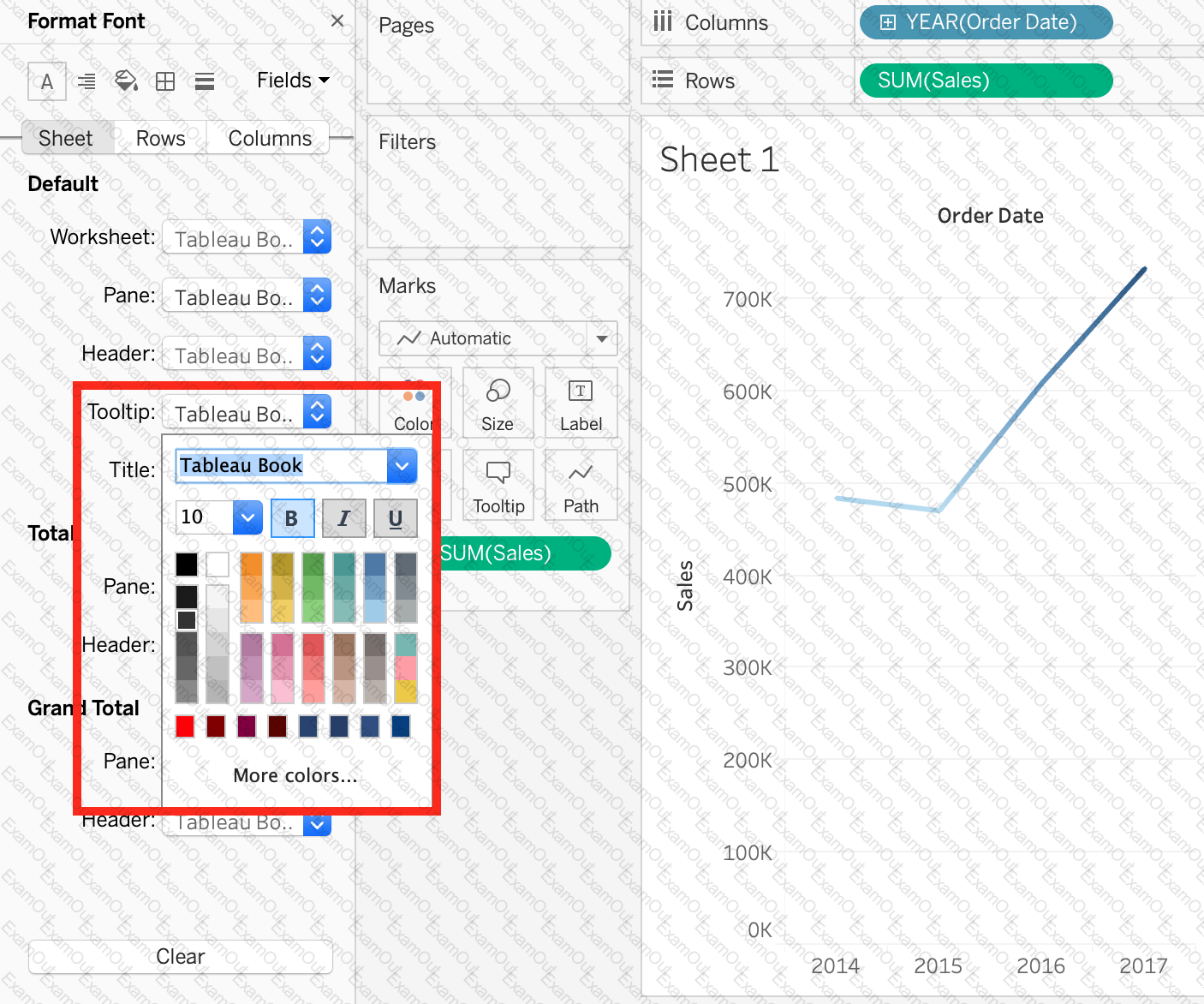

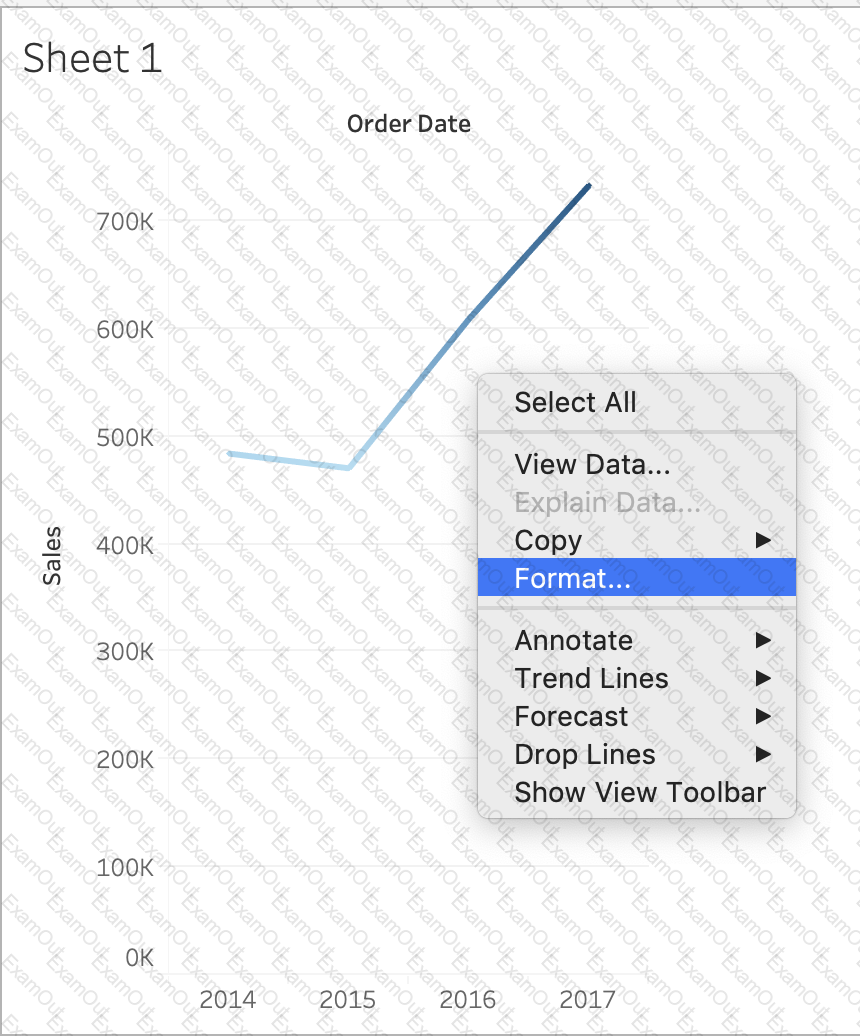

3) Right click, click format and then under the default worksheet formatting, choose Tooltip and make it bold.

A picture containing line chart Description automatically generatedGraphical user interface Description automatically generated

There exists no option to Bold the tooltip contents by clicking Analysis. Hence, it is an incorrect choice.

Explanation

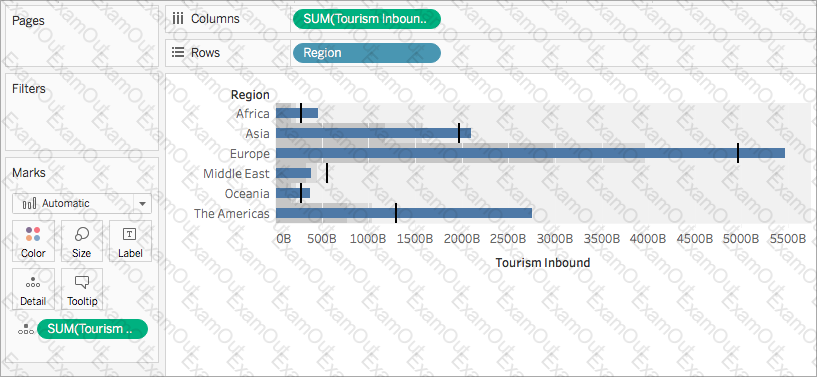

A bullet graph is a variation of a bar graph developed to replace dashboard gauges and meters. A bullet graph is useful for comparing the performance of a primary measure to one or more other measures. Below is a single bullet graph showing how actual sales compared to estimated sales.

Explanation

A bullet graph is a variation of a bar graph developed to replace dashboard gauges and meters. A bullet graph is useful for comparing the performance of a primary measure to one or more other measures.

Therefore, we need at least 2 measures for creating bullet graphs.

Explanation

Since we need to focus on 1 country -> Japan, let's filter on it first as follows:

1) Drag Country to the filter shelf, and choose only Japan. Click OK.

2) Read the Question Carefully, we need to break down the visualisation by Region, then by Country, and then by State. So let's do that:

Drag Region to the column shelf, followed by Country. Drill down into Country to include states as well.

Then drag Quantity to the Row Shelf, and change the Aggregation to AVERAGE.

The following is our visualisation:

Now that you think of it, EVEN IF YOU REMOVE THE REGION, THE ANSWER REMAINS THE SAME. Such elements will be present in the actual exam too, just to make the question sound a little difficult, but actually it is pretty straightforward :)

A URL action is a hyperlink that points to a web page, file, or other web-based resource outside of Tableau. You can use URL actions to create an email or link to additional information about your data. To customize links based on your data, you can automatically enter field values as parameters in URLs.
