Free Practice Questions for Salesforce MuleSoft-Integration-Architect-I Exam

In the given scenario, a rate limiting policy has been applied to the SOAP API and a global error handler is configured to handle HTTP:RETRY_EXHAUSTED errors with a 429 status code. The rate limiting policy will trigger when the client exceeds the allowed quota of API calls. Since the HTTP:RETRY_EXHAUSTED error specifically catches quota exhaustion errors and the error handler is configured to return a 429 status code, the expected HTTP status returned to the client when the quota is exceeded will be 429. This error code indicates that the user has sent too many requests in a given amount of time ("rate limiting").

MuleSoft's IT delivery and operating model suggests adopting an approach that decouples core IT projects from the innovation within each line of business. This approach, often referred to as API-led connectivity, allows different lines of business to innovate and deliver projects independently by using reusable APIs that provide access to core systems and data. This decoupling enhances agility, speeds up delivery, and ensures that core IT maintains control over critical systems and data while enabling rapid innovation.

To monitor Mule applications deployed to different customer-hosted Mule runtimes using Anypoint Monitoring, follow these steps:

Install Anypoint Monitoring Agent: Install an Anypoint Monitoring agent on each Mule runtime. This agent is responsible for collecting monitoring data from the Mule applications running on that runtime.

Data Transmission: Each Anypoint Monitoring agent sends the collected monitoring data directly to Anypoint Monitoring. This ensures that performance metrics, logs, and other relevant data are available for analysis and monitoring within the Anypoint Platform.

By using the Anypoint Monitoring agent, organizations can effectively monitor their Mule applications across various environments, ensuring visibility and operational efficiency.

References

MuleSoft Documentation on Anypoint Monitoring

Installing and Configuring Anypoint Monitoring Agent

A defining characteristic of an Integration-Platform-as-a-Service (iPaaS) is that it is cloud-based. iPaaS provides a cloud-based platform to enable integration of applications and data across various environments. This approach leverages the scalability, flexibility, and accessibility of the cloud to facilitate seamless integrations, reduce on-premises infrastructure requirements, and improve the speed of deployment and maintenance of integration solutions.

Explanation

* As per definition of API by Mulesoft , it is Application Programming Interface using HTTP-based protocols. Non-HTTP-based programmatic interfaces are not APIs.

* HTTP-based programmatic interfaces are APIs even if they don’t use REST or JSON. Hence implementation based on Java RMI, CORBA/IIOP, raw TCP/IP interfaces are not API's as they are not using HTTP.

* One more thing to note is FTP was not built to be secure. It is generally considered to be an insecure protocol because it relies on clear-text usernames and passwords for authentication and does not use encryption.

* Data sent via FTP is vulnerable to sniffing, spoofing, and brute force attacks, among other basic attack methods.

Considering the above points only correct option is

-XML over ActiveMQ

- XML over SFTP

- XML/REST over HTTPS

Explanation

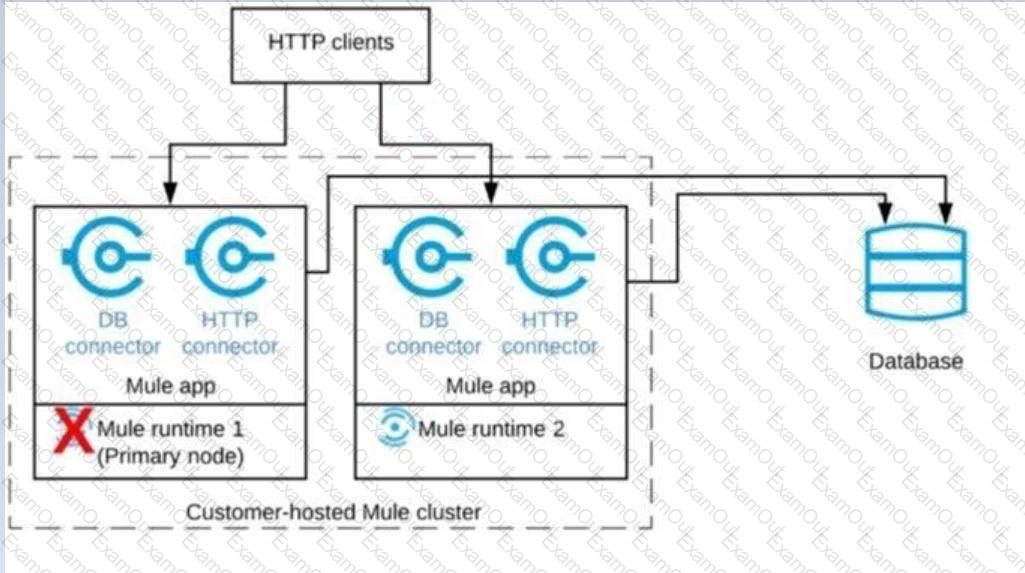

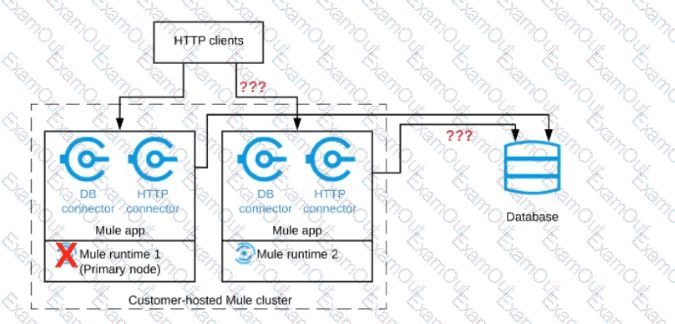

Correct answer is Database polling continues Only HTTP requests sent to the remaining node continue to be accepted. Explanation : Architecture descripted in the question could be described as follows.When node 1 is down , DB polling will still continue via node 2 . Also requests which are coming directly to node 2 will also be accepted and processed in BAU fashion. Only thing that wont work is when requests are sent to Node 1 HTTP connector. The flaw with this architecture is HTTP clients are sending HTTP requests directly to individual cluster nodes. By default, clustering Mule runtime engines ensures high system availability. If a Mule runtime engine node becomes unavailable due to failure or planned downtime, another node in the cluster can assume the workload and continue to process existing events and messages

Diagram Description automatically generated

Explanation

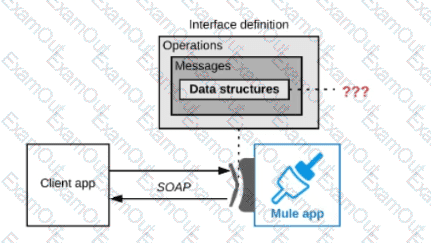

Correct Answer: XSD In this approach to developing a web service, you begin with an XML schema (XSD file) that defines XML data structures to be used as parameters and return types in the web service operations.

----------------------------------------------------------------------------------------------------------------- Reference: https://www.w3schools.com/xml/schema_intro.asp

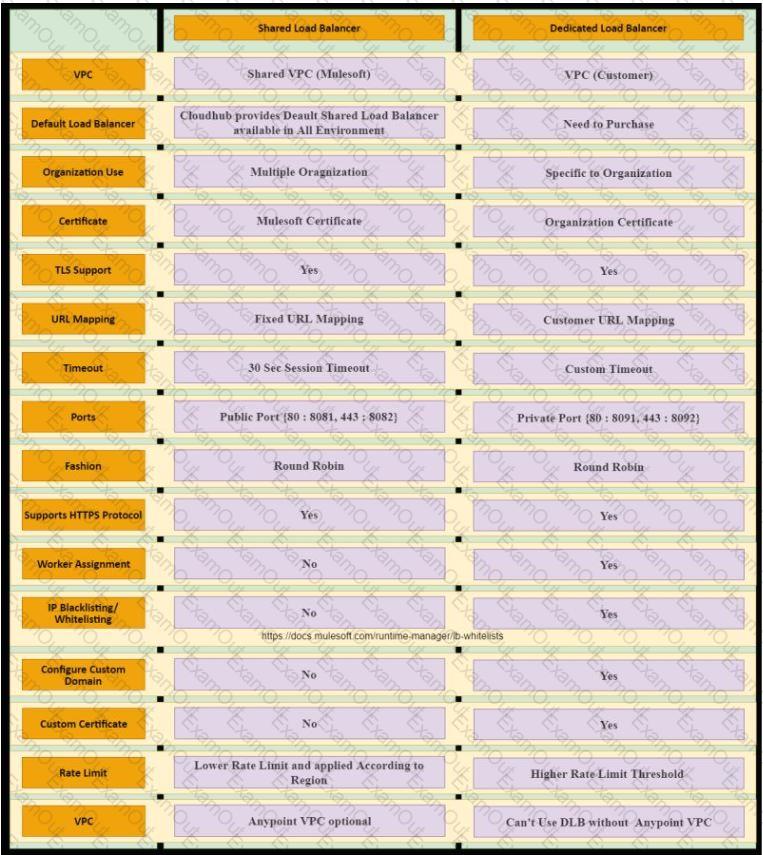

To use a dedicated load balancer in your environment, you must first create an Anypoint VPC. Because you can associate multiple environments with the same Anypoint VPC, you can use the same dedicated load balancer for your different environments.

To design an integration Mule application that processes orders and ensures reliability even with an unreliable back-end system, the following components and ActiveMQ queues should be used:

Until Successful Scope: This scope ensures that the Mule application will continue trying to submit the order to the back-end system until it succeeds or reaches a specified retry limit. This helps in handling transient network issues or minor outages of the back-end system.

ActiveMQ Long-Retry Queues: By placing the orders in long-retry queues, the application can manage retries over an extended period. This is particularly useful when the back-end system experiences longer outages. The ActiveMQ broker, located within the organization’s firewall, can reliably handle these queues.

ActiveMQ Dead-Letter Queues: Orders that cannot be successfully submitted after all retry attempts should be moved to dead-letter queues. This allows for manual processing of these orders. The dead-letter queue ensures that no orders are lost and provides a clear mechanism for handling failed submissions.

Implementation Steps:

HTTP Listener: Set up an HTTP listener to receive incoming orders.

Immediate Acknowledgment: Immediately acknowledge the receipt of the order to the client.

Until Successful Scope: Use the Until Successful scope to attempt submitting the order to the back-end system. Configure retry intervals and limits.

Long-Retry Queues: Configure ActiveMQ long-retry queues to manage retries.

Dead-Letter Queues: Set up ActiveMQ dead-letter queues for orders that fail after maximum retry attempts, allowing for manual intervention.

This approach ensures that the system can handle temporary and prolonged back-end outages while minimizing manual processing.
