Which two high availability elements can be achieved by remote storage replication? (Choose two.)

A.

Recoverability

B.

Fault tolerance

C.

Robustness

D.

Redundancy

E.

Serviceability

A new server needs to start from LUN 1 instead of LUN 0.

Which HBA setting must be configured?

A.

Selectable Boot

B.

Persistent Binding

C.

Enable Target Reset

D.

LUNs per Target

You are asked to set up a server to boot from a SAN.

Which setting on the HBA needs to be configured?

A.

Change the queue depth value.

B.

Set Enable BIOS.

C.

Enable Persistent Bindings.

D.

Set Enable Target Rescan.

A SAN environment with zones containing a large number of members is experiencing hosts randomly, losing connectivity to SAN-attached storage resources. You have been asked by the customer to address this situation.

Which action should you implement to resolve this issue?

A.

Edit the host definitions used for LUN masking on the storage systems.

B.

Implement persistent binding on the storage LUNs.

C.

Reconfigure each fabric's zone set for single-initiator zones.

D.

Remove all zones between the primary and DR data centers.

After provisioning a new LUN to a host, new storage cannot be detected on the host. Which three actions should be performed to troubleshoot this problem? (Choose three.)

A.

Scan memory on a host.

B.

Scan for new storage on the host,

C.

Verify that LUN mapping is correct.

D.

Verify that zoning on the FC switch is correct.

E.

Verify that the size of memory pages and block size is the same.

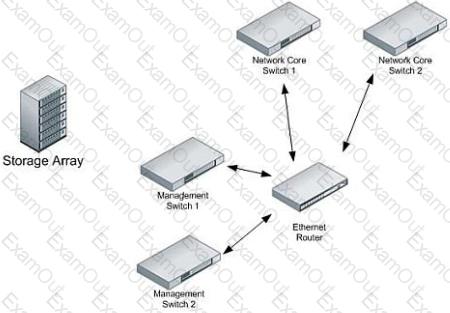

Click the Exhibit button.

Your company has purchased a new storage array that has dual management access network ports. You need to connect the array and provide maximum redundancy without affecting production traffic.

Referring to the exhibit, where should the ports be attached?

A.

Cable one management access network port into management switch 1 and the other port into management switch 2.

B.

Cable both management access network ports into management switch 2.

C.

Cable one management access network port into core switch 1 and the other into core switch 2.

D.

Cable both management access network ports into management switch 1.

What is the storage protocol used between initiators and targets connected to an FCoE fabric?

A.

SATA

B.

SCSI

C.

SAS

D.

FCoE

Which two cloud deployment models address data privacy issues? (Choose two.)

A.

Community

B.

Public

C.

Private

D.

Hybrid

E.

Campus

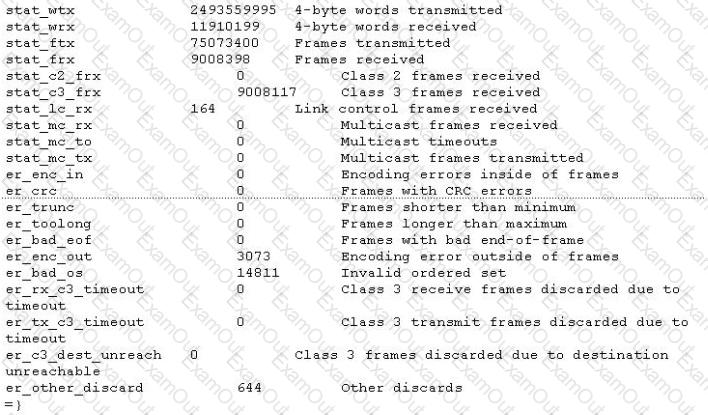

Click the Exhibit button.

Referring to the exhibit, which three switch indicators will help you to determine the stability of a link? (Choose three.)

A.

er_crc

B.

er_toolong

C.

er_enc_in

D.

er_bad_eof

E.

er_trunk

You are performing an FC switch replacement and you want to ensure that no hosts will be disconnected from its storage.

Which multipathing software feature, on a server, must be supported and configured for a server to continue to have access to the fabric attached storage in this scenario?

A.

Active-passive

B.

Path failover

C.

Round-robin

D.

Standby
