Free Practice Questions for Paloalto Networks SD-WAN-Engineer Exam

In the Prisma SD-WAN architecture, reachability between sites is managed by the Control Plane, which automatically advertises prefixes across the secure fabric based on their scope. If a branch site has successful Direct Internet Access (DIA) but is invisible to the Data Center (DC), it indicates that while the local ION is online, its internal network information has not been propagated to the rest of the SD-WAN fabric.

The most common cause for this behavior is that the LAN interfaces or static routes at the branch are configured with a Local scope rather than a Global scope. When a prefix is set to "Local," the ION device treats that network as reachable only within that specific site; it will not advertise that prefix to the Controller for distribution to other ION devices, such as those at the Data Center. By ensuring the LAN branch prefixes are set to "global" (Option B), the administrator instructs the ION device to share these routes with the global fabric.

Once the prefix is marked as global, the Prisma SD-WAN Controller identifies it as a reachable destination and updates the routing tables of all peer ION devices in the same domain, including the DC gateways. This allows the Data Center to build a valid path to the branch resources over the secure VPN tunnels. Options like creating static routes (Option A) or changing site modes (Option C) do not address the fundamental requirement of prefix advertisement within the software-defined fabric, which relies on correctly defined metadata like route scope.

Prisma SD-WAN addresses inconsistent application performance through Application Acceleration, which encompasses a suite of features designed to mitigate the effects of latency and packet loss.1 While basic SD-WAN functionality handles path selection, Application Acceleration goes further by employing Layer 4 (TCP) and Layer 7 (Application) optimizations. These optimizations are particularly effective for organizations with diverse branch environments where network conditions are unpredictable.

At Layer 4, Prisma SD-WAN implements TCP optimization techniques such as window scaling, selective acknowledgments, and congestion control algorithms.2 These mechanisms allow the ION devices to "trick" the end hosts into sending data faster by acknowledging packets locally, effectively shielding the application from the round-trip time (RTT) delays inherent in long-distance WAN circuits. This significantly boosts throughput for bulk data transfers and legacy protocols that were not originally designed for high-latency environments.

At Layer 7, the system can perform application-specific optimizations, such as metadata caching or protocol-specific acceleration for services like SMB or HTTP.3 By reducing the number of "chatty" exchanges required to complete a transaction, Prisma SD-WAN ensures a snappy, consistent user experience regardless of whether the user is on a high-speed fiber link or a degraded cellular connection. This is distinct from Forward Error Correction (FEC) (Option C) or Packet Duplication (Option A), which focus on reconstructing lost packets rather than optimizing the protocol throughput itself. By combining these L4 and L7 techniques, Application Acceleration ensures that business-critical SaaS and data center applications perform optimally across the entire distributed enterprise.

In Prisma SD-WAN, the effective throughput for any given circuit is fundamentally dictated by the Circuit Configuration defined at the site level. When a branch experiences a "throughput ceiling" (e.g., traffic capped at 200 Mbps on a 1 Gbps physical link), the most likely cause is that the software-defined bandwidth limit for that circuit has been set incorrectly in the Prisma SD-WAN Controller.

Prisma SD-WAN ION devices do not simply forward traffic at the maximum physical line rate by default; they rely on the administrator-defined Upstream and Downstream bandwidth values to perform traffic shaping, policing, and path selection. If a circuit is physically capable of 1 Gbps but is configured in the portal as having only 200 Mbps, the ION device will enforce this 200 Mbps limit to prevent oversubscribing the link and to ensure that Quality of Service (QoS) and path selection calculations remain accurate based on the assumed capacity.

To resolve this, an engineer must navigate to the Site Configuration, locate the specific WAN circuit, and verify that the bandwidth settings match the actual service provider's handoff. If these values are set lower than the actual link speed, the device will artificially throttle the traffic. While ensuring the WAN interface is set to the correct speed/duplex (Option B) is a valid physical layer check, and QoS/Performance policies (Options A and C) manage how that bandwidth is used, it is the Circuit Configuration that defines the total available bandwidth for the SD-WAN fabric to utilize. Correcting this configuration allows the ION device to scale its throughput to match the full 1 Gbps capability of the broadband connection.

In modern enterprise environments, particularly those undergoing Mergers and Acquisitions (M&A), engineers often face the challenge of overlapping IP address space.4 Prisma SD-WAN addresses this by utilizing Virtual Routing and Forwarding (VRF) profiles.5 A VRF creates a separate routing table instance within the ION device, allowing multiple networks to coexist on the same physical hardware even if they use the same IP ranges.

To achieve end-to-end connectivity while maintaining strict segmentation, these VRF profiles must be correctly associated with site bindings.7 When a VRF is "bound" to a site, the ION device ensures that traffic belonging to that specific segment remains isolated not only locally (on the LAN) but also across the secure SD-WAN fabric. Prisma SD-WAN achieves this by encapsulating the traffic within the overlay tunnels and tagging it with a unique VRF identifier.8 This ensures that a "Corporate" VRF at Site A can only communicate with the "Corporate" VRF at Site B, effectively keeping "Guest" or "Acquisition" traffic completely separate.

This architectural approach is superior to traditional underlay segmentation (Option A) or simple interface-based virtual routers (Option D) because it provides a centralized, software-defined method to manage multi-tenancy. By using VRF profiles, administrators can define a global security and routing posture once and push it to all relevant sites.9 This simplifies the integration of new business units with conflicting IP schemes, as the Prisma SD-WAN controller handles the complex orchestration required to maintain path selection and security policies uniquely for each VRF across the entire global network.

Comprehensive and Detailed Explanation

Prisma SD-WAN (formerly CloudGenix) integrates with Palo Alto Networks IoT Security to provide comprehensive visibility into all devices at a branch, including those that are not directly connected to the ION device. While the ION automatically detects and classifies devices connected directly to its interfaces via traffic inspection (DPI), DHCP, and ARP analysis, gaining visibility into off-branch devices (devices connected to downstream switches or access points) requires additional discovery mechanisms that can query the network infrastructure or ingest its logs.

1. SNMP (Simple Network Management Protocol): This is the primary active discovery method for off-branch devices. The Prisma SD-WAN ION device acts as a sensor that actively polls local network switches and wireless controllers using SNMP. By querying the ARP tables and MAC address tables (Bridge MIBs) of these intermediate network devices, the ION can identify endpoints that are connected to the switch ports, even if those endpoints are not currently sending traffic through the ION. This allows the system to map the topology and discover silent or lateral-traffic-only devices.

2. Syslog: In conjunction with SNMP, the IoT Security solution can utilize Syslog messages to discover and profile devices. Network infrastructure devices (like switches and WLAN controllers) can be configured to send Syslog messages to the collection point (which enables the IoT Security service) whenever a device connects or disconnects (e.g., port up/down events, DHCP snooping logs, or 802.1x authentication logs). These logs provide real-time data about device presence and identity (MAC/IP mappings) for devices that are not directly adjacent to the ION, ensuring 100% visibility across the branch network segments. LLDP (A) and CDP (B) are typically Link Layer discovery protocols used for discovering directly connected neighbors and do not propagate beyond the immediate link, making them unsuitable for discovering devices multiple hops away or behind a switch.

In Prisma SD-WAN, Performance Policies are the primary mechanism used to define the expected quality of experience for specific applications. Unlike traditional monitoring that relies solely on "up/down" interface states, Prisma SD-WAN focuses on the actual health of the application path. An incident is triggered when the system detects a violation of defined service-level agreement (SLA) thresholds, such as excessive latency, jitter, or packet loss, even if the physical link remains active.

When an administrator configures a performance policy, they set specific bounds for these metrics. For example, a VoIP application might have an SLA requiring latency below 150ms and packet loss below 1%. If the ION device detects that the current path (e.g., a broadband circuit) exceeds these limits, it generates a performance incident. This incident serves two purposes: first, it alerts the administrator to the degradation; second, it triggers the Path Selection engine to proactively steer the application traffic to a more suitable "Backup" or "Available" path that currently meets the SLA requirements.

Options B, C, and D represent system-level or network-level events that generate different types of alerts or incidents (System or Network incidents), but they are not the triggers defined within a Performance Policy. Performance policies are specifically concerned with the application's perceived performance across the fabric. By focusing on SLA violations rather than just physical link status, Prisma SD-WAN ensures that business-critical applications remain functional even during "brownout" conditions where a circuit is technically "up" but performing poorly.

Comprehensive and Detailed Explanation

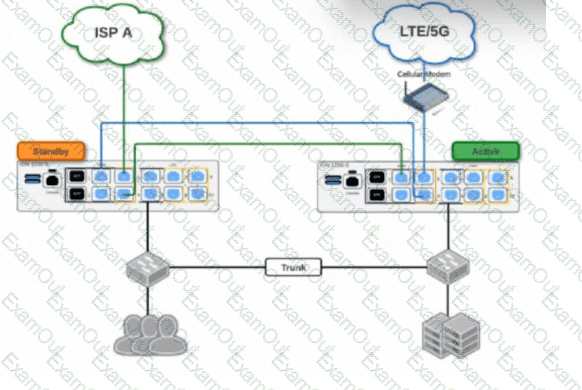

The ION 9000 is the flagship high-performance hardware model designed for large Data Centers and Campus Cores.

10GbE Connectivity (C): The defining hardware differentiator for the ION 9000 is its inclusion of multiple 10 Gigabit Ethernet (SFP+) interfaces. This allows it to interconnect with Data Center core switches at 10Gbps speeds, supporting the multi-gigabit aggregate throughput required for hub sites aggregating traffic from hundreds of branches.

ION 3000: The ION 3000 is a branch-tier device limited to 1 Gigabit Ethernet (copper/SFP) interfaces.

Bypass Pairs (B): Both models (and others like ION 2000/7000) support Bypass Pairs.

LTE/PoE (A/D): These are typically features of smaller branch/edge models (like ION 1200), not the high-end DC concentrators.

Comprehensive and Detailed Explanation

The best practice for managing upgrades in a large-scale Prisma SD-WAN environment is the Canary or Phased Rollout approach, utilizing Site Tags.

Risk Mitigation: Upgrading all sites simultaneously (Option B) is highly risky. If the new software version has an unforeseen bug or compatibility issue with a specific circuit type, the entire network could face an outage.

Tag-Based Management: Administrators should create tags such as "Upgrade-Phase-1" (Pilot sites) or "Region-North". By assigning the specific Software Version to the Tag (rather than the individual site or the global default), the controller pushes the update only to that subset of devices.

Procedure:

Apply update to "Pilot" tag (5 sites). Monitor for 24-48 hours.

Apply update to "Region-1" tag (50 sites). Monitor.

Eventually, update the Global default once confidence is high.

Option A is unscalable, and Option D is incorrect as the administrator retains full control over when upgrades occur; they are not forced automatically without policy configuration.

In complex retail or banking environments, maintaining strict network segmentation is a regulatory and security requirement. Prisma SD-WAN utilizes Virtual Routing and Forwarding (VRF) to provide this isolation, ensuring that high-security traffic, such as ATM transactions or teller cash registers, remains logically separated from Guest Wi-Fi or general corporate applications. While isolation is the default state, route leaking is used to allow specific communication between these VRFs—for instance, allowing multiple isolated segments to reach a common shared service like a DNS server or a centralized security gateway.

To verify that these configurations have been correctly pushed from the Controller to the local ION device, administrators utilize the ION CLI (Command Line Interface) for deep-dive diagnostics. The command inspect vrf route_leak_rule all is the definitive tool for this purpose. Unlike "show" commands which typically provide interface status, "inspect" commands in the Prisma SD-WAN ecosystem are designed to pull real-time operational state data from the control plane's internal databases.

When executed, this command displays the specific prefix-level rules that allow routes to "leak" from one VRF table into another. It provides visibility into the source VRF, the destination VRF, and the exact network prefixes or default routes being shared. This is critical for troubleshooting "Day 2" operations; if a teller register cannot reach a shared database, the administrator can use this command to confirm if the necessary route leak rule is active and accurately reflecting the intent of the VRF Profile configured in the portal. Without this command, verifying inter-VRF reachability would be limited to trial-and-error connectivity tests, making it an essential part of the Prisma SD-WAN engineer's toolkit.

In the Prisma SD-WAN (Instant-On Network) architecture, the "Secure Fabric" is a key feature that simplifies VPN orchestration through automation. When an ION device is deployed at a site and associated with a specific role, the Prisma SD-WAN Controller automatically manages the establishment of encrypted VPN tunnels without requiring manual IPsec configuration.

The most fundamental tunnel type is Branch gateway to data center (Option B). By default, the system follows a hub-and-spoke model where every branch ION device automatically attempts to build secure tunnels to all available Data Center clusters within its domain. This ensures that branch locations have immediate, redundant connectivity to centralized corporate resources and applications as soon as they are brought online.

Additionally, Prisma SD-WAN supports automated Branch gateway to branch gateway connectivity (Option C). Unlike traditional architectures that backhaul all traffic through a central hub, the Prisma SD-WAN fabric can dynamically establish "spoke-to-spoke" tunnels between branch gateways to facilitate direct communication. This is particularly useful for latency-sensitive applications like Voice over IP (VoIP) or video conferencing. While this can be configured as a "full mesh" where all sites build tunnels to all other sites, the controller intelligently manages these connections based on the defined site roles and domain configurations to optimize resource usage and performance. Options A and D are incorrect because the fabric orchestration logic is primarily focused on the functional roles of the gateways (Branch vs. Data Center) rather than "domains" in the context of tunnel initiation.
