Free Practice Questions for OMG OMG-OCUP2-ADV300 Exam

fUML (Foundational UML) is a subset of the standard Unified Modeling Language (UML) that includes standard, precise execution semantics. This subset encompasses typical structural modeling constructs of UML such as classes, associations, data types, and enumerations, as well as the ability to model behavior using UML activities composed from a set of primitive actions. Therefore, a model constructed in fUML is executable in the same sense as a program in a traditional programming language, but with the level of abstraction and richness of expression of a modeling language2.

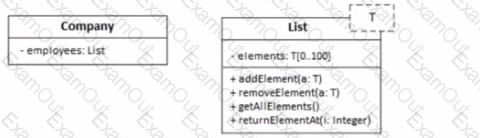

The provided diagram fragment seems to indicate a situation involving a template. In UML, a template is a parameterizable element, and a bound element is a specific manifestation of that template wherein the parameters have been replaced with actual values or types. If 'List' is a template class, it cannot be directly used as a type. Instead, one must use a bound element of the List, meaning the template parameters of List must be bound to actual types before it can beused. For instance, if List is a template expecting a type T, then a concrete class might be List or List, where Customer or Order are actual types replacing the template parameter T. This use of templates and bound elements is according to the UML specification, which details how templates are defined and instantiated within UML models.

In UML, operations can have preconditions defined, which are constraints that must be true before the operation is invoked. When an operation is redefined in a subclass, it is possible to add new preconditions or alter existing ones. Redefining an operation does not typically allow for changes to its scope or the addition of templates, but the preconditions may be expanded to reflect the semantics of the subclass. This is in line with the behavioral specification of operations in UML, where preconditions are part of the behavioral contract of an operation, as described in the UML 2.x Superstructure Specification.

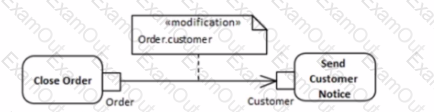

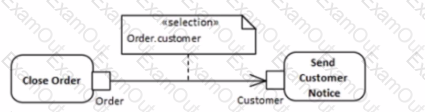

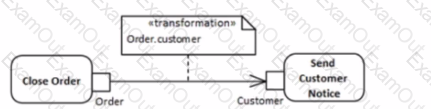

The correct answer is C, which uses a transformation edge to indicate that when an order is closed, information is transformed or processed to notify the customer. This is expressed in UML with an object flow that has a transformation property, which specifies how an object is transformed from one state to another as it flows along the edge. Thisis appropriate for a scenario where closing an order leads to the creation of a customer notice, implying some form of transformation or processing of the order information to generate the notice.

References:

UML 2.5 Specification: The UML 2.5 specification details how object flows with transformations can be used to show that one piece of data is transformed into another as it flows from one action to another.

The Profile mechanism in UML provides the capability to adapt existing metamodel elements for specific purposes. Profiles allow modelers to extend the standard UML metamodel with additional semantics by defining stereotypes, tagged values, and constraints that are specific to a particular domain, platform, or methodology. This means that profiles tailor the existing UML metamodel elements to create domain-specific models without changing the underlying metamodel itself. This adaptation mechanism is described in the UML 2.x Superstructure and Infrastructure Specifications, which detail how profiles can be used to customize the UML for particular domains or purposes.

The semantics of MOF elements are typically provided in the specification as natural language descriptions1. This approach allows for a clear and understandable explanation of the elements and their intended use within the framework.

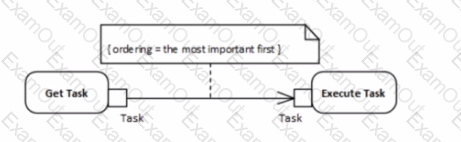

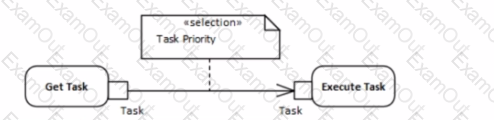

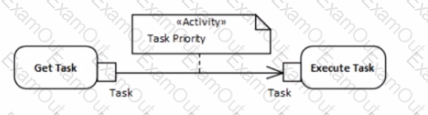

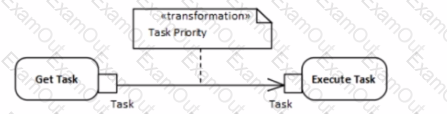

The correct answer is B, which uses a selection edge to specify task behavior based on task priority. In UML, an object flow with a selection property is used to select objects from a collection according to some criterion, which is typically represented by a Boolean expression. In the case of B, the selection criterion is described as "ordering = the most important first", indicating that tasks are selected to be executed based on their priority.

References:

UML 2.5 Specification: The UML 2.5 specification describes how selection behaviors can be applied to object flows to filter objects according to specific criteria, such as priority in this scenario.
