Choose the correct answer.
The formula for the determinant of a square 2X2 matrix.
|ab|
|cd|
is a'd-b'c A subsystem receives one message for each value (i e. a(v) b(v). c(v) and d(v) where v is a real number) These messages can be in any order, and the ensure sequence is followed by an "end" message. The subsystem must calculate the determinant and output it upon receipt of the end message If there are multiple messages for one value (e g . two a(v) messages), or the end message is received before all values have been received, the subsystem should signal an error.

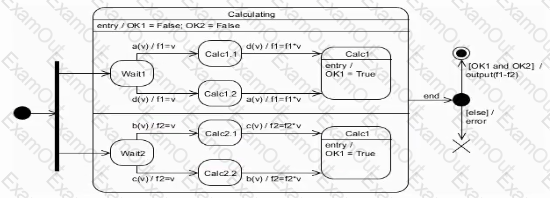

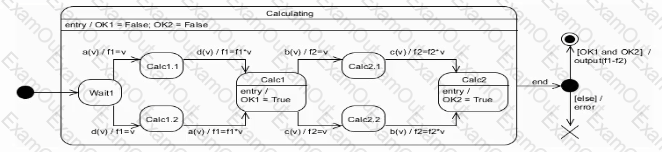

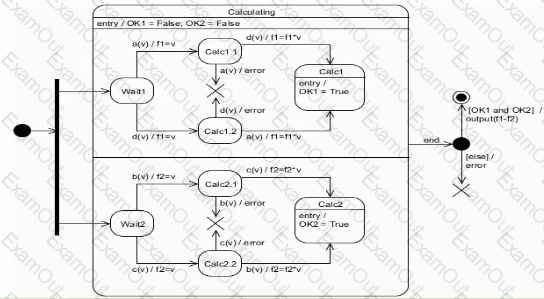

Which state machine correctly models the required behavior? If more than one slate machine is correct, select the one with the fewest slates.
A)
B)
C)
D)
Choose the correct answer.
There is a requirement to count and prioritize widgets. While it is active, the action that implements this behavior will repeatedly accept a widget and immediately output a prioritized widget. A special "final" widget will cause the action to terminate and output the total count of widgets It processed

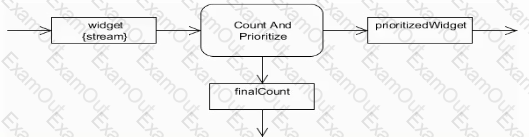

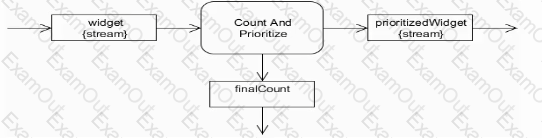

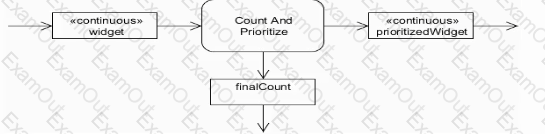

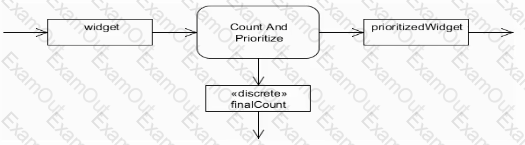

Which activity diagram fragment shows this action along with its inputs and outputs?
A)
B)
C)
D)
Choose the correct answer.

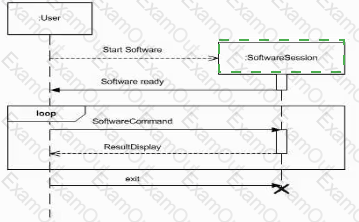

A project has produced the following initial draft sequence diagram fragment:
Choose the correct answer.
Which option correctly describes the effect of an object flowing into and out of a data store?
A)
B)
C)
D)
Choose the correct answer.
When is it possibly useful to create property-specific types?
Choose the correct answer.

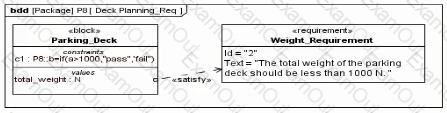

Given the following diagram:
Which SysML, relationship should be used to relate c1 to Weight_Requirement for best semantics?
Choose the correct answer.
Given the following diagram:
What do the keywords in the braces represent?
