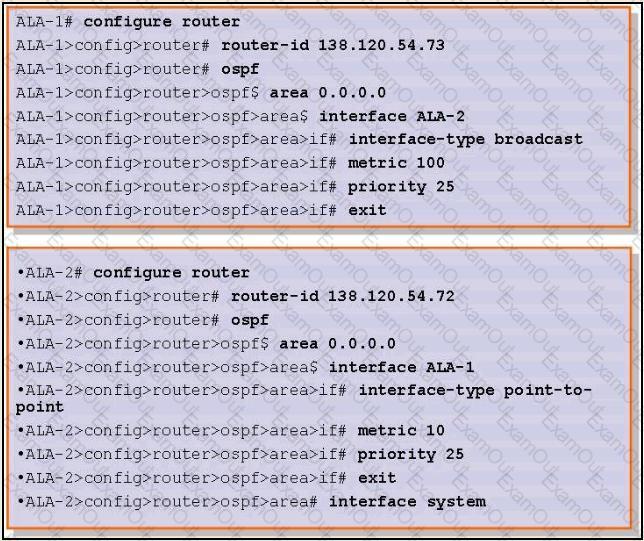

Exhibit

Given the two configurations shown, identify the two incorrect statements below: (Choose two)

A.

Both routers will generate OSPF Hello packets.

B.

The system interface is missing in one configuration so OSPF will not operate correctly.

C.

The interface type settings differ, but OSPF will still operate correctly.

D.

Metric values differ, but this does not prevent OSPF operation.

What address is used when RIPv2 uses multicast to send its updates?

A.

224.0.0.5

B.

224.0.0.6

C.

224.0.0.9

D.

224.0.0.10

E.

RIPv2 does not have support for multicast

In an IP datagram, which of the following fields identifies the receiving application?

A.

The protocol field of the transport layer header.

B.

The port field of the transport layer header.

C.

The protocol field of the network layer header.

D.

The port field of the network layer address.

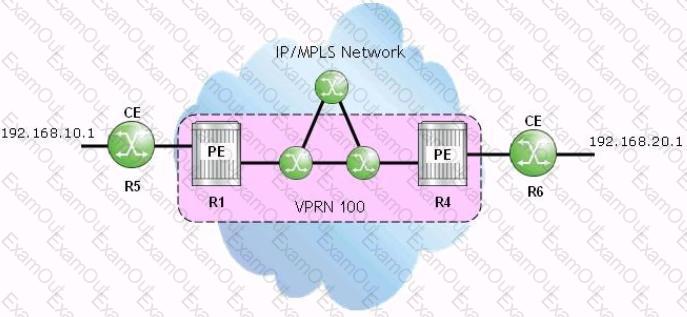

Click the exhibit.

The CEs use BGP and export policies to advertise their local prefixes with the VPRN on their PEs. If the VPRN is functioning properly, which of the following commands will succeed when performed on router R1?

A.

"ping 192.168.20.1"

B.

"oam vprn-ping 100 source 192.168.10.1 destination 192.168.20.1"

C.

"oam vprn-ping 100 source 192.168.20.1 destination 192.168.10.1"

D.

"ping 10.10.10.6" (router R6's system IP)

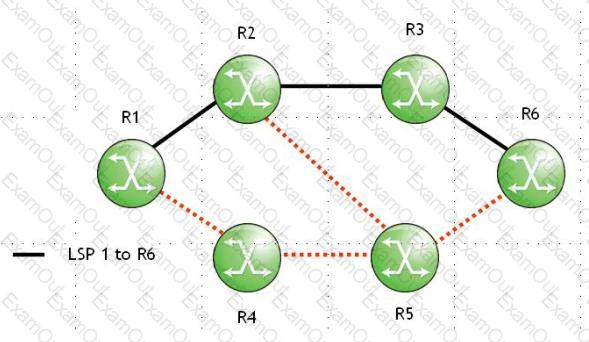

Click on the exhibit.

RSVP session state for LSP 1 has timed out on router R3. Which of the following actions will router R3 initiate to clear the RSVP session?

A.

Send a PATH Tear message toward router R6.

B.

Send a PATH Tear message toward router R1.

C.

Send a PATH Error message toward router R6.

D.

Send a PATH Error message toward router R1.

What kind of attribute is the aggregator?

A.

Well-known mandatory

B.

Well-known discretionary

C.

Optional transitive

D.

Optional non-transitive

Which of the following statements regarding BGP Fast Reroute is FALSE?

A.

BGP Fast Reroute is triggered by IGP events.

B.

The backup path is pre-computed and installed in the FIB.

C.

BGP Fast Reroute is independent of number of affected prefixes.

D.

BGP Fast Reroute uses the optimal path to the destination.

Identify two attributes of Distance Vector Protocols: (Choose two)

A.

Use split horizon by default.

B.

Send information about directly connected links to neighbors at periodic intervals.

C.

Use holddown timers when topologies change to allow for convergence.

D.

Maintain multiple databases: neighbor, topology and routing.

What are the types of networks supported on an Nokia 7750 SR for OSPF? (Choose 2)

A.

Broadcast

B.

Non-Broadcast Multi-Access

C.

Point-to-Point

D.

Point-to-Multipoint

Which MPLS mode saves only active label mappings received from peer LSRs?

A.

Conservative label retention

B.

Liberal label retention

C.

Downstream on demand

D.

Downstream unsolicited
