On an Nokia 7750 SR, what is the recommended approach for making sure that MTUs between a VPLS and its spoke IES termination match?

A.

Set the service MTU of the VPLS to match the IES MTU.

B.

Set the ip-mtu of the IES to match the service MTU of the VPLS.

C.

Set the SDP MTU of the IES to match the SDP MTU of the VPLS.

D.

Set the MTU of the IES's network port to match the service MTU of the VPLS.

An OSPF router receives an update in which the sequence number, age, and checksum are the same as the entry already in the topological database. What action is taken by the router?

A.

The link state information is not populated in the database but is forwarded to all neighbors

B.

The link state information already in the database is overwritten and the age is reset

C.

The link state information is not populated in the database and an acknowledgement is sent

D.

The link state information is regarded as old and nothing is done.

What are the ways the RID can be created on an Nokia 7750 SR router? (Choose three)

A.

From the last 32 bits of the chassis MAC address

B.

From the first 32 bits of the chassis MAC address

C.

The loopback IP address

D.

By using the command "config router ospf rid X.X.X.X"

E.

From the system IP address

F.

From the highest interface IP address

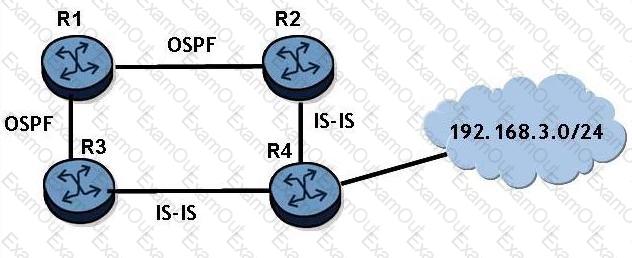

Click the exhibit button.

If router R2 redistributes the IS-IS route to 192.168.3.0/24 into OSPF, router R3 will receive two routes to 192.168.3.0/24. What will be the preference of these two routes? Assume that all IS-IS routers are L1/L2 capable and are in the same area. Choose two answers.

A.

The OSPF internal preference

B.

The IS-IS Level 1 internal preference

C.

The IS-IS Level 2 internal preference

D.

The OSPF external preference

E.

The IS-IS Level 2 external preference

F.

The IS-IS Level 1 external preference

Which of the following about label modes on the Nokia 7750 SR is FALSE?

A.

RSVP uses downstream on demand label distribution mode.

B.

LDP uses conservative label retention mode.

C.

LDP advertises label mappings to all peers for which it might be a next-hop for a given FEC.

D.

RSVP distributes a label mapping for a FEC when it has been requested to do so.

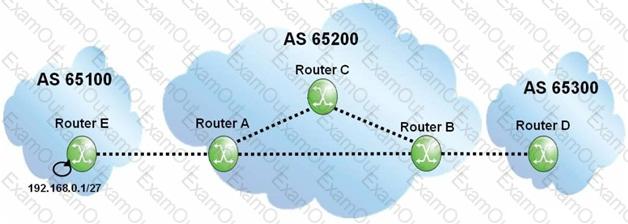

Click the exhibit.

Assuming that none of the routers within AS 65200 is configured with next-hop-self", what will the BGP update for the 192.168.0.1/27 prefix contain when it arrives at router B?

A.

AS Path of 65200 65100, Next Hop of router A.

B.

AS Path of 65200 65100, Next Hop of router E.

C.

AS Path of 65100, Next Hop of router E.

D.

AS Path of 65100, Next Hop of router A.

If an LSP needs to use an admin group, which of the following configurations is NOT required on the Nokia 7750 SR?

A.

Assign an admin group to a MPLS interface.

B.

Configure CSPF on the LSP.

C.

Configure at least one strict hop on the LSP path.

D.

Configure an "include" or "exclude" statement on the LSP path.

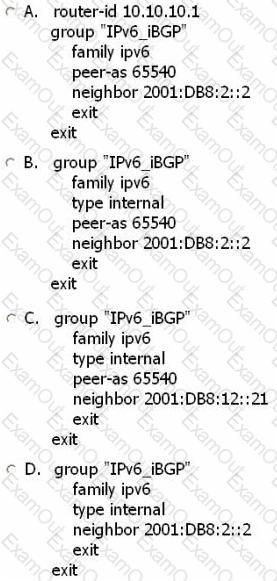

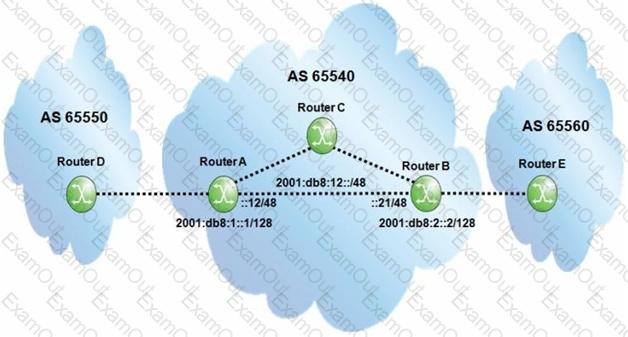

Click the exhibit.

Assuming the network is IPv6 only, which of the following configurations on the Nokia

7750 SR router A can establish an IPv6 BGP session to router B?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

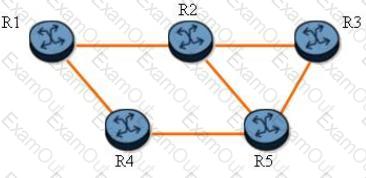

Click on the exhibit.

An LSP traverses the path R1-R2-R3. With one-to-one fast reroute enabled, which router becomes a DMP for the detour tunnels?

A.

Router R1

B.

Router R2

C.

Router R3

D.

Router R4

E.

Router R5

Which of the following fields does NOT appear in the MPLS label header?

A.

Label

B.

Frame check sequence

C.

Traffic Class (previously called Experimental)

D.

Time To live

E.

Bottom of stack bit
