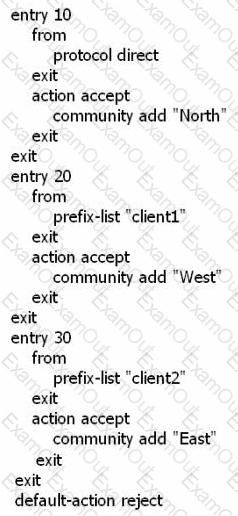

Assuming that "client1" and "client2" are directly-connected networks, what is the result ofexecuting the following BGP export policy?

A.

Only entry 10 is executed for "client1" and "client2".

B.

Entries 10 and 20 are executed for "client1", and entries 10 and 30 are executed for "client2".

C.

Entries 10 and 20 are executed for "client1", andentries 10, 20 and 30 are executed for

"client2".

D.

Entry 10 is executed for directly-connected routes, entry 20 for "client1" and entry 30 for "client2".

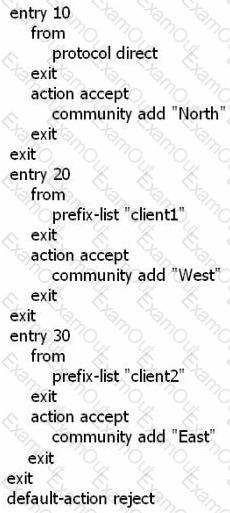

Assuming that "client1" and "client2" aredirectly-connected networks, what is the result of executing the following BGP export policy?

A.

"client1" routes will be tagged with communities "North" and "West".

B.

"client1" routes will be tagged with community "West".

C.

"client1" routes will betagged with community "North".

D.

"client1" routes will be rejected.

A router receives two routes from its neighbors: a route from OSPF for 10.0.0.0/24, and a route from BGP for 10.0.0.0/8. Both routes have reachable next hops. Which of the following is TRUE?

A.

Only the BGP route is in the route table.

B.

Both routes are in the route table.

C.

None of the routes is in the route table.

D.

Only the OSPF route is in the route table.

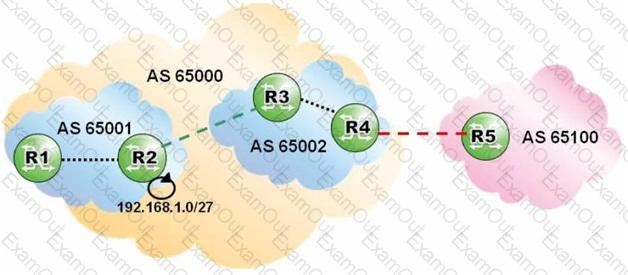

Click the exhibit.

Router R2 is advertising prefix192.168.1.0/27 with community "no-advertise" towards AS 65002.

Which routers receive an update for that prefix?

A.

Router R3 only.

B.

Routers R3 and R4 only.

C.

Routers R3, R4 and R5 only.

D.

Router R2 does not advertise an update for the prefix.

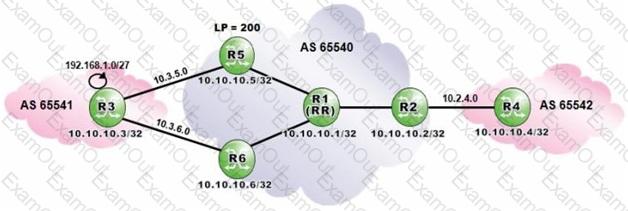

Click the exhibit.

Router R1 is a route reflector withclients R2, R5 and R6. Prefixes advertised by router R5 have a local preference of 200. Router R3 advertises the prefix 192.168.1.0/27 to routers R5 and R6.

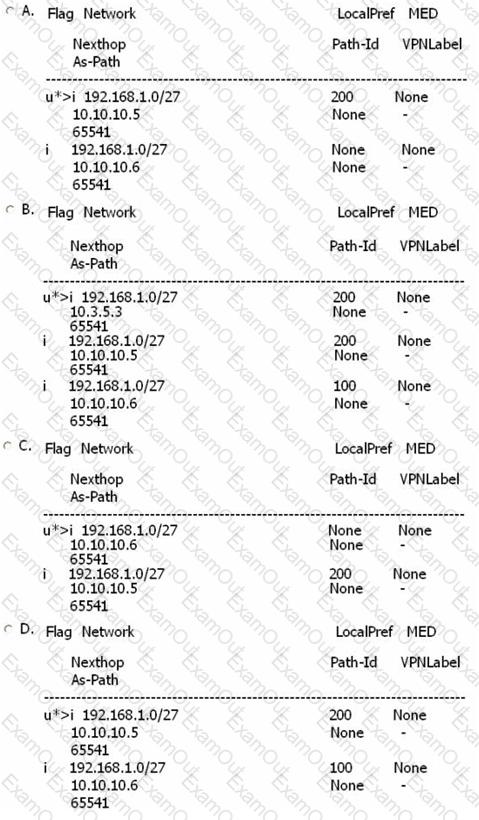

Assuming that router R6 is configured with "advertise-external", what is the expected output of "show router bgp routes" when executed on router R1?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Which of the following regarding the withdrawal of routes from one BGP speaker to another is

TRUE?

A.

An update message is used. Only a single prefix can be withdrawn at a time.

B.

An update message is used. Multiple prefixes can be withdrawn at a time.

C.

A withdraw message is used. Only a single prefix can be withdrawn at a time.

D.

A withdraw message is used. Multiple prefixes can be withdrawn at a time.

Which of the following is NOT a goal of BGP routing policies?

A.

To protect external networks from instability.

B.

To communicate the architecture of an AS to external ASs.

C.

To protect the local AS and otherexternal ASs from bad NLRI.

D.

To optimize ingress and egress traffic patterns to best serve the users of the AS.

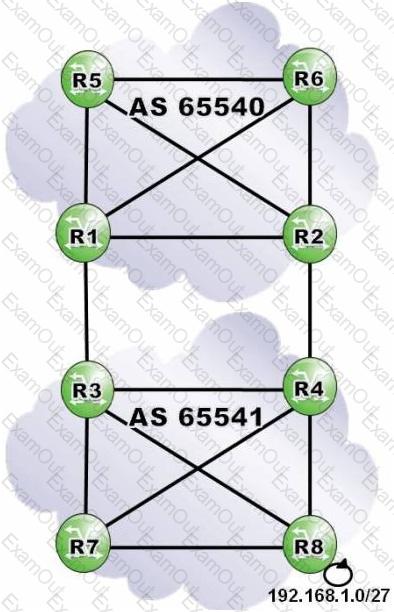

Click the exhibit.

Router R2 receives a route to 192.168.1.0/27 from router R4, and sets the local preference to 110. Router R1 receives a route to 192.168.1.0/27 from router R3, and sets the local preference to 80. Both ASs have a full iBGP mesh. What path does traffic destined to 192.168.1.0/27 take from router R1?

A.

R1-R3-R8

B.

R1-R2-R4-R8

C.

R1-R3-R4-R8

D.

R1-R2-R4-R3-R8

AnNokia7750 SR is configured with a policy to export directly-connected networks to BGP. Which of the following commands verifies that the export was successful?

A.

show router route-table

B.

showrouter bgp routes

C.

show router bgp routes hunt

D.

show router bgp neighbor received-routes

What kind of BGP attribute is the LocalPreference?

A.

Optional transitive attribute.

B.

Optional non-transitive attribute.

C.

Well-known mandatory attribute.

D.

Well-known discretionary attribute.
