Free Practice Questions for Netapp NS0-593 Exam

Data. However, I cannot guarantee the accuracy or completeness of this answer, and you should verify it with the NetApp Support Engineer ONTAP Specialist documents and learning resources.

Here are some references that might help you:

1: qos statistics volume latency show - NetApp 2: How to use and understand qos statistics commands to monitor volume latency in real time - NetApp Knowledge Base

 The two throughput elements that are controlled by host applications are operation size and concurrency. Operation size refers to the amount of data that is transferred in a single I/O request, and concurrency refers to the number of I/O requests that are issued simultaneously. Both of these factors affect the throughput of a host application, as they determine how much data can be sent or received within a given time period. Larger operation sizes and higher concurrency can increase the throughput, but they may also increase the latency and resource consumption12. References: 1: NetApp Performance Analysis on Data ONTAP - Chapter 3: Host-Side Performance 2: NetApp Performance Analysis on Data ONTAP - Chapter 4: Storage System Performance

A speed mismatch occurs when the cluster ports on different nodes have different speeds, such as 10 Gbps and 40 Gbps1.

A speed mismatch can cause packet loss, retransmits, and latency on the cluster network, especially when data is accessed indirectly, meaning that the node serving the data is different from the node hosting the LIF2.

In this scenario, the AFF A300 nodes have 10 Gbps cluster ports, while the AFF A700 nodes have 40 Gbps cluster ports, creating a speed mismatch on the cluster interconnect34.

The Cisco Nexus 3132Q cluster interconnect switches support both 10 Gbps and 40 Gbps cluster ports, but they have a shallow buffer size of 9 MB per port, which can be easily overwhelmed by the bursty traffic generated by the speed mismatch.

To solve this problem, you need to either upgrade the cluster ports on the AFF A300 nodes to 40 Gbps, or downgrade the cluster ports on the AFF A700 nodes to 10 Gbps, to achieve a homogeneous cluster interconnect1.

Alternatively, you can use QoS policies to limit the bandwidth of the cluster ports to avoid oversubscription and congestion on the cluster interconnect. References:

1: Cluster network cabling, ONTAP 9 Documentation Center

2: Cluster Network Latency - Troubleshooting Guide, NetApp Knowledge Base

3: AFF A300 Tech Specs, NetApp

4: AFF A700 Tech Specs, NetApp

[5]: Why do network speed mismatches create problems with shallow buffered switches?, NetApp Knowledge Base

[6]: How to use QoS to limit the bandwidth of cluster ports, NetApp Knowledge Base

To access a LUN on a FAS 8300 system from a VMware ESXi server through the FC protocol, the customer must configure the FC service on the SVM that owns the LUN. The FC service enables the SVM to act as an FC target and communicate with the FC initiators on the host. Without the FC service, the LUN will not be visible to the host, even if the LUN is mapped to an igroup and the FC LIFs are up. The exhibit shows that the FC service is not configured on the SVM, as theoutput of the command vserver fcp initiator show -vserver SVM1 is empty. Therefore, the reason for the problem is that the FC service has not been configured on the SVM. References = Configure an SVM for FC, Create an FC protocol service, Single IQN iSCSI session with ESXi on ONTAP when igroup has two IQNs

 According to the NetApp Knowledge Base, adding a second NS224 shelf to an existing stack can cause the first shelf ID to change to the serial number if the cables are not connected properly1. This can also result in a Medium Impact error message: Shelves with both connections via the same SAS path detected2. This situation is not normal for a NetApp AFF A800 system andcan affect performance and availability. The cables should be reconnected according to the SAS cabling rules and concepts for shelves with IOM12/IOM12B modules3 and the controller-to-stack cabling worksheet template for quad-pathed connectivity4. References = Shelves with both connections via the same SAS path detected, Adding a second NS224 shelf, changes first shelf ID to the serial number, SAS cabling rules and concepts - shelves with IOM12/IOM12B modules, Controller-to-stack cabling worksheet template for quad-pathed connectivity.

= CPU utilization in ONTAP is not a linear measure of the system load, nor can it be used alone as a measure of the overall system utilization. ONTAP uses a Coarse Symmetric Multiprocessing (CSMP) design which partitions system functions into logical processing domains, each with its own scheduling rules and resource availability. Therefore, a high CPU utilization does not necessarily indicate a performance problem, unless it is accompanied by other contributing factors such as high latency, low throughput, or high queue depth. ONTAP has several mechanisms to optimize CPU usage and balance the workload across the cores, such as WAFL parallelization, exempt processing, and CPU pinning. The CPU utilization reported by the sysstat command is an average across all cores and domains, and does not reflect the actual CPU activity or availability for each domain. Therefore, the CPU is not a first-order monitoring metric for ONTAP, and other metrics such as latency, throughput, and queue depth should be considered first. References = What is CPU utilization in Data ONTAP: Scheduling and Monitoring?, How to measure CPU utilization, What are CPU as a compute resource and the CPU domains in ONTAP 9?, Monitoring CPU utilization before ONTAP upgrade

A MetroCluster configuration requires the ISLs between the sites to be up and running for the switchover to occur. If the ISLs are down, the MetroCluster configuration cannot communicate with the other site and cannot perform the switchover. Additionally, a MetroCluster configuration requires all aggregates to be mirrored across the sites for data protection and availability. If a site has unmirrored aggregates, the switchover will fail because the data on those aggregates will not be accessible from the other site. References = Configuring the MetroCluster software in ONTAP, NetApp MetroCluster FC for ONTAP 9.8

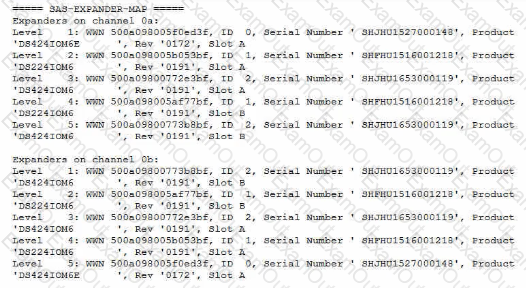

According to the SAS cabling rules and concepts for shelves with IOM12/IOM12B modules1, one of the goals is to provide a single, easily understood universal algorithm for all SAS products and configurations. One of the rules is that of the two paths to a single disk storage stack from a single node, one should connect to the top and one to the bottom of the storage stack. This ensures maximum possible resilience and minimizes the reliance on controller takeovers. The exhibit shows that both SAS connections from one controller go to the same shelf, which violates this rule and causes the error message. This situation is not normal for a FAS2750 single-node system and can reduce reliability and availability. The cables should be reconnected according to the SAS cabling rules and the controller-to-stack cabling worksheet template for quad-pathed connectivity2. References = SAS cabling rules and concepts - shelves with IOM12/IOM12B modules, SAS cabling issue: Both SAS connections from one controller go to the same shelf, Controller-to-stack cabling worksheet template for quad-pathed connectivity.

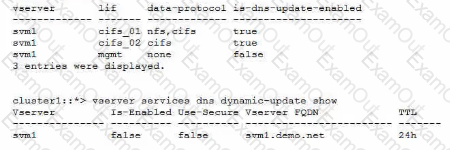

 To enable DDNS updates to work, two actions should be performed:

Remove the NFS protocol from the cifs_01 data LIF. This is because DDNS updates are only supported for LIFs that have only one data protocol enabled1. The cifs_01 LIF has both NFS and CIFS protocols enabled, which prevents it from registering its DNS record dynamically. By removing the NFS protocol from the cifs_01 LIF, it will become eligible for DDNS updates.

Enable the -is-enabled parameter for the SVM DDNS services. This is because the -is-enabled parameter controls whether the SVM sends DDNS updates to the DNS servers2. The exhibit shows that the -is-enabled parameter is set to false for the svm1 SVM, which means that it does not send any DDNS updates. By enabling the -is-enabled parameter, the SVM will start sending DDNS updates for its eligible LIFs. References:

1: Configure dynamic DNS services3

2: Manage DNS/DDNS services with System Manager4
