Here are the steps and explanations for ensuring that requests for wwwjelecloud.com from any of your Azure virtual networks resolve to frontdoor1.azurefd.net:

To use a custom domain with your Azure Front Door, you need to create a CNAME record with your domain provider that points to the Front Door default frontend host. A CNAME record is a type of DNS record that maps a source domain name to a destination domain name1.

To create a CNAME record, you need to sign in to your domain registrar’s website and go to the page for managing DNS settings1.

Create a CNAME record with the following information1:

Source domain name: wwwjelecloud.com

Destination domain name: frontdoor1.azurefd.net

Save your changes and wait for the DNS propagation to take effect1.

To verify the custom domain, you need to go to the Azure portal and select your Front Door profile. Then select Domains under Settings and select Add2.

On the Add a domain page, select Non-Azure validated domain as the Domain type and enter wwwjelecloud.com as the Domain name. Then select Add2.

On the Domains page, select wwwjelecloud.com and select Verify. This will check if the CNAME record is correctly configured2.

Once the domain is verified, you can associate it with your Front Door endpoint. On the Domains page, select wwwjelecloud.com and select Associate endpoint. Then select your Front Door endpoint from the drop-down list and select Associate2.

To archive all the metrics of VNET1 to an existing storage account, you can use Azure Monitor’s diagnostic settings. Here’s how you can do it:

Step-by-Step Solution

Step 1: Navigate to VNET1 in the Azure Portal

Open the Azure Portal.

Search for “Virtual networks” and select VNET1 from the list.

Step 2: Configure Diagnostic Settings

In the VNET1 blade, select “Diagnostic settings” under the “Monitoring” section.

Click on “Add diagnostic setting”.

Step 3: Set Up the Diagnostic Setting

Enter a name for the diagnostic setting (e.g., VNET1-Metrics-Archive).

Select the metrics you want to archive. You can choose from various metrics like TotalBytesReceived, TotalBytesSent, etc.

Under “Destination details”, select “Archive to a storage account”.

Choose the existing storage account where you want to archive the metrics.

Configure the retention period if needed.

Step 4: Save the Configuration

Review your settings to ensure everything is correct.

Click on “Save” to apply the diagnostic setting.

Explanation

Diagnostic Settings: These allow you to collect and route metrics and logs from your Azure resources to various destinations, including storage accounts, Log Analytics workspaces, and Event Hubs.

Metrics: Metrics provide numerical data about the performance and health of your resources. Archiving these metrics helps in long-term analysis and compliance.

Storage Account: Using an existing storage account ensures that the metrics are stored securely and can be accessed for future analysis.

By following these steps, you can ensure that all the metrics of VNET1 are archived to your existing storage account, enabling you to monitor and analyze the performance and health of your virtual network over time.

To provide a single host name that routes traffic based on the origin, you can use Azure Traffic Manager. This service allows you to route traffic to different endpoints based on various routing methods, including geographic routing.

Navigate to the Azure Portal.

Search for “Traffic Manager profiles” and select it.

Click on “Create”.

Enter the following details:

Name: Enter a name for the Traffic Manager profile (e.g., ContosoTrafficManager).

Routing method: Select Geographic.

Subscription: Select your subscription.

Resource group: Select an existing resource group or create a new one.

Resource group location: Choose a location (this does not affect the routing).

Click on “Create”.

Navigate to the newly created Traffic Manager profile.

Select “Endpoints” from the left-hand menu.

Click on “Add” to add a new endpoint.

Enter the following details:

Type: Select External endpoint.

Name: Enter a name for the endpoint (e.g., NewYorkEndpoint).

FQDN: Enter ny.contoso.com.

Geographic region: Select “World” (this will be adjusted later).

Click on “Add” to save the endpoint.

Repeat the process to add the second endpoint:

Type: Select External endpoint.

Name: Enter a name for the endpoint (e.g., GermanyEndpoint).

FQDN: Enter de.contoso.com.

Geographic region: Select Europe.

Navigate to the Traffic Manager profile.

Select “Configuration” from the left-hand menu.

Under “Geographic routing”, adjust the regions:

For the GermanyEndpoint, ensure that the geographic region is set to Europe.

For the NewYorkEndpoint, ensure that the geographic region is set to World (excluding Europe).

Use a DNS query tool to test the routing.

From a location in Germany, query the Traffic Manager profile’s DNS name and ensure it resolves to de.contoso.com.

From a location outside Europe, query the Traffic Manager profile’s DNS name and ensure it resolves to ny.contoso.com.

Azure Traffic Manager: This service uses DNS to direct client requests to the most appropriate endpoint based on the routing method you choose. Geographic routing ensures that traffic is directed based on the origin of the request.

Geographic Routing: This method allows you to route traffic based on the geographic location of the DNS query origin, ensuring that users are directed to the nearest or most appropriate endpoint.

Step-by-Step SolutionStep 1: Create a Traffic Manager ProfileStep 2: Configure EndpointsStep 3: Adjust Geographic RoutingStep 4: Test the ConfigurationExplanationBy following these steps, you can provide a single host name that routes traffic to de.contoso.com for users in Germany and to ny.contoso.com for users from other locations, ensuring efficient and appropriate traffic management.

To ensure that all traffic to the internet from subnet3-1 is forwarded to the appliance in subnet3-2 for packet inspection, you can use User-Defined Routes (UDRs) to direct the traffic. Here’s how you can do it:

Navigate to the Azure Portal.

Search for “Route tables” and select it.

Click on “Create”.

Enter the following details:

Subscription: Select your subscription.

Resource Group: Select an existing resource group or create a new one.

Name: Enter a name for the route table (e.g., RouteTable-Subnet3-1).

Region: Select the region where your virtual network is located.

Click on “Review + create” and then “Create”.

Navigate to the newly created route table.

Select “Routes” from the left-hand menu.

Click on “Add” to create a new route.

Enter the following details:

Route name: Enter a name for the route (e.g., RouteToAppliance).

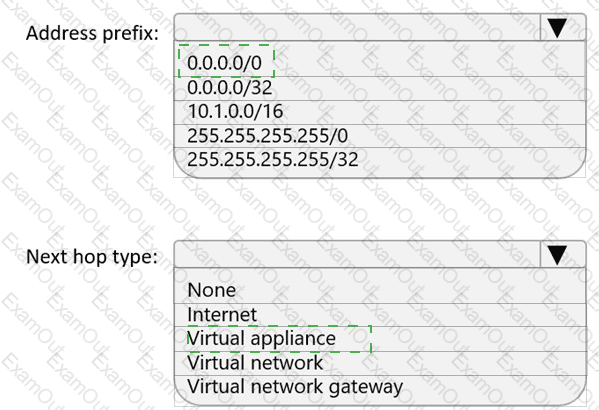

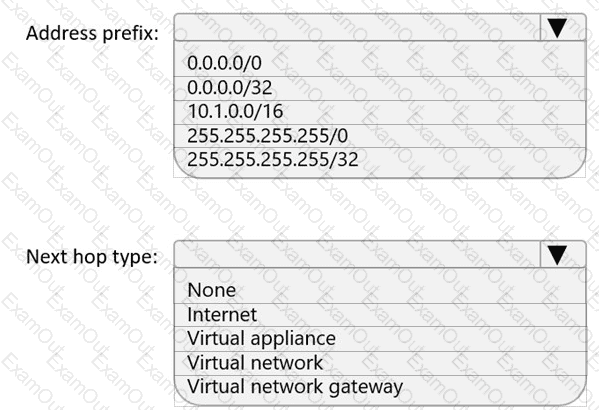

Address prefix: Enter 0.0.0.0/0 to route all internet traffic.

Next hop type: Select Virtual appliance.

Next hop address: Enter the IP address of the appliance (10.3.2.100).

Click on “OK” to add the route.

Navigate to the route table.

Select “Subnets” from the left-hand menu.

Click on “Associate”.

Select the virtual network that contains subnet3-1.

Select subnet3-1 from the list of subnets.

Click on “OK”.

User-Defined Routes (UDRs): These allow you to control the routing of traffic within your virtual network. By defining a route that directs all internet-bound traffic to the appliance, you ensure that the traffic is inspected before it reaches the internet1.

Virtual Appliance: This is a network appliance that performs specific functions, such as packet inspection, and is treated as a next hop in the routing table2.

Route Table Association: Associating the route table with subnet3-1 ensures that all traffic from this subnet follows the defined routes.

Step-by-Step SolutionStep 1: Create a Route TableStep 2: Add a Route to the Route TableStep 3: Associate the Route Table with Subnet3-1ExplanationBy following these steps, you can ensure that all internet-bound traffic from subnet3-1 is forwarded to the appliance in subnet3-2 for inspection, thereby enhancing your network security.
