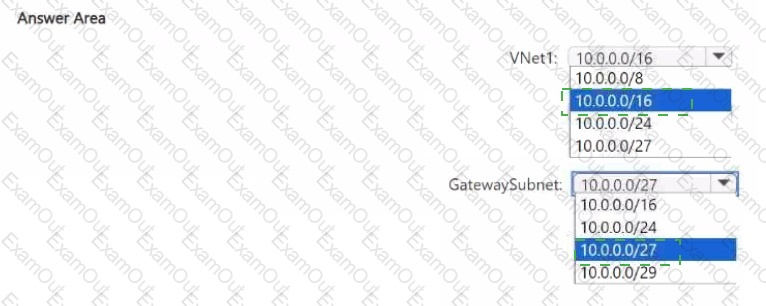

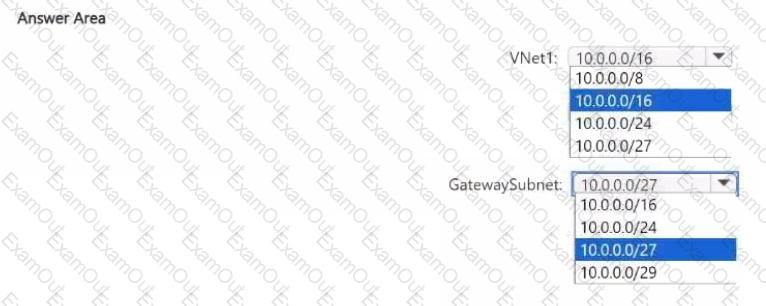

Here are the steps and explanations for ensuring that subnet4-3 can accommodate 507 hosts:

To determine the subnet size that can accommodate 507 hosts, you need to use the formula: number of hosts = 2^(32 - n) - 2, where n is the number of bits in the subnet mask1. You need to find the value of n that satisfies this equation for 507 hosts.

To solve this equation, you can use trial and error or a binary search method. For example, you can start with n = 24, which is the default subnet mask for Class C networks. Then, plug in the value of n into the formula and see if it is too big or too small for 507 hosts.

If you try n = 24, you get number of hosts = 2^(32 - 24) - 2 = 254, which is too small. You need to increase the value of n to get a larger number of hosts.

If you try n = 25, you get number of hosts = 2^(32 - 25) - 2 = 510, which is just enough to accommodate 507 hosts. You can stop here or try a smaller value of n to see if it still works.

If you try n = 26, you get number of hosts = 2^(32 - 26) - 2 = 254, which is too small again. You need to decrease the value of n to get a larger number of hosts.

Therefore, the smallest value of n that can accommodate 507 hosts is n = 25. This means that the subnet mask for subnet4-3 should be /25 or 255.255.255.128 in dot-decimal notation1.

To change the subnet mask for subnet4-3, you need to go to the Azure portal and select your virtual network. Then select Subnets under Settings and select subnet4-3 from the list2.

On the Edit subnet page, under Address range (CIDR block), change the value from /24 to /25. Then select Save2.

Here are the steps and explanations for configuring VNET1 to log all events and metrics and query them by using KQL:

To enable logging for VNET1, you need to create a diagnostic setting that collects the platform metrics and logs from the virtual network and routes them to one or more destinations. You can choose to send the data to a Log Analytics workspace, a storage account, an event hub, or a partner solution1.

To create a diagnostic setting, you need to go to the Azure portal and select your virtual network. Then select Diagnostic settings under Monitoring and select + Add diagnostic setting1.

On the Add diagnostic setting page, enter or select the following information:

Diagnostic setting name: Type a unique name for your diagnostic setting.

Destination details: Select the destination where you want to send the data. For example, you can select Send to Log Analytics workspace and choose your workspace from the list.

Log: Select the categories of logs that you want to collect. For VNET1, you can select NetworkSecurityGroupEvent and NetworkSecurityGroupRuleCounter as the log categories2.

Metric: Select AllMetrics to collect all the platform metrics for VNET12.

Select Save to create your diagnostic setting1.

To query the events and metrics from the Azure portal by using KQL, you need to go to the Log Analytics workspace that you selected as the destination. Then select Logs under General and enter your KQL query in the query editor3.

For example, you can use the following KQL query to get the top 10 network security group events for VNET1 in the last 24 hours:

NetworkSecurityGroupEvent

| where TimeGenerated > ago(24h)

| where ResourceId contains "VNET1"

| summarize count() by EventID

| top 10 by count_

Copy

Select Run to execute your query and view the results in a table or a chart3.

To deploy a firewall to subnetl-2, you need to create a network virtual appliance (NVA) in the same virtual network as subnetl-2. An NVA is a virtual machine that performs network functions, such as firewall, routing, or load balancing1.

To create an NVA, you need to create a virtual machine in the Azure portal and select an image that has the firewall software installed. You can choose from the Azure Marketplace or upload your own image2.

To assign the IP address of 10.1.2.4 to the NVA, you need to create a static private IP address for the network interface of the virtual machine. You can do this in the IP configurations settings of the network interface3.

To ensure that traffic from subnetl-1 to the IP address range of 192.168.10.0/24 is routed through the NVA, you need to create a user-defined route (UDR) table and associate it with subnetl-1. A UDR table allows you to override the default routing behavior of Azure and specify custom routes for your subnets4.

To create a UDR table, you need to go to the Route tables service in the Azure portal and select + Create. You can give a name and a resource group for the route table5.

To create a custom route, you need to select Routes in the route table and select + Add. You can enter the following information for the route5:

Destination: 192.168.10.0/24

Next hop type: Virtual appliance

Next hop address: 10.1.2.4

To associate the route table with subnetl-1, you need to select Subnets in the route table and select + Associate. You can select the virtual network and subnet that you want to associate with the route table5.

To provide a single host name that routes traffic based on the origin, you can use Azure Traffic Manager. This service allows you to route traffic to different endpoints based on various routing methods, including geographic routing.

Navigate to the Azure Portal.

Search for “Traffic Manager profiles” and select it.

Click on “Create”.

Enter the following details:

Name: Enter a name for the Traffic Manager profile (e.g., ContosoTrafficManager).

Routing method: Select Geographic.

Subscription: Select your subscription.

Resource group: Select an existing resource group or create a new one.

Resource group location: Choose a location (this does not affect the routing).

Click on “Create”.

Navigate to the newly created Traffic Manager profile.

Select “Endpoints” from the left-hand menu.

Click on “Add” to add a new endpoint.

Enter the following details:

Type: Select External endpoint.

Name: Enter a name for the endpoint (e.g., NewYorkEndpoint).

FQDN: Enter ny.contoso.com.

Geographic region: Select “World” (this will be adjusted later).

Click on “Add” to save the endpoint.

Repeat the process to add the second endpoint:

Type: Select External endpoint.

Name: Enter a name for the endpoint (e.g., GermanyEndpoint).

FQDN: Enter de.contoso.com.

Geographic region: Select Europe.

Navigate to the Traffic Manager profile.

Select “Configuration” from the left-hand menu.

Under “Geographic routing”, adjust the regions:

For the GermanyEndpoint, ensure that the geographic region is set to Europe.

For the NewYorkEndpoint, ensure that the geographic region is set to World (excluding Europe).

Use a DNS query tool to test the routing.

From a location in Germany, query the Traffic Manager profile’s DNS name and ensure it resolves to de.contoso.com.

From a location outside Europe, query the Traffic Manager profile’s DNS name and ensure it resolves to ny.contoso.com.

Azure Traffic Manager: This service uses DNS to direct client requests to the most appropriate endpoint based on the routing method you choose. Geographic routing ensures that traffic is directed based on the origin of the request.

Geographic Routing: This method allows you to route traffic based on the geographic location of the DNS query origin, ensuring that users are directed to the nearest or most appropriate endpoint.

Step-by-Step SolutionStep 1: Create a Traffic Manager ProfileStep 2: Configure EndpointsStep 3: Adjust Geographic RoutingStep 4: Test the ConfigurationExplanationBy following these steps, you can provide a single host name that routes traffic to de.contoso.com for users in Germany and to ny.contoso.com for users from other locations, ensuring efficient and appropriate traffic management.

To ensure that all traffic to the internet from subnet3-1 is forwarded to the appliance in subnet3-2 for packet inspection, you can use User-Defined Routes (UDRs) to direct the traffic. Here’s how you can do it:

Navigate to the Azure Portal.

Search for “Route tables” and select it.

Click on “Create”.

Enter the following details:

Subscription: Select your subscription.

Resource Group: Select an existing resource group or create a new one.

Name: Enter a name for the route table (e.g., RouteTable-Subnet3-1).

Region: Select the region where your virtual network is located.

Click on “Review + create” and then “Create”.

Navigate to the newly created route table.

Select “Routes” from the left-hand menu.

Click on “Add” to create a new route.

Enter the following details:

Route name: Enter a name for the route (e.g., RouteToAppliance).

Address prefix: Enter 0.0.0.0/0 to route all internet traffic.

Next hop type: Select Virtual appliance.

Next hop address: Enter the IP address of the appliance (10.3.2.100).

Click on “OK” to add the route.

Navigate to the route table.

Select “Subnets” from the left-hand menu.

Click on “Associate”.

Select the virtual network that contains subnet3-1.

Select subnet3-1 from the list of subnets.

Click on “OK”.

User-Defined Routes (UDRs): These allow you to control the routing of traffic within your virtual network. By defining a route that directs all internet-bound traffic to the appliance, you ensure that the traffic is inspected before it reaches the internet1.

Virtual Appliance: This is a network appliance that performs specific functions, such as packet inspection, and is treated as a next hop in the routing table2.

Route Table Association: Associating the route table with subnet3-1 ensures that all traffic from this subnet follows the defined routes.

Step-by-Step SolutionStep 1: Create a Route TableStep 2: Add a Route to the Route TableStep 3: Associate the Route Table with Subnet3-1ExplanationBy following these steps, you can ensure that all internet-bound traffic from subnet3-1 is forwarded to the appliance in subnet3-2 for inspection, thereby enhancing your network security.
