Free Practice Questions for Juniper JN0-364 Exam

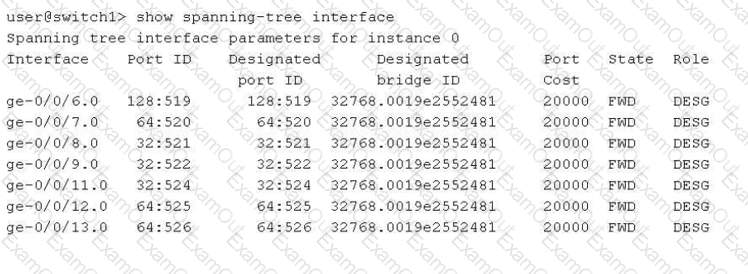

In the provided exhibit, the output of the command show spanning-tree interface for switch1 reveals critical details about the Spanning Tree Protocol (STP) operational state.

The first correct statement is thatthe switch1 device is the root bridge(Option B). This is determined by comparing the "Port ID" column with the "Designated port ID" column, as well as checking the "Designated bridge ID". In the exhibit, for every interface listed (from ge-0/0/6.0 to ge-0/0/13.0), the Port ID and the Designated port ID are identical. Furthermore, every port is in the "FWD" (Forwarding) state with the "DESG" (Designated) role. In a Spanning Tree topology, the root bridge is the only device where all active participating interfaces serve as designated ports, as it has no need for a "Root" port role (which points toward a root bridge).

The second correct statement is thatthe bridge priority for switch1 is 32k(Option D). Looking at the "Designated bridge ID" column, we see the value 32768.0019e2552481. In Junos and general networking standards, the Bridge ID is composed of a bridge priority and the device's MAC address. The default priority for most Spanning Tree variants (STP, RSTP, MSTP) is 32,768, which is commonly referred to in shorthand as "32k".

Regarding the incorrect options:

Option A:There is no evidence of VSTP (VLAN Spanning Tree Protocol); the output shows "instance 0," which is typical for IEEE standard RSTP or STP.

Option C:The Port IDs for ge-0/0/8, ge-0/0/9, and ge-0/0/11 all start with "32" (e.g., 32:521), whereas the default port priority is typically 128 (as seen in ge-0/0/6.0 with 128:519). This indicates that the interface priorities for these specific ports have been manually tuned to a non-default value.

In OSPF networks, when multiple routers are connected to a shared multi-access broadcast segment (like an Ethernet switch), they undergo an election process to select aDesignated Router (DR)and aBackup Designated Router (BDR). This mechanism is essential for reducing the number of adjacencies and limiting the volume of Link State Advertisement (LSA) flooding on the segment.

The OSPF election process follows a strict hierarchy based on the following criteria:

Interface Priority:The router with the highest OSPF interface priority is elected as the DR. The router with the second-highest priority becomes the BDR. In Junos, the default priority is 128, but it can be manually configured between 0 and 255.

Router ID:If there is a tie in priority, the router with the numerically highest Router ID (RID) wins the election.

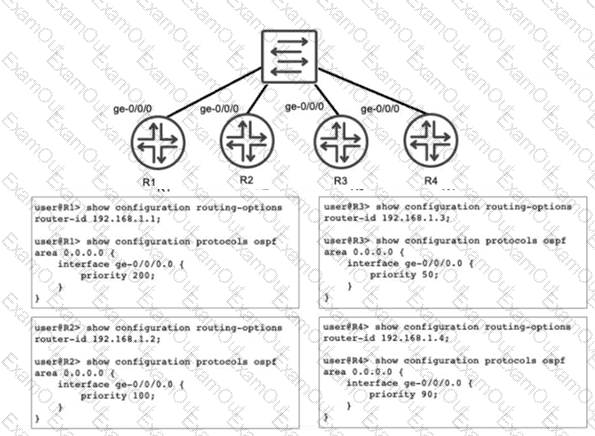

Analyzing the configuration provided in the exhibit:

R1:Priority 200, Router-ID 192.168.1.1

R2:Priority 100, Router-ID 192.168.1.2

R3:Priority 50, Router-ID 192.168.1.3

R4:Priority 90, Router-ID 192.168.1.4

Comparing the priority values,R1 has the highest priority (200)and therefore becomes theDR. The next highest priority value among the remaining routers is100, which belongs to R2, making it theBDR. Although R4 has a higher Router ID than R2, the priority value is evaluated first and takes precedence.

Since all routers came online within a short window (one minute), they participate in the same election cycle, ensuring the configured priorities dictate the outcome rather than "first-come, first-served" preemption behavior common in OSPF once a DR is already established.

In theIS-IS (Intermediate System to Intermediate System)protocol as implemented in Junos OS, the output of operational commands uses specific numerical representations to denote the hierarchy levels of a neighbor adjacency. Understanding these values is crucial for troubleshooting peering relationships in a multi-level IS-IS network.

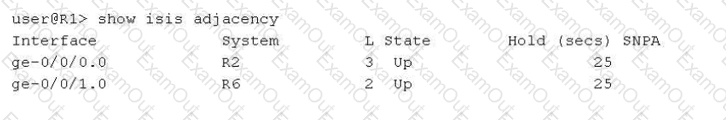

According to Juniper Networks technical documentation, the show isis adjacency command displays the status of the neighbors. The "L" column indicates the level of the adjacency:

Level 1:Indicates the adjacency is strictly for intra-area routing.

Level 2:Indicates the adjacency is strictly for backbone/inter-area routing.

Level 3:This is ashorthand representationused by Junos to indicate that a single adjacency has been established forboth Level 1 and Level 2 simultaneously.

The critical distinction in this question lies in the interface type. On abroadcast interface(such as standard Ethernet), IS-IS typically establishes and maintains separate adjacencies for Level 1 and Level 2. In the CLI output for a broadcast link, you would generally see two separate lines for the same neighbor—one for Level 1 and one for Level 2.

However, on apoint-to-point (P2P)interface, IS-IS can negotiate both levels within a single adjacency. When this occurs, Junos consolidates the output into a single entry and usesLevel 3to signify that the adjacency is functional for both levels. Since the exhibit shows ge-0/0/0.0 as Level 3, it confirms that the link is configured with a point-to-point encapsulation (either natively or via the interface-type p2p command) and is acting as a Level 1/2 adjacency.

Option B is incorrect as the number "3" refers to protocol levels, not the count of neighbors. Option C is a reference to data center architectures that does not influence IS-IS level nomenclature. Option D is incorrect because, as noted, broadcast interfaces display these levels separately rather than using the Level 3 shorthand.

TheHello packetis the most basic, yet most vital, component of the OSPF protocol. It serves as the primary mechanism for neighbor discovery, parameter negotiation, and "keepalive" functionality. Per Juniper Networks' routing documentation, OSPF routers use the Hello protocol to dynamically discover other OSPF-enabled routers on their directly connected segments.

When OSPF is enabled on a Junos interface, the router begins multicasting Hello packets (typically to the224.0.0.5"All OSPF Routers" address). This initiates the neighbor relationship. For two routers to move beyond theInitstate and become neighbors, they must agree on several critical parameters contained within the Hello packet:

Area ID:Routers must be in the same OSPF area.

Authentication:Passwords or keys must match.

Timers:The Hello and Dead intervals must be identical.

Options:Such as Stub area flags.

Beyond the initial "initiation," the Hello packet is used tomaintainthe relationship. By continuously sending these packets at a fixed interval (the Hello interval), a router signals to its peers that it is still functional. If a router stops receiving Hello packets from a neighbor for a duration exceeding theDead Interval, it declares the neighbor "down," flushes the associated LSAs from the database, and triggers a new SPF calculation.

Furthermore, on multi-access networks like Ethernet, the Hello packet is the vehicle for the election of theDesignated Router (DR)andBackup Designated Router (BDR). By exchanging priority values and Router IDs within the Hello packets, the segment can elect a central point of contact to minimize the number of adjacencies required on the wire.

In aSegment Routing (SR-MPLS)architecture using IS-IS as the control plane, routers exchange labels (segments) to build Label-Switched Paths (LSPs) without the need for traditional signaling protocols like LDP or RSVP. According to Juniper Networks technical documentation, for a router to be reachable via a shortest-path LSP from other nodes in the network, it must advertise aPrefix Segment Identifier (Prefix SID).

A specific type of Prefix SID is theNode SID, which is assigned to a loopback address (typically lo0.0) to uniquely identify the router within the SR domain. In the provided exhibit, routerR10has been configured with aSegment Routing Global Block (SRGB)starting at label 300000. This configuration tells the router which label range to use for global segments, but it does not automatically assign a label to its own loopback interface.

Without aNode SIDconfiguration, R10 is not telling its neighbors which specific index or label within that SRGB corresponds to its own address. Consequently, the other nine routers in the IS-IS area can calculate the shortest path to R10 using standard SPF, but they cannot perform the "label-binding" necessary to push an SR-MPLS label onto the packets.

To solve this, a Node SID must be explicitly configured under the loopback interface within the IS-IS protocol hierarchy, such as:

set protocols isis interface lo0.0 level 2 ipv4-node-sid index

Analysis of incorrect options:

Binding SID (Option A):This is used to encapsulate or steer traffic into a specific policy or tunnel (like a TE-LSP) and is not required for basic shortest-path reachability.

Adjacency SID (Option B):These are generated automatically by Junos for each link and represent a specific local hop; they are not used for global "shortest-path" forwarding to a distant node.

BGP Prefix SID (Option C):This is used for BGP Egress Peer Engineering (EPE) or prefix advertisement via BGP, which is not relevant for building the underlying IS-IS SR-MPLS transport.

Therefore, configuring anexplicit IPv4 node SIDis the mandatory step to enable the rest of the network to build a shortest-path SR-LSP toward R10.

TheBGP path selection algorithmis a deterministic process used by Juniper routers to select the single "best" path from the BGP table to be placed into the routing table (inet.0). This algorithm follows a specific, hierarchical set of rules. According to Juniper Networks technical documentation, the router evaluates attributes in a fixed order, and once a tie is broken at a specific step, the remaining steps are ignored.

The order of the primary BGP attributes in Junos OS is as follows:

Highest Local Preference:This is the first attribute evaluated after the basic check for a reachable next hop. Local preference is used within an Autonomous System (AS) to prioritize one exit point over another.

Shortest AS_PATH:If the local preference is equal, the router then evaluates the length of the AS_PATH attribute.

Lowest Origin Code:(IGP < EGP < Incomplete).

Lowest Multi-Exit Discriminator (MED).

In this specific scenario, the router compares a path with ahigher local preferenceagainst a path with ashorter AS path. Because theLocal Preferencecheck occurs at Step 1 and theAS_PATHcheck occurs later at Step 2, the router will select the path with the higher local preference immediately. The length of the AS path becomes irrelevant in this comparison because the tie was already broken by the local preference value. This allows network administrators to override the default "shortest path" logic of BGP to prefer specific providers or links based on business requirements.

To supportdual VLAN tagging(often referred to as Q-in-Q or 802.1ad), a Juniper interface must be configured to process more than one 802.1Q header. In Junos OS, this is handled at the physical interface level ([edit interfaces ]).

According to Juniper Service Provider documents, two primary configuration statements enable this capability:

stacked-vlan-tagging (Option D):This is the traditional command used to enable an interface to accept frames with two VLAN tags. When this is enabled, the router expects an outer "service" tag and an inner "customer" tag. This is specifically used in provider edge scenarios where a service provider is tunneling multiple customer VLANs.

flexible-vlan-tagging (Option A):This is a more modern and versatile command. It allows the interface to support a mix of different encapsulation types across different logical units. For example, with flexible-vlan-tagging, you can have one logical unit (unit 10) doing standard single-tagging and another logical unit (unit 20) doing dual-tagging (vlan-tags outer X inner Y). This is the preferred method on newer hardware (like the MX Series) because it provides the highest level of configuration flexibility.

Vlan-tagging (Option C)only enables the interface to support a single 802.1Q tag, andgigether-options (Option B)contains physical-layer settings like auto-negotiation or flow control, which do not influence VLAN encapsulation. Therefore, A and D are the correct mechanisms for enabling dual-tag support.

When implementingMultiprotocol BGP (MP-BGP)for IPv6, several architectural constants remain consistent with the original BGP design, while others have evolved to accommodate larger network scales.

Router ID (Option C):

A critical point in Juniper's Service Provider documentation is that theBGP Router IDremains a32-bit value, even when the protocol is carrying 128-bit IPv6 prefixes. The Router ID is typically represented in dotted-quad notation (e.g., 192.168.1.1). In an IPv6-only environment, a Juniper router cannot automatically derive this ID from an interface address, so it must be manually defined under [edit routing-options]. This 32-bit ID is essential for BGP tie-breaking and loop prevention within the AS.

Autonomous System Number (Option D):

TheAutonomous System Number (ASN)was originally a 16-bit value (0 to 65535). However, to address the exhaustion of available ASNs, the standard was extended to32-bit ASNs(documented in RFC 6793). In Junos OS, you can configure BGP using either the older 16-bit format or the newer 32-bit format (often represented in "asplain" or "asdot" notation). While the question mentions a 64-bit value, there is currently no standard for a 64-bit ASN in BGP; the transition from 16-bit to 32-bit satisfies current global scalability needs. Therefore, Option D is the most accurate within the context of current networking standards, as it acknowledges the coexistence of different ASN lengths.

Graceful Restart (GR)is a high-availability mechanism designed to minimize the impact of a routing protocol process (rpd) restart or a Routing Engine (RE) switchover. It allows a router to continue forwarding traffic while the control plane is recovering, provided that the data plane (Packet Forwarding Engine) remains intact.

According to Juniper Networks documentation, Graceful Restart operates in two distinct roles:

Restarting Mode:This is the role of the router that is actually undergoing the restart. In Junos OS, this mode isnot enabled by default (Option A). An administrator must explicitly configure graceful-restart under the [edit routing-options] hierarchy to allow the router to signal its neighbors that it is attempting a graceful recovery.

Helper Mode:This is the role of the neighboring routers. When a neighbor sees a router restart, if it is in "helper mode," it will continue to forward traffic toward the restarting router and will not flush the associated routes from its forwarding table for a specified period. In Junos,helper mode is enabled by default (Option B)for most protocols (OSPF, BGP, IS-IS). This means that even if you haven't configured GR on your own router, it will automatically assist its neighbors if they perform a graceful restart.

Why other options are incorrect:

Option C:WhileGRES (Graceful Routing Engine Switchover)is often usedwithGraceful Restart to handle hardware-level RE failures, they are independent features. GR can function during a simple software process restart without dual REs or GRES.

Option D:Nonstop Bridging (NSB)is a separate high-availability feature for Layer 2 protocols (like STP). While it shares a similar goal, Graceful Restart is specifically a Layer 3 protocol mechanism (Layer 2 does not use "helper" routers in the same way).
