the Database Description (DD) packets serve two main purposes:

1. determinining which router is in charge of the database synchronization

2. tansferring the LSA headers between the two systems

The Database Description (DBD) OSPF packet is used during the adjacency formation process to describe the contents of the topological database between routers. The routers exchange DBD packets to determine the master and slave relationship, which dictates the router in charge of the database synchronization.

https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first-ospf/13684-12.html#anc13

Neighbors Stuck in Exstart/Exchange State The problem occurs most frequently when you attempt to run OSPF between a Cisco router and another vendor router. The problem occurs when the maximum transmission unit (MTU) settings for neighboring router interfaces do not match. If the router with the higher MTU sends a packet larger that the MTU set on the neighboring router, the neighbor router ignores the packet. When this problem occurs, the output of the show ip ospf neighbor command displays output similar to what is shown in this figure.

A mismatched Maximum Transmission Unit (MTU) setting on OSPF interfaces can cause routers to get stuck in the ExStart state. OSPF requires that both sides of a link have the same MTU to form a full adjacency.

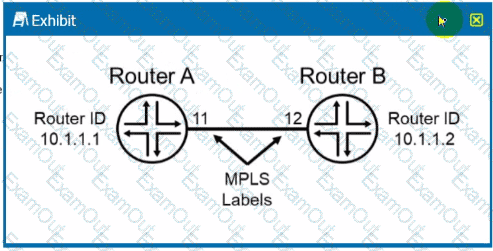

The adjacency SID in segment routing is advertised by one router to inform another about the label that should be used to forward traffic to it over a particular link. In this scenario, Router B would advertise an adjacency SID to Router A, which would be used by Router A to forward traffic to Router B. Based on the exhibit, the adjacency SID that Router B advertises to Router A would be 12.

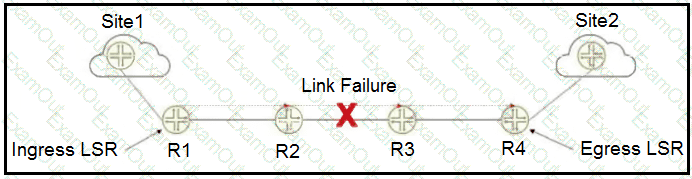

Upon a link failure in an RSVP-signaled LSP, the router upstream of the failure (R2) sends a PathTear message upstream to the ingress router (R1), and the router downstream of the failure (R3) sends a ResvTear message downstream to the egress router (R4). These messages signal the failure and initiate tear down of the LSP state in the respective directions.

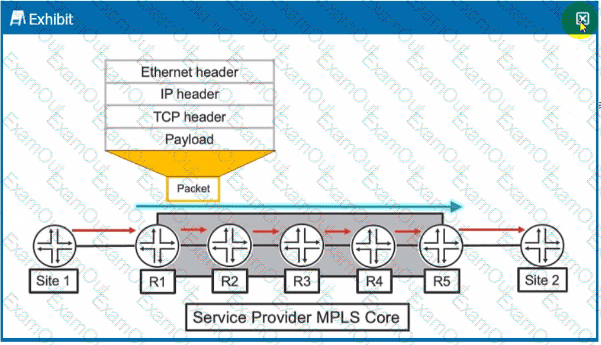

In MPLS (Multiprotocol Label Switching) networks, routers use label switching to forward packets. The first router at the edge of the MPLS network (R1) will perform a lookup in the mpls.0 table to determine the label to attach to the packet as it enters the MPLS network. This label informs the next routers in the MPLS network (like R2) on how to forward the packet. Internal MPLS routers, like R2, also perform lookups in their mpls.0 table to determine how to switch the packet toward its destination (label swapping). The inet.3 table is used for resolving next-hop information for labeled routes, but it's the mpls.0 table that is used for label switching decisions.

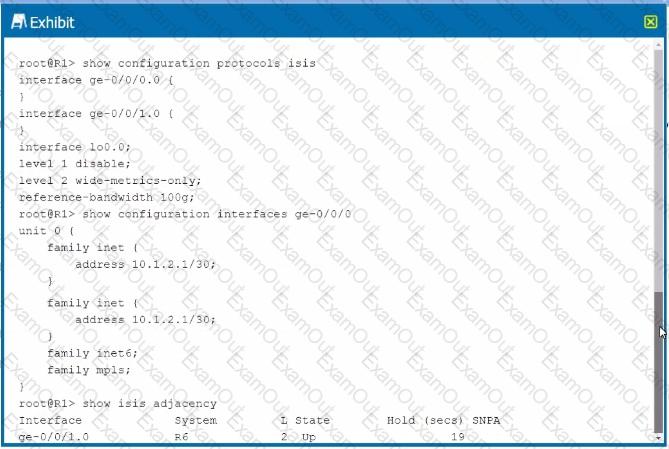

For IS-IS to form adjacencies, the 'family iso' statement must be configured on the interface. This is required because IS-IS operates over the connectionless network service (CLNS) and not over IP. Without the 'family iso' configuration, IS-IS cannot form adjacencies over the interface.

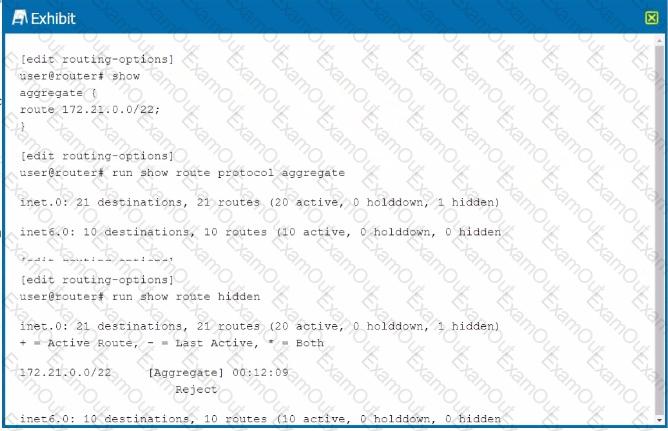

The exhibit shows an aggregate route configuration for the network 172.21.0.0/22, which would summarize the specific networks 172.21.0.0/24, 172.21.1.0/24, and 172.21.2.0/24. For an aggregate route to be active, it must have contributing routes in the routing table. If the route is hidden, it usually means there are no contributing routes that are active or the policy applied to the aggregate does not match any of the specific routes. Therefore, the first step in troubleshooting would be to verify that there are indeed active contributing routes for the aggregate to be valid.

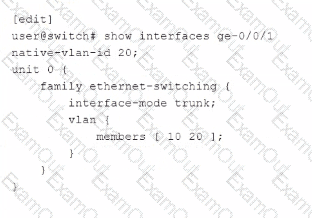

In the exhibit, the interface is configured with the native-vlan-id 20 parameter. This means that any untagged frames arriving on this interface will be associated with VLAN 20. The native VLAN serves as the default VLAN for untagged frames on a trunk port.

metric—Metric value. Range: 1 through 63, or 1 through 16,777,215 (if you have configured wide metrics) Default: 10 (for all interfaces except lo0), 0 (for the lo0 interface)

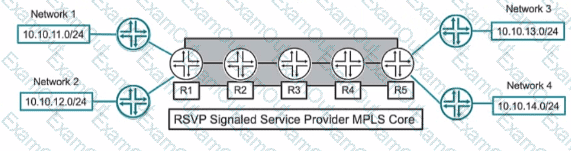

Given the RSVP Signaled Service Provider MPLS Core network shown in the exhibit, only a single Label Switched Path (LSP) is required to support all four networks because MPLS can use label stacking to multiplex multiple LSPs over a single physical path. Therefore, one LSP can be established through the MPLS core, and all networks can use this LSP with different label stacks.
