In OSPF, the Designated Router (DR) and Backup Designated Router (BDR) are elected based on the priority of the routers1. The router with the highest priority becomes the DR, and the router with the second highest priority becomes the BDR1. If there is a tie in priority, then the router with the highest Router ID is chosen1.

In this scenario, R2 has a higher priority (64) than R1 (32), so R2 will become the DR1. Since R1 has the second highest priority, it will become the BDR1. Therefore, option D is correct.

B is correct because the loops do not exist is one of the conditions that are verified by the receiving router to ensure that the received BGP route is valid. A loop in BGP means that a route has been advertised by the same AS more than once, which can cause routing instability and inefficiency1. To prevent loops, BGP uses the AS-path attribute, which lists the AS numbers that a route has traversed from the origin to the destination2. The receiving router checks the AS-path attribute of the received route and discards it if it finds its own AS number in the list2. This way, BGP avoids accepting routes that contain loops.

C is correct because the next hop is reachable is one of the conditions that are verified by the receiving router to ensure that the received BGP route is valid. The next hop is the IP address of the next router that is used to forward packets to the destination network3. The receiving router checks the next hop attribute of the received route and verifies that it has a valid route to reach it3. If the next hop is not reachable, the received route is not usable and is rejected by the receiving router3. This way, BGP ensures that only feasible routes are accepted.

A is correct because generated routes require a contributing route. A contributing route is a route that matches the destination prefix of the generated route and has a valid next hop1. A generated route is only installed in the routing table if there is at least one contributing route available2. This ensures that the generated route is reachable and useful. If there is no contributing route, the generated route is not added to the routing table2.

B is correct because generated routes show a next hop in the routing table. A generated route inherits the next hop of its primary contributing route, which is the most preferred route among all the contributing routes2. The next hop of the generated route can be either an IP address or an interface name, depending on the type of the contributing route2. The next hop of the generated route can also be modified by a routing policy3.

C is correct because Layer 2 control traffic is permitted on the secondary link of a redundant trunk group (RTG) on EX Series switches. Layer 2 control traffic includes protocols such as LLDP, LACP, and STP, which are used to exchange information and coordinate actions between switches1. According to the Juniper Networks documentation2, Layer 2 control traffic is allowed to pass through both the active and the secondary links of an RTG, but data traffic is only forwarded through the active link. This allows the switches to maintain their Layer 2 adjacencies and monitor the link status on both links.

D is correct because if the active link fails, then the secondary link automatically takes over in an RTG on EX Series switches. An RTG consists of two trunk links: an active or primary link, and a secondary or backup link2. The active link is used to forward data traffic, while the secondary link is in standby mode. If the active link fails or becomes unavailable, the secondary link immediately transitions to a forwarding state and takes over the data traffic without waiting for normal STP convergence2. This provides fast recovery and redundancy for the network.

Option A is correct. Creating multiple areas in OSPF can help to reduce the convergence time . This is because changes in one area do not affect other areas, so fewer routers need to run the SPF algorithm in response to a change.

Option D is correct. Creating multiple areas in OSPF can help to reduce Link State Advertisement (LSA) flooding across the network. This is because LSAs are not flooded out of their area of origin.

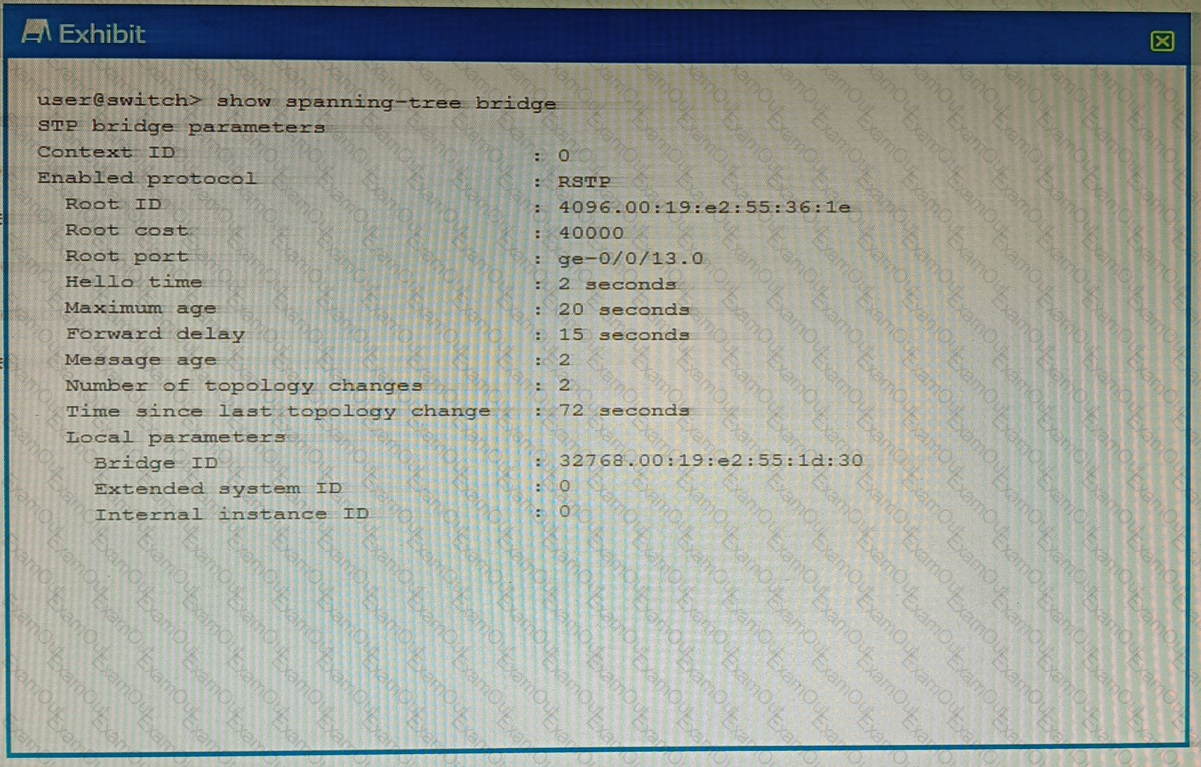

 In a Rapid Spanning Tree Protocol (RSTP) topology, the root bridge is determined by the switch with the lowest bridge priority value12. If all switches have the same priority, then the root bridge is assigned to the switch whose MAC address’s hex value is the lowest2. The default bridge priority value is 3276832. However, without the actual exhibit, it’s difficult to definitively determine which device is the root bridge. But based on the options provided, if we assume that the local device has a lower bridge priority or a lower MAC address than other devices in the network, then it could be considered as the root bridge for this RSTP topology45.

A firewall filter is a configuration that defines the rules that determine whether to forward or discard packets at specific processing points in the packet flow. A firewall filter can also modify the attributes of the packets, such as priority, marking, or logging. A firewall filter can be applied to various interfaces, protocols, or routing instances on a Juniper device1.

A firewall filter has a family attribute, which specifies the type of traffic that the filter can evaluate. The family attribute can be one of the following: inet, inet6, mpls, vpls, iso, or ethernet-switching2. The family inet firewall filter is used to evaluate IPv4 traffic, which is the most common type of Layer 3 traffic on a network.

To create a family inet firewall filter, you need to specify the appropriate match criteria and actions for each term in the filter. The match criteria can include various fields in the IPv4 header, such as source address, destination address, protocol, port number, or DSCP value. The actions can include accept, discard, reject, count, log, policer, or next term3.

To apply a firewall filter to Layer 3 traffic that is being sent between VLANs, you need to apply the filter to the appropriate IRB interface. An IRB interface is an integrated routing and bridging interface that provides Layer 3 functionality for a VLAN on a Juniper device. An IRB interface has an IP address that acts as the default gateway for the hosts in the VLAN. An IRB interface can also participate in routing protocols and forward packets to other VLANs or networks4.

Therefore, option C is correct, because you should create a family inet firewall filter with the appropriate match criteria and actions. Option D is correct, because you should apply the firewall filter to the appropriate IRB interface.

Option A is incorrect, because you should not create a family ethernet-switching firewall filter with the appropriate match criteria and actions. A family ethernet-switching firewall filter is used to evaluate Layer 2 traffic on a Juniper device. A family ethernet-switching firewall filter can only match on MAC addresses or VLAN IDs, not on IP addresses or protocols5.

Option B is incorrect, because you should not apply the firewall filter to the appropriate VLAN. A VLAN is a logical grouping of hosts that share the same broadcast domain on a Layer 2 network. A VLAN does not have an IP address or routing capability. A firewall filter cannot be applied directly to a VLAN; it must be applied to an interface that belongs to or connects to the VLAN6.

References:

1: Firewall Filters Overview 2: Configuring Firewall Filters 3: Configuring Firewall Filter Match Conditions and Actions 4: Understanding Integrated Routing and Bridging Interfaces 5: Configuring Ethernet-Switching Firewall Filters 6: Understanding VLANs

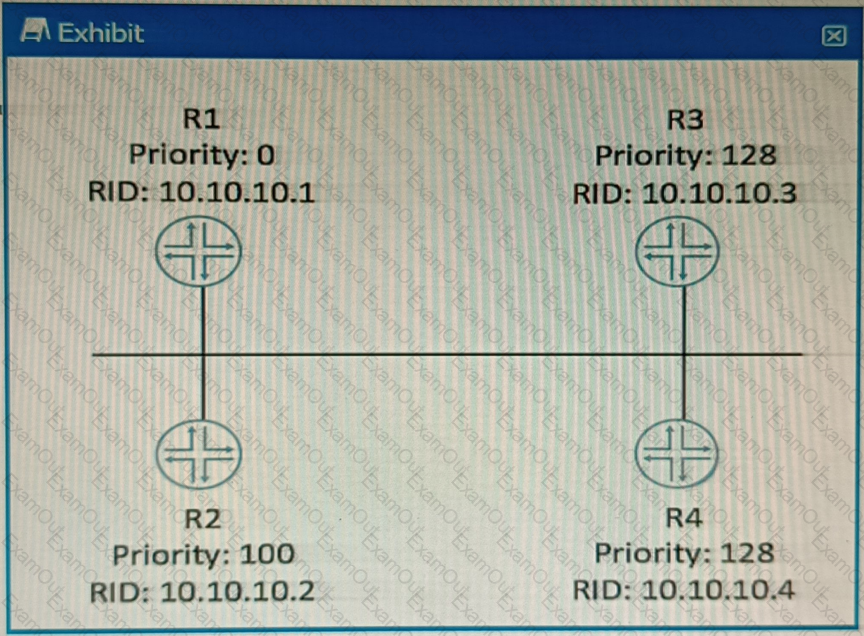

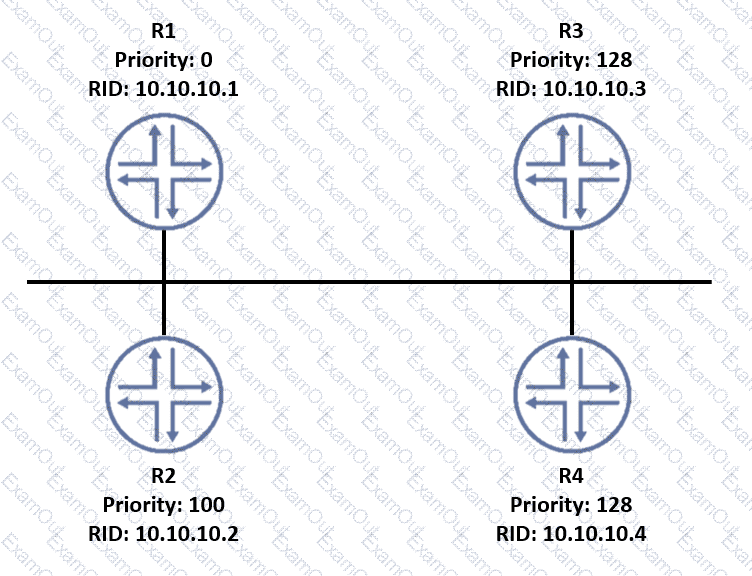

OSPF DR/BDR election is a process that occurs on multi-access data links. It is intended to select two OSPF nodes: one to be acting as the Designated Router (DR), and another to be acting as the Backup Designated Router (BDR).The DR and BDR are responsible for generating network LSAs for the multi-access network and synchronizing the LSDB with other routers on the same network1.

The DR/BDR election is based on two criteria: the OSPF priority and the router ID. The OSPF priority is a value between 0 and 255 that can be configured on each interface participating in OSPF. The default priority is 1. A priority of 0 means that the router will not participate in the election and will never become a DR or BDR. The router with the highest priority will become the DR, and the router with the second highest priority will become the BDR. If there is a tie in priority, then the router ID is used as a tie-breaker. The router ID is a 32-bit number that uniquely identifies each router in an OSPF domain.It can be manually configured or automatically derived from the highest IP address on a loopback interface or any active interface2.

In this scenario, all routers have the same priority of 1, so the router ID will determine the outcome of the election. The router IDs are shown in the exhibit as RID values. The highest RID belongs to R4 (10.10.10.4), so R4 will become the DR. The second highest RID belongs to R3 (10.10.10.3), so R3 will become the BDR.

References:

1:OSPF DR/BDR Election: Process, Configuration, and Tuning2:OSPF Designated Router (DR) and Backup Designated Router (BDR)

Option B is correct. Flooding is a mechanism used in Layer 2 bridging where the switch sends incoming packets to all its ports except for the port where the packet originated1. This is done when the switch doesn’t know the destination MAC address or when the packet is a broadcast or multicast1.

Option C is correct. Learning is another mechanism used in Layer 2 bridging where the switch learns the source MAC addresses of incoming packets and associates them with the port on which they were received23. This information is stored in a MAC address table, also known as a bridge table23.

Option A is incorrect. Blocking is a state in Spanning Tree Protocol (STP) used to prevent loops in a network2. It’s not a mechanism used in building and maintaining a Layer 2 bridge table2.

Option D is incorrect. Listening is also a state in Spanning Tree Protocol (STP) where the switch listens for BPDUs to make sure no loops occur in the network before transitioning to the learning state2. It’s not a mechanism used in building and maintaining a Layer 2 bridge table2.
