In the exhibit, the BGP routes are marked ashidden. This typically happens when the routes are not considered valid for use, but they remain in the routing table for reference. One common reason for BGP routes being hidden is that thenext hopfor these routes is unreachable.

Step-by-Step Breakdown:

BGP Next Hop:In BGP, when a route is received from a neighbor, thenext hopis the IP address that must be reachable for the route to be used. If the next hop is unreachable (i.e., the router cannot find a path to the next-hop IP), the route is marked as hidden.

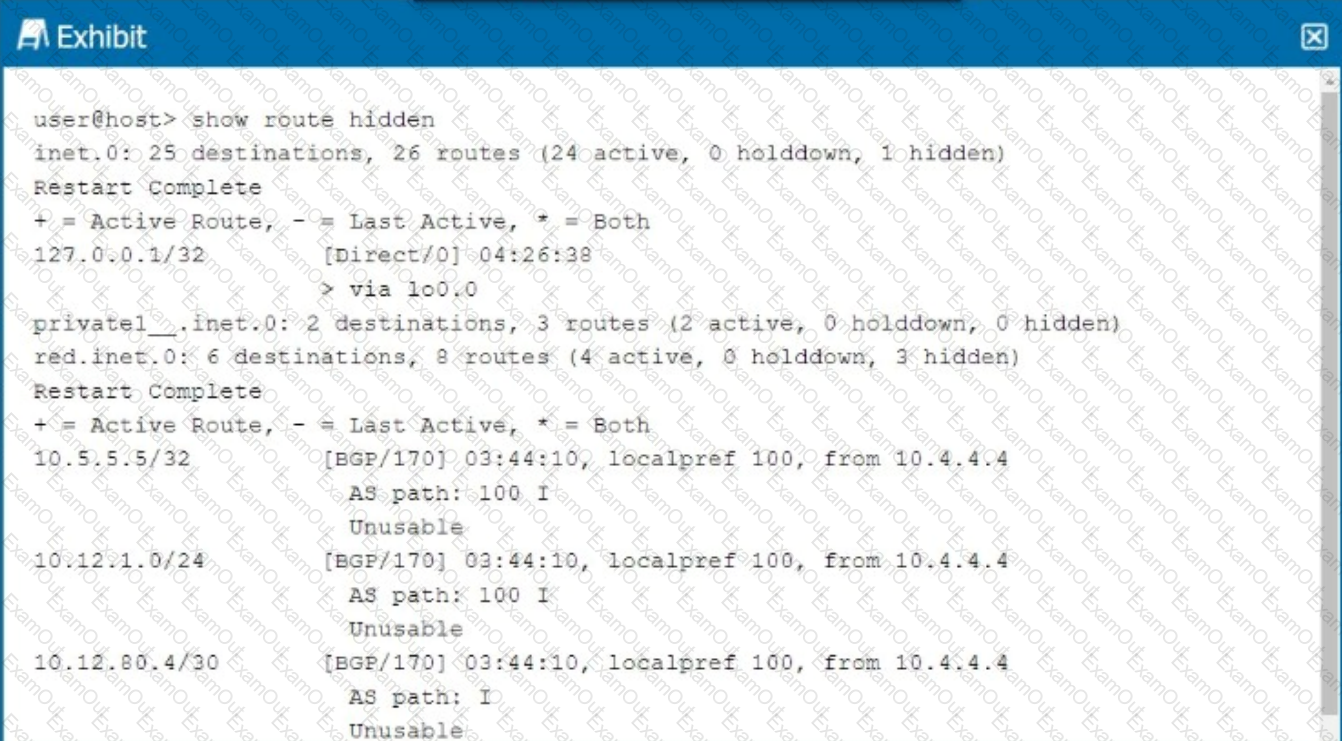

Analyzing the Exhibit:The exhibit shows that the BGP next hop for all hidden routes is 10.4.4.4. If this IP is unreachable, the BGP routes from that neighbor will not be considered valid, even though they appear in the routing table.

Verification:

Use the command show route 10.4.4.4 to check if the next-hop IP is reachable.

If the next-hop is not reachable, the BGP routes will be hidden. Resolving the next-hop reachability issue (e.g., fixing an IGP route or an interface) will allow the BGP routes to become active.

Juniper Reference:

Junos Command: show route hidden displays routes that are not considered for forwarding.

Troubleshooting: Check the next hop reachability for hidden BGP routes using show route .

When an OSPF (Open Shortest Path First) neighborship is stuck in the ExStart state, it usually points to a mismatch in Maximum Transmission Unit (MTU) settings between two routers trying to establish the adjacency. The ExStart state is where OSPF routers negotiate the master-slave relationship and exchange DBD (Database Description) packets.

Step-by-Step Breakdown:

OSPF Neighbor States: OSPF goes through several states to establish an adjacency with a neighbor:

Down: No hello packets have been received.

Init: Hello packets are received, but bidirectional communication isn't confirmed.

2-Way: Bidirectional communication is established.

ExStart: The routers are negotiating who will be the master and who will be the slave, and begin to exchange DBD packets.

Exchange: The routers start exchanging the database information.

Loading: The routers process the Link-State Advertisements (LSAs).

Full: The adjacency is fully established.

MTU Mismatch Issue:During the ExStart state, both OSPF routers must agree on their MTU values. If there is an MTU mismatch between the two routers, OSPF neighbors will fail to move from the ExStart to the Exchange state. The router with the larger MTU setting will not accept DBD packets from the router with a smaller MTU because the packets may exceed the smaller MTU size.

In Juniper devices, this behavior can be identified by examining the MTU settings using the show interfaces command and ensuring both routers have matching MTU configurations. To resolve this issue, either match the MTU settings on both routers or configure OSPF to ignore MTU mismatches using the command set protocols ospf ignore-mtu.

Juniper Reference:

Junos Command: show ospf neighbor helps diagnose neighbor states.

MTU Adjustment: set interfaces mtu can be used to set the MTU values correctly.

InOSPF (Open Shortest Path First), areas are used to segment a network into smaller, more manageable pieces to improve scalability. By dividing a network into areas, OSPF can reduce the size of thelink-state database (LSDB), which helps routers process updates more efficiently.

Step-by-Step Breakdown:

Purpose of OSPF Areas:OSPF areas allow for hierarchical routing within the OSPF domain. Routers in the same area have identical LSDBs, but routers in different areas do not exchange full link-state information. Instead, they exchange summarized routes, which reduces the LSDB size and CPU/memory usage.

Benefits:Reducing the LSDB size improves scalability and ensures faster convergence in larger networks. Area 0 is the backbone area, and all other areas must connect to it, forming a hierarchical structure.

Juniper Reference:

OSPF Configuration: Areas in OSPF are configured to optimize network performance by limiting the scope of link-state advertisements (LSAs) to within an area.

IBGP (Internal Border Gateway Protocol)is used to exchange routing information betweenrouters within the same AS (Autonomous System).

Step-by-Step Breakdown:

TTL of 255:

By default, IBGP sessions are established with aTTL (Time to Live)value of255. This allows IBGP neighbors to communicate over multiple hops within the AS without requiring any additional configuration.

Full Mesh Requirement:

IBGP requires alogical full meshbetween all IBGP routers to ensure that routing information is fully distributed within the AS. Since IBGP does not propagate routes learned from one IBGP peer to another by default, a full mesh topology is needed unlessroute reflectorsorBGP confederationsare used.

Juniper Reference:

IBGP Full Mesh: Juniper recommends using route reflectors in large networks to simplify IBGP full-mesh requirements.

IP fabricsare Layer 3-centric network designs often used in data centers due to their scalability, efficient routing, and loop-free architecture.

Step-by-Step Breakdown:

Layer 3 Load Balancing:IP fabrics useEqual-Cost Multipath (ECMP)to distribute traffic across multiple paths, providing effective load balancing and improving bandwidth utilization. This capability is absent in traditional Layer 2 networks, which do not support ECMP for routing decisions.

Layer 2 Loops:Layer 2 networksare prone to loops because of the lack of TTL (Time-to-Live) mechanisms. Spanning Tree Protocol (STP) is required to prevent loops, but it can introduce inefficiencies by blocking links. In contrast, IP fabrics based on Layer 3 protocols are loop-free and do not need STP.

Juniper Reference:

IP Fabric: Juniper’s IP fabric solutions offer efficient Layer 3 routing with built-in load balancing and loop prevention, making them ideal for modern data center architectures.

In Junos OS, the default route preference for a static route is 5. Route preference values are used to determine which route should be installed in the routing table when multiple routes to the same destination are available.

Step-by-Step Breakdown:

Static Route Preference:

A static route, by default, has a preference of 5, making it a highly preferred route. Lower preference values are more preferred in Junos, meaning static routes take precedence over most dynamic routing protocol routes, such as OSPF (preference 10) or BGP (preference 170).

Route Preference:

Route preference is a key factor in the Junos routing decision process. Routes with lower preference values are preferred and installed in the forwarding table.

Juniper Reference:

Static Routes: In Junos, the default preference for static routes is 5, making them more preferred than most dynamic routes.

Graceful Restart (GR)is a feature that allows a router to maintain forwarding even when the routing process (e.g., the rpd process in Junos) is restarting, minimizing disruption to the network.

Step-by-Step Breakdown:

Graceful Restart Function:During aGR event, the forwarding plane continues to forward packets based on existing routes, while the control plane (rpd process) is restarting. This prevents traffic loss and maintains routing stability.

Minimizing Disruptions:GR is particularly useful in ensuring continuous packet forwarding during software upgrades or routing protocol process restarts.

Juniper Reference:

Graceful Restart in Junos: GR ensures high availability by maintaining forwarding continuity during control plane restarts, enhancing network reliability.

When creating aLAG (Link Aggregation Group)in Junos, theduplex settingsandlink speedmust be the same across all member interfaces.

Step-by-Step Breakdown:

LAG Overview:A LAG combines multiple physical interfaces into a single logical interface to increase bandwidth and provide redundancy. All member links must act as a single cohesive unit.

Interface Requirements:

Duplex: All member interfaces must operate in the same duplex mode (either full-duplex or half-duplex). Mismatched duplex settings can cause performance issues, packet drops, or interface errors.

Link Speed: All interfaces in the LAG must have the same link speed (e.g., all interfaces must be 1 Gbps or 10 Gbps). Mismatched speeds would prevent the interfaces from functioning correctly within the LAG.

Configuration and Validation: Ensure that all member interfaces have identical settings before adding them to the LAG. These settings can be checked using the show interfaces command, and the LAG can be configured using:

set interfaces ae0 aggregated-ether-options link-speed 10g

set interfaces ge-0/0/1 ether-options 802.3ad ae0

Juniper Reference:

LAG Configuration: Duplex and link speed must be consistent across member interfaces to ensure proper LAG operation in Juniper devices.

AnIP fabricis a network architecture commonly used in data centers to provide scalable, high-throughput connectivity using aspine-leaf topology.

Step-by-Step Breakdown:

Layer 3 Routing Protocol:An IP fabric relies on aLayer 3 routing protocol, typically BGP or OSPF, to provide routing between the leaf and spine switches. This ensures efficient traffic forwarding across the network.

Single Connection Between Spine and Leaf:In an IP fabric, each leaf switch connects toevery spine switchwith a single connection. This ensures that traffic between any two leaf switches can travel through the spine layer in just two hops.

Juniper Reference:

Spine-Leaf Design: Juniper’s IP fabric implementations are designed for scalability and low-latency routing, often using protocols like BGP for Layer 3 control.
