Free Practice Questions for Juniper JN0-232 Exam

The simplest and most direct method of verifying Web filtering effectiveness is to attempt to access permitted and blocked URLs .

Option A: Installing a local NGWF server is not required; NGWF queries Juniper’s cloud.

Option B: File extension checking applies to content filtering, not web filtering.

Option C: Examining policies shows configuration but does not verify enforcement.

Option D: Correct. Attempting to browse URLs that should be blocked or allowed confirms the Web filtering policy is effective.

Correct Method: Attempt to access permitted or blocked URLs

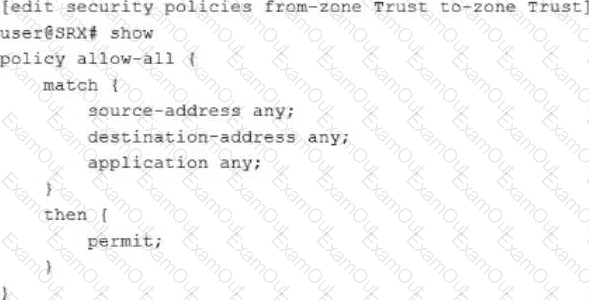

The exhibit shows a policy configured under from-zone Trust to-zone Trust. Because the source zone and destination zone are the same, this is an intra-zone security policy. An inter-zone policy would have different source and destination zones, such as Trust to Untrust. A global policy does not require the same specific from-zone and to-zone context in the same way as a zone-based policy. A default policy is the implicit final behavior used when no configured security policy matches. Junos security policies enforce rules for transit traffic using zone context, source address, destination address, application, and action. Since both zone references are Trust, the displayed policy is clearly an intra-zone policy.

In Junos OS, traffic is classified into three main categories:

Transit traffic:

Defined as traffic that enters one interface and exits another interface .

It is handled entirely in the forwarding plane (Packet Forwarding Engine) .

Example: User data packets moving between trust and untrust zones.

Correct → Option A .

Exception traffic:

Traffic requiring processing by the Routing Engine (control plane) , such as routing updates or management traffic.

Matches Option C/D , but that is not transit traffic.

Control traffic:

Management or routing-related, handled by the control plane.

Rate-limiting (Option B):

This applies specifically to exception traffic to protect the Routing Engine, not to transit traffic.

Correct Statement: Transit traffic is traffic that is processed solely through the forwarding plane.

When a new packet arrives that does not match an existing session, the SRX performs full flow-based processing. After ingress zone determination, the firewall must know the destination zone to evaluate security policies.

The SRX determines the egress zone by performing a route lookup on the packet’s destination IP address.

The routing decision identifies the outgoing interface, and the zone associated with that interface becomes the egress zone .

Session lookup (Option A) happens first but is only useful for existing sessions.

Destination port (Option B) is used for application identification, not zone determination.

Ingress zone properties (Option D) cannot determine the egress zone.

SSH Access (Option B): Host-inbound-traffic controls traffic destined to the SRX device itself (management/control plane). If host-inbound-traffic is not configured to allow SSH, then SSH access to the firewall is blocked.

Explicit Zone Configuration (Option D): For user-defined security zones, host-inbound-traffic must be explicitly configured to allow specific services (SSH, ICMP, SNMP, etc.).

Console Access (Option A): Console access is not controlled by host-inbound-traffic. Console access is always available directly.

Management Zone (Option C): In the management functional zone, host-inbound-traffic is implicitly allowed for management services, so this is not explicitly required.

Correct Statements: B and D

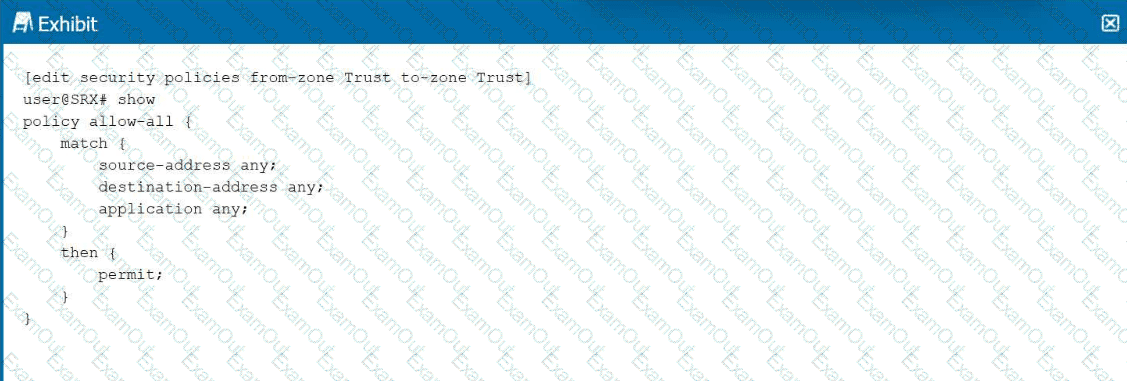

From the exhibit configuration:

[edit security policies from-zone Trust to-zone Trust]

policy allow-all {

match {

source-address any;

destination-address any;

application any;

}

then {

permit;

}

}

The from-zone and to-zone are both set to Trust → Trust .

This means the policy is governing traffic within the same zone .

Policies within the same zone are called intra-zone policies .

Analysis of options:

Global policy (A): Applied universally across zones, not zone-specific. Not the case here.

Inter-zone policy (B): Applies between two different zones (e.g., Trust → Untrust). Not the case here since both zones are Trust.

Intra-zone policy (C): Correct. Applies to traffic within the same zone (Trust → Trust).

Default policy (D): The implicit deny-all policy that applies when no policy matches. Not shown in this exhibit.

Correct Policy Type: Intra-zone policy

Traceoptions in the security flow hierarchy provide debugging for how packets are processed in the flow module.

The correct flag to capture detailed packet-level debugging is packet-dump (Option A) . This outputs packet-level trace messages showing flow decisions, NAT processing, and policy matches.

general (Option B): Provides basic flow trace information but not full packet inspection.

state (Option C): Tracks flow state transitions, less detailed than packet-dump.

basic-datapath (Option D): Provides high-level datapath debugging, not detailed flow troubleshooting.

Correct Flag: packet-dump

The highlighted portion in the exhibit is:

then {

permit;

}

In Junos OS security policy configuration, the then statement defines the policy action . The action tells the SRX Series Firewall what to do with traffic after it matches the policy conditions.

A security policy normally contains these major components:

Zone context: from-zone Trust to-zone Untrust

Policy name: policy Permit-HTTP

Match criteria: source address, destination address, and application

Policy action: then permit, then deny, or then reject

In the exhibit, the highlighted section is not the zone context, policy name, or match criteria. It is the action section that permits the matched HTTP traffic.

Global policies (Option D): Evaluated before zone-based policies. They allow centralized control and can apply across all zones. Perfect for Internet-to-private traffic that must be enforced before other rules.

Routing policy (Option A): Controls routing decisions, not traffic forwarding/security.

Default policy (Option B): Denies all traffic by default, but cannot be customized for early evaluation.

Zone policy (Option C): Zone-based policies apply after global policies and are limited to specific zone pairs.

Correct Policy Type: Global policy

Transit traffic is defined as traffic that passes through the SRX (not destined to the Routing Engine). To capture transit traffic:

Sampling and port mirroring (Option D) are the correct supported methods for capturing or exporting transit traffic. Sampling allows captured packets to be sent to a file or collector, while port mirroring sends a copy to a monitoring interface.

Option A: Firewall filters on an egress interface cannot directly capture packets; they can only count, accept, discard, or sample. Sampling itself is separate.

Option B: Loopback interface (lo0) is for control-plane traffic, not transit traffic.

Option C: tcpdump is not supported on SRX as a tool for capturing transit packets; the operational command monitor traffic interface is used, but sampling/port mirroring is the recommended scalable approach.

Correct Method: Sampling and port mirroring
