Free Practice Questions for Juniper JN0-232 Exam

Security Director is Juniper’s centralized platform for managing security policies across SRX Series physical and virtual firewalls. Juniper documentation states that Security Director provides centralized security policy lifecycle management, including firewall, Content Security, IPS, VPN, and NAT policy workflows. JIMS, the Juniper Identity Management Service, supports user identity and IP address mapping for SRX Series devices, enabling user firewall and identity-aware policy decisions. In this exam context, Security Director provides the policy management platform, while JIMS supplies identity information used by user-based security policies. Juniper Secure Analytics is primarily analytics and log correlation, not SRX policy management. Juniper Mist can support some cloud-managed networking functions, but it is not the JN0-232 security policy management product paired with SRX policy administration.

The packet processing order in SRX with NAT and policies is:

Destination NAT (applies first, for inbound traffic).

Security Policy Evaluation (after destination NAT, before source NAT).

Source NAT (applies last, for outbound traffic).

Option A: Incorrect. Policies are not evaluated before destination NAT.

Option B: Correct. Security policies are evaluated before source NAT but after destination NAT. So in terms of order, policies are processed prior to source NAT.

Option C: Incorrect. Policies are not evaluated before source NAT — they are evaluated before source NAT is applied .

Option D: Correct. Policies are evaluated after destination NAT .

Correct Statements: B and D

When two networks use the same private IP address ranges, conflicts occur. The solution is to use address translation techniques on the SRX:

NAT (Network Address Translation): Translates private IP addresses to another IP range, enabling connectivity between overlapping private networks.

PAT (Port Address Translation): Extends NAT by allowing multiple private IPs to share one or a few public IPs using different port numbers. This is especially useful when there is a limited pool of public IP addresses.

Other options:

IDP (Option A): Intrusion Detection and Prevention, unrelated to address overlap.

BGP (Option C): A routing protocol, but it does not solve overlapping IP addressing problems.

Correct Features: NAT and PAT

NextGen Web Filtering (NGWF) requires SSL proxy functionality to inspect HTTPS traffic. To enable NGWF:

Option B: You can generate a self-signed certificate for SSL proxy functionality (or import a CA-signed certificate, but the course emphasizes self-signed for lab/demo purposes).

Option D: You must configure an SSL proxy profile so that HTTPS traffic can be decrypted and inspected.

Option A: A CA-signed certificate may be used in production but is not strictly required to enable NGWF.

Option C: SSL initiation profiles are used for outbound SSL inspection initiated by the SRX, not for NGWF traffic interception.

Correct Actions: Generate a self-signed certificate, Configure an SSL proxy profile

The session output shows the original flow entering with source address 10.20.30.40 and destination address 203.0.113.1. The return or translated side shows the source address represented as 192.0.2.1 while the destination address remains 203.0.113.1. This indicates source NAT behavior because the original source IP address is translated to a new source IP address. There is no destination NAT in the exhibit because the destination IP address does not change. In Junos source NAT, the firewall translates the source address, commonly to an interface address or address pool, while preserving the destination address unless another NAT type is also configured. Therefore, the correct statements are that the destination remains unchanged and the source address is translated.

In Junos OS, NAT rules are evaluated in top-down order . When a new rule is added, it is placed at the bottom of the rule set by default.

To move a rule to the top of the rule set, the command is:

set security nat source rule-set < name > rule < rule-name > top

Option A (top): Correct. Moves the specified rule to the top of the list.

Option B (run): Used to execute operational commands, not rule reordering.

Option C (up): Not valid for reordering NAT rules.

Option D (insert): Not a supported NAT reordering command in Junos.

Correct Command: top

Junos OS uses a modular software architecture. Instead of one monolithic process controlling all functions, Junos separates major functions into individual protected processes, such as routing, interface control, management, chassis control, and Packet Forwarding Engine communication. This separation improves operational stability because a failure in one process has little or no effect on other software processes. Juniper’s architecture documentation explains that Routing Engine software functions run as separate processes and that this modularity provides fault isolation. Therefore, Junos is built using independent software processes, and individual processes can be restarted with limited impact on the rest of the system. Options A and C are incorrect because they describe tightly coupled behavior, which is opposite to Junos modular design.

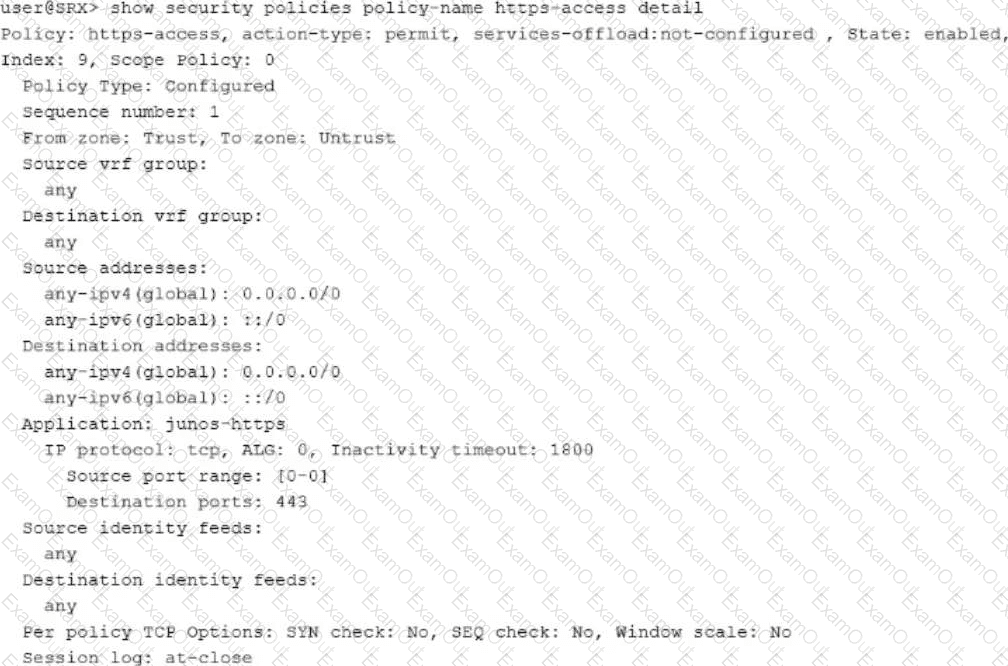

The exhibit shows From zone: Trust, To zone: Untrust, which identifies the policy as a zone-based security policy. It also shows the policy action as permit and the application as junos-https, with TCP destination port 443. Therefore, the policy permits HTTPS traffic. The displayed inactivity timeout is 1800 seconds, which is the normal value shown for predefined TCP applications such as HTTPS, so it does not prove a non-default timeout. The exhibit also shows sequence number 1, not sequence number 2, so it is not the second policy in the list. Junos security policies are configured in a from-zone to to-zone context and match traffic by criteria such as source address, destination address, and application before applying the configured action.

License Requirement (Option B): NextGen Web Filtering (NGWF) is a licensed feature on SRX devices. Without a license, the service cannot operate.

Local vs. Cloud Lists (Option C): NGWF checks local block/allow lists first . If the URL does not match locally, the request is then checked against the Juniper cloud database.

Option A: Incorrect, since the cloud is only consulted if the URL is not in the local list.

Option D: Incorrect, as NGWF requires a valid subscription/license.

Correct Statements: NGWF requires a license, and it checks local lists before cloud lookup.

NAT rule processing on SRX devices follows a deterministic order:

Top-to-bottom order (Option C): NAT rules are always evaluated in the order they appear in the configuration, starting at the top.

First-match wins (Option B): Once a packet matches a NAT rule, processing stops.

Option A: Incorrect. Not all rules are processed; evaluation stops at the first match.

Option D: Incorrect. NAT rules are never processed bottom-to-top.

Correct Statements: NAT rule processing stops at the first match, and NAT rules are processed top-to-bottom.
