The Routing Engine (RE) in a Junos device serves as the centralized intelligence and management hub, primarily responsible for the control and management planes of the system. In this capacity, the RE is tasked with processing routing updates, such as OSPF Link State Advertisements (LSAs) or BGP Update messages. These updates are vital for the RE to maintain the Routing Information Base (RIB), calculate the shortest paths, and subsequently populate the Forwarding Information Base (FIB) which is then pushed to the Packet Forwarding Engine (PFE).

Furthermore, the Routing Engine handles all local management traffic. This category encompasses administrative access through the Command Line Interface (CLI) via SSH or Telnet, SNMP queries from network management systems, and system logging processes. Because the RE runs the Junos OS kernel, it must directly interpret and respond to these management-level requests to ensure the device remains configurable and observable. Conversely, transit traffic—the data passing through the device from one ingress port to an egress port—is offloaded to the PFE to be handled at wire speed. While the PFE manages the heavy lifting of data forwarding and Class of Service (CoS) application, the RE remains focused on high-level protocol maintenance and system administration, ensuring that control plane stability is maintained even under heavy traffic loads. Reference: Junos OS Fundamentals, Control Plane Functions, Routing Engine Traffic.

==========

In networking architecture, point-to-point (P2P) links are used to interconnect two Layer 3 devices, such as a pair of Juniper MX series routers. Because these links only involve two endpoints, using a large subnet mask would result in wasted IP addresses. The standard historical prefix for a P2P link that provides exactly two usable host addresses is /30.

A /30 subnet mask (255.255.255.252) reserves 2 bits for the host portion. Applying the usable host formula ($2^2 - 2$) results in 2 usable addresses. In the case of 192.168.1.0/30:

192.168.1.0 is the Network Address.

192.168.1.1 is the first usable host address (assigned to Router A).

192.168.1.2 is the second usable host address (assigned to Router B).

192.168.1.3 is the Broadcast Address.

While modern Junos OS versions also support /31 masks for point-to-point links (which eliminate the network and broadcast address overhead to provide two hosts), the /30 mask remains the classic and most widely recognized answer for providing " only two usable host addresses " within the standard subnetting framework. Using /30 ensures compatibility across all legacy and multi-vendor environments while precisely meeting the connectivity requirements of a dedicated link between two interfaces.

The Junos Command Line Interface (CLI) is structured into two primary hierarchical modes: operational mode and configuration mode. Operational mode is the default entry point when a user logs into the device, signified by the > prompt. This mode is designed for monitoring the health of the device, troubleshooting network issues, and executing system-level maintenance tasks. Specifically, an administrator uses operational mode to verify the version of Junos OS currently active on the device using the show version command.

Additionally, system-level administrative actions that do not involve modifying the device ' s persistent configuration logic are performed within the operational mode. This includes requesting the system to reboot or halt via the request system hierarchy of commands. In contrast, tasks that involve manipulating the configuration database—such as committing proposed changes or rolling back to a previous configuration version—require the user to transition into configuration mode, indicated by the # prompt. Understanding this distinction is vital for efficient navigation of the Junos CLI; while operational mode provides the tools to observe the system and manage its physical state, configuration mode is reserved for altering the logical parameters and routing policies that govern device behavior. Reference: User Interfaces, CLI Modes, Operational Mode Commands.

==========

IPv6 link-local addresses, which are identified by the fe80::/10 prefix, are a mandatory component of the IPv6 architecture. The primary purpose of a link-local address is to enable immediate communication between devices located on the same local network segment (the same " link " ) without the requirement for a global unicast address or an external routing infrastructure. These addresses are non-routable, meaning they are never forwarded by a router to another network segment.

Every IPv6-enabled interface on a Junos device automatically generates a link-local address, typically derived from the interface ' s MAC address using the EUI-64 format or a stable privacy algorithm. These addresses are essential for several core functions: they are used by the Neighbor Discovery Protocol (NDP) to resolve MAC addresses, they serve as the source address for routing protocol adjacency formation (such as OSPFv3 or RIPng), and they are frequently used as the next-hop address in IPv6 routing tables. While they do not provide Layer 2 connectivity themselves (which is the role of the MAC address), they provide the necessary Layer 3 link-level presence required for nodes to discover one another and communicate across the physical medium before any global addressing is configured.

Junos OS incorporates a robust configuration versioning and recovery system designed to protect against configuration errors and human oversight. A key feature of this system is that rollback files are stored automatically by the device after each successful commit. These files represent a historical record of previous active configurations. By default, the system maintains a set number of these files, allowing an administrator to revert to a previous state (e.g., rollback 1) if the most recent changes result in unexpected network instability.

Another critical safety mechanism is the behavior associated with the commit confirmed command. If an administrator issues this command but fails to provide a subsequent confirmation within a designated timeframe (defaulting to 10 minutes), the system assumes a loss of management connectivity. Consequently, the rollback configurations are applied automatically after the commit confirmed timeout to restore the previous known-good state. This is an essential best practice for remote configuration management. It is important to note that rollback 0 refers to the currently active configuration, not the factory default, and that while Junos supports maintaining a large number of rollback files, the primary operational benefit lies in the automated storage and confirmation-based recovery processes that ensure the device remains reachable and stable. Reference: Configuration Basics, Rollback Configurations, Commit Confirmed Logic.

==========

Comprehensive and Detailed 150 to 250 words of Explanation From: The Transmission Control Protocol (TCP) is a core transport-layer protocol within the TCP/IP suite designed to provide a highly reliable, connection-oriented service. Unlike the User Datagram Protocol (UDP), which is connectionless and best-effort, TCP ensures that data is delivered accurately and in the correct order. A defining characteristic of TCP is its use of a three-way handshake to establish a session. This process involves the exchange of SYN, SYN-ACK, and ACK segments, which synchronizes sequence numbers between the two endpoints and ensures both hosts are ready for data transfer.

Furthermore, TCP provides reliable, ordered delivery by utilizing sequence numbers and acknowledgments. Each data segment is assigned a sequence number; the receiving host uses these numbers to reassemble the data in its original order, even if segments arrive out of sequence due to network jitter or multiple paths. If a segment is lost, the lack of a timely acknowledgment triggers a retransmission, guaranteeing that the application receives all data. TCP does not provide fixed latency guarantees, as its error-recovery mechanisms can introduce delays. Additionally, TCP is a unicast-only protocol and does not support broadcasting on Ethernet. Reference: Networking Fundamentals, Transport Layer Protocols, TCP vs. UDP.

==========

In Junos OS, the configuration database is designed with a robust versioning system that facilitates rapid recovery from administrative errors. Every time a commit command is successfully executed, the system automatically archives the previous active configuration and assigns it a " rollback " index. The rollback command is used within configuration mode to revert the candidate configuration to a previously saved state.

The indices are zero-based, where rollback 0 represents the currently active configuration that was just committed. To restore the configuration that was functional immediately before the most recent, problematic commit, the administrator must use rollback 1. This command replaces the current candidate configuration with the contents of the last known working state. It is important to note that executing rollback 1 only populates the candidate buffer; to make this previous configuration active and restore connectivity, the administrator must subsequently issue the commit command. This mechanism is a cornerstone of Junos OS ' s commitment to high availability and operational resilience, allowing for nearly instantaneous restoration of services without the need for manual line-by-line configuration edits during a network outage.

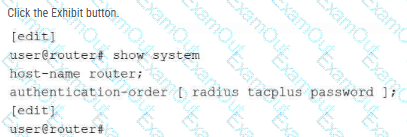

In the Junos OS architecture, the authentication-order statement within the [edit system] hierarchy defines the sequence in which the device attempts to validate user credentials against external and internal databases. The order specified in the exhibit is [ radius tacplus password ] , meaning the device first queries the RADIUS server, followed by the TACACS+ server, and finally the local password database.

A critical distinction in Junos authentication logic is the difference between a server being " unavailable " and a server " rejecting " a user. If an authentication server responds with an explicit access-reject (meaning it received the request but the credentials were invalid), the authentication process terminates immediately to maintain security integrity. However, if the server is unreachable or fails to respond within the configured timeout period (unavailable), the Junos Control Plane automatically falls back to the next method in the defined sequence. In this specific scenario, since the RADIUS server is unavailable, the device will proceed to attempt authentication using the TACACS+ server. If that were also unavailable, it would finally check the local password database. This fallback mechanism ensures that administrators can still access the device even during external server outages, provided they have a local account configured as the final method in the list.

The load command in Junos OS provides several operational methods for importing configuration data into the candidate buffer. When an administrator needs to perform a " clean slate " update—where the objective is to completely replace the existing candidate configuration with a new hierarchical file—the override option is the correct tool. Unlike load merge, which blends new data with the existing configuration, or load replace, which only updates specifically tagged sections, load override discards every statement currently in the candidate configuration and substitutes it entirely with the new content.

Using the terminal keyword in conjunction with override allows the architect to paste a large hierarchical configuration directly into the Command Line Interface (CLI). This is the most efficient method for applying validated templates, restoring full system backups, or migrating configurations between devices without having to manually delete existing parameters. After the data is pasted and the process is finalized (typically with a Ctrl+D sequence), the Junos OS kernel validates the new candidate configuration against the device ' s hardware and software capabilities. To make these changes active and operational, a subsequent commit command must be executed. This comprehensive replacement mechanism ensures configuration integrity by eliminating any potential remnants of previous, unwanted settings that might conflict with the new deployment.
